U3003
>>
U3003:16
>>
Blind Spot Monitoring (BSM)
Blind Spot Monitoring (BSM)

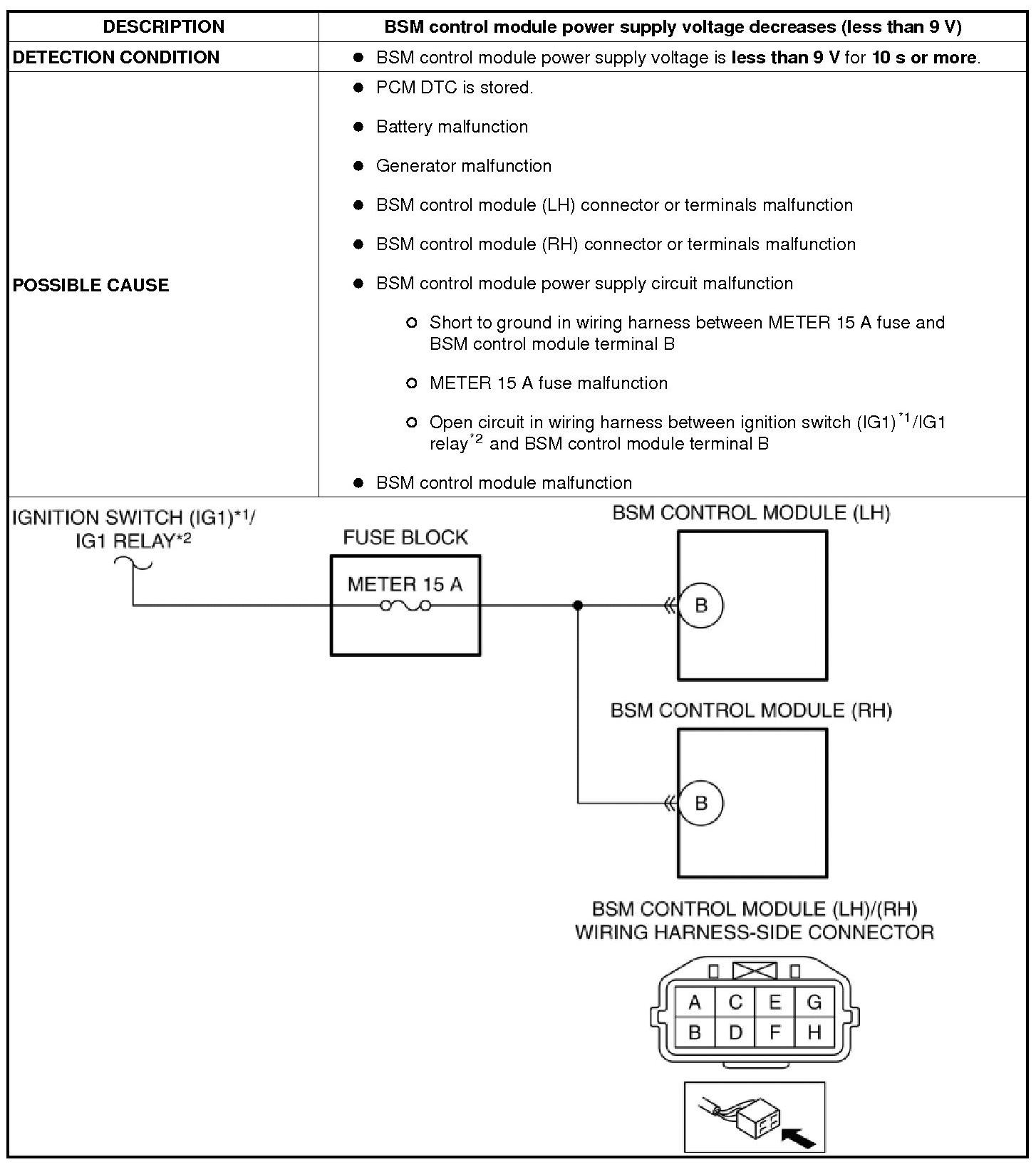

DTC U3003:16 [BLIND SPOT MONITORING (BSM)]
*1
Vehicles without advanced keyless entry and push button start system
*2
Vehicles with advanced keyless entry and push button start system

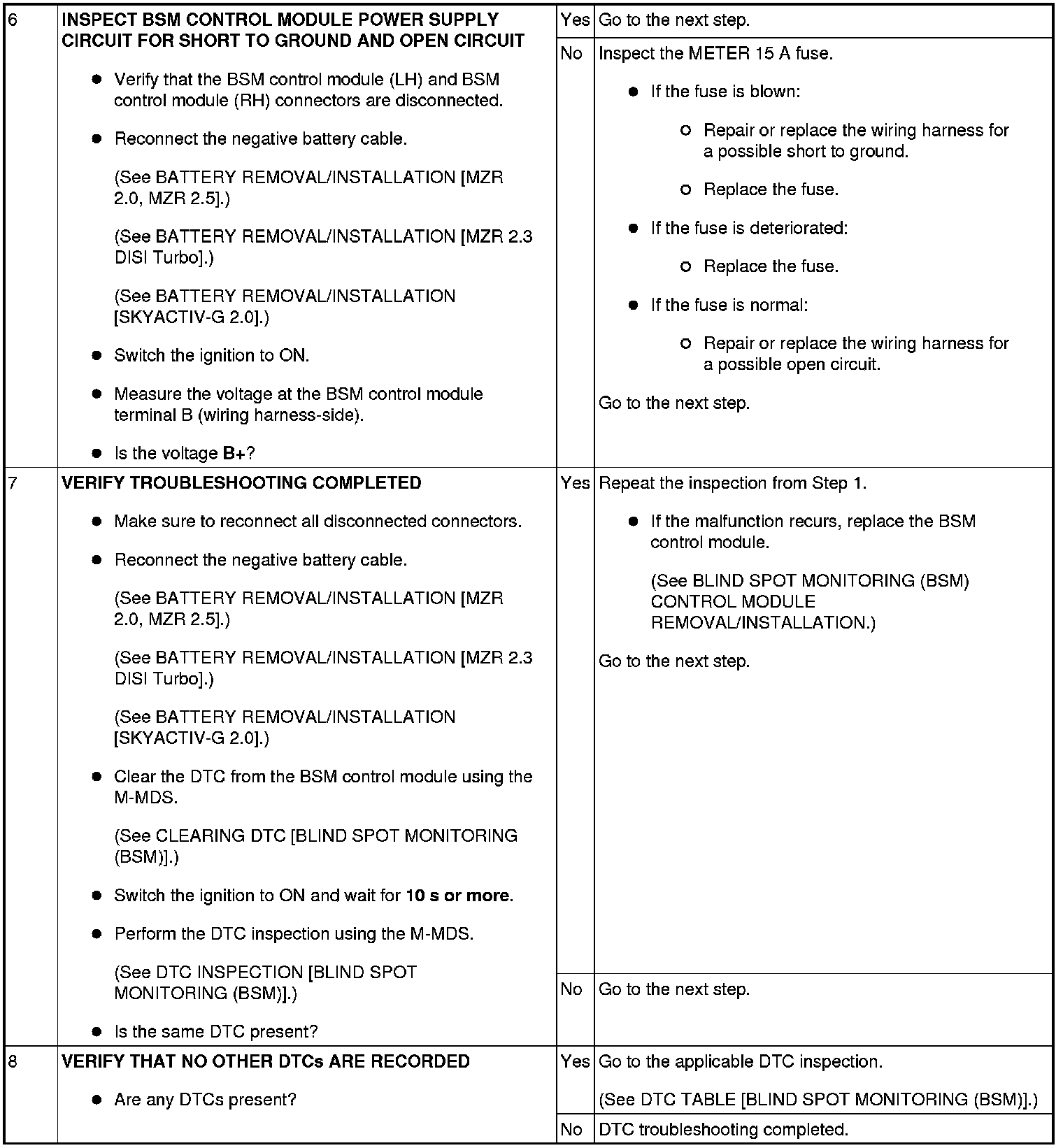

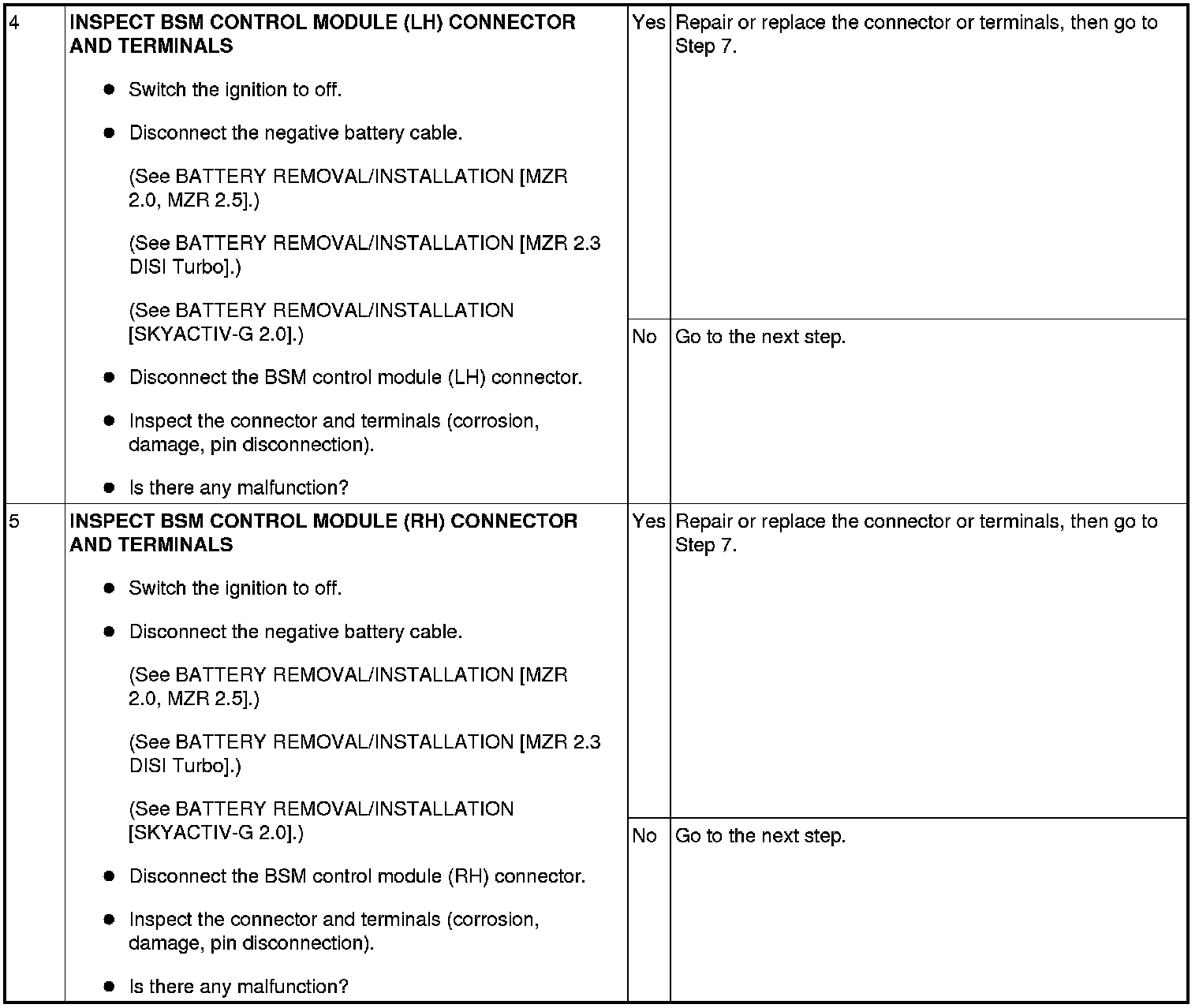

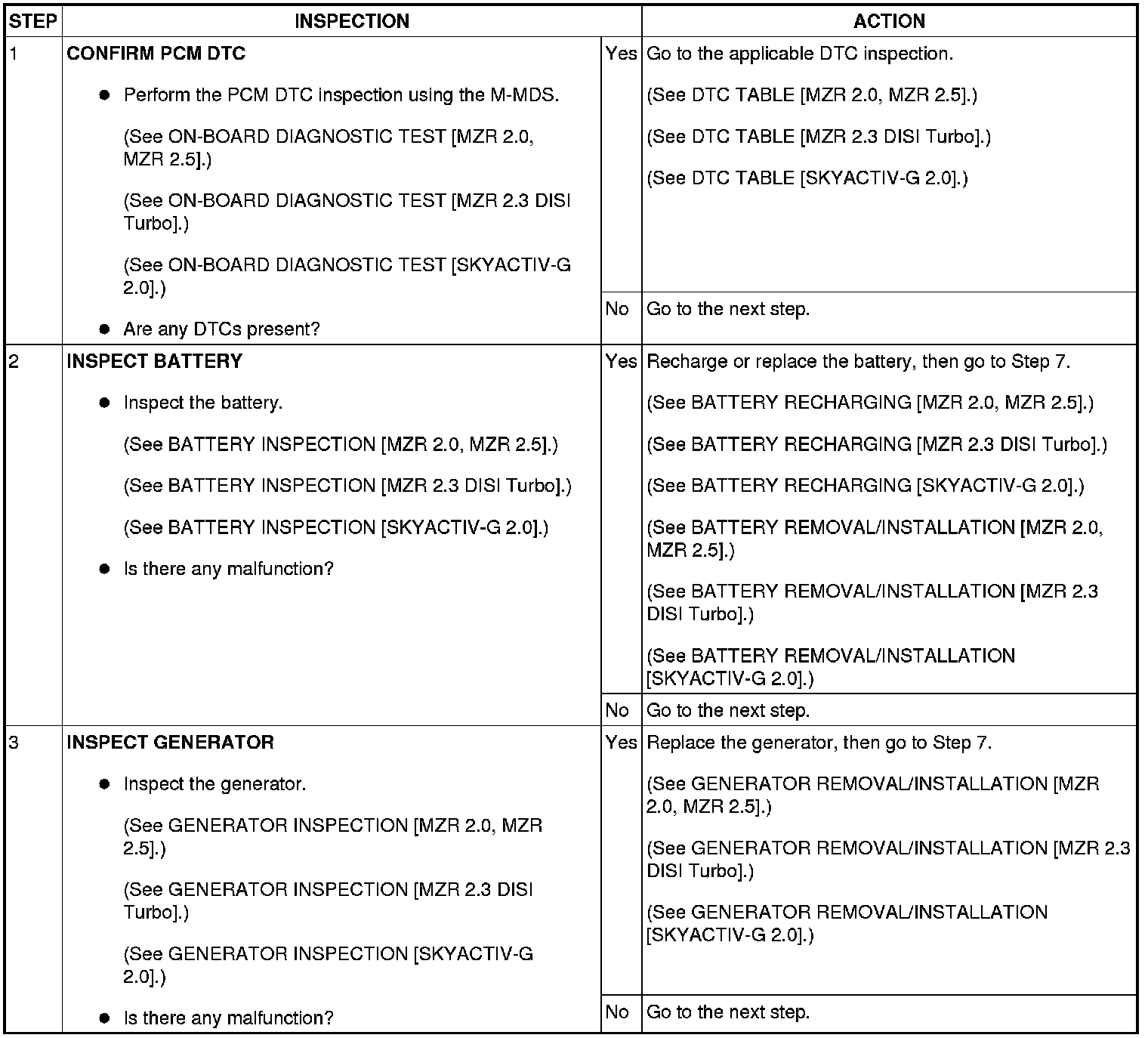

Diagnostic Procedure
