Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> U Code Charts >> U3003 >> U3003:16 >> Audio

Audio





DTC: U3003:16, 09:Er20 [AUDIO]





*1
Vehicles without advanced keyless entry and push button start system
*2
Vehicles with advanced keyless entry and push button start system

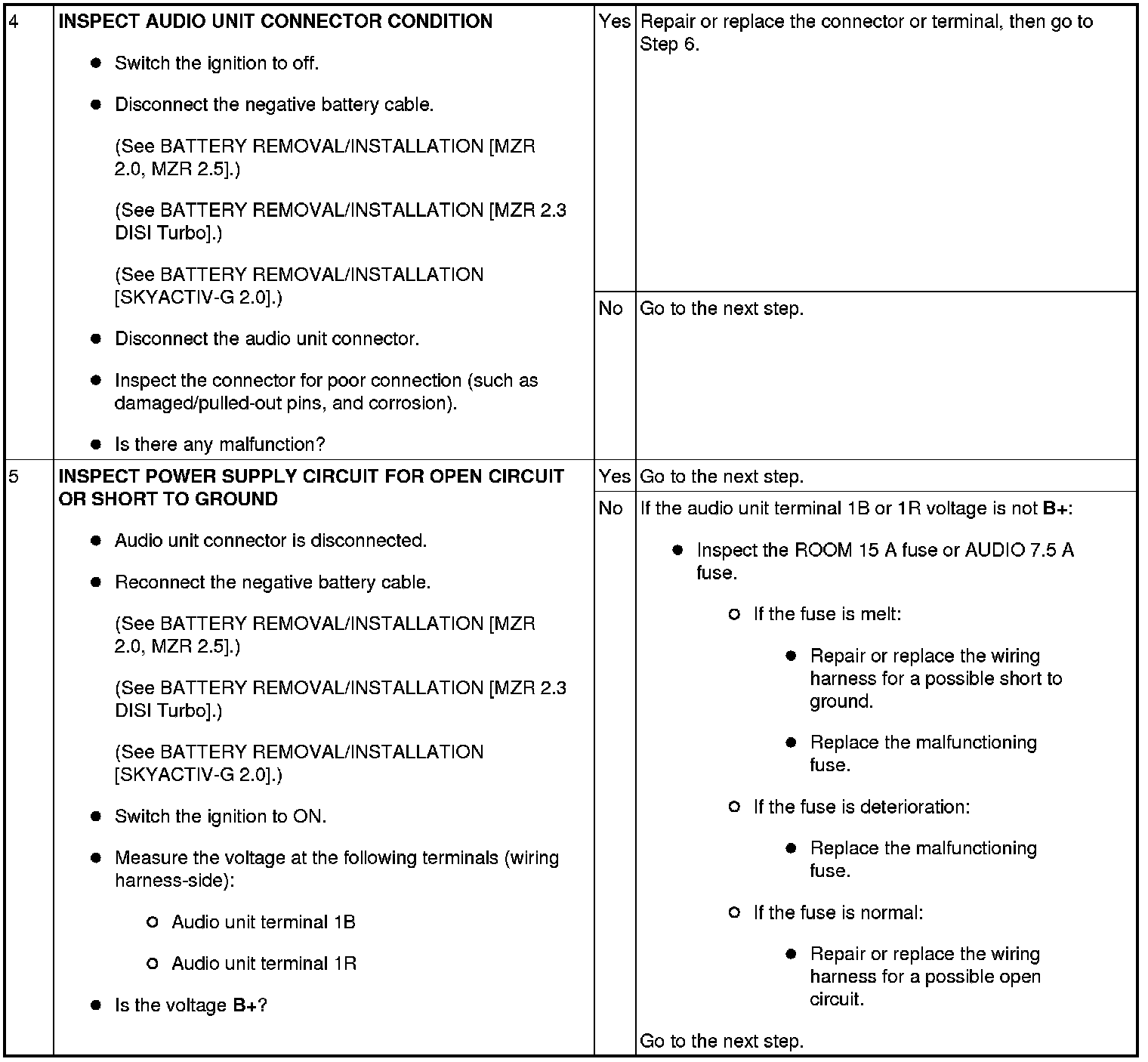

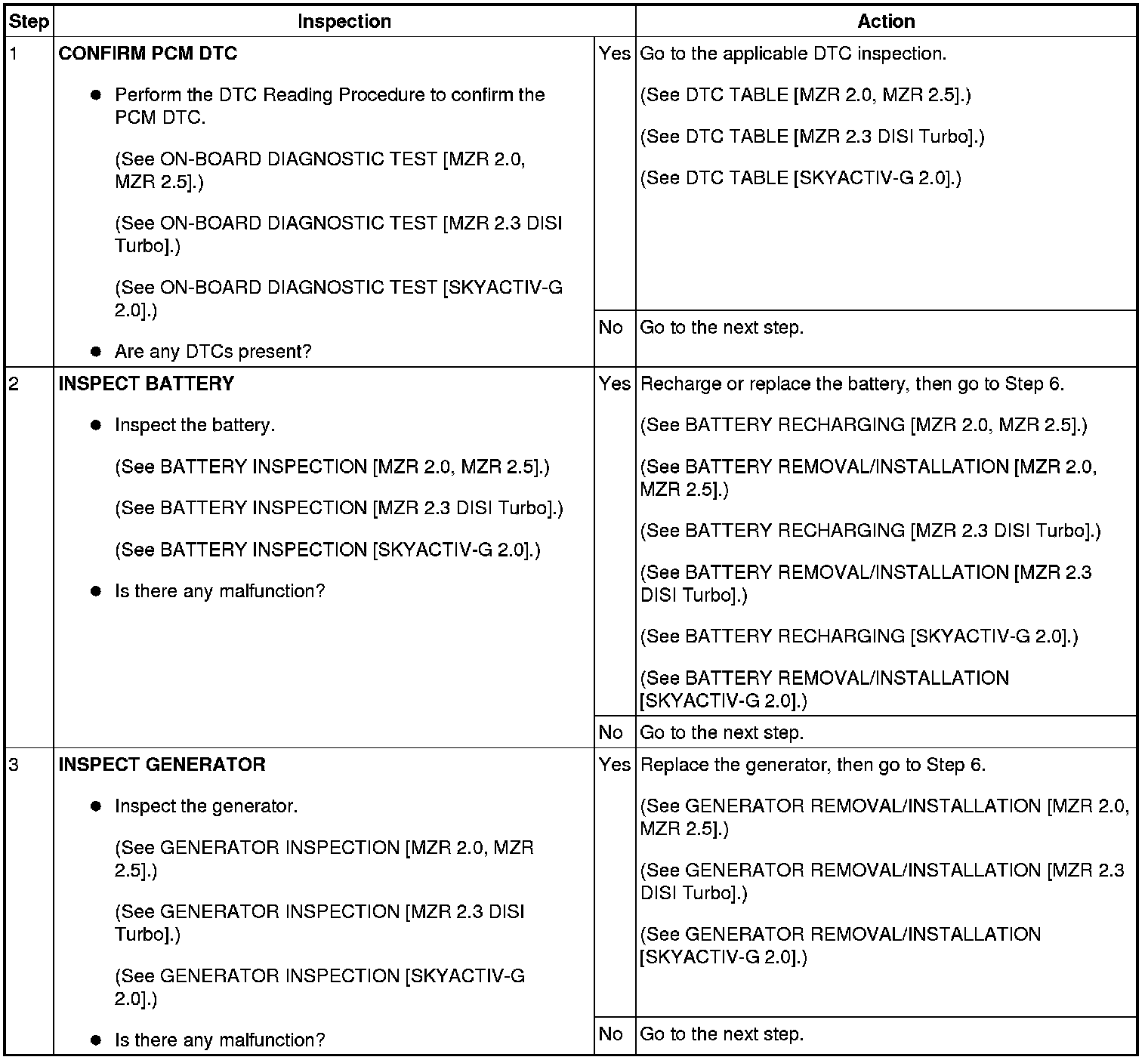

Diagnostic Procedure
