AFS (Adaptive Front Lighting System)

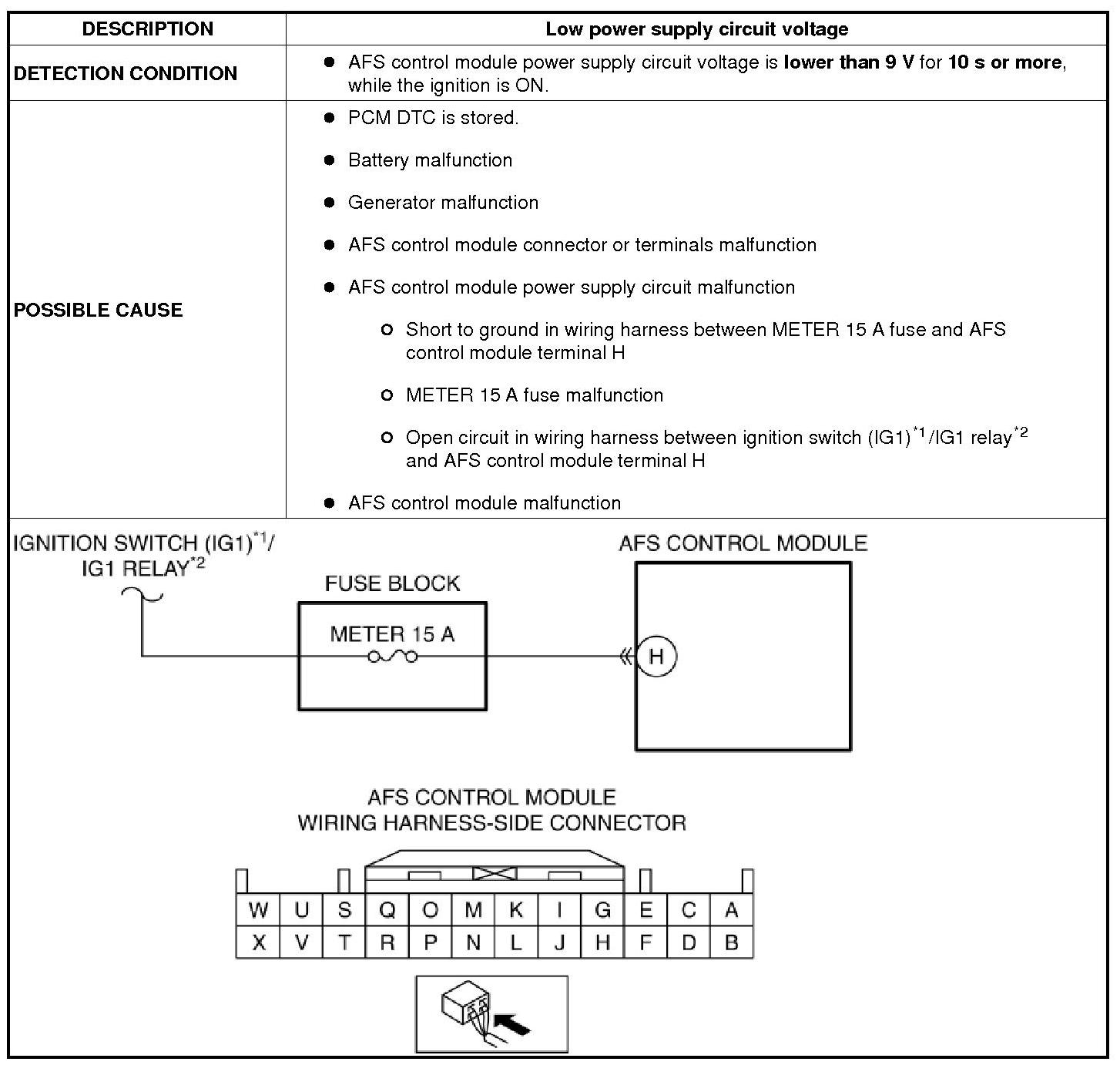

DTC U3003:16 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]





*1
Vehicles without advanced keyless entry and push button start system
*2
Vehicles with advanced keyless entry and push button start system

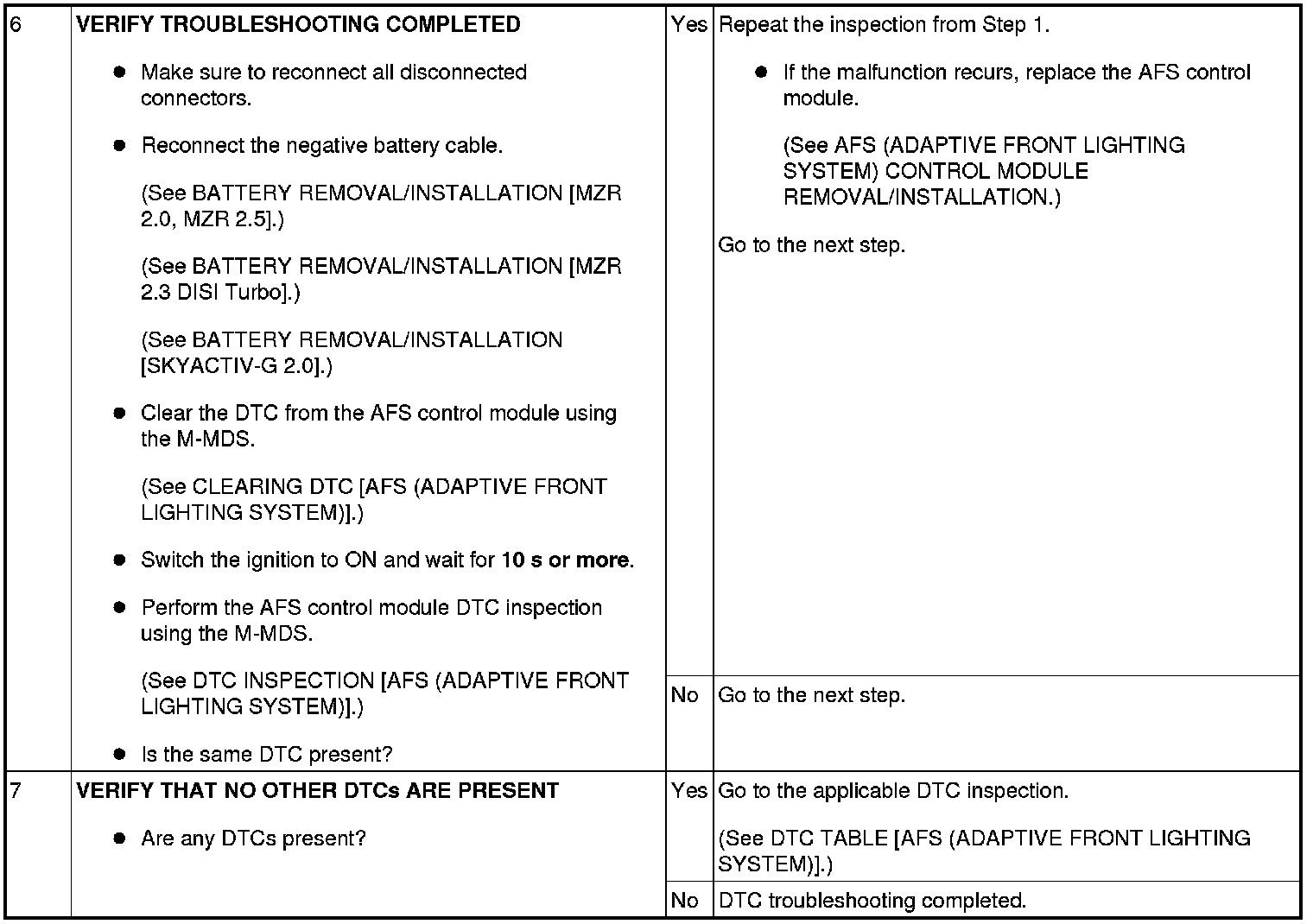

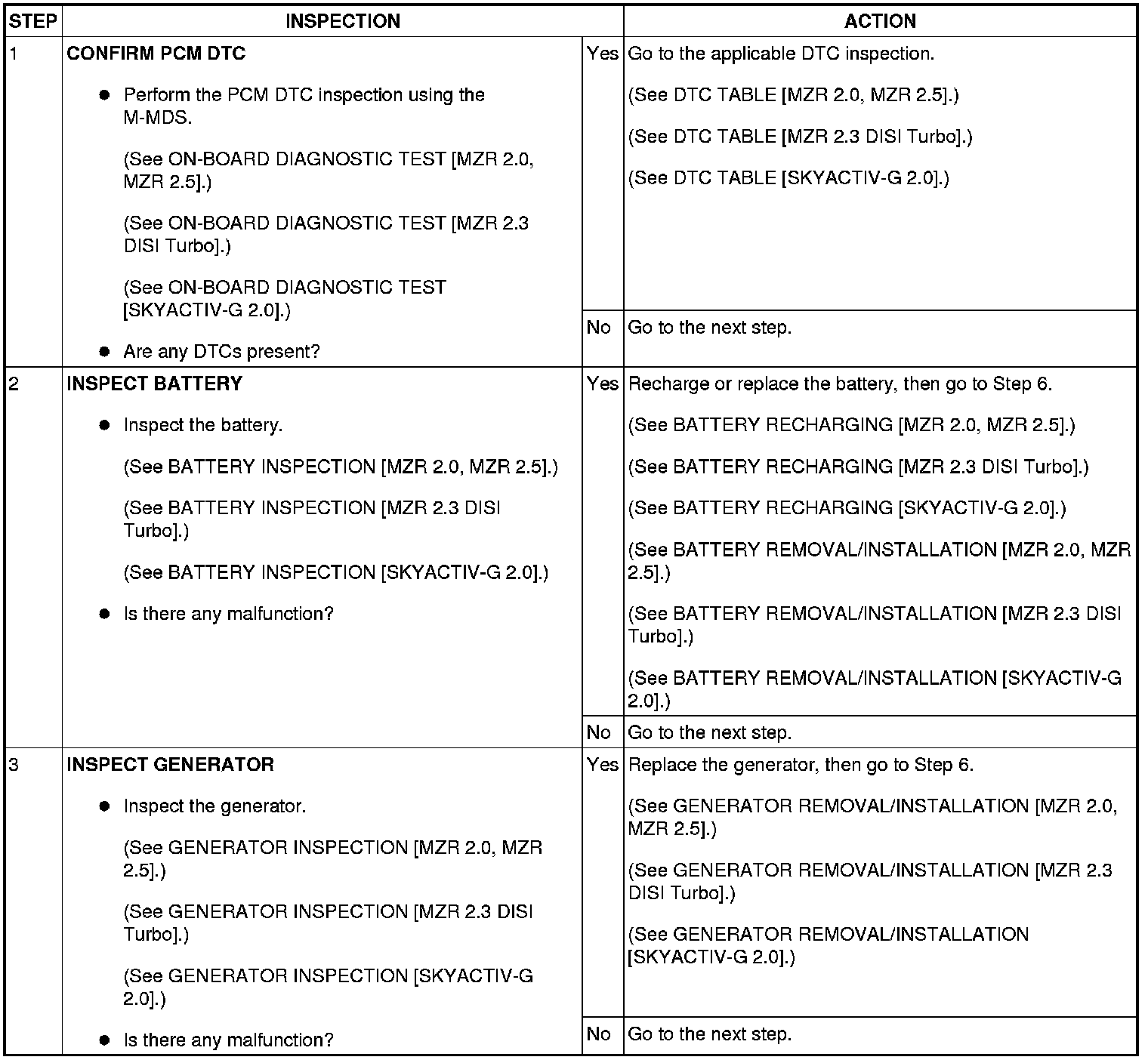

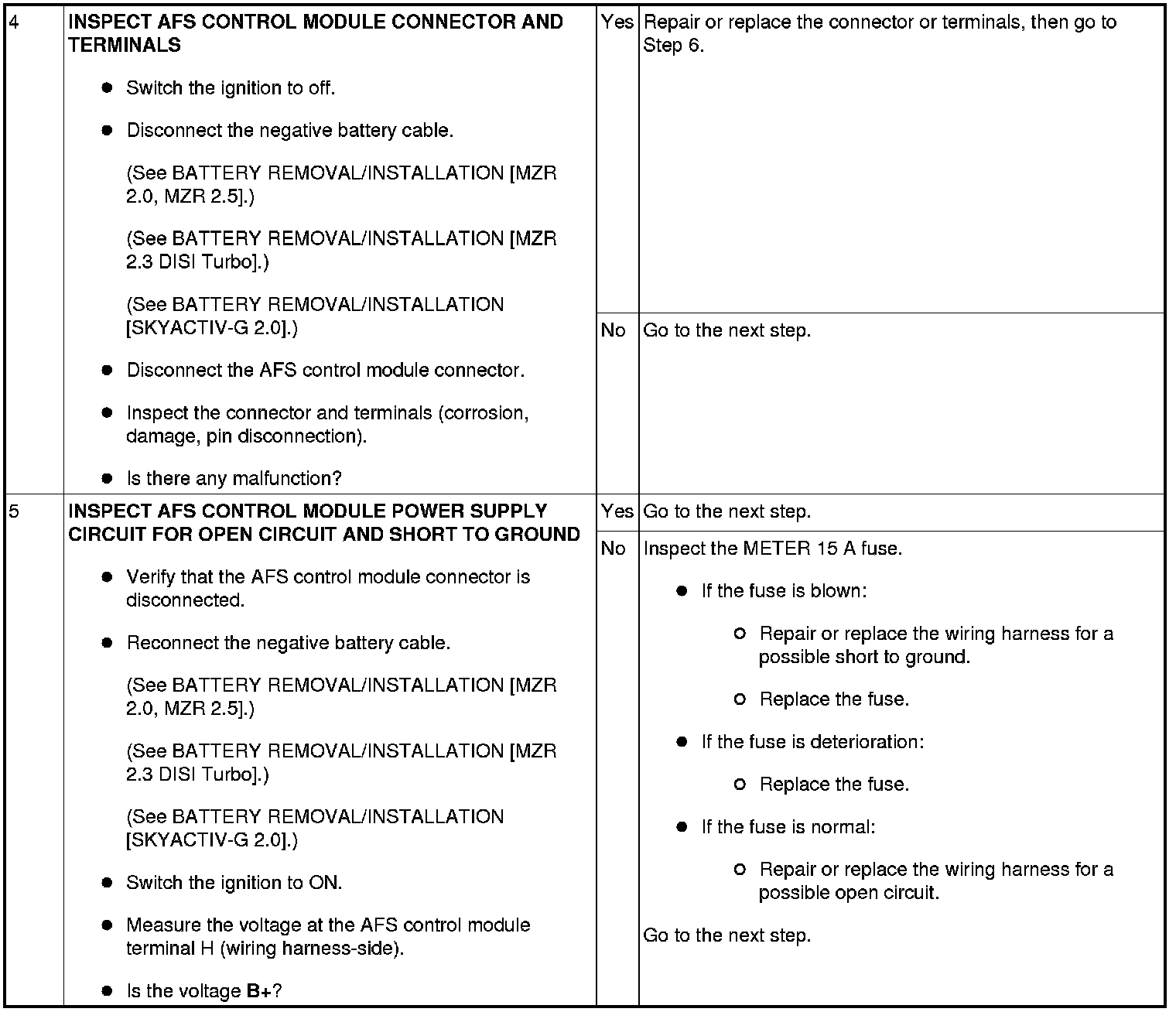

Diagnostic Procedure
