Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> U Code Charts >> U3003 >> U3003:08 >> ABS

ABS

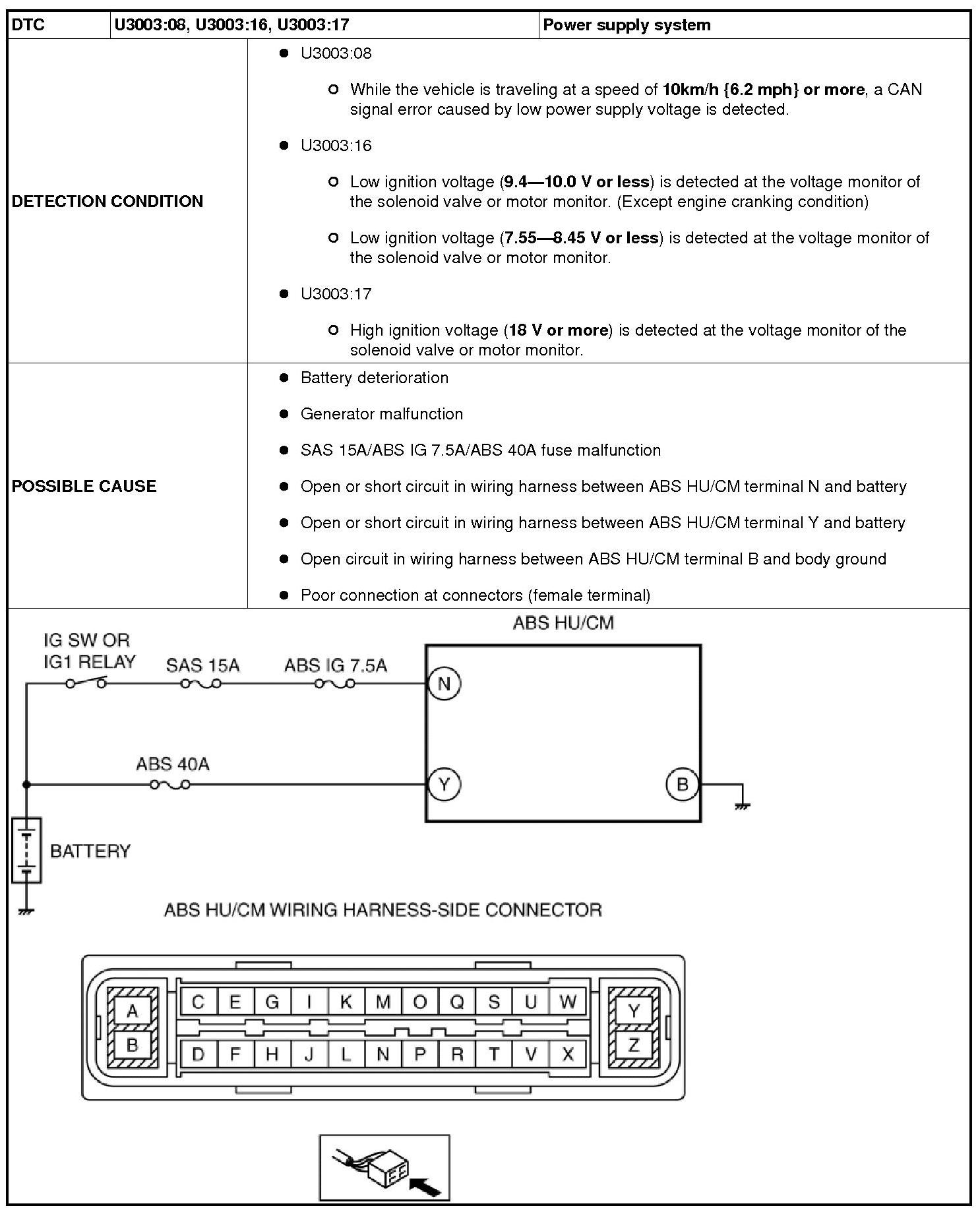

DTC U3003:08 / U3003:16 / U3003:17 [ABS]

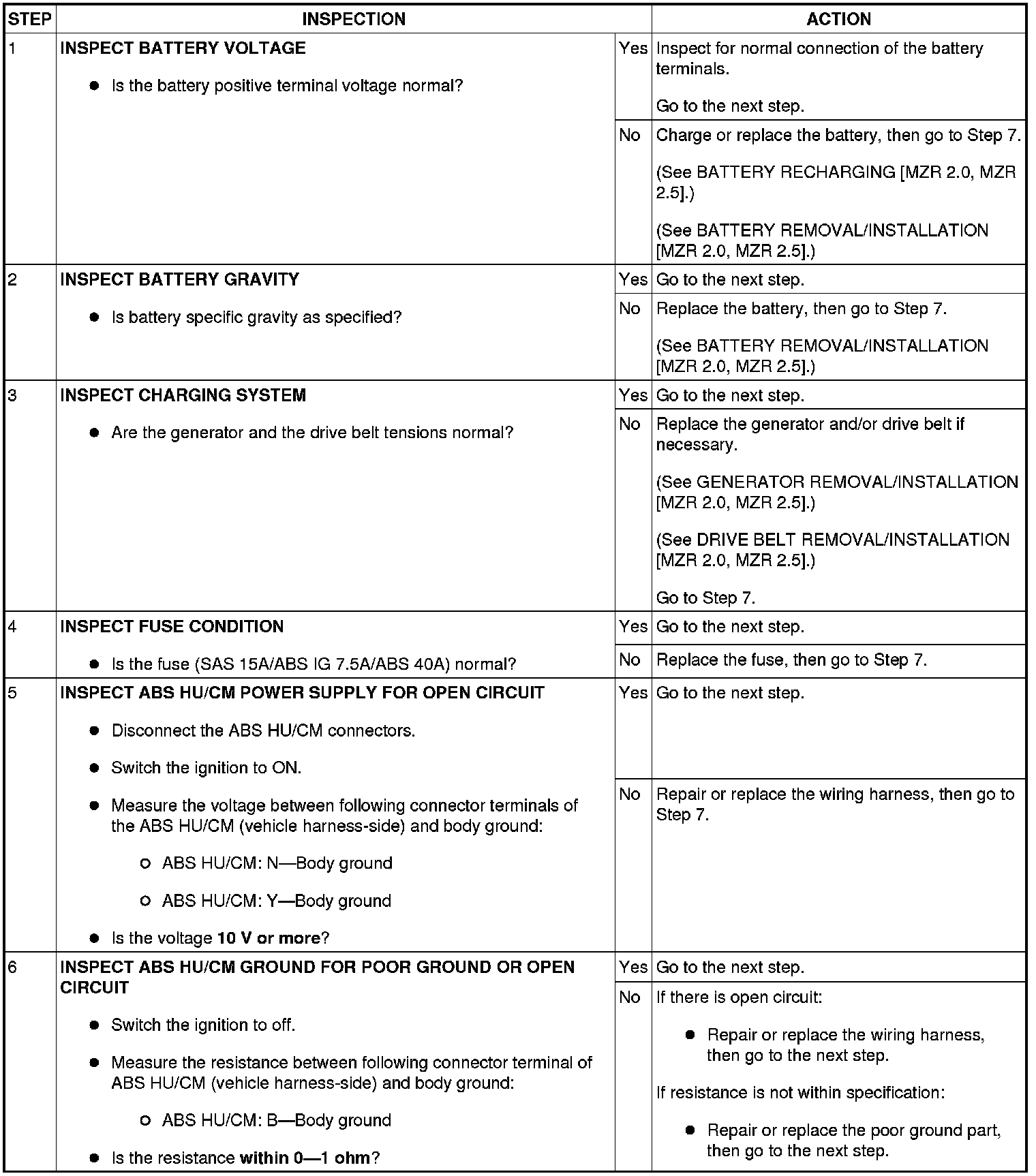

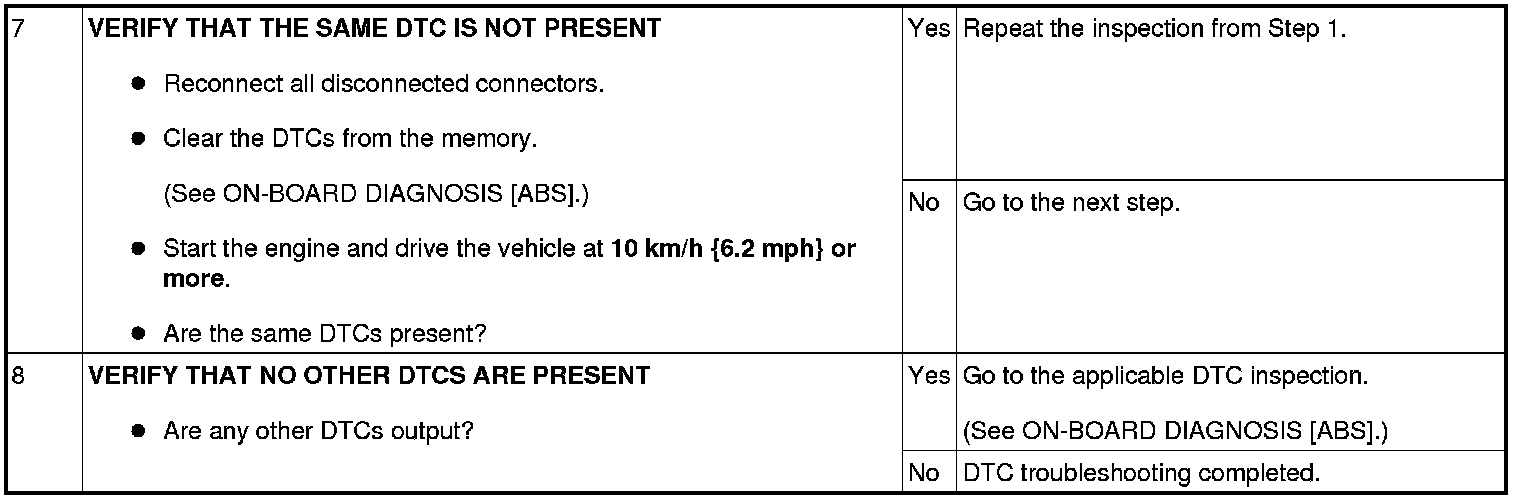

Diagnostic procedure
