U3000
>>
U3000:09
>>
Blind Spot Monitoring (BSM)
Blind Spot Monitoring (BSM)
DTC U3000:09 [BLIND SPOT MONITORING (BSM)]

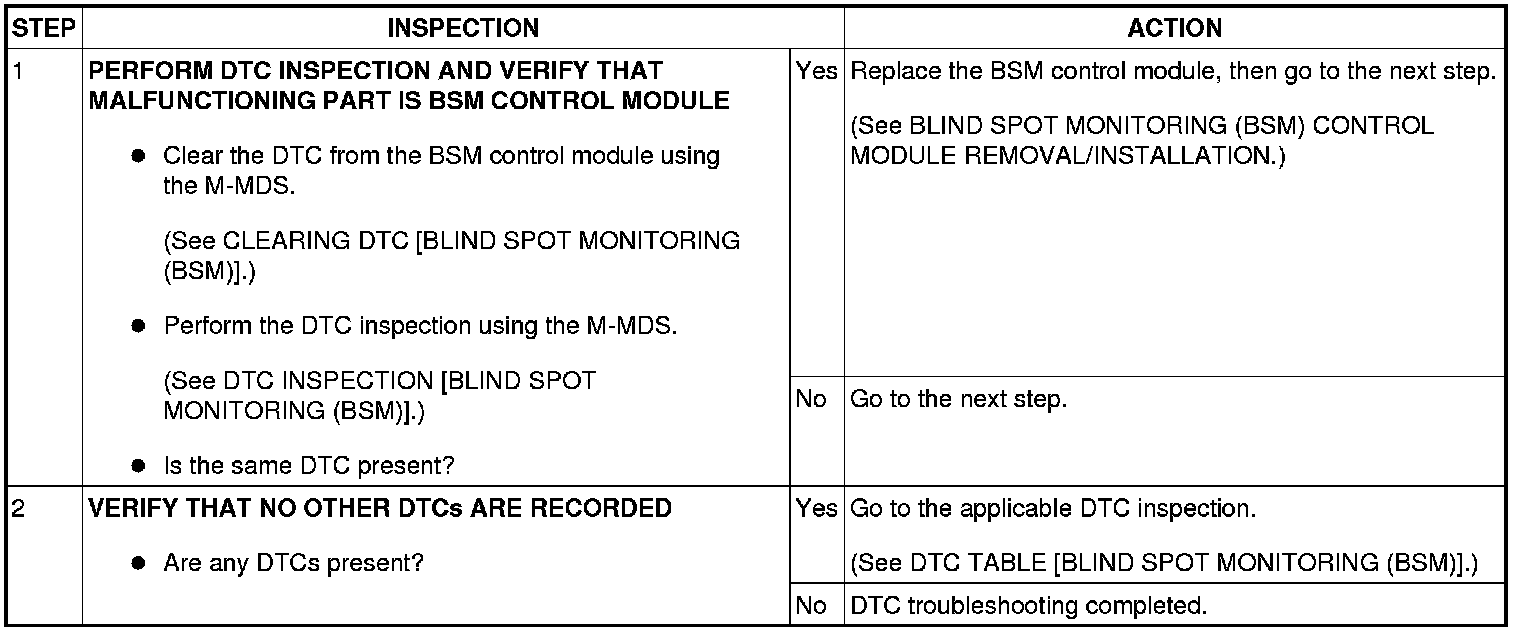

Diagnostic procedure
