DTC: U3000:09, 09:Er21 [AUDIO]

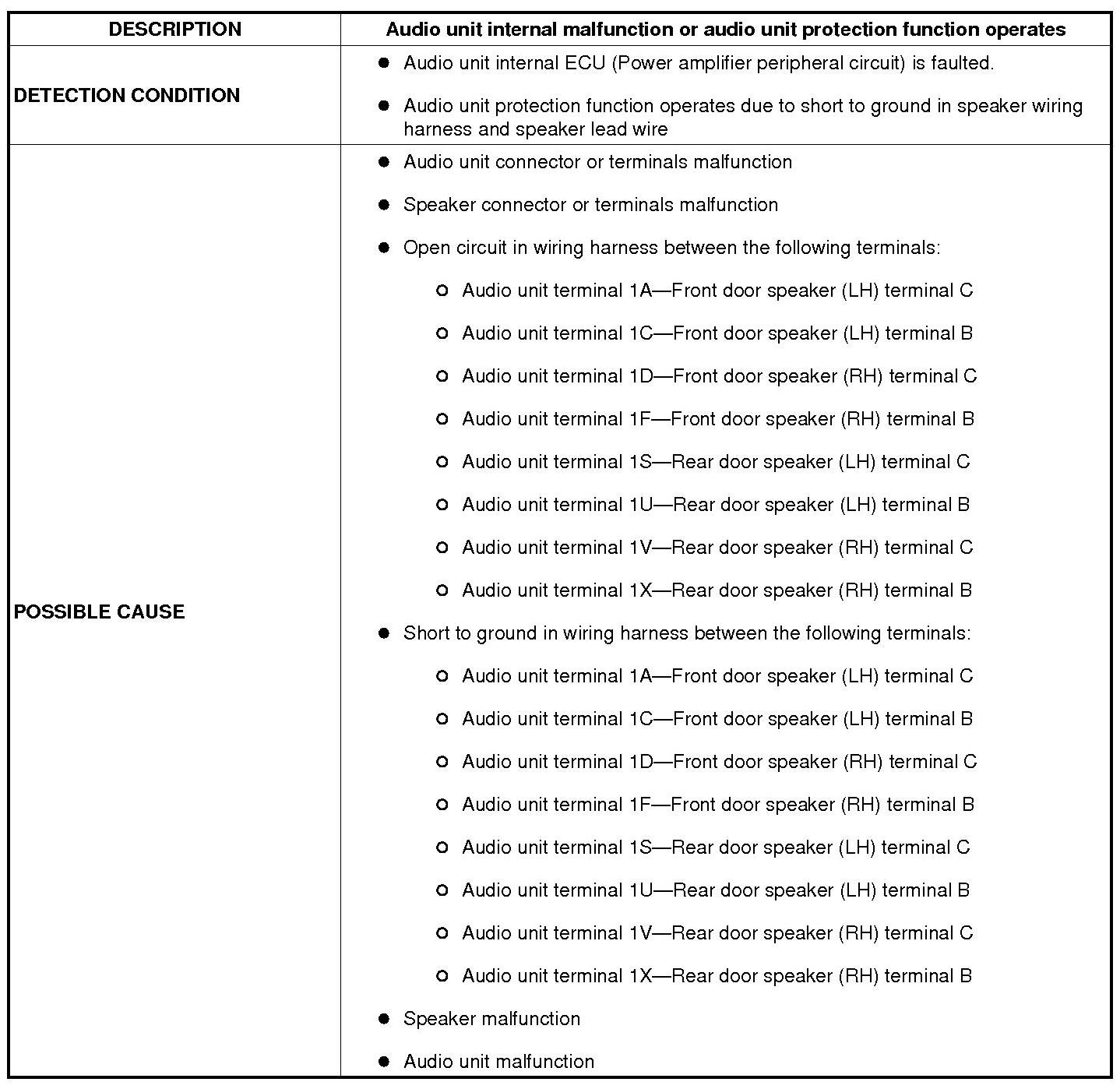

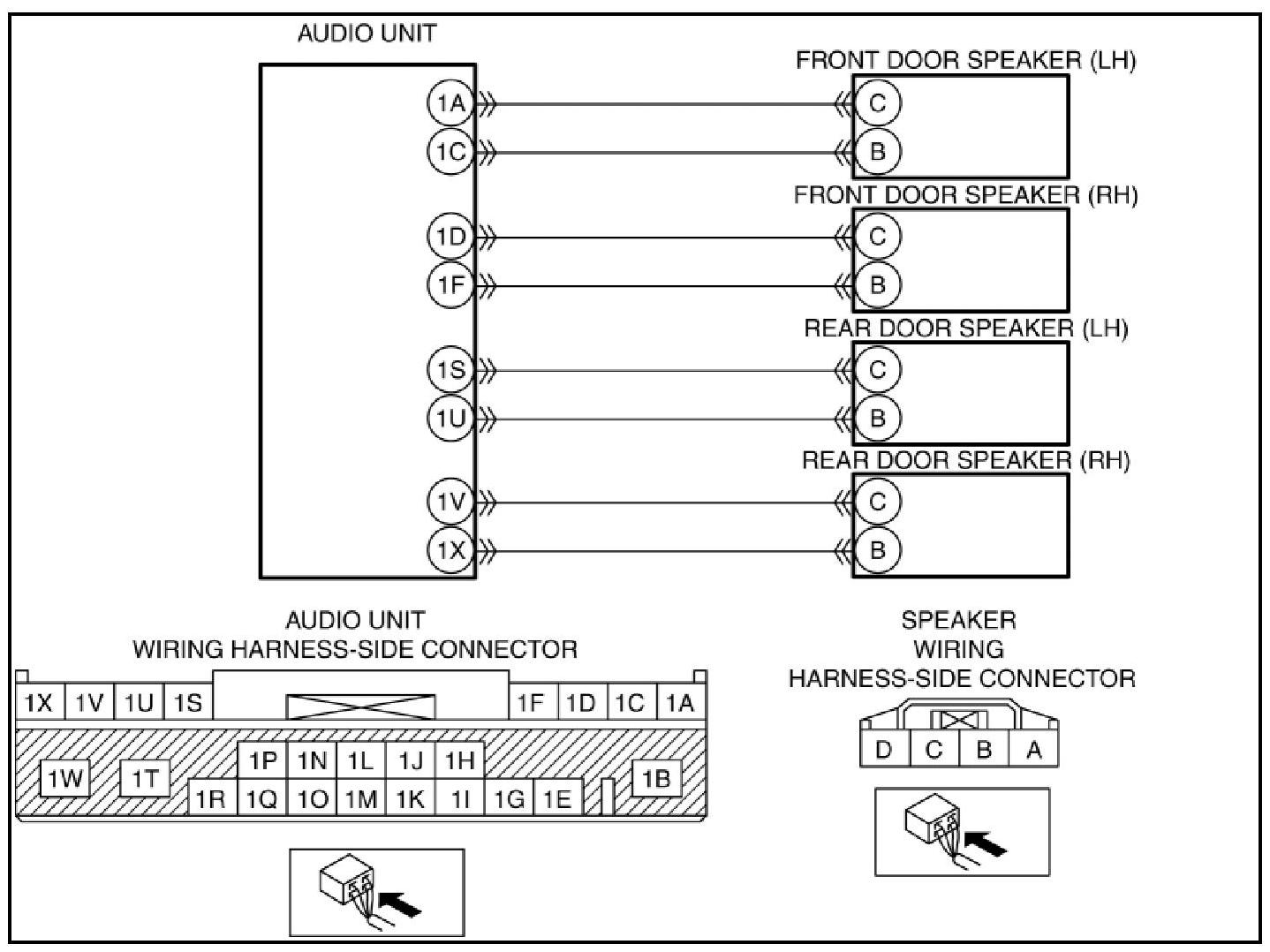

Without Bose(R)

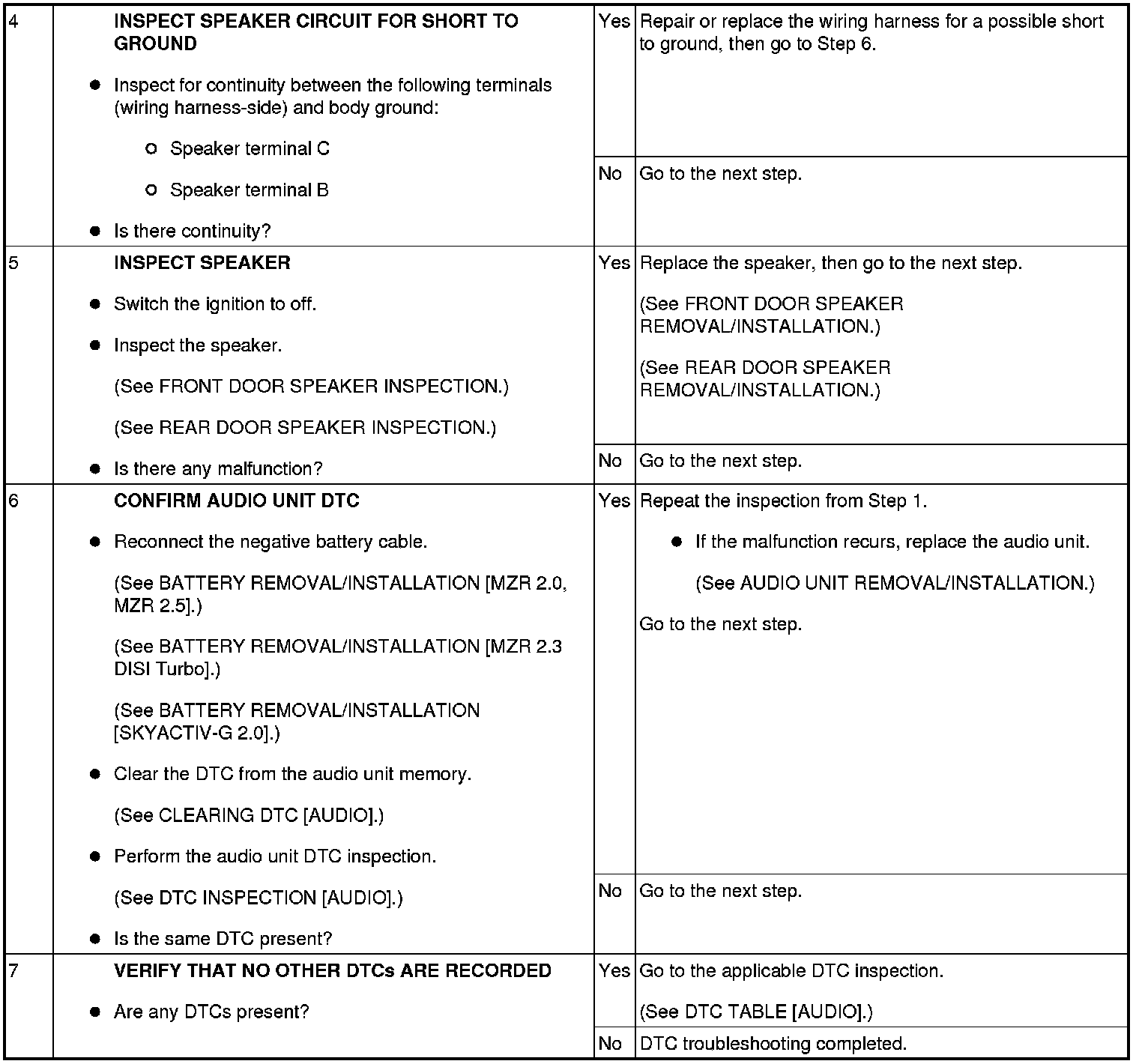

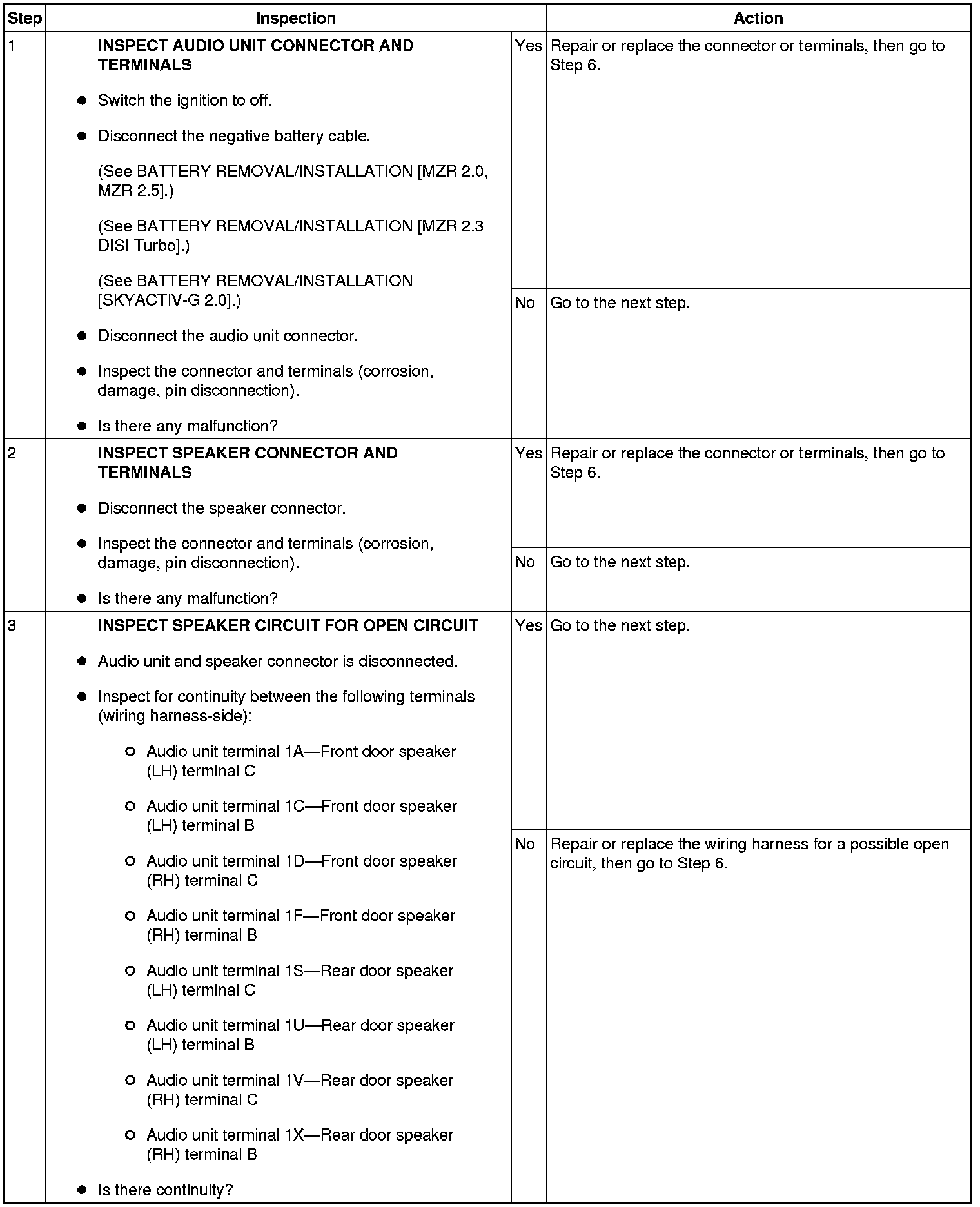

Diagnostic Procedure

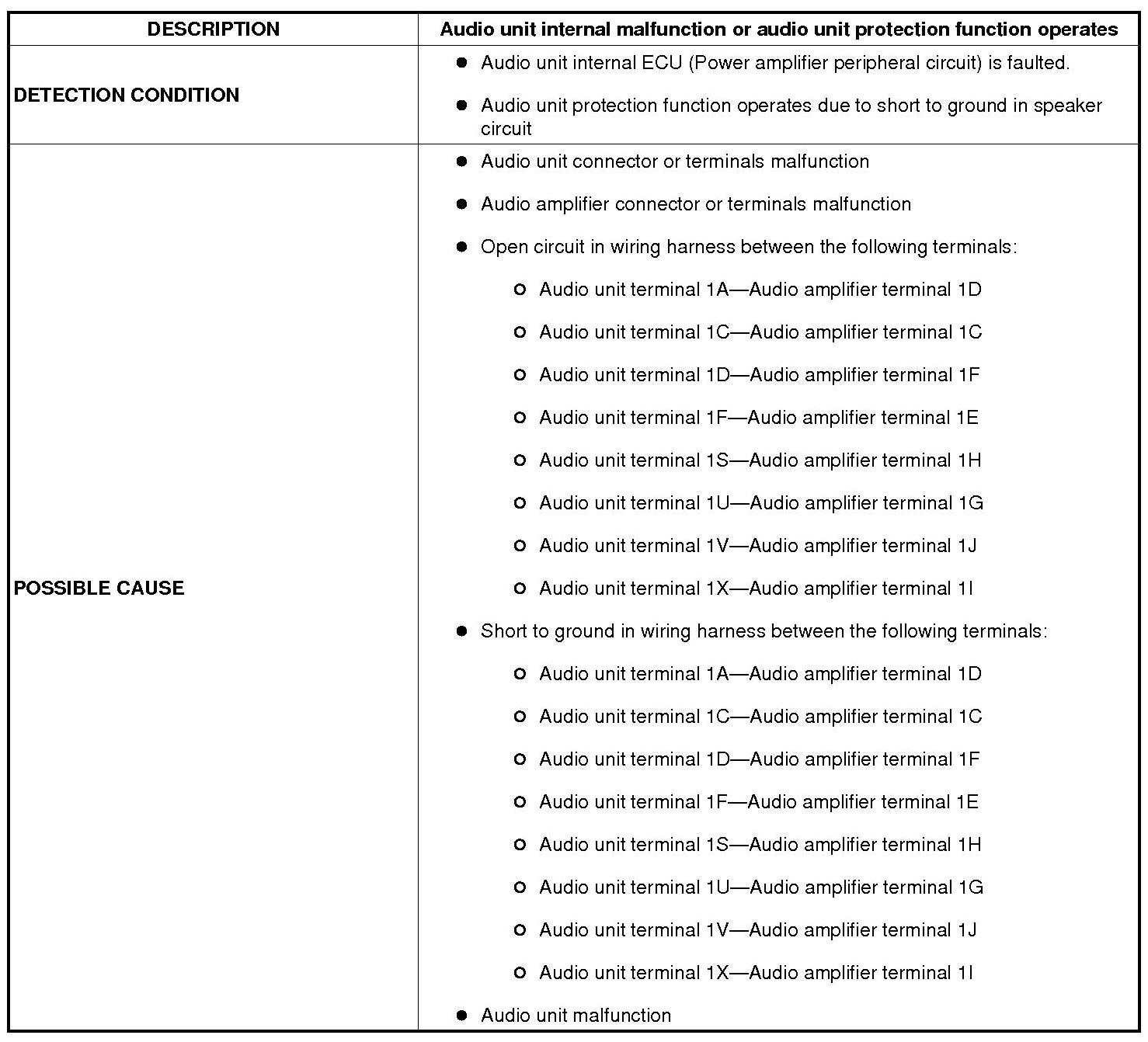

With Bose(R)

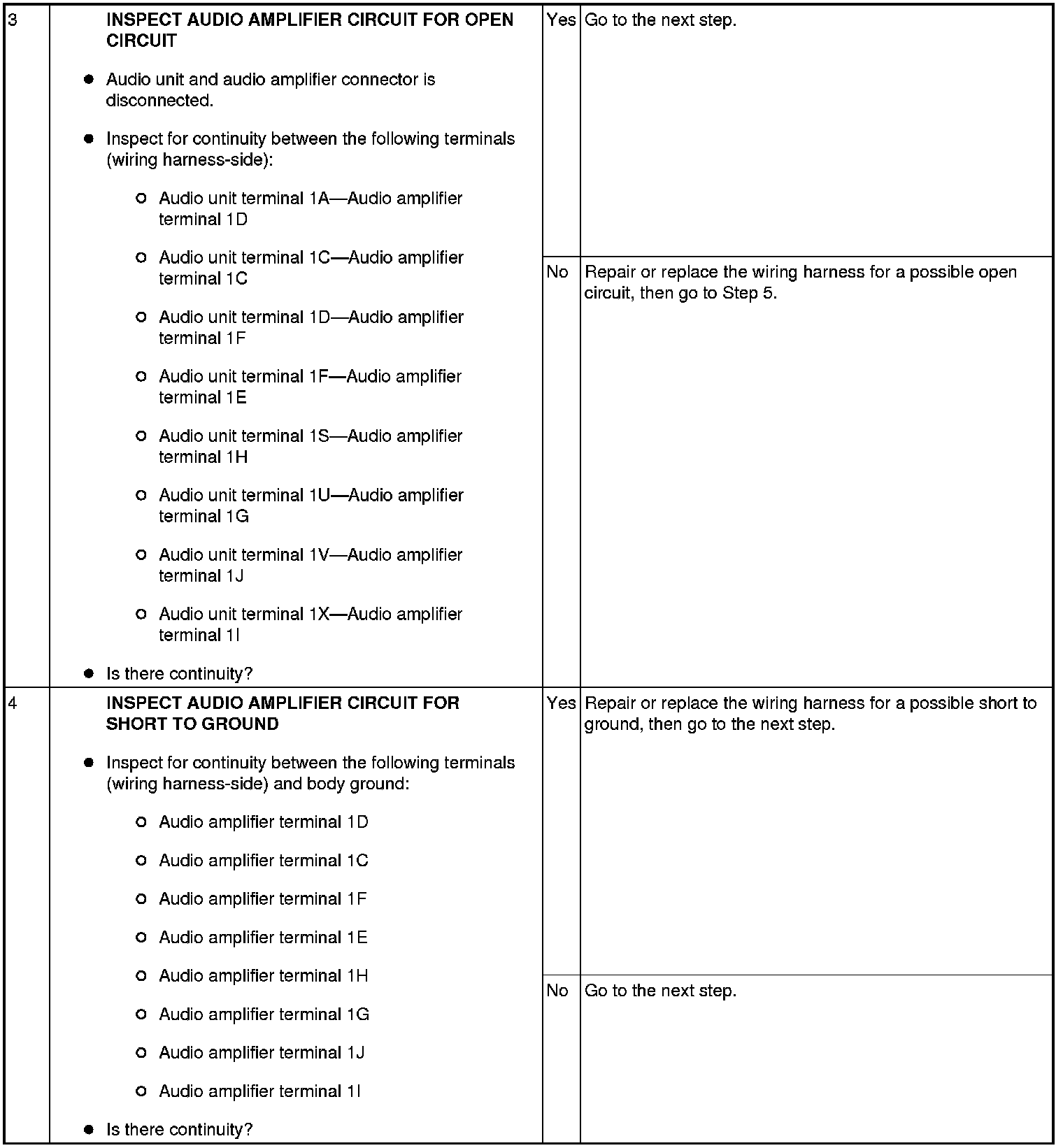

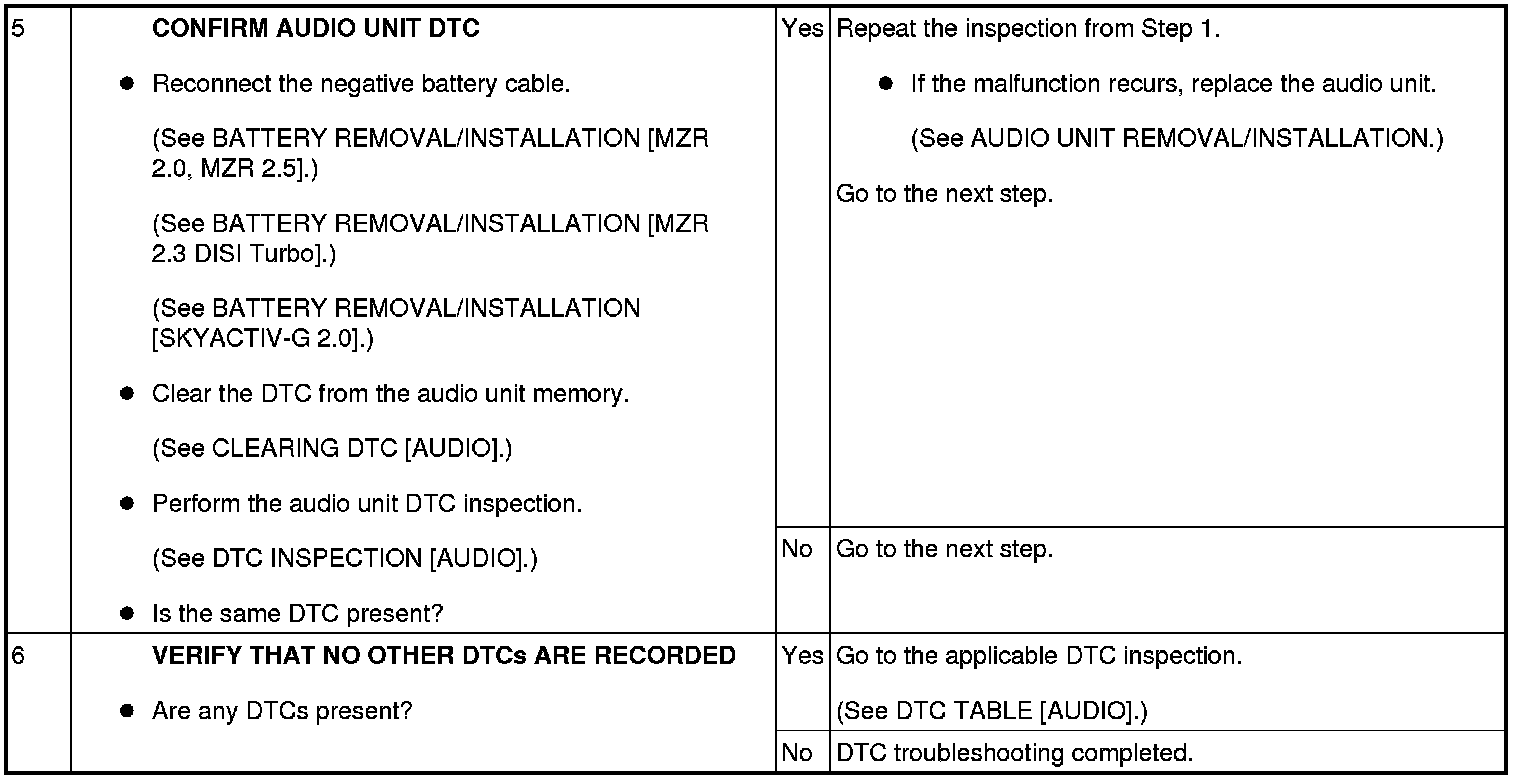

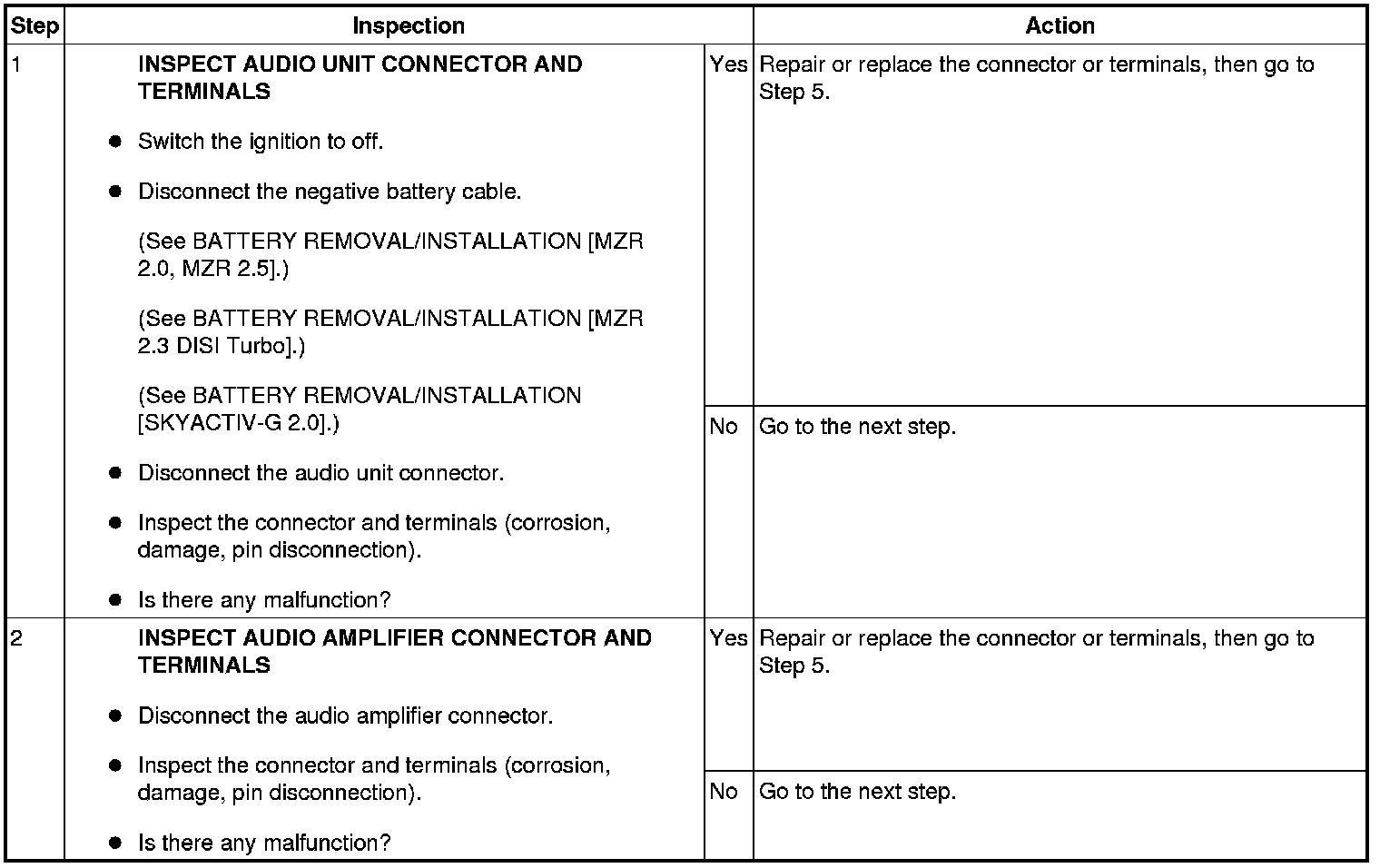

Diagnostic Procedure
