FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mazda
>>
2012
>>
3 L4-2.0L (MZR)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
U Code Charts
>>
U0483
>>
U0483:92
U0483:92
DTC U0483:92 [INSTRUMENT CLUSTER]

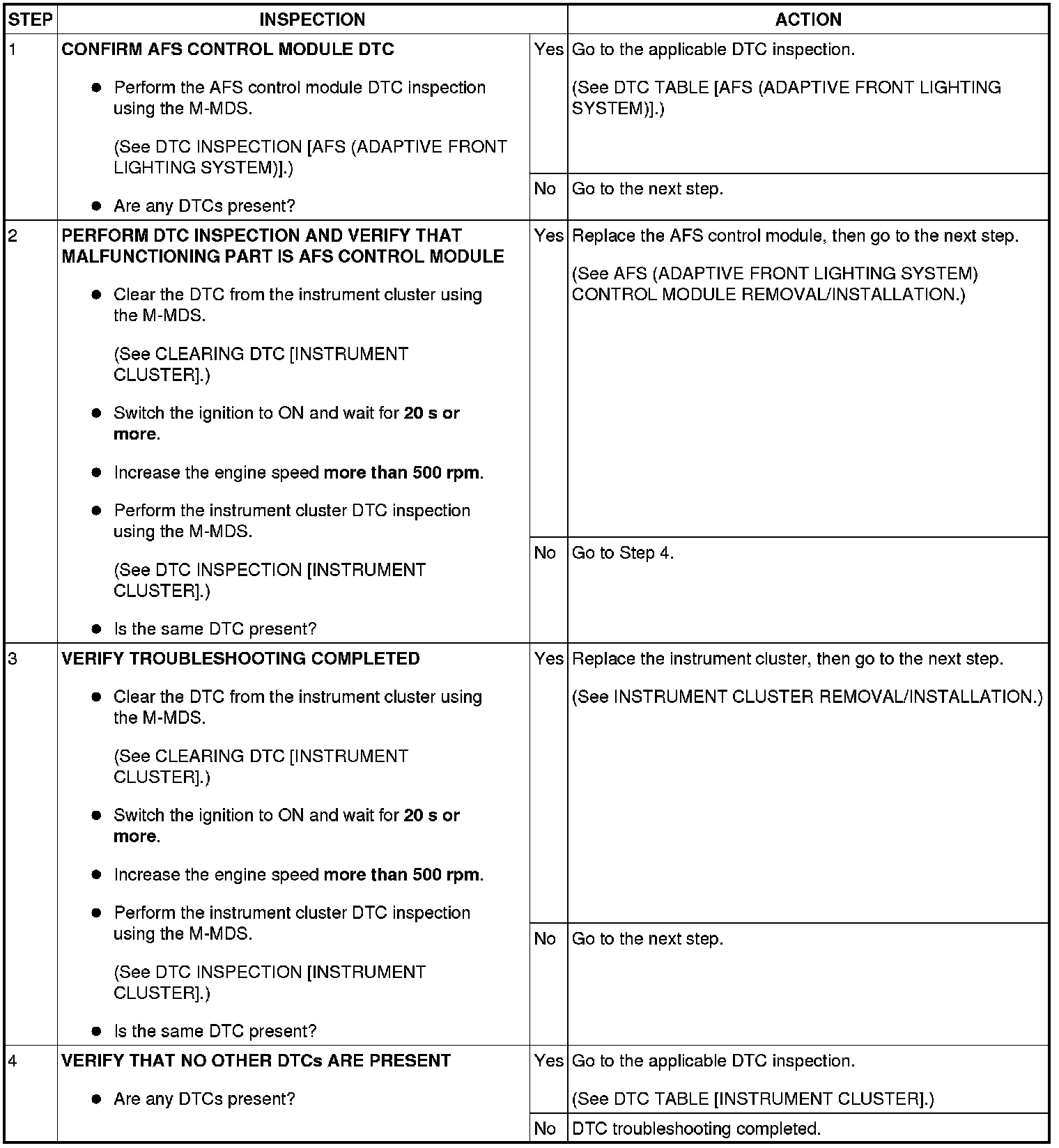

Diagnostic Procedure
