Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> U Code Charts >> U0422 >> U0422:00 >> AFS (Adaptive Front Lighting System)

AFS (Adaptive Front Lighting System)

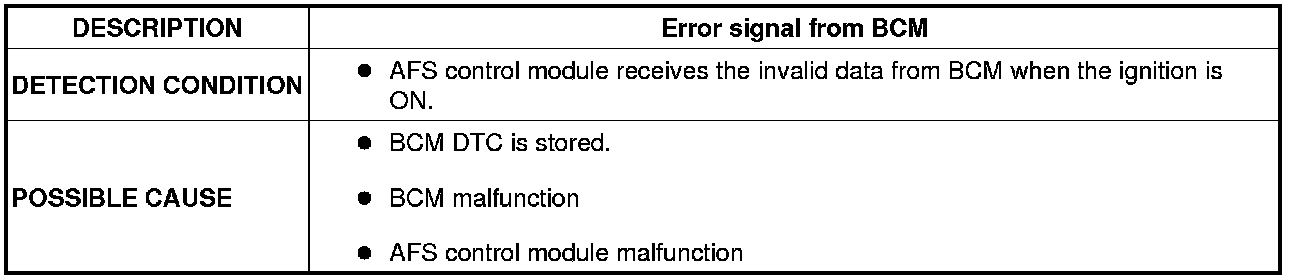

DTC U0422:00 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]

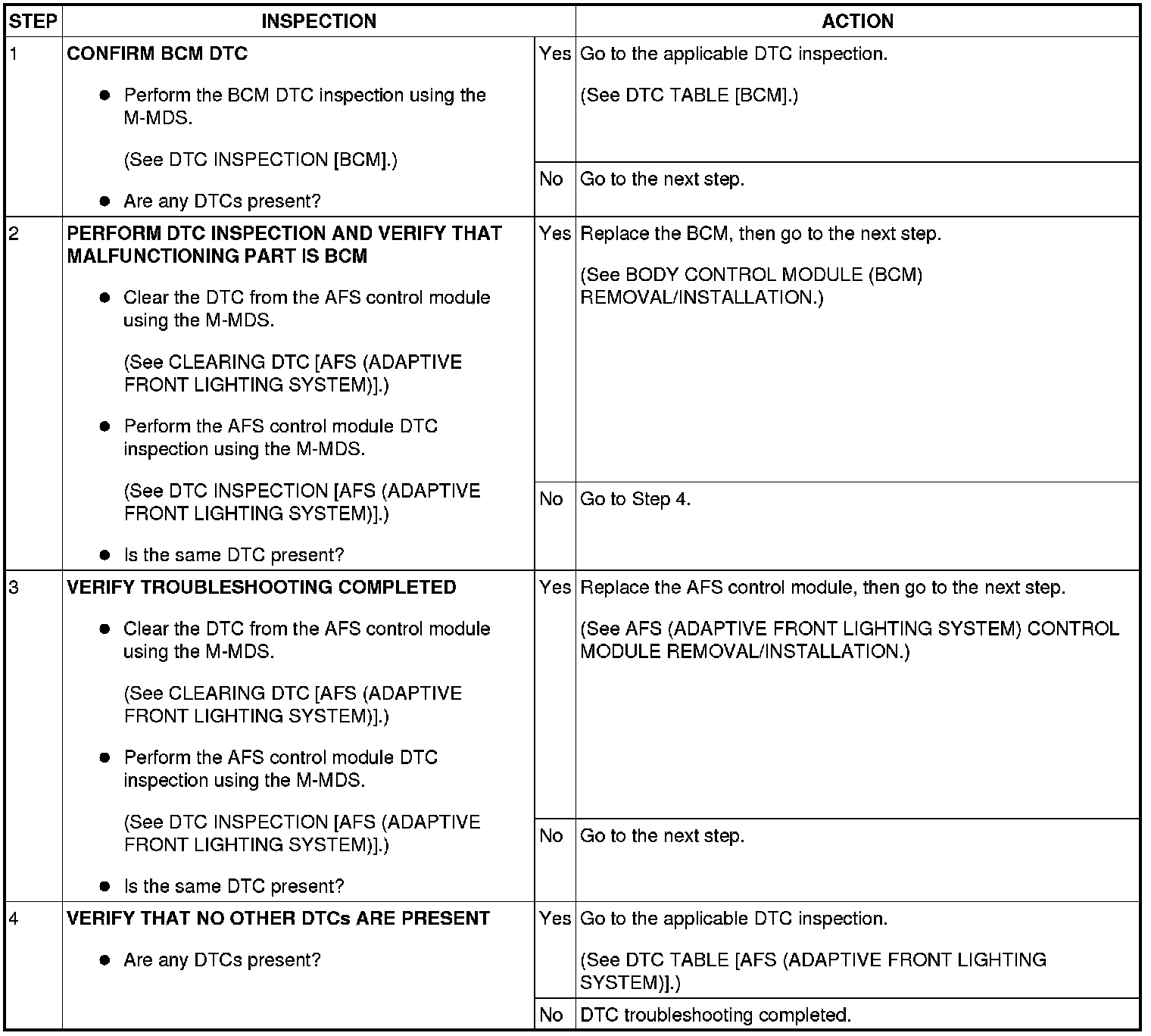

Diagnostic Procedure
