Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> U Code Charts >> U0127

U0127





DTC U0127:00

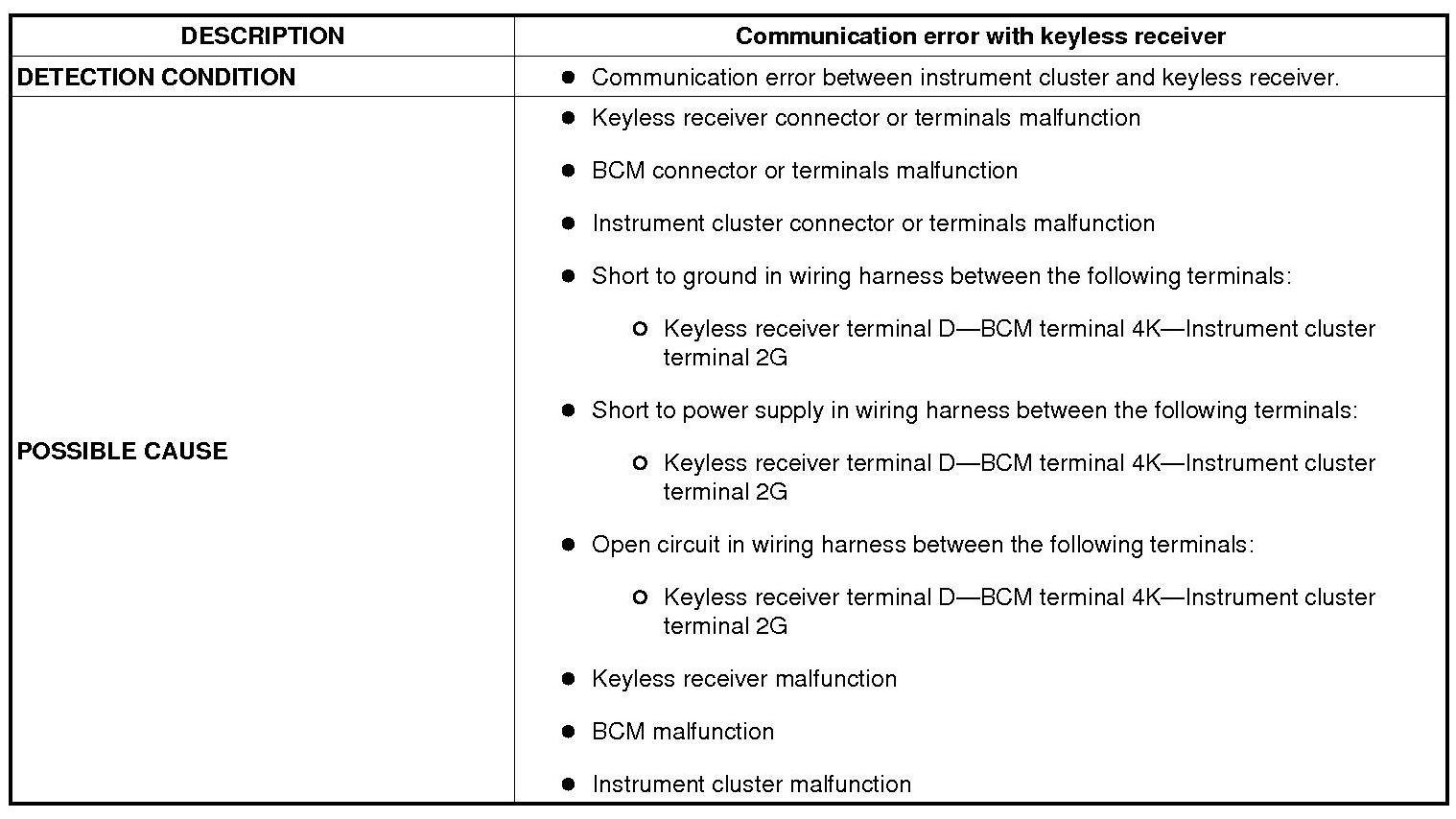

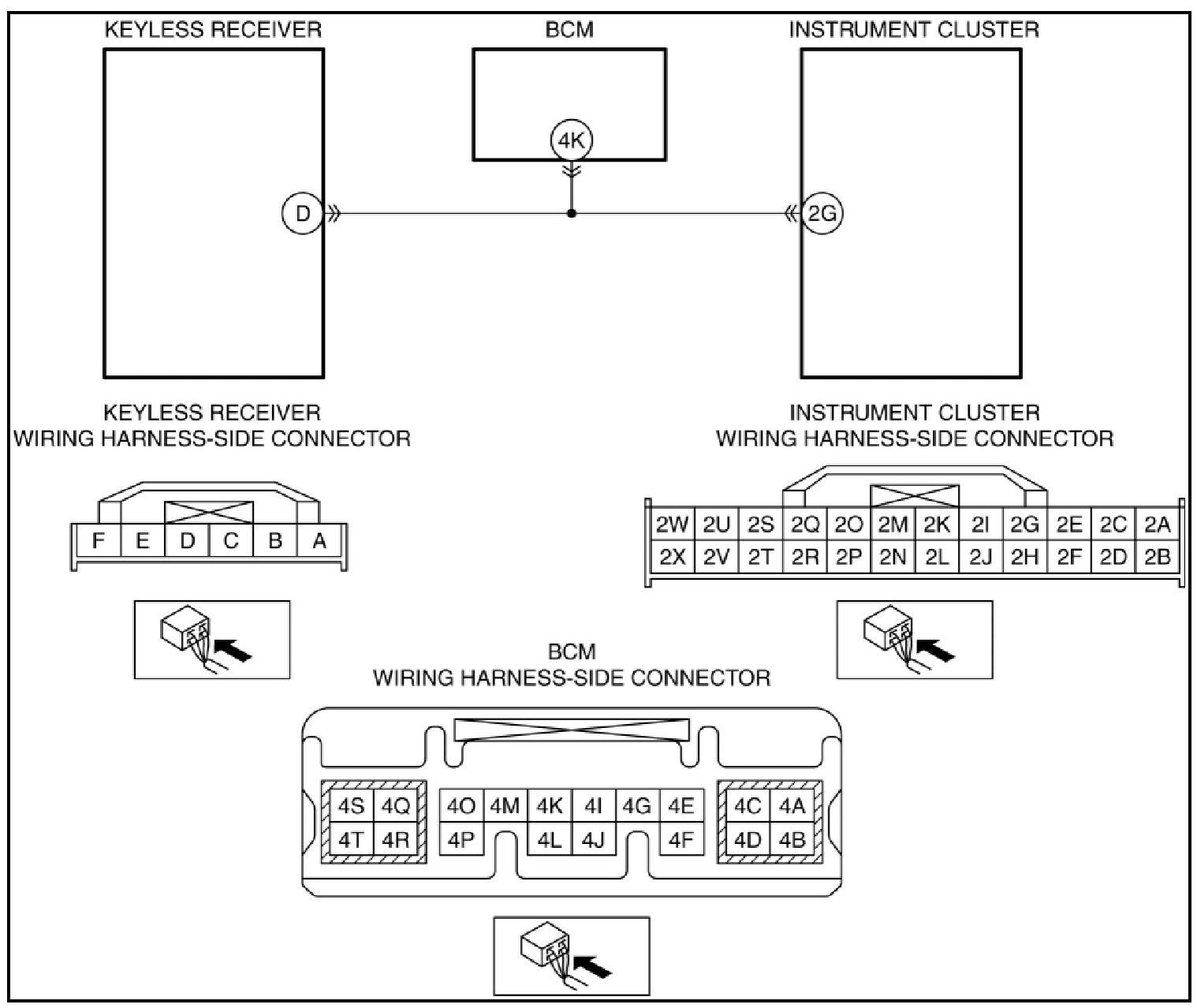

Vehicles Without Advanced Keyless Entry And Push Button Start System

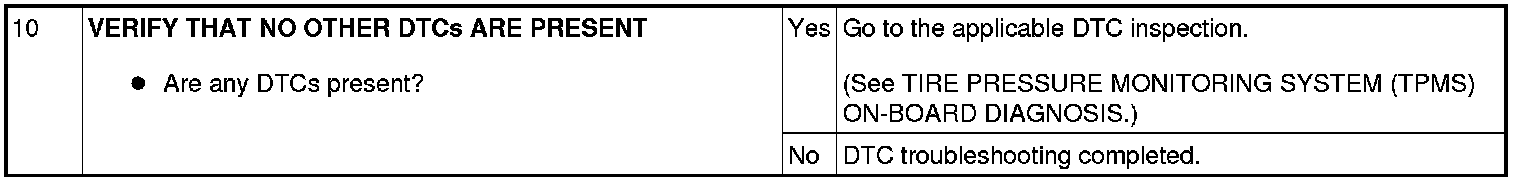

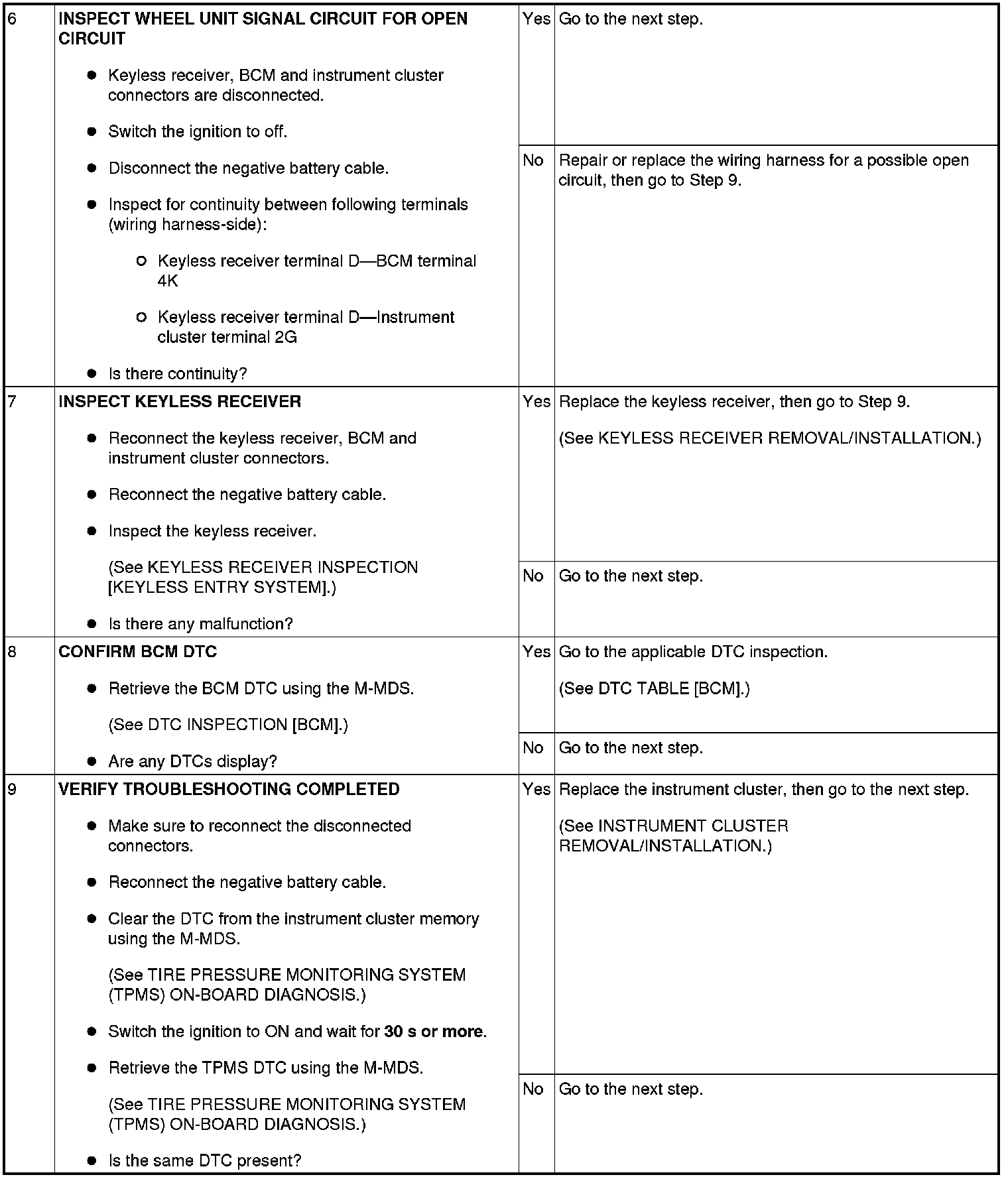

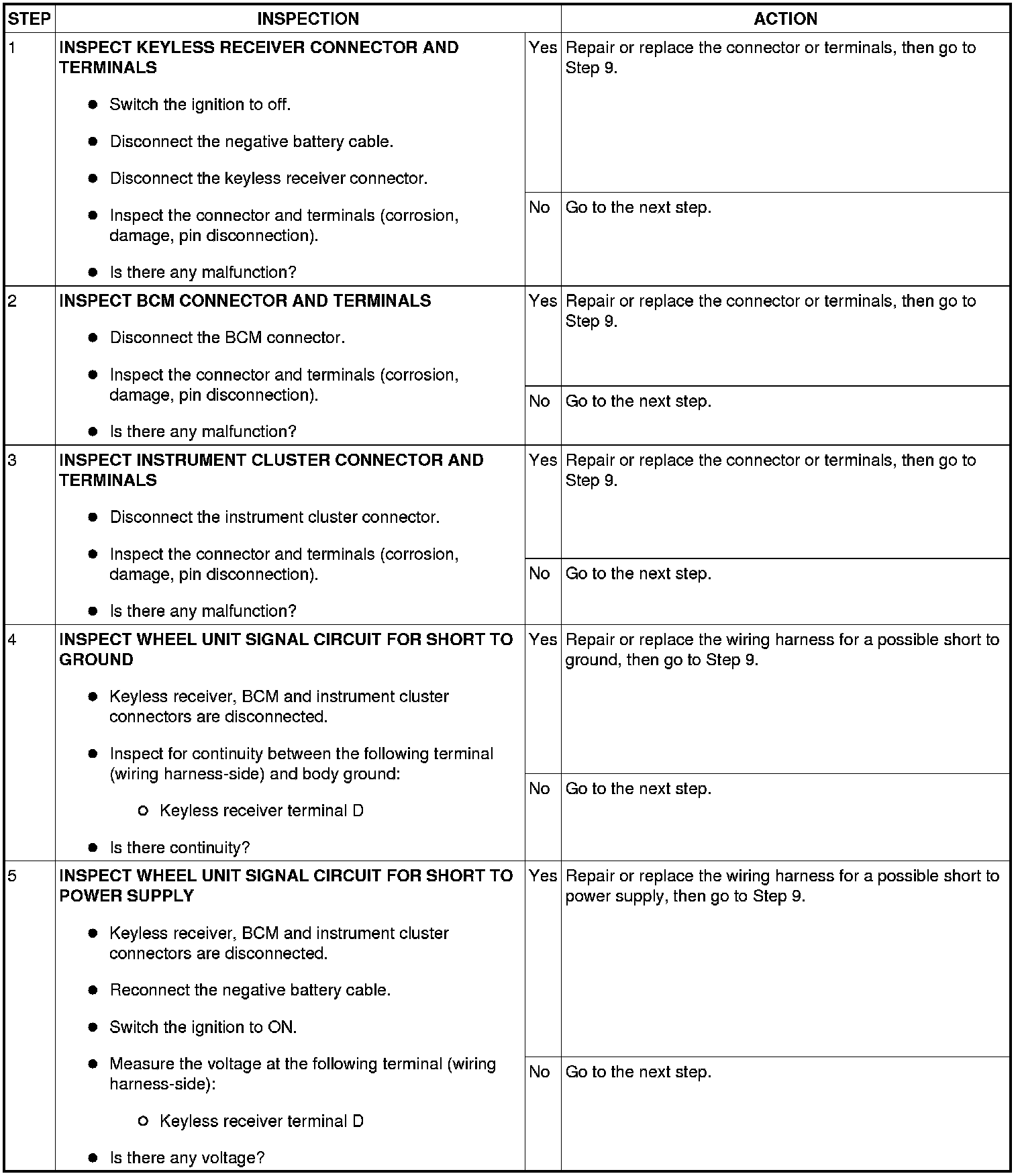

Diagnostic procedure

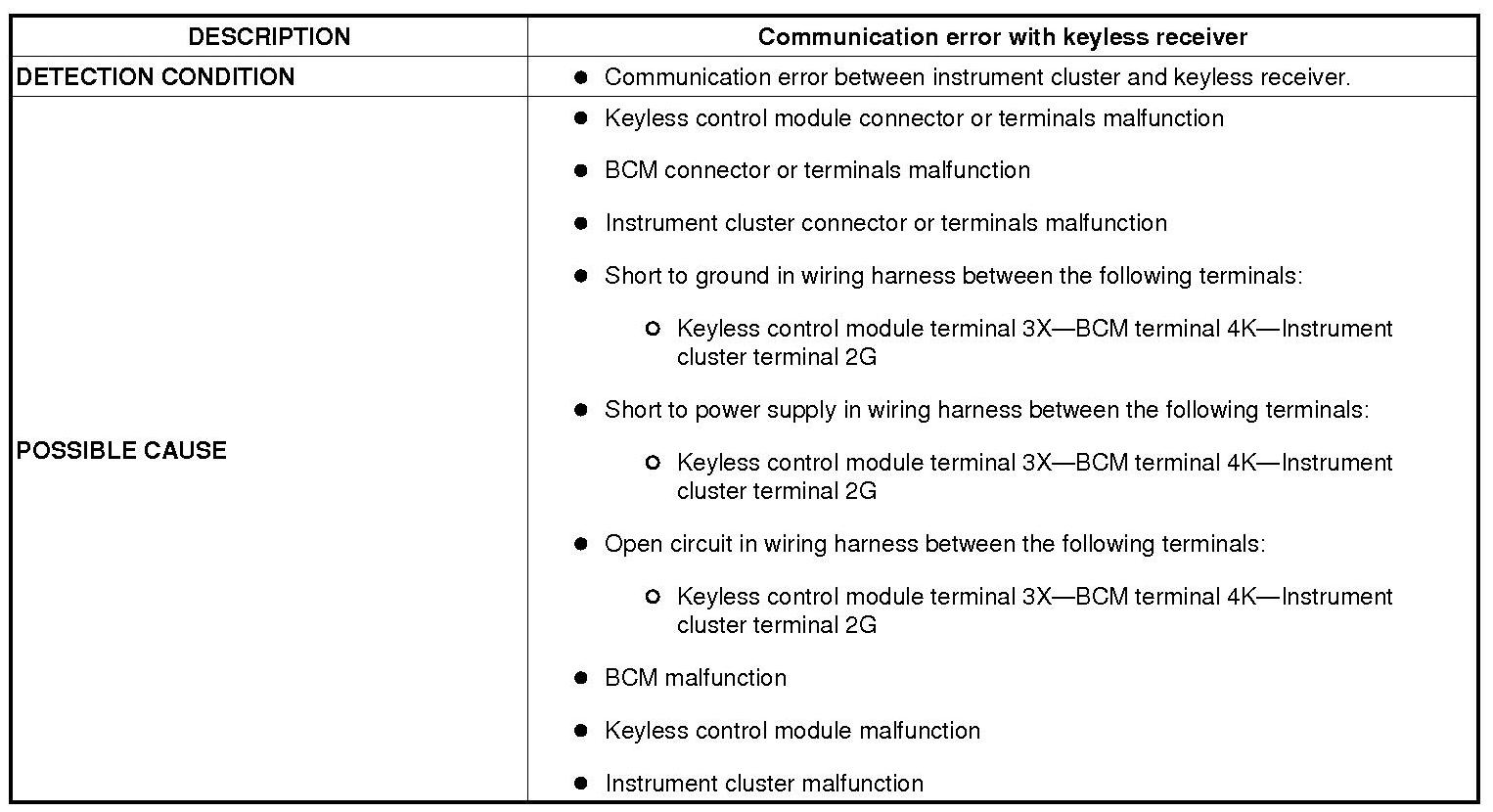

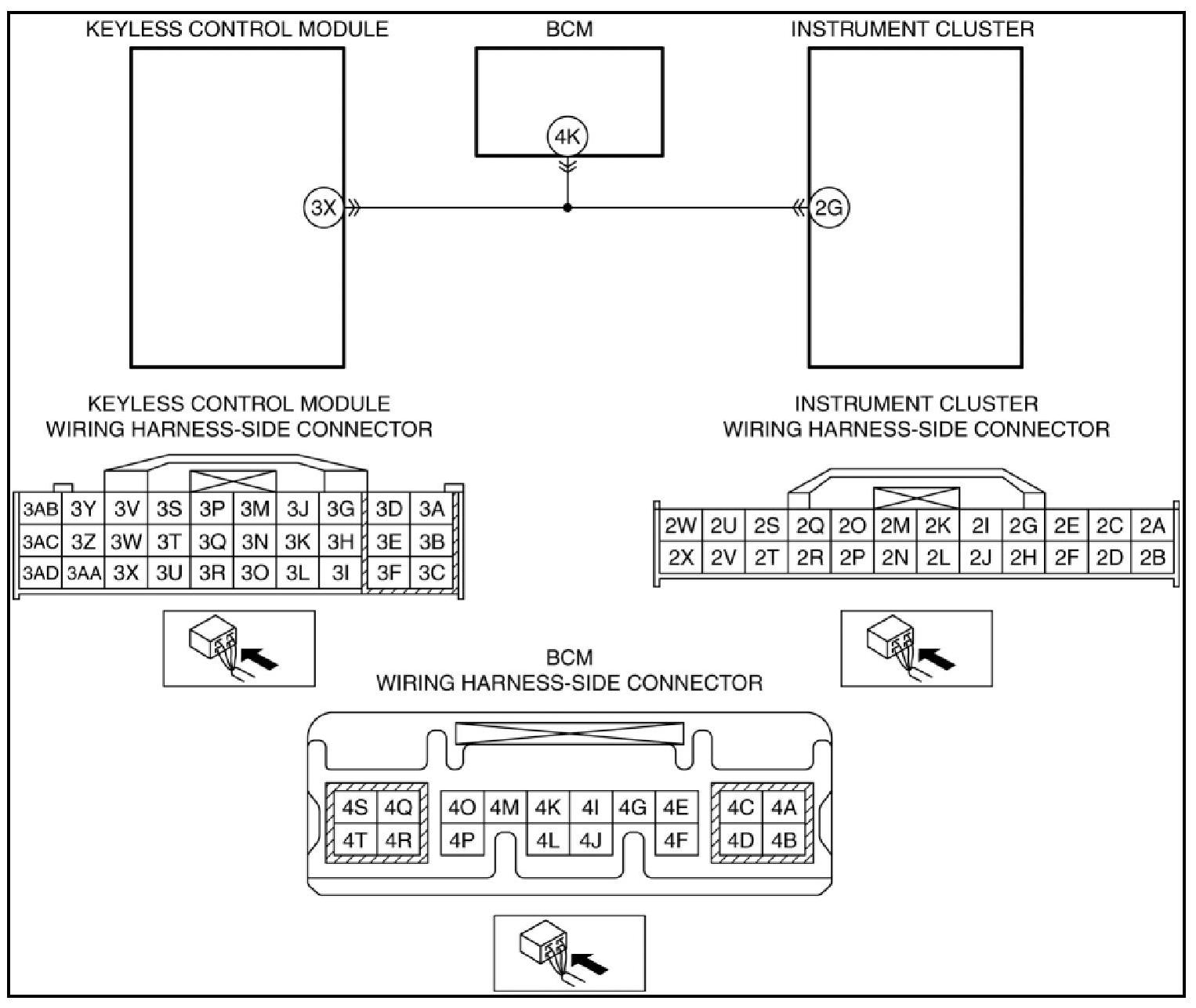

Vehicles With Advanced Keyless Entry And Push Button Start System

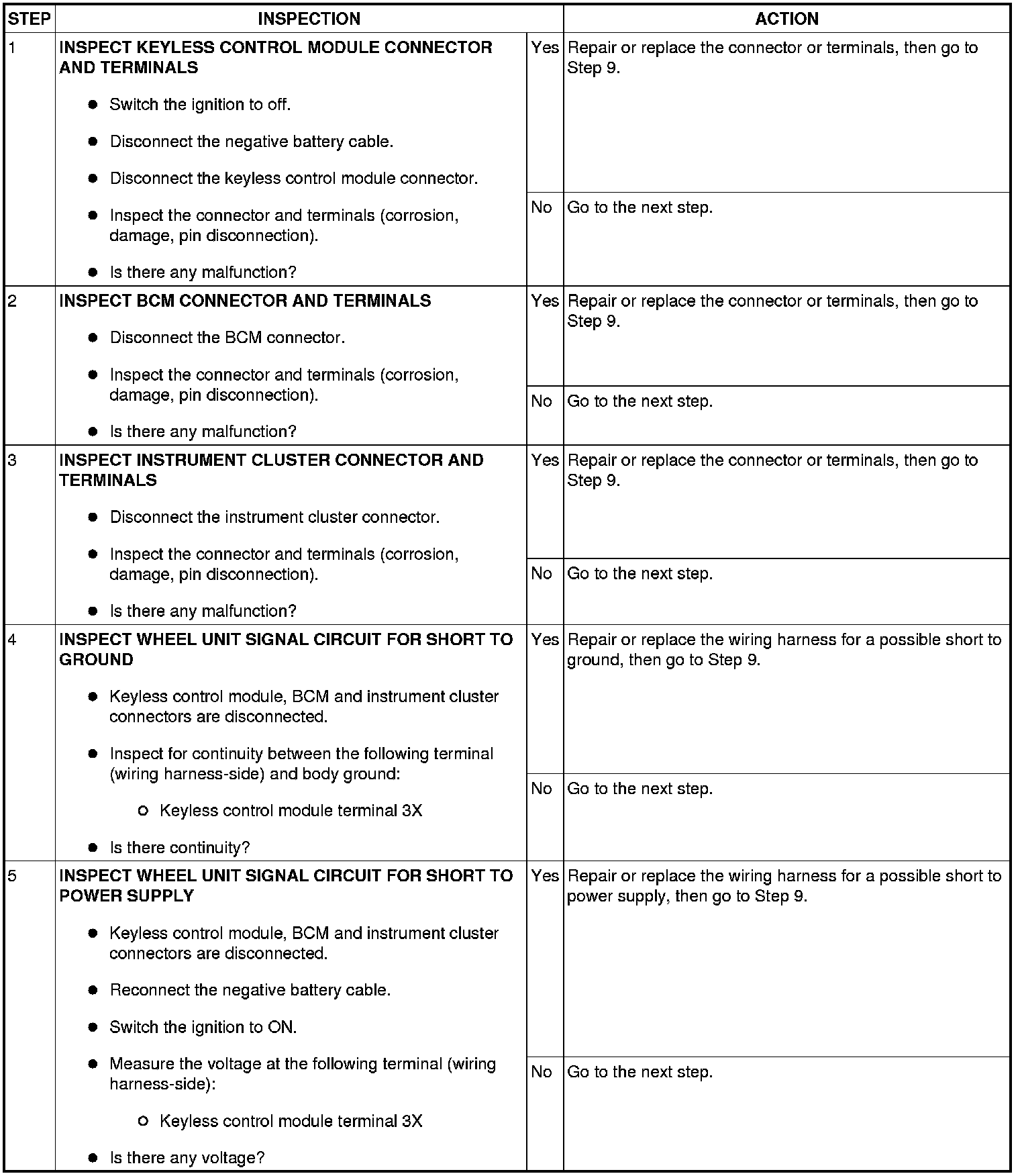

Diagnostic procedure
