Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P1260 >> Immobilizer System (Keyless Entry System) >> Security Light 21

Security Light 21

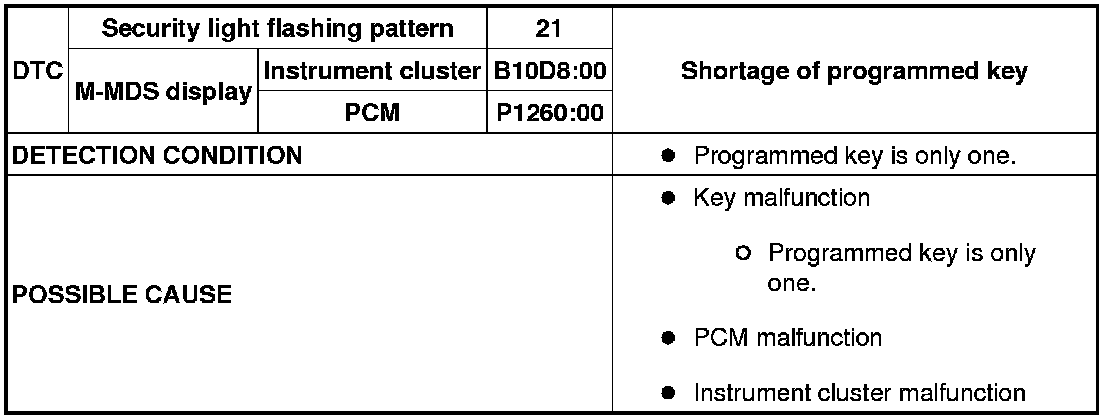

SECURITY LIGHT: 21, DTC: B10D8:00 / P1260:00 [IMMOBILIZER SYSTEM (KEYLESS ENTRY SYSTEM)]

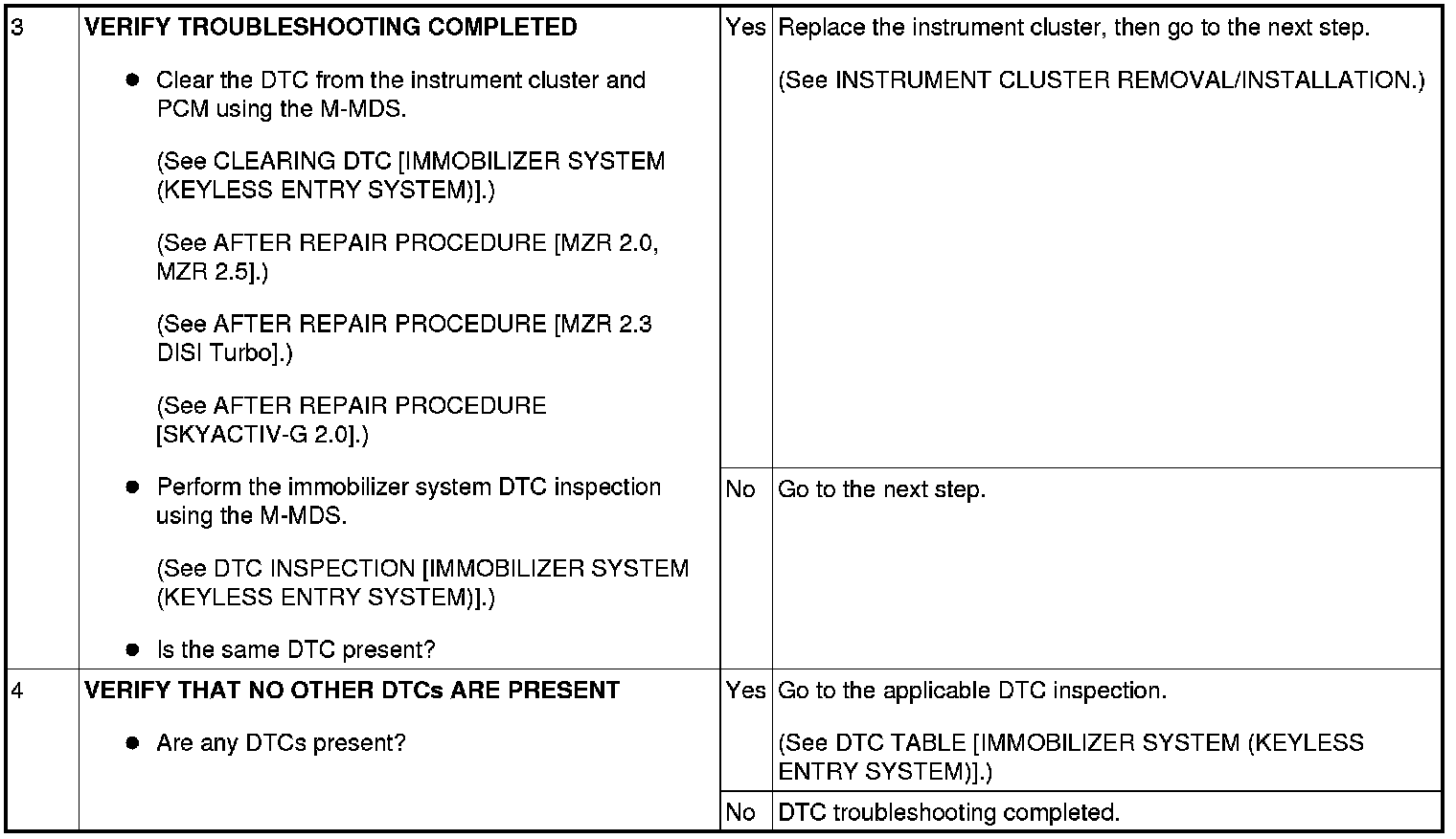

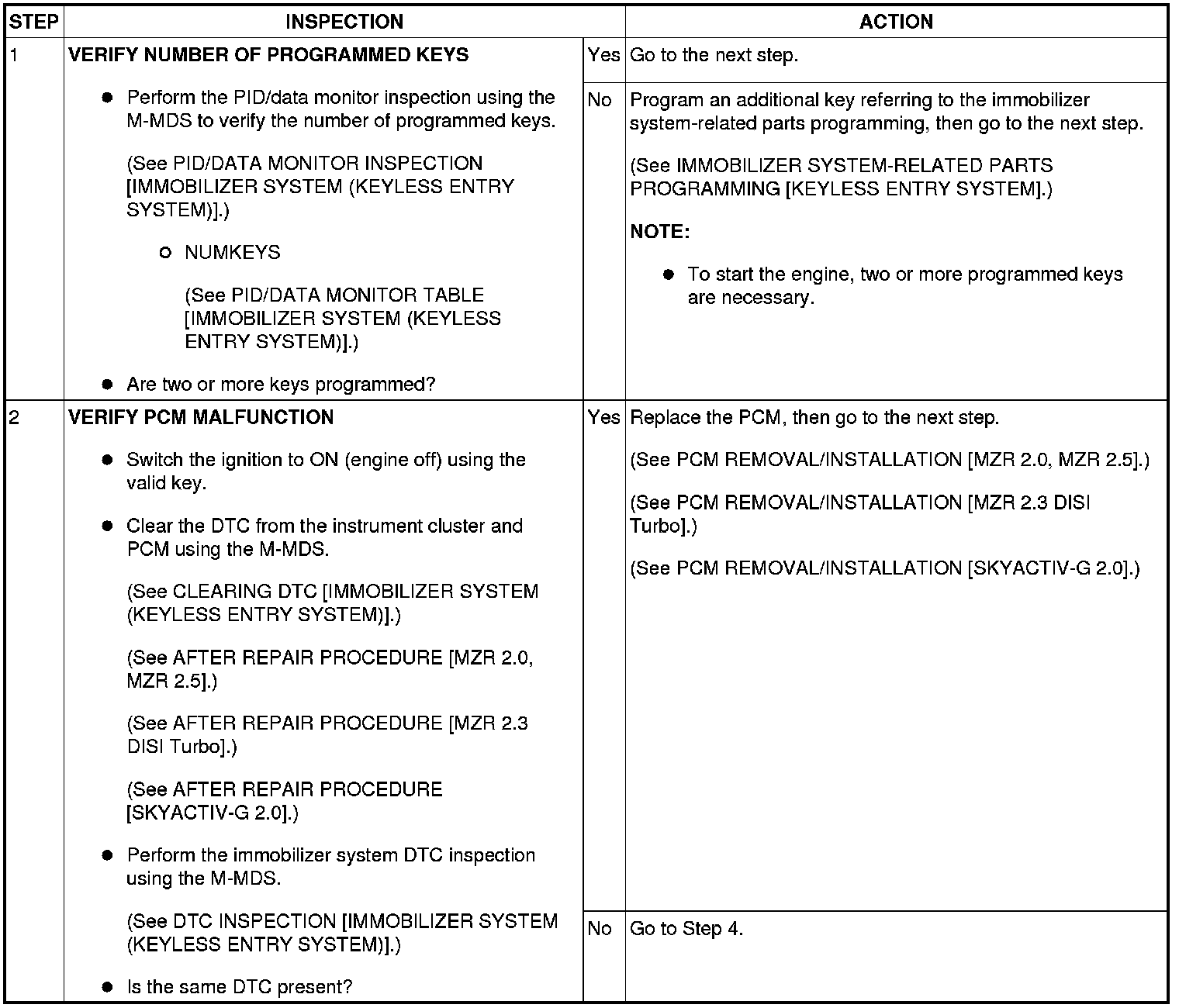

Diagnostic Procedure
