Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P1260 >> Immobilizer System (Advanced Keyless Entry And Push Button Start System) >> Security Light 14

Security Light 14





SECURITY LIGHT: 14, DTC: B10D7:81 / P1260:00 [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)]

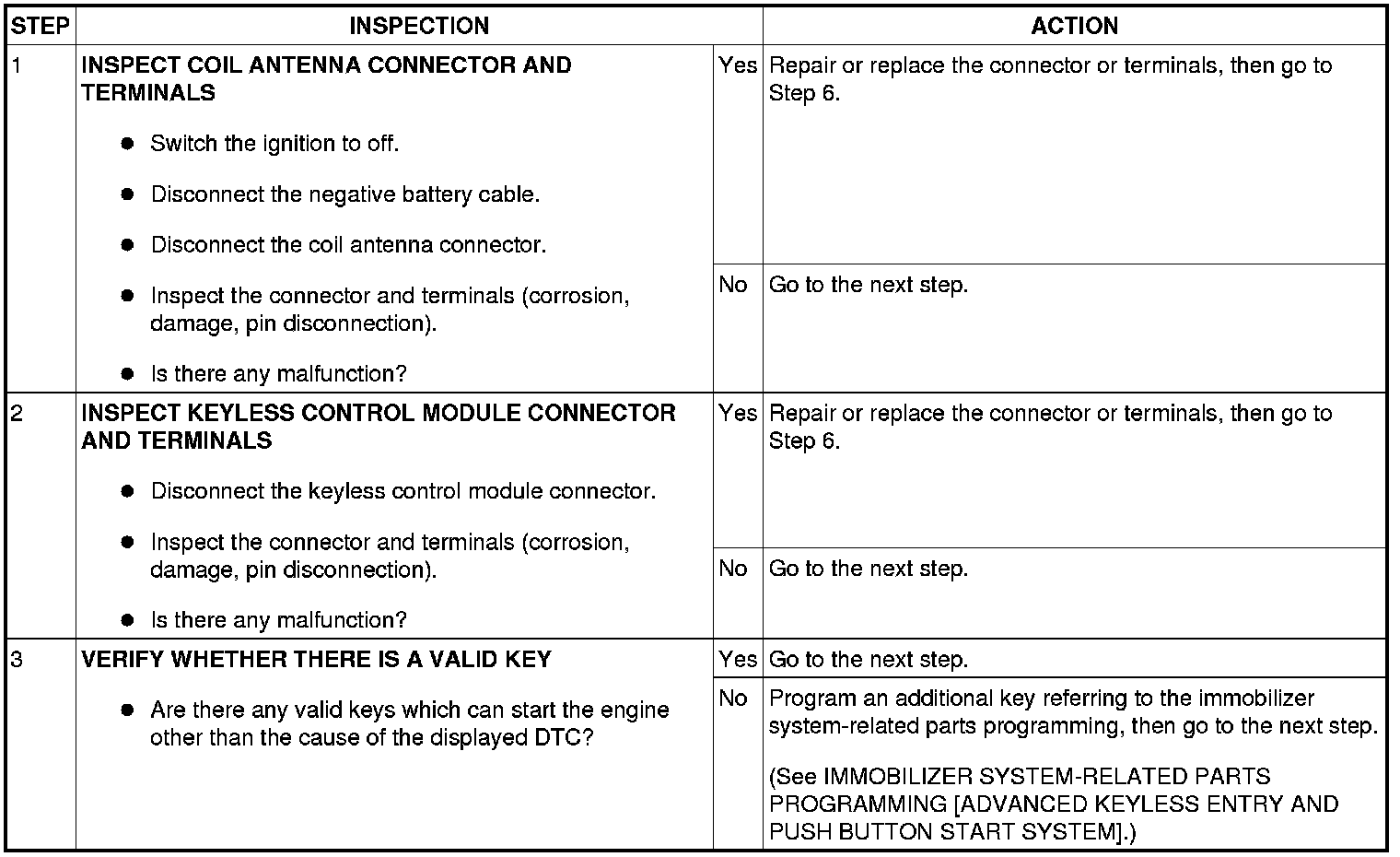

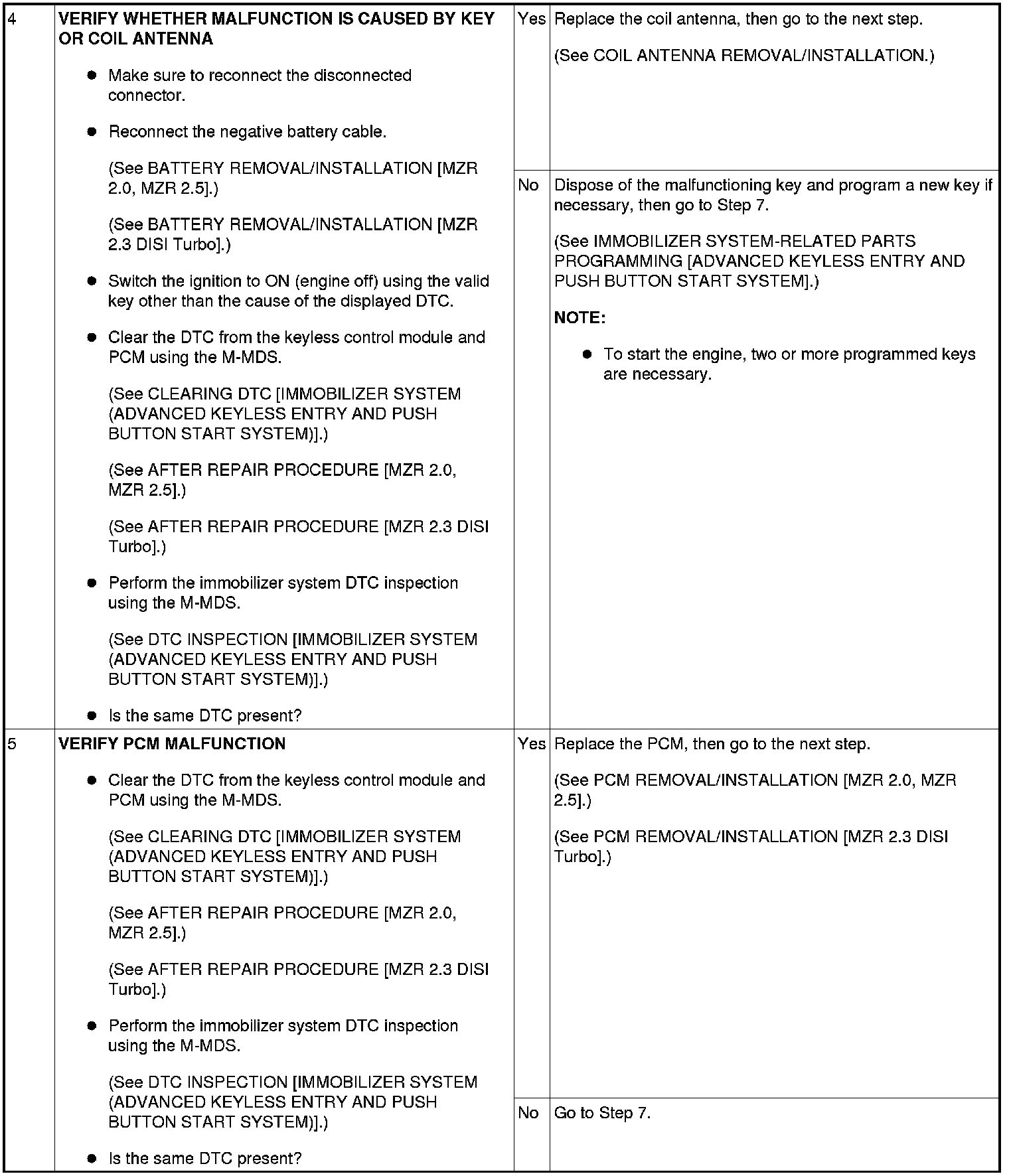

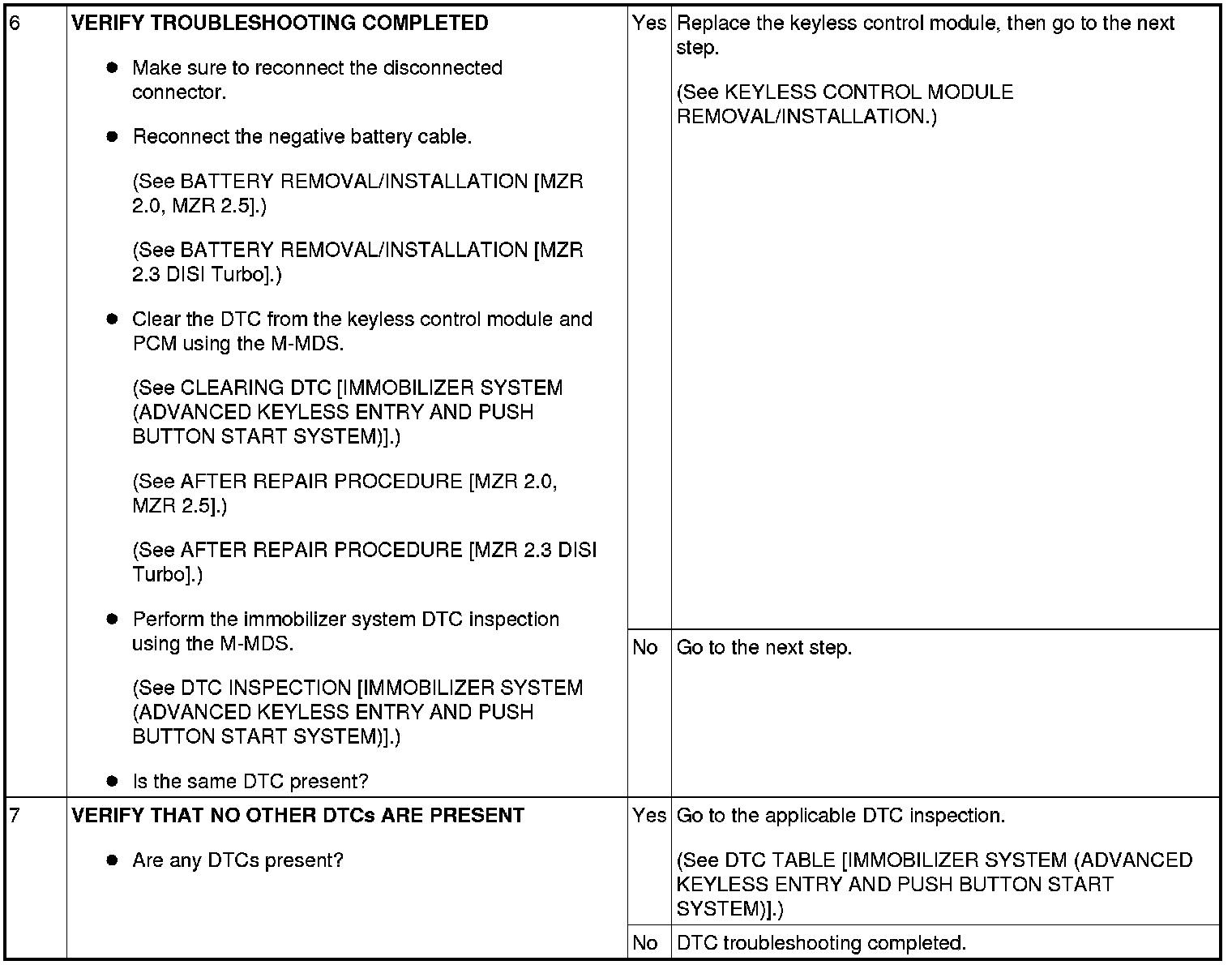

Diagnostic Procedure
