Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0615 >> P0615:12

P0615:12

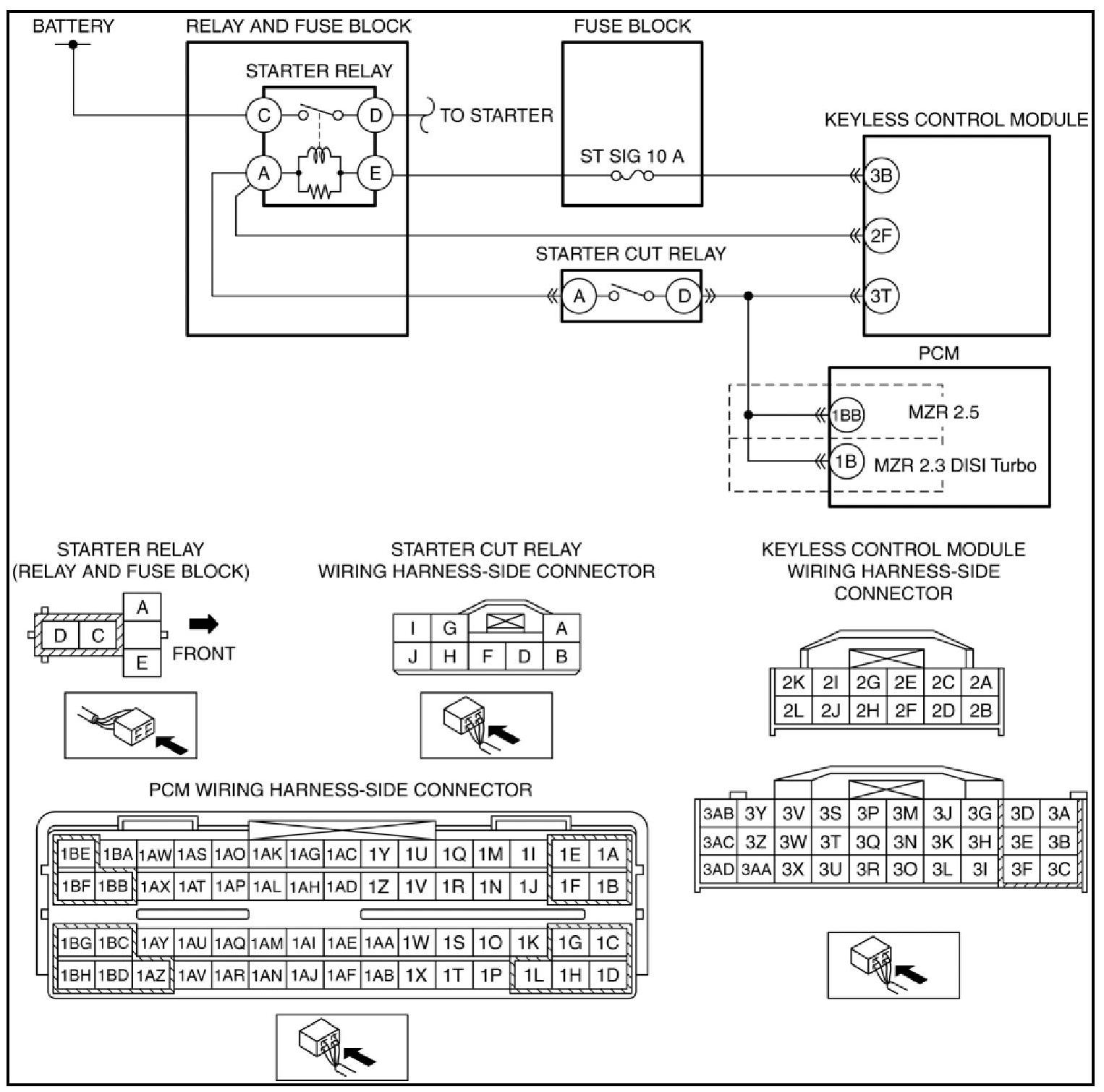

DTC P0615:12 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

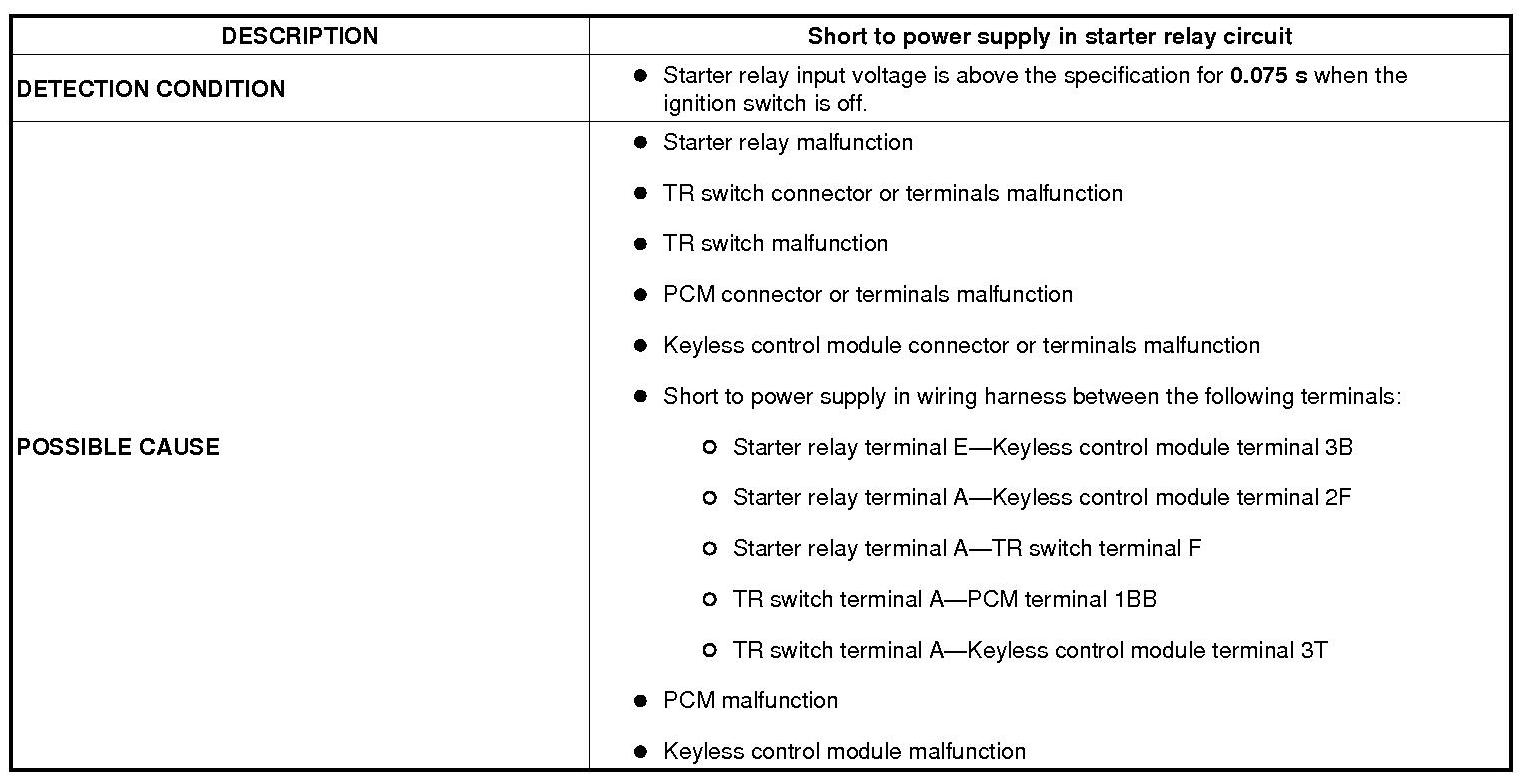

ATX

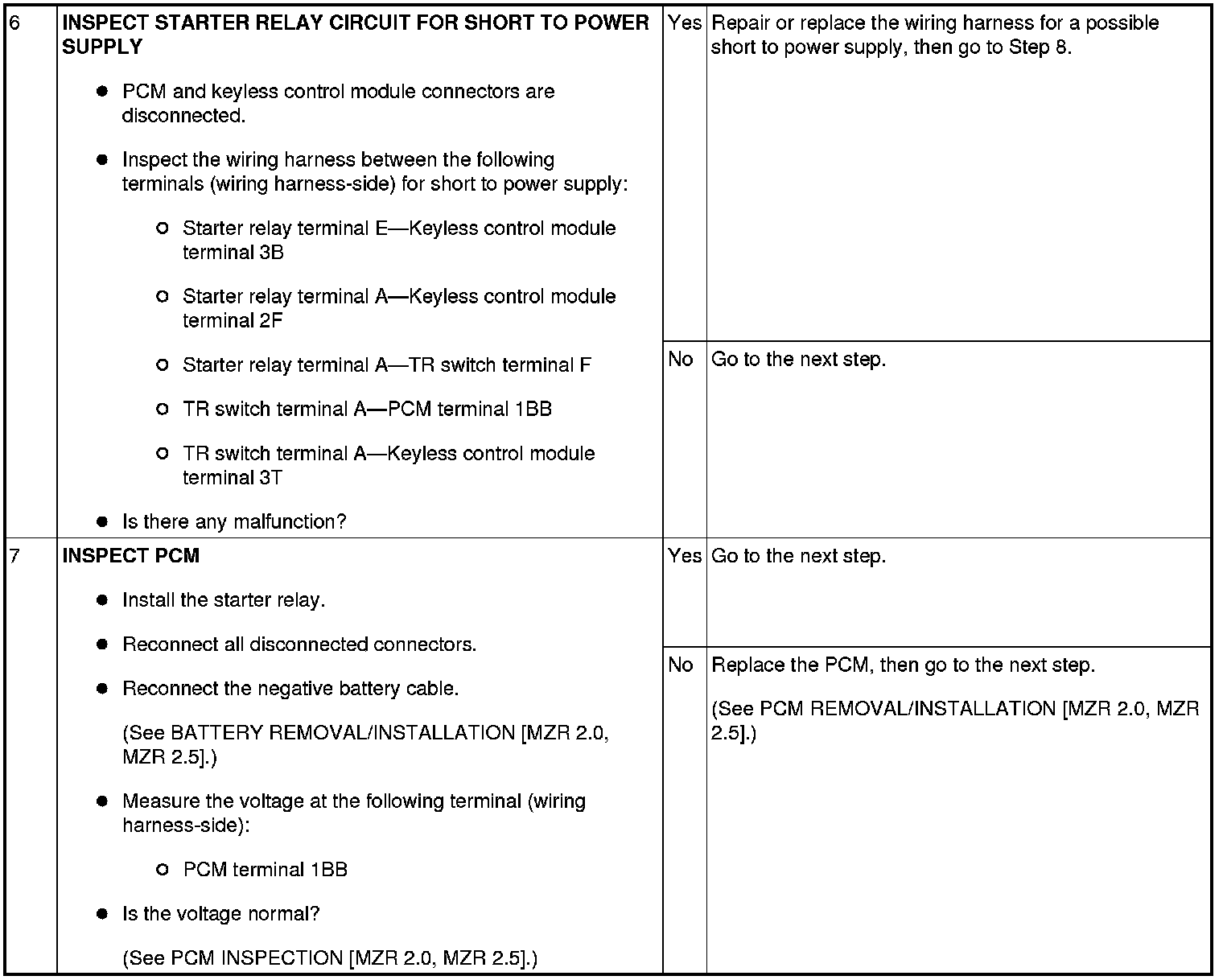

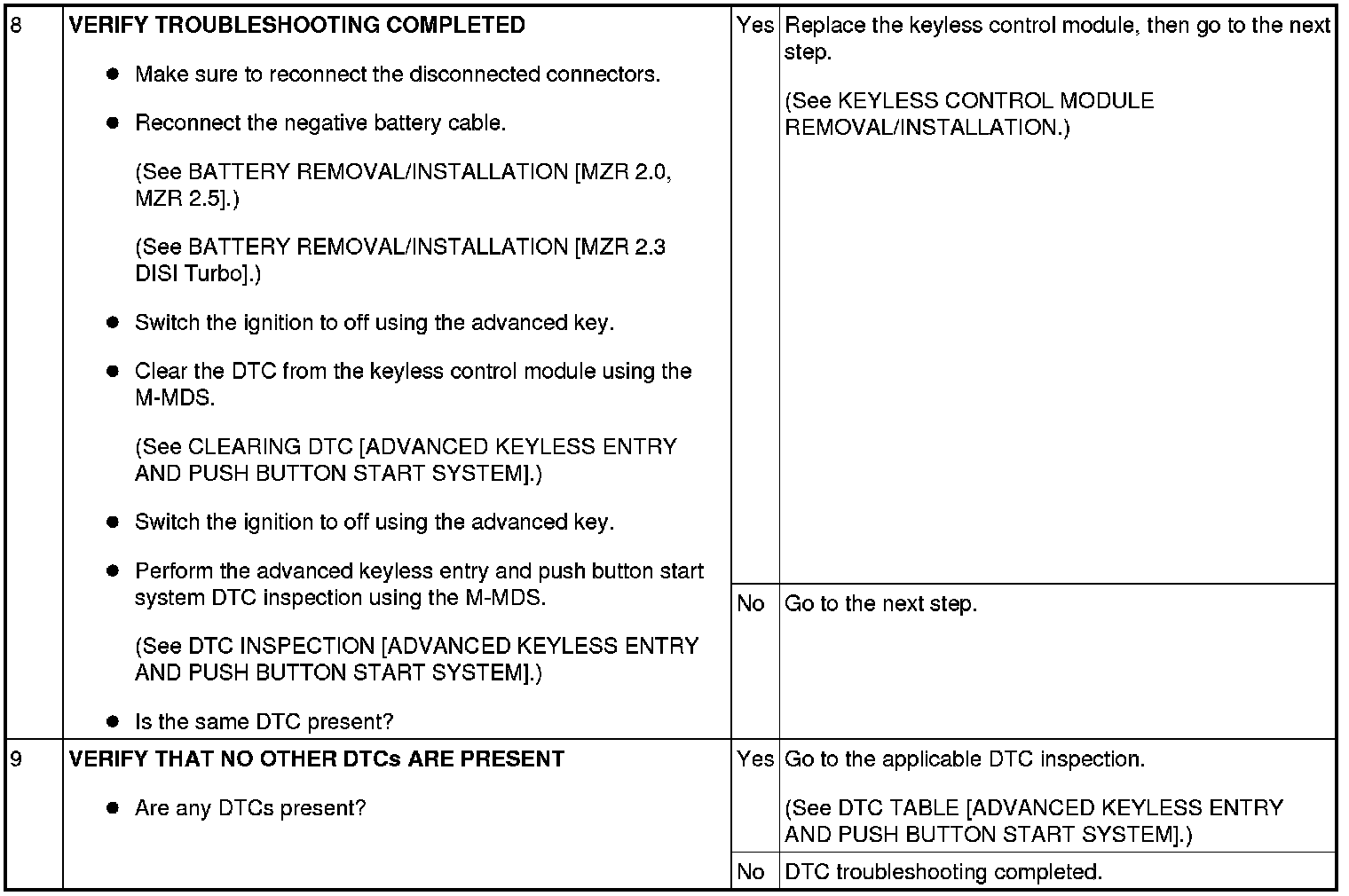

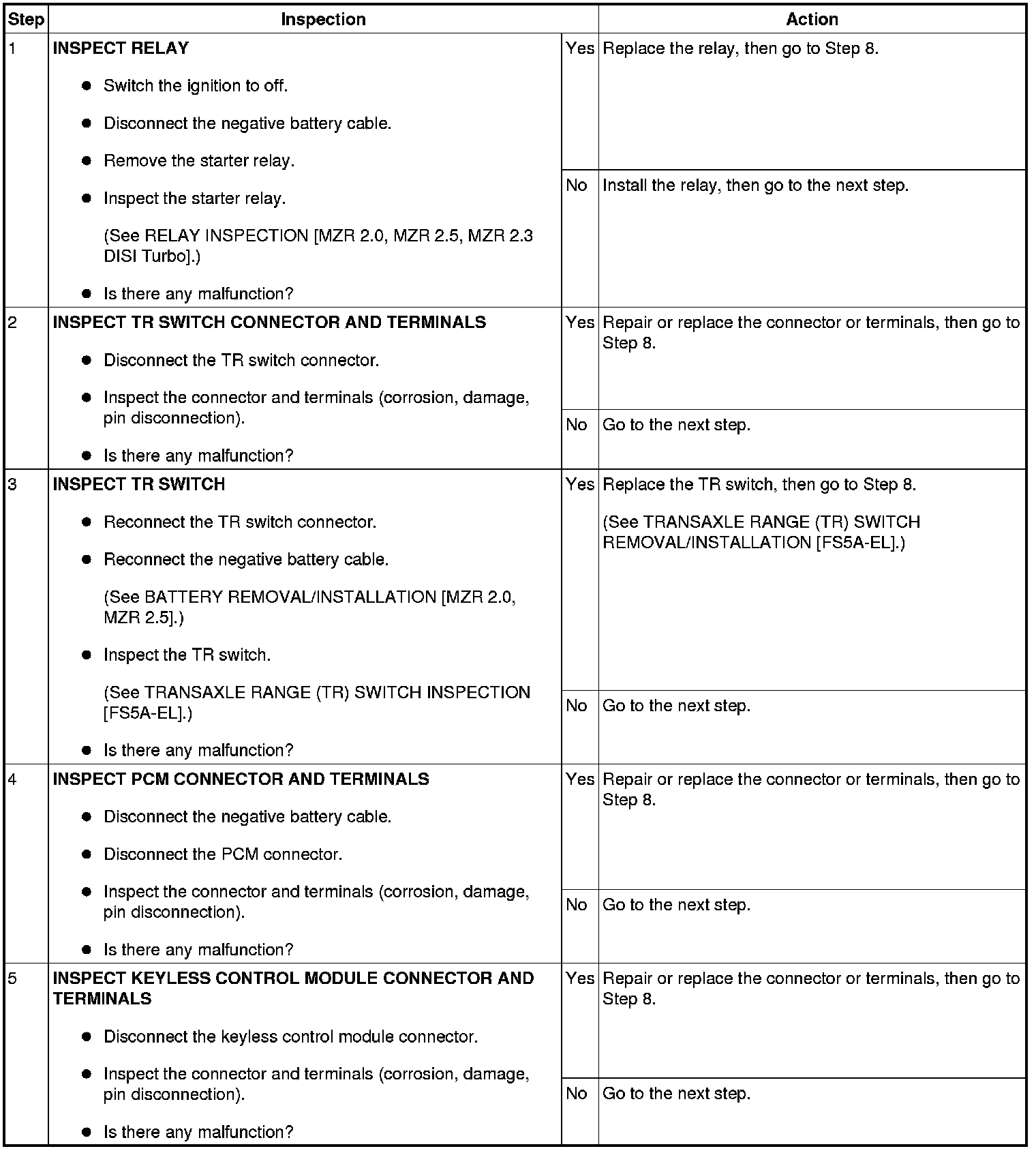

Diagnostic Procedure

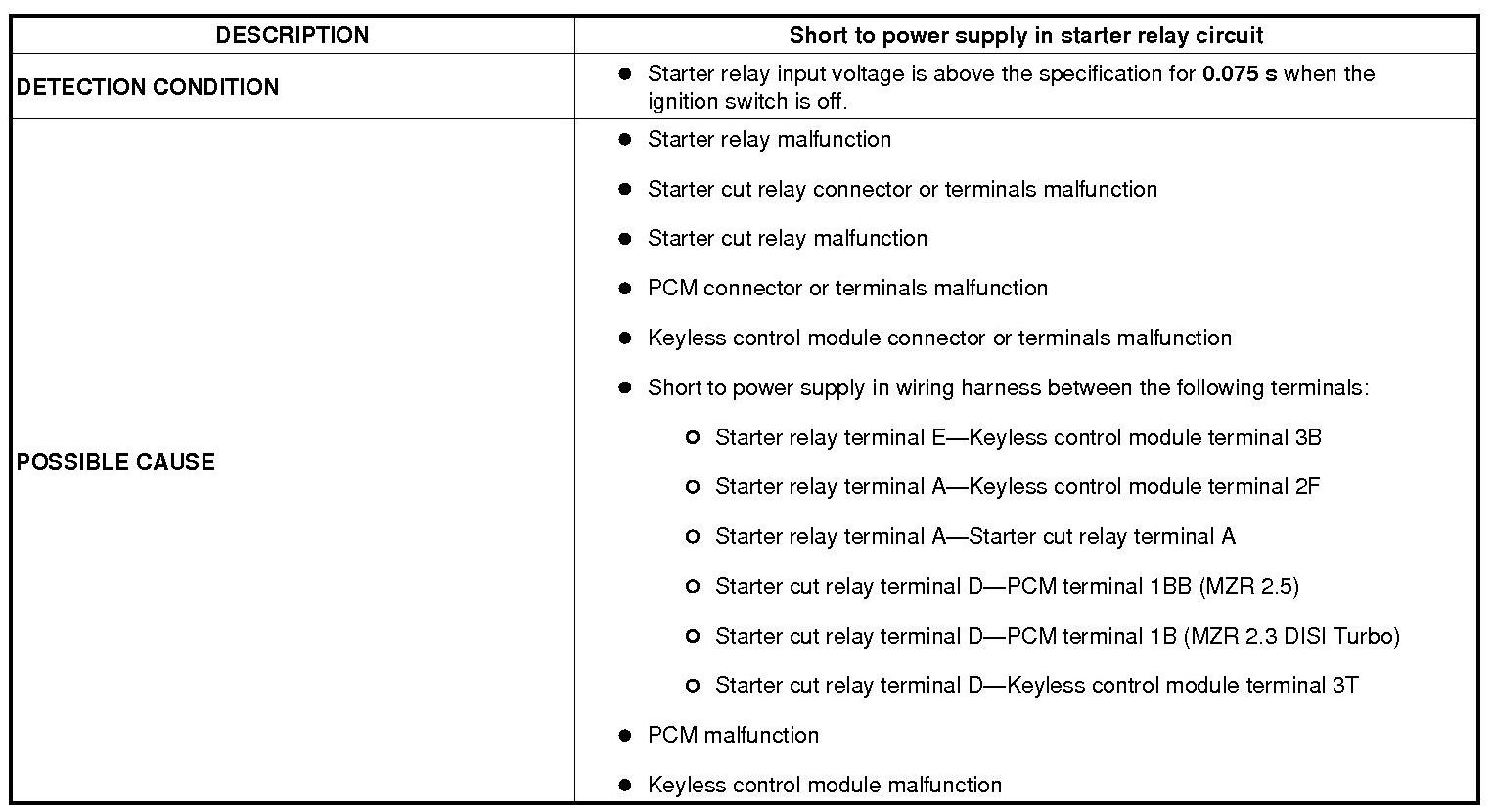

MTX

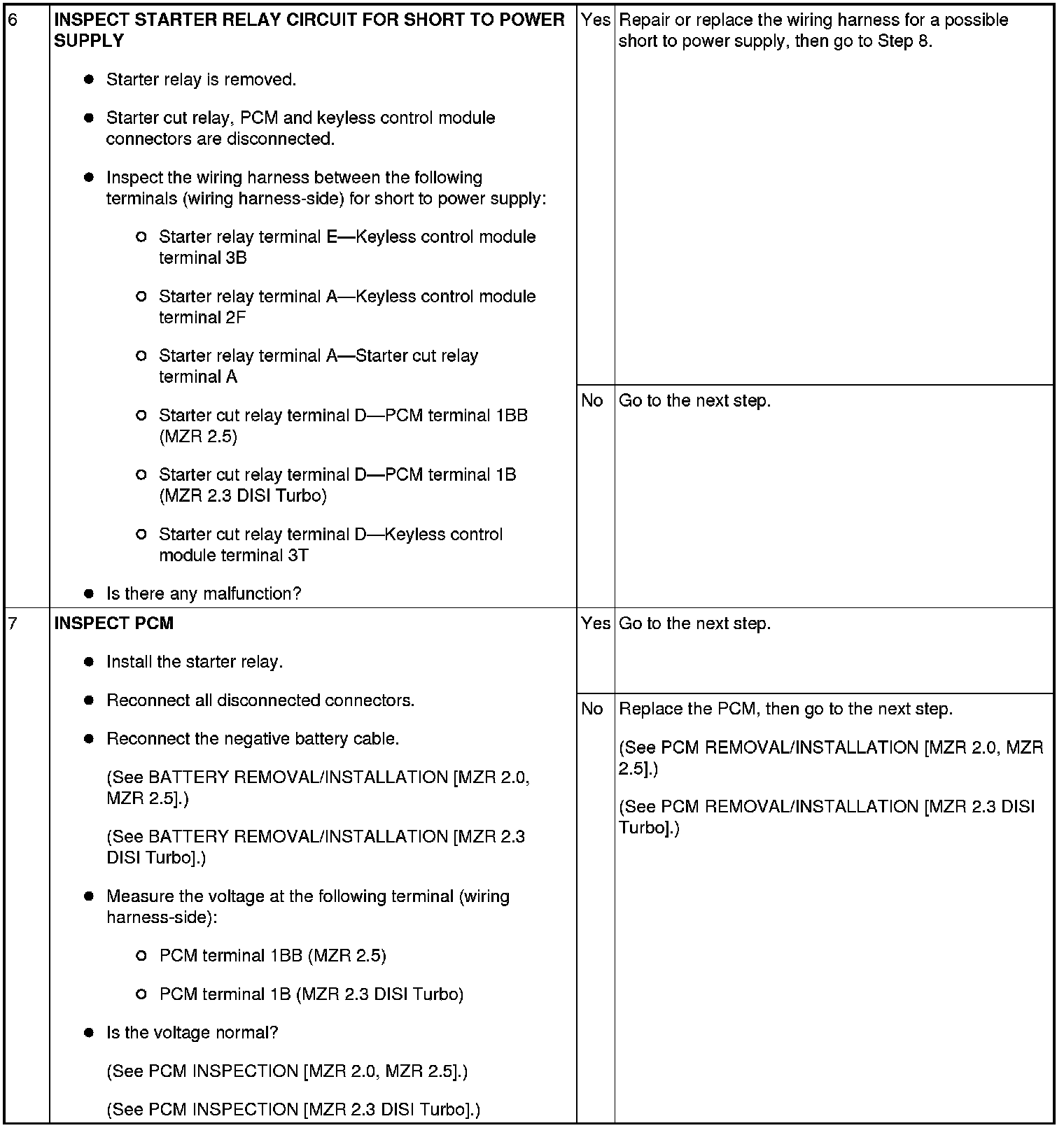

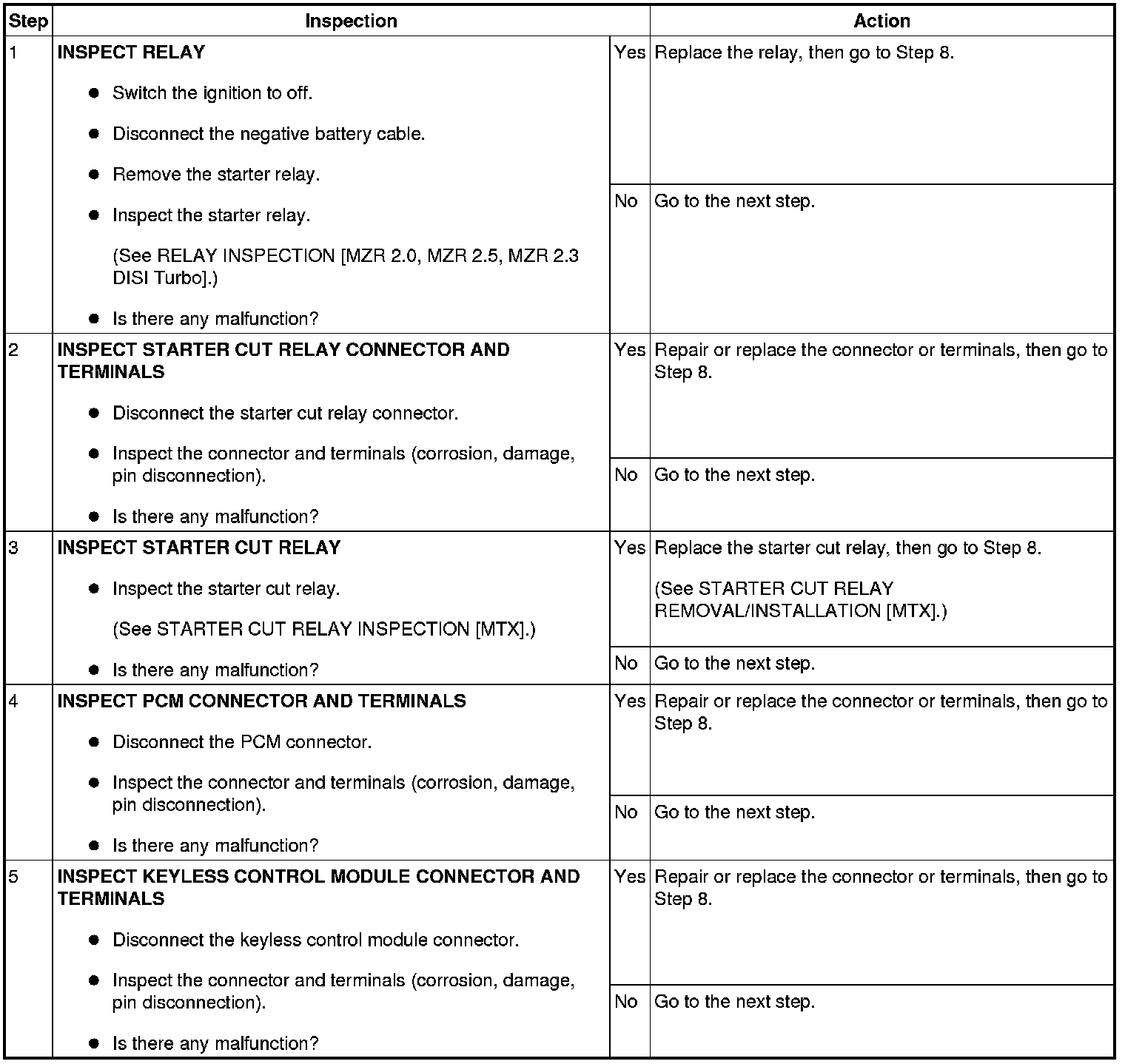

Diagnostic Procedure
