P0615:11

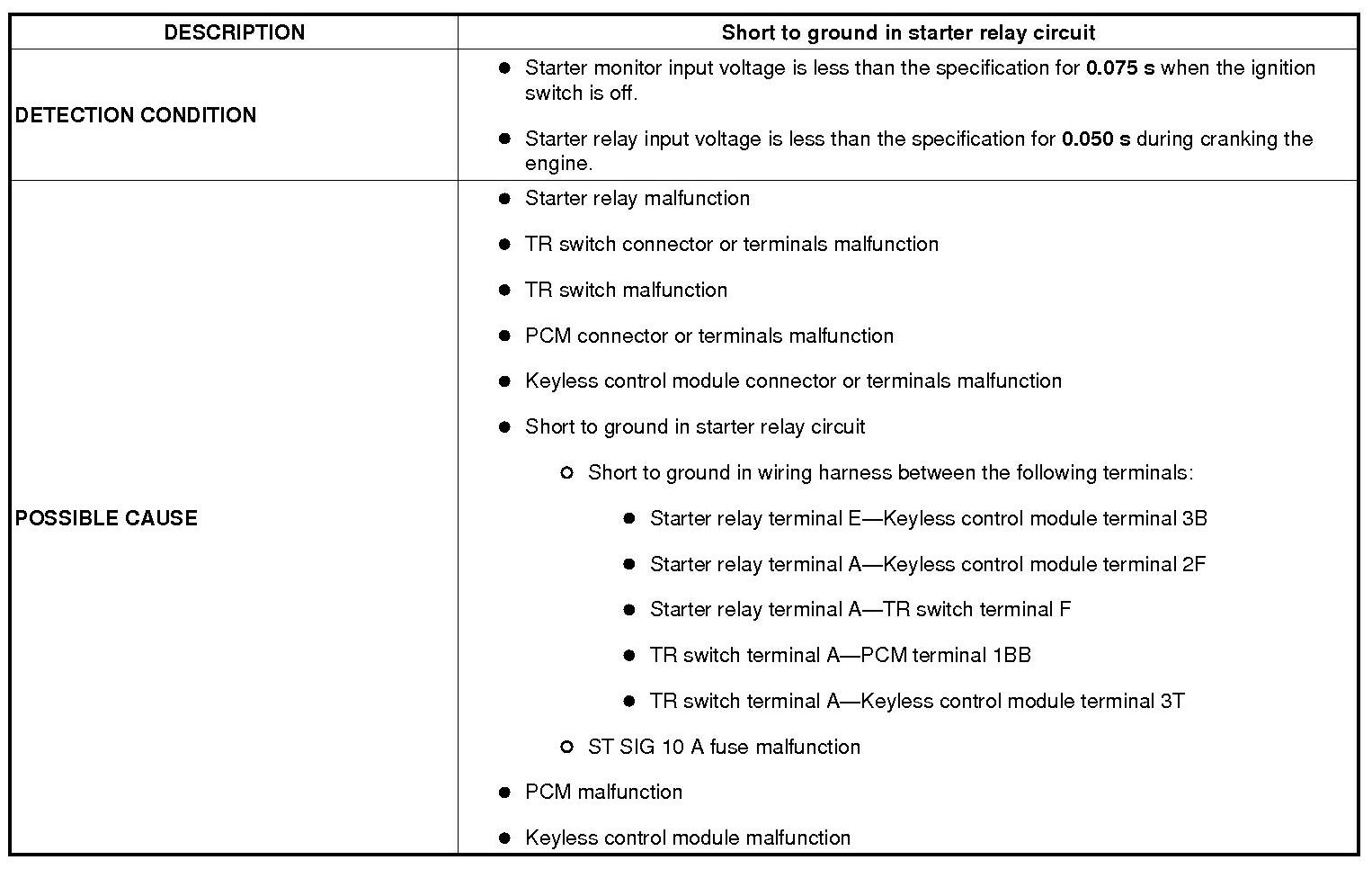

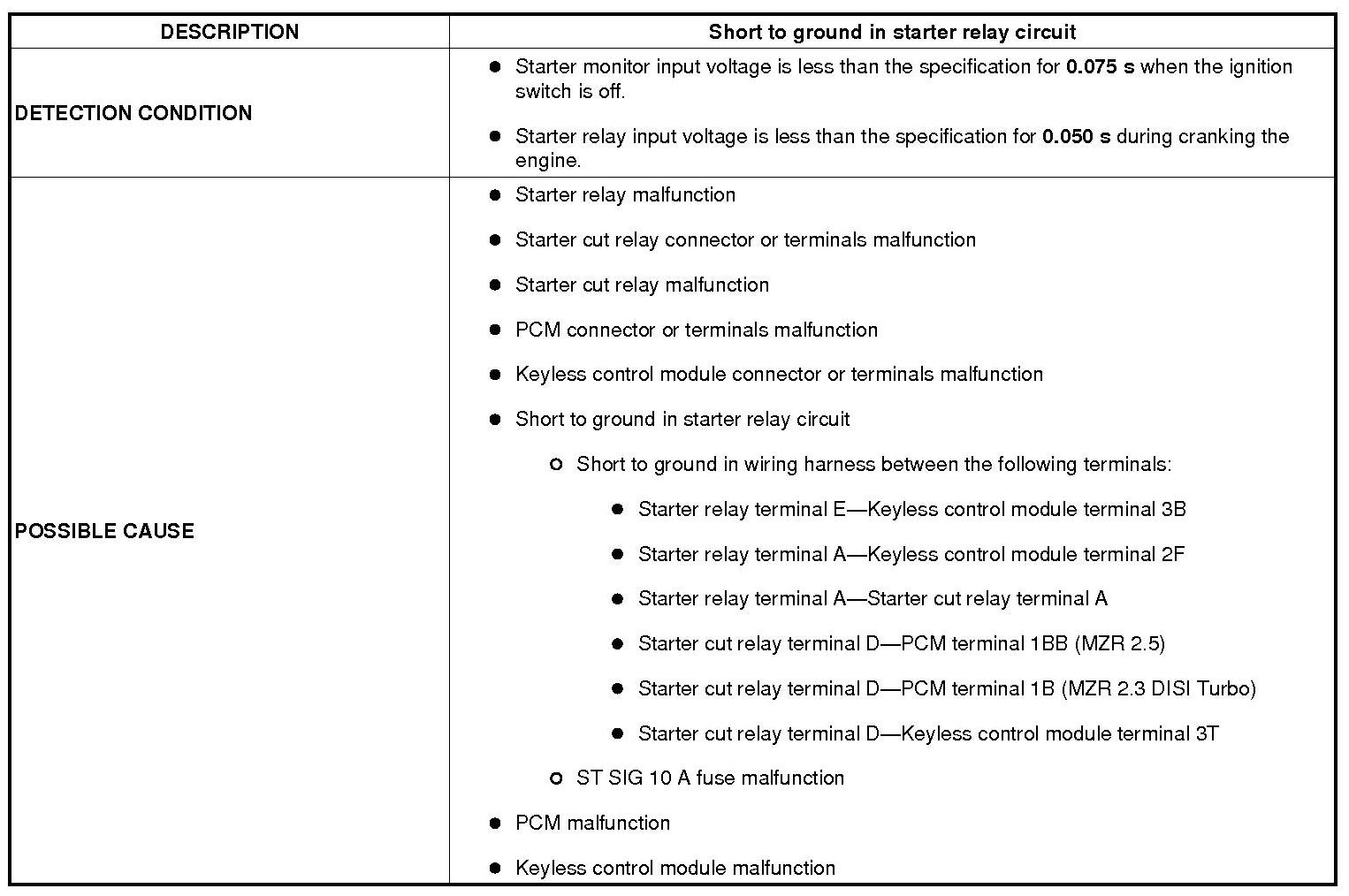

DTC P0615:11 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

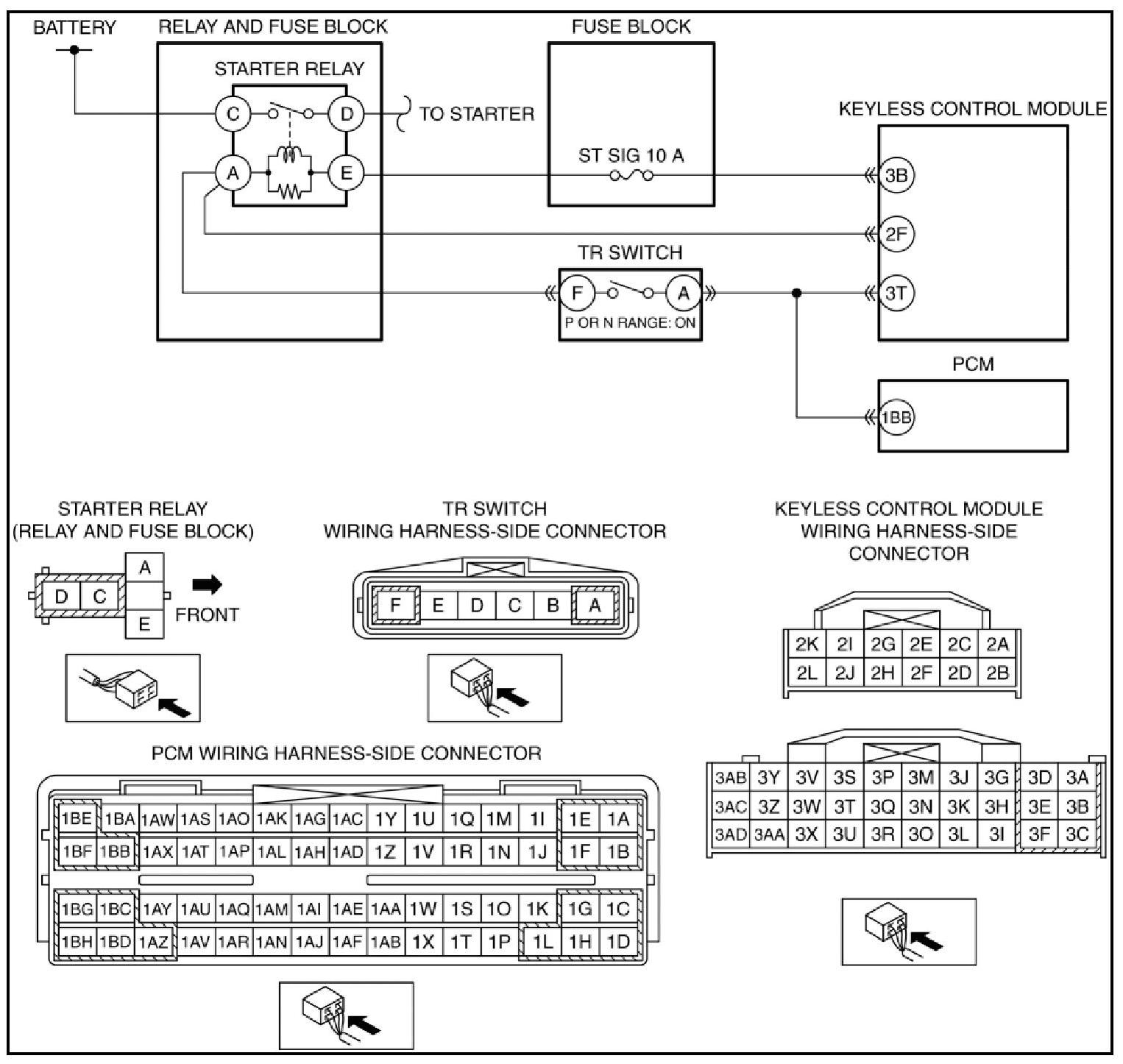

ATX

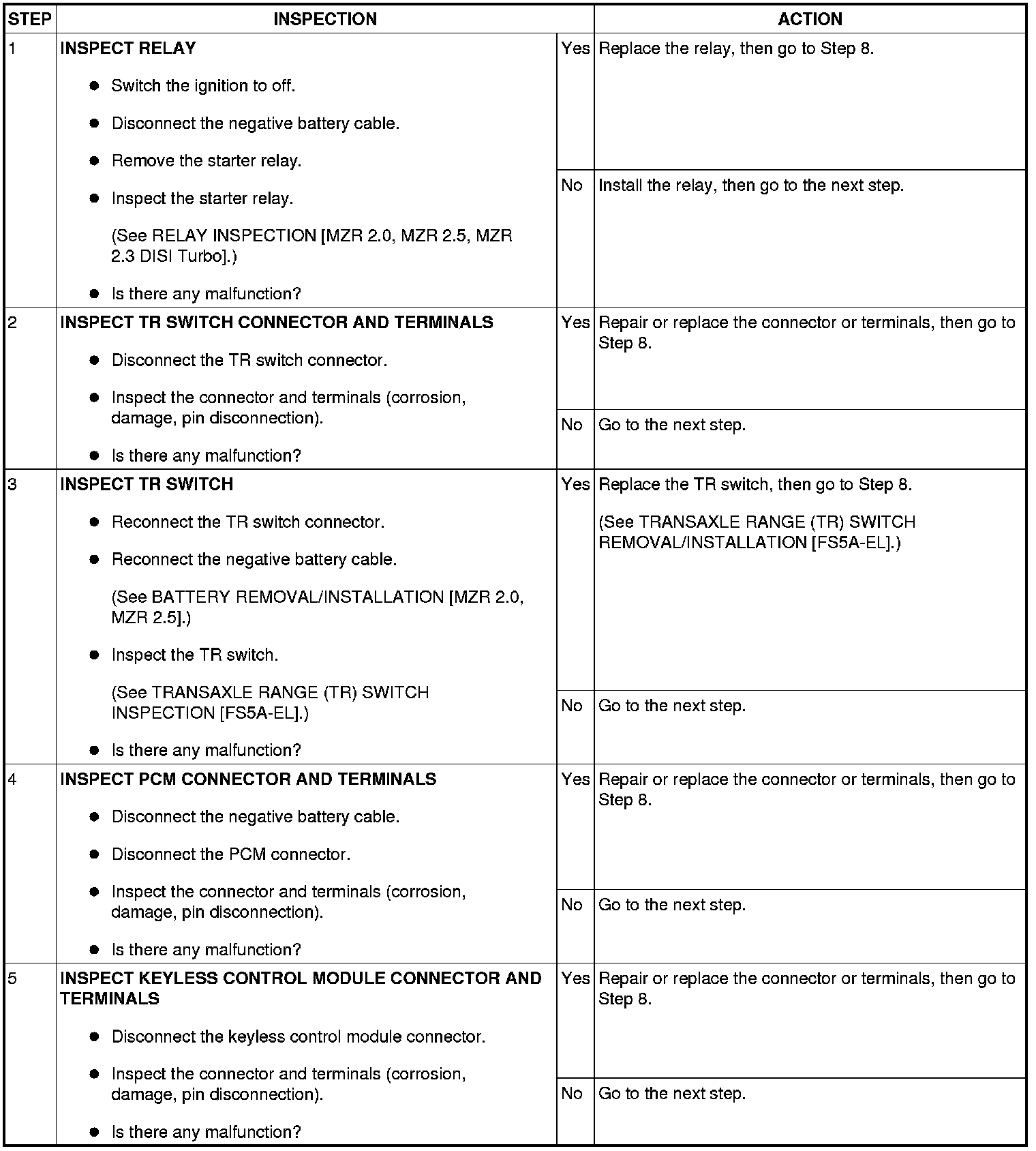

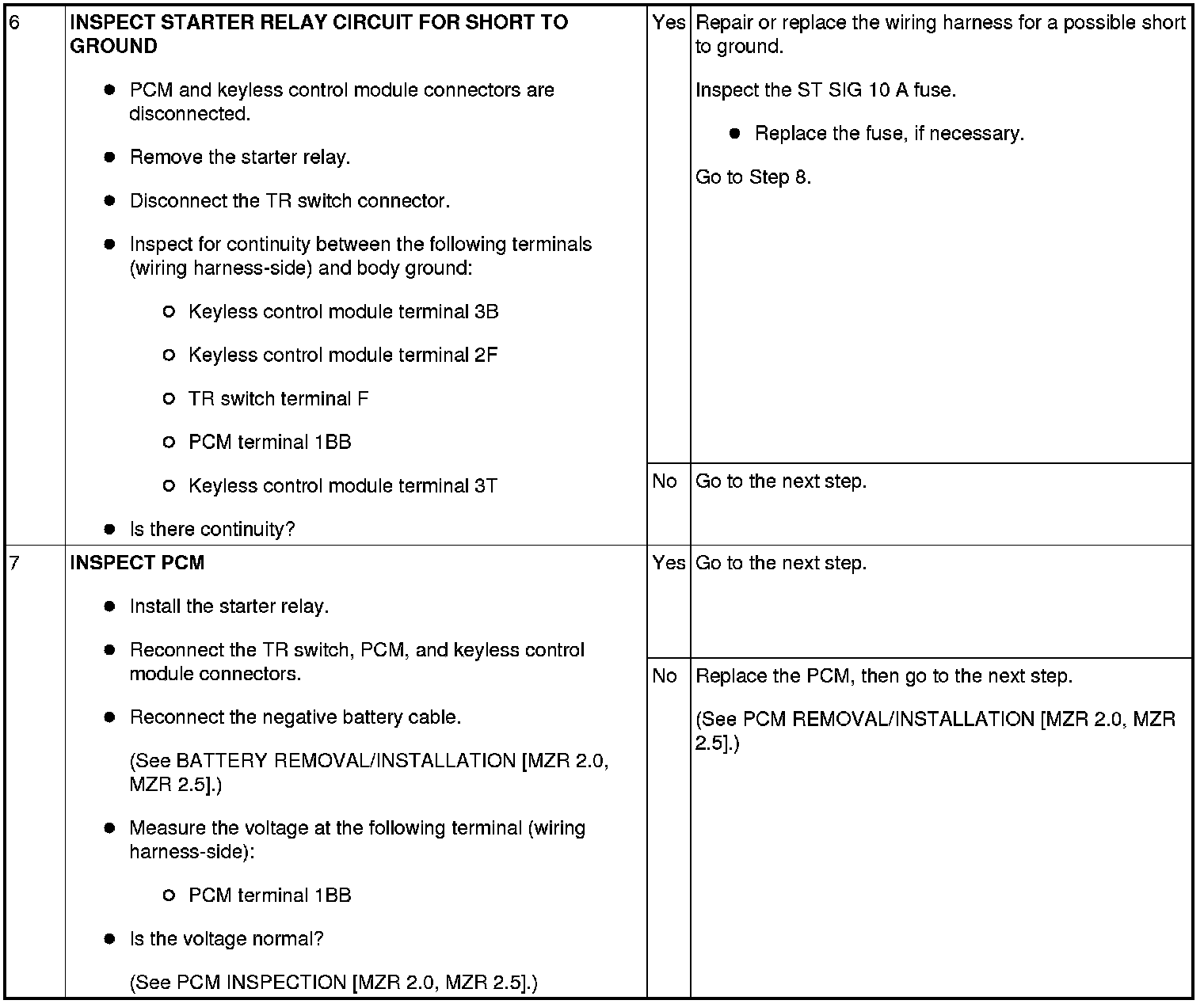

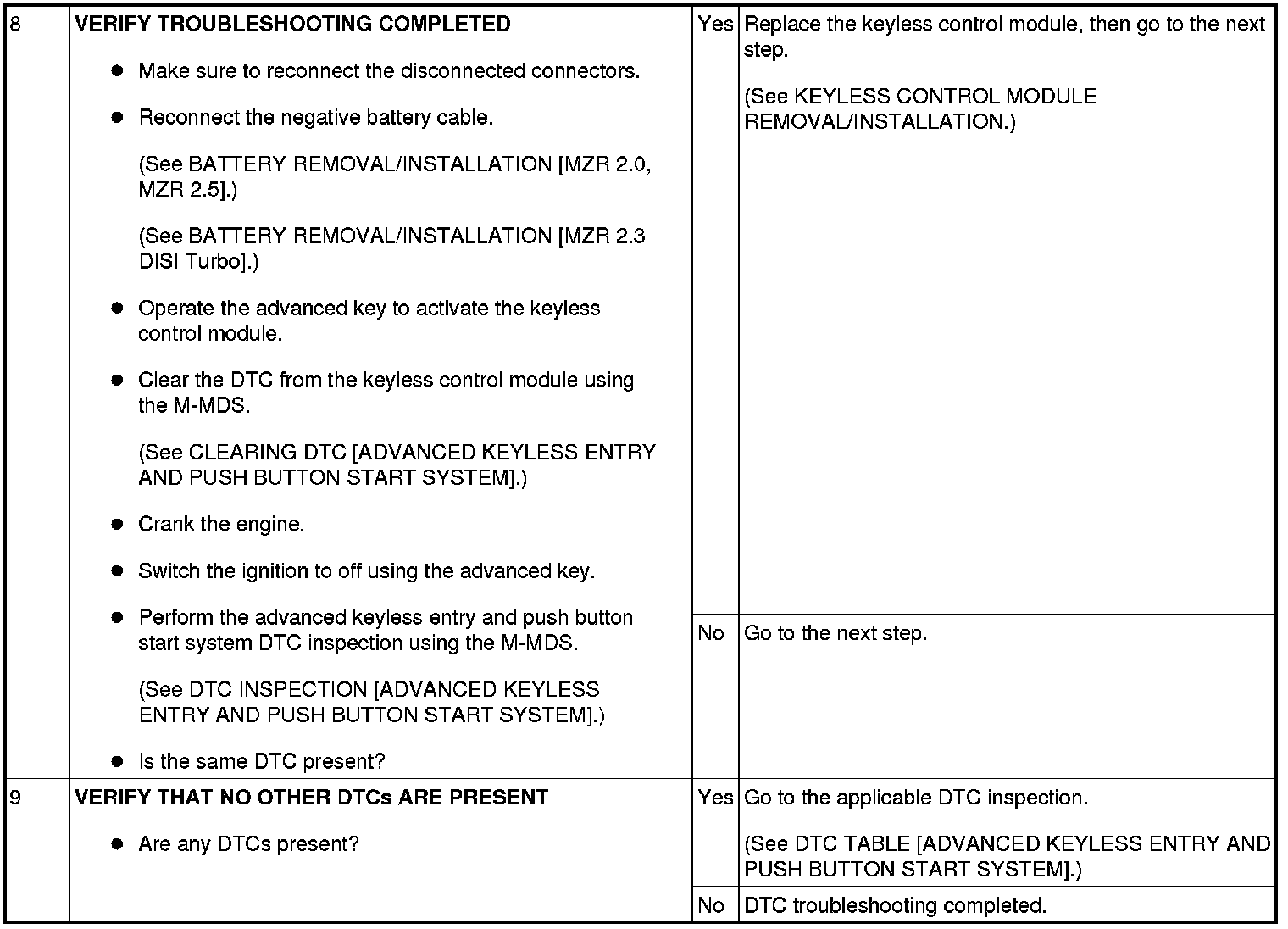

Diagnostic Procedure

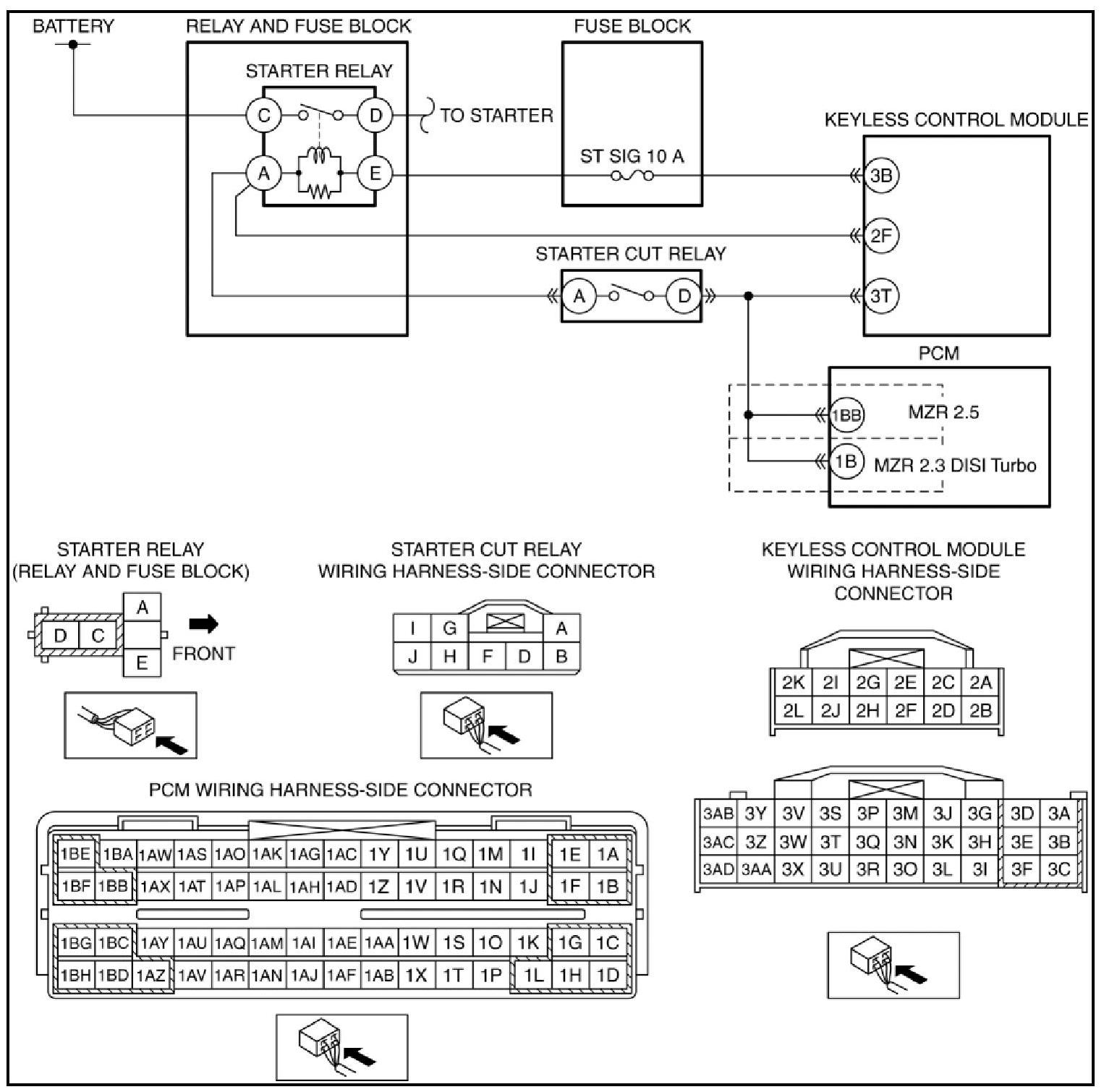

MTX

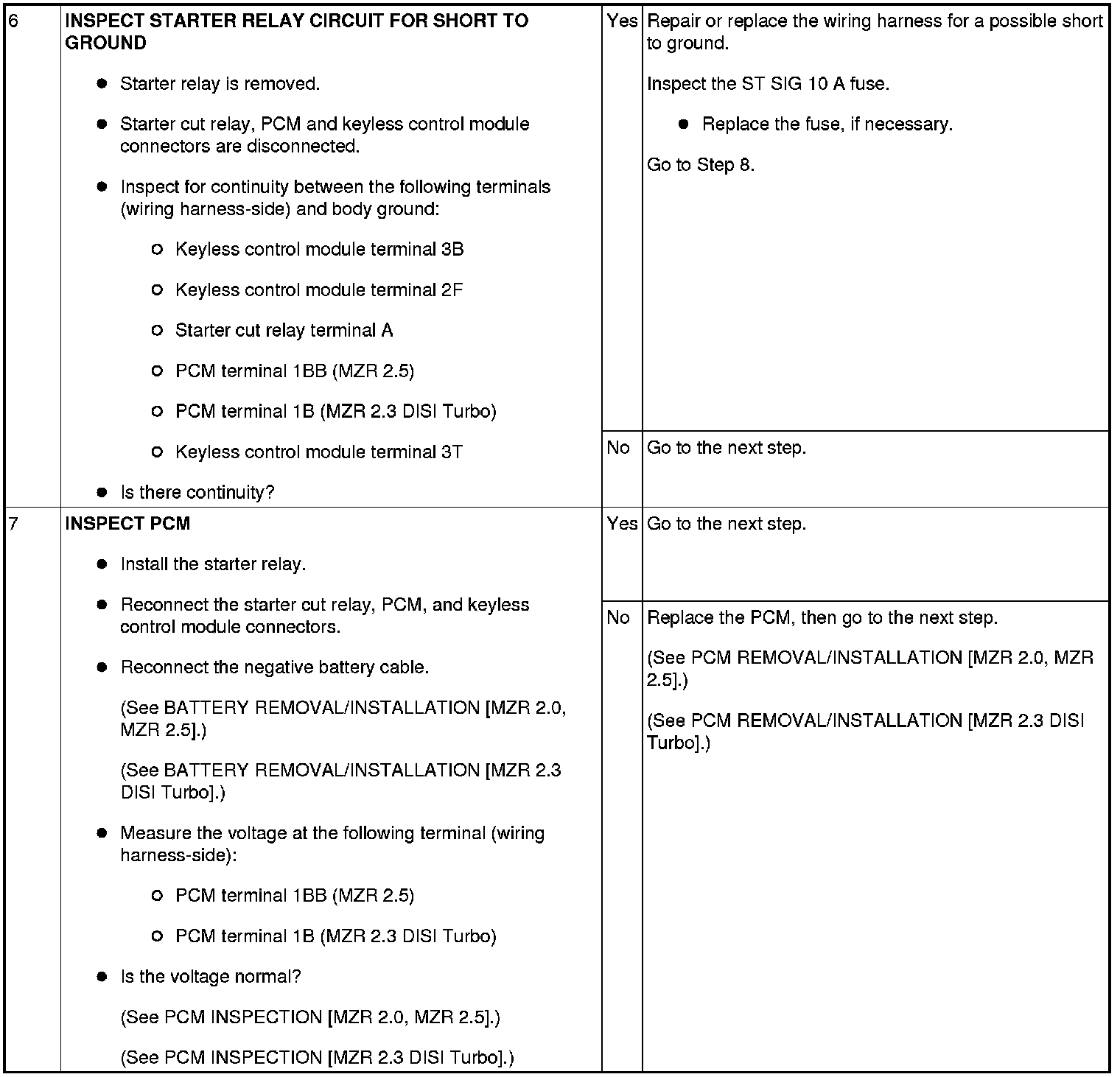

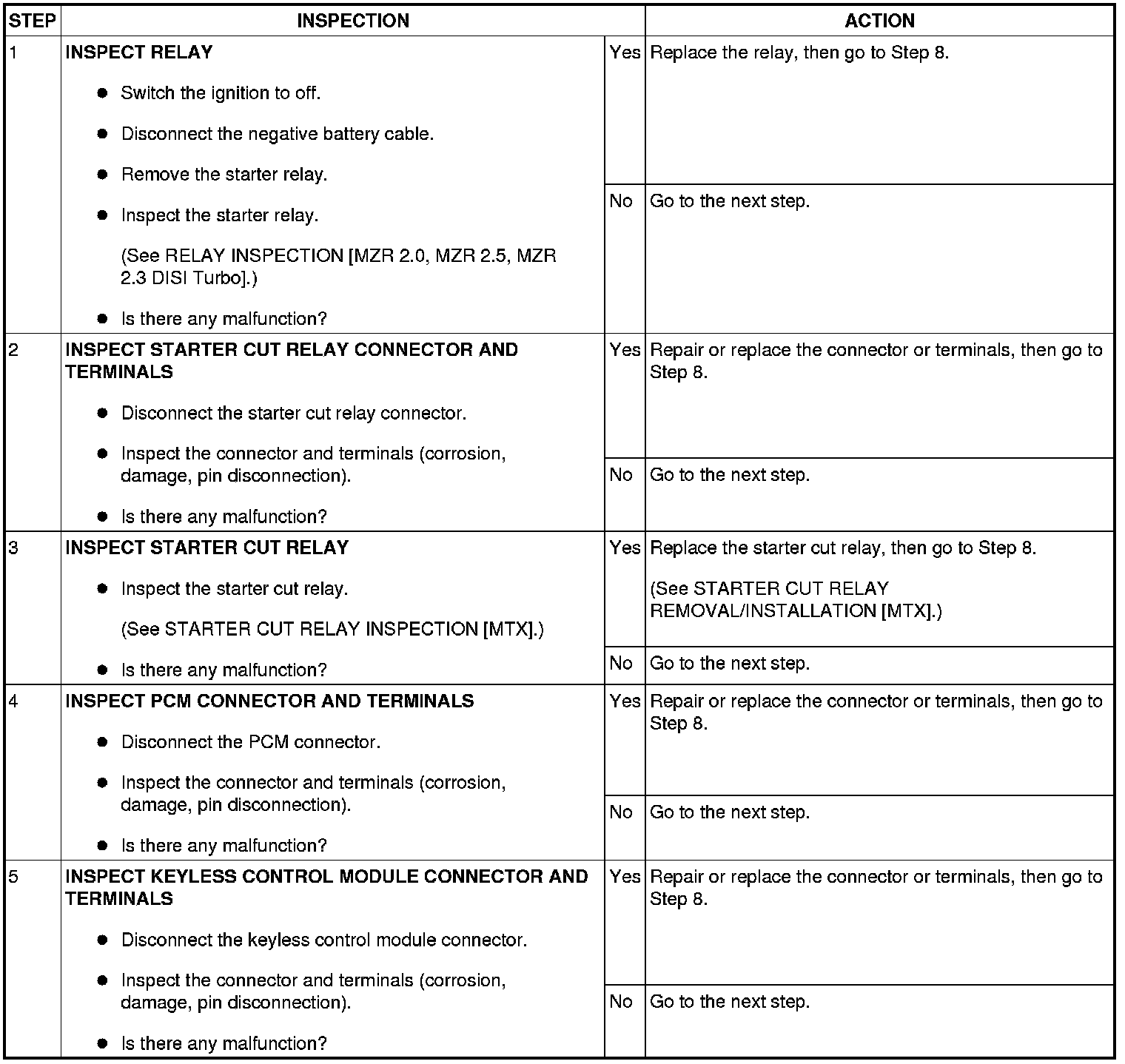

Diagnostic Procedure
