A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P0480
P0480

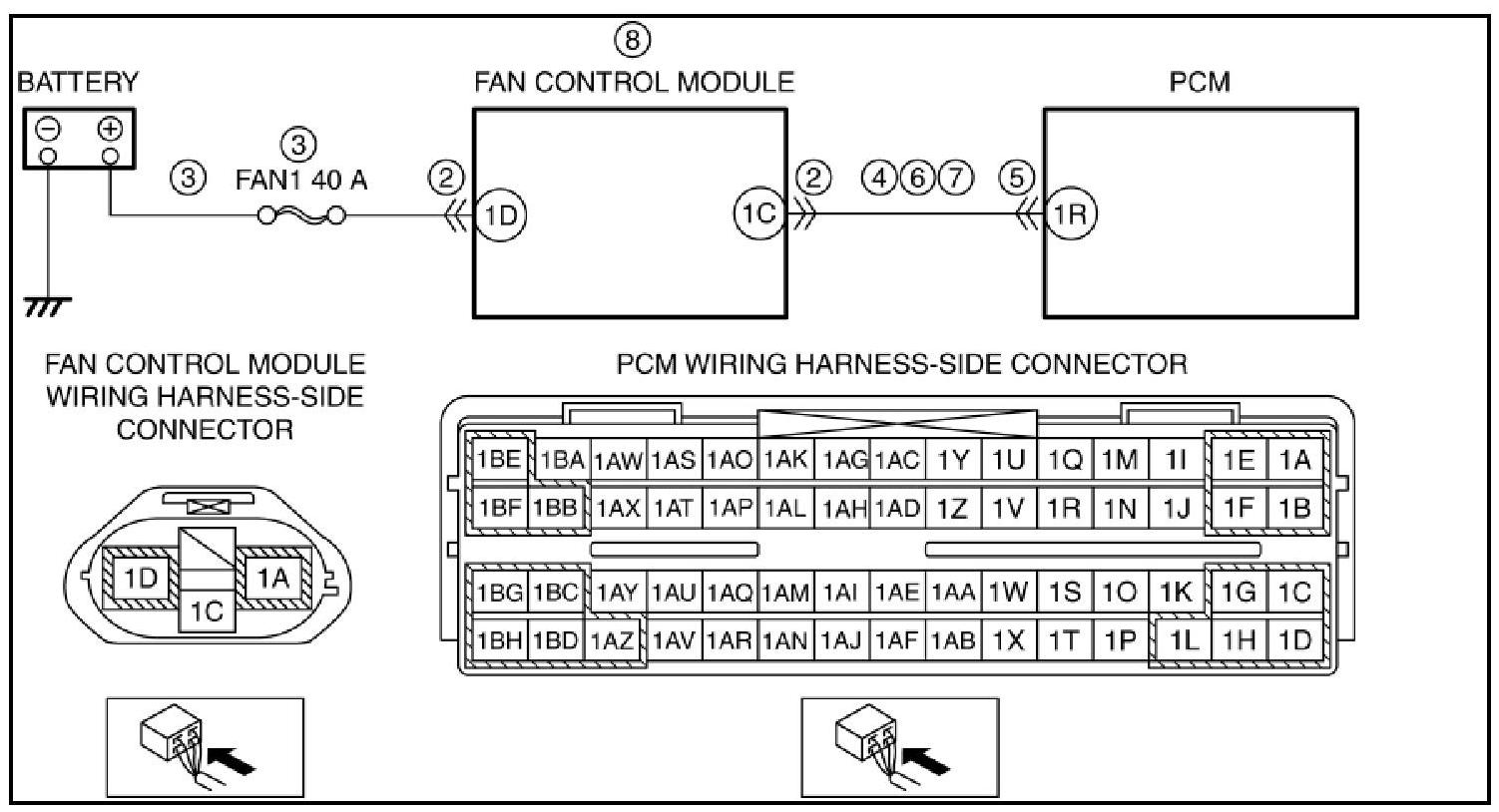

DTC P0480:00 [MZR 2.0, MZR 2.5]

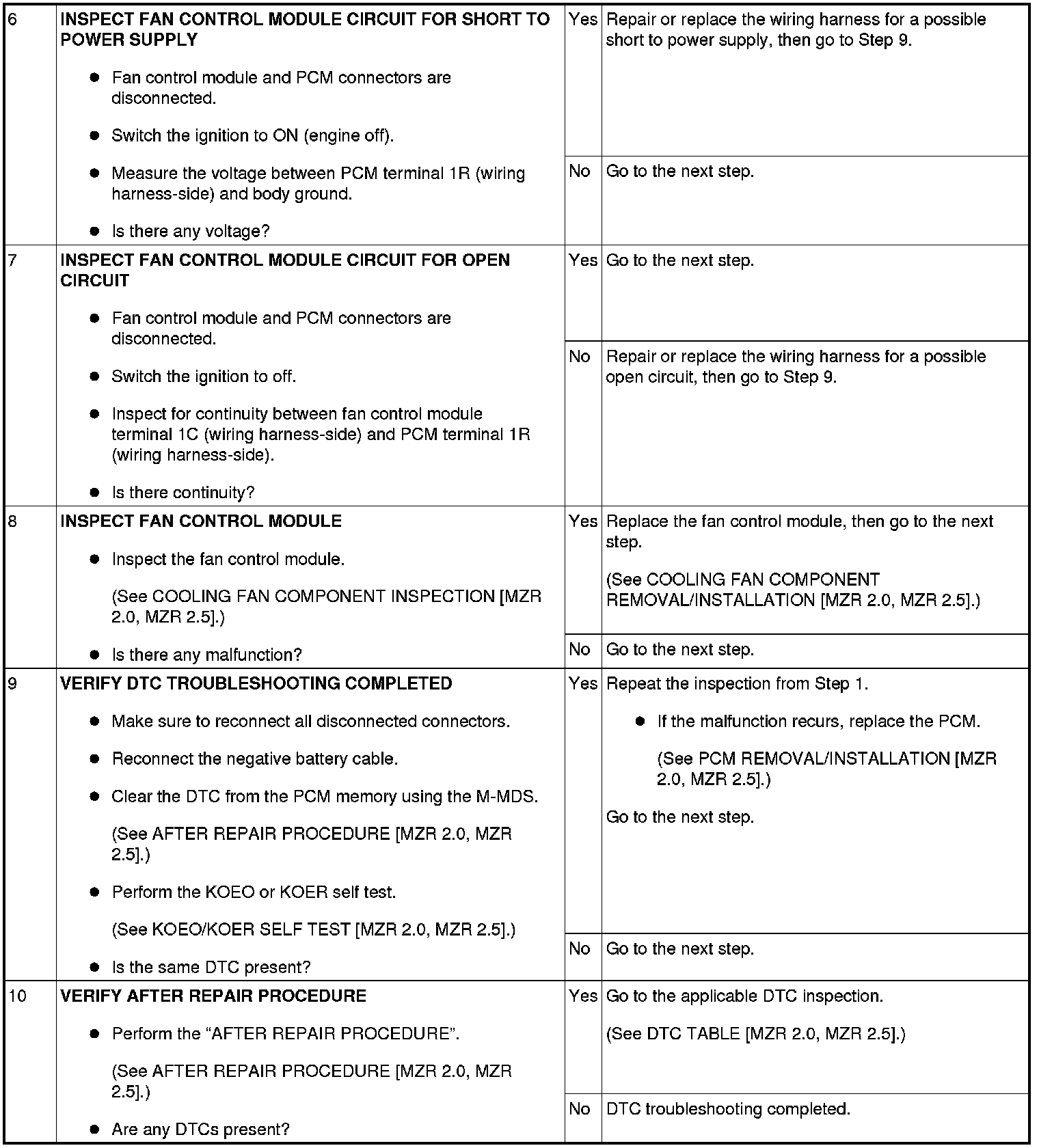

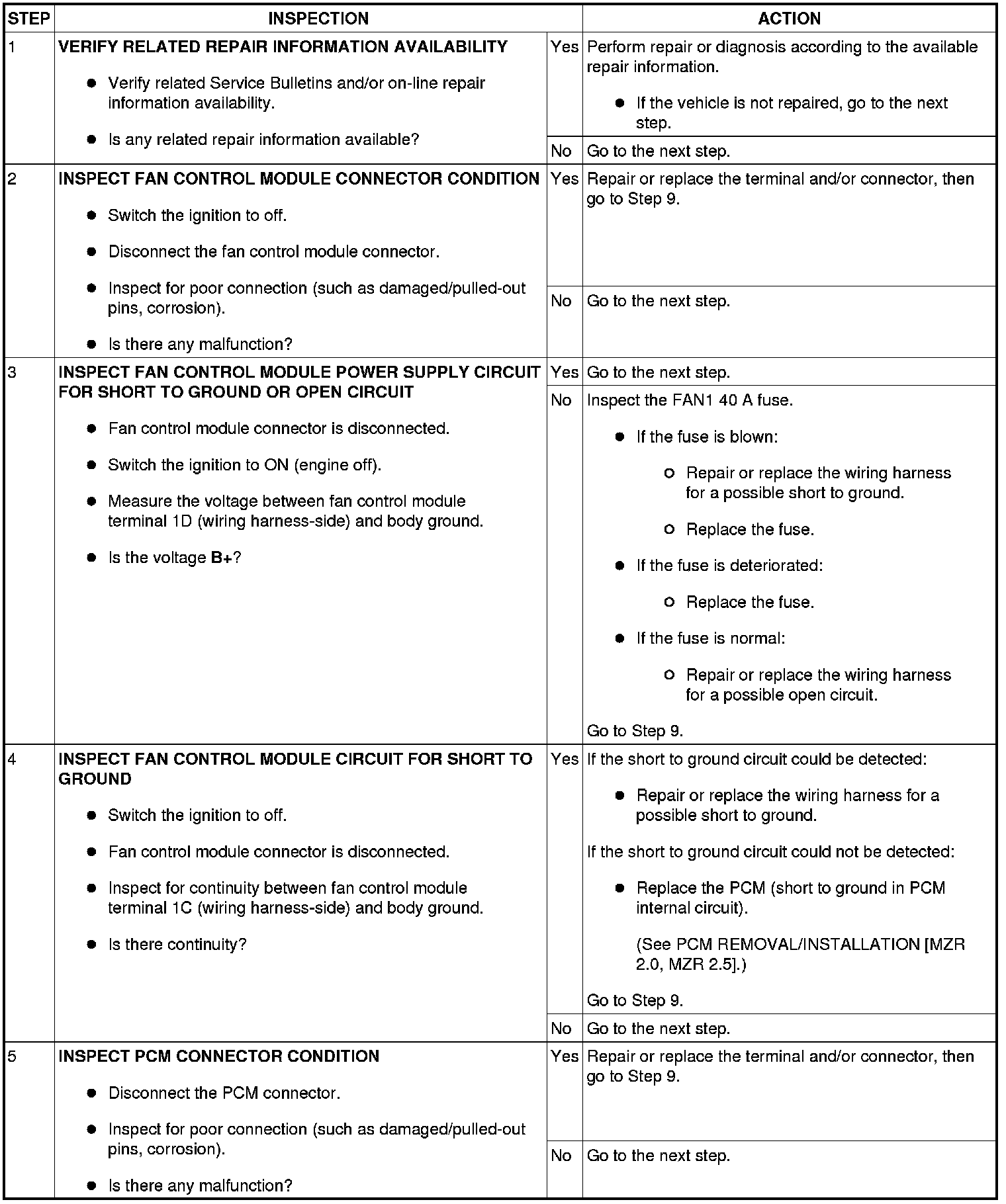

Diagnostic procedure
