Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Security Light 14 >> Immobilizer System (Keyless Entry System)

Immobilizer System (Keyless Entry System)





SECURITY LIGHT: 14, DTC: B10D7:81 / P1260:00 [IMMOBILIZER SYSTEM (KEYLESS ENTRY SYSTEM)]

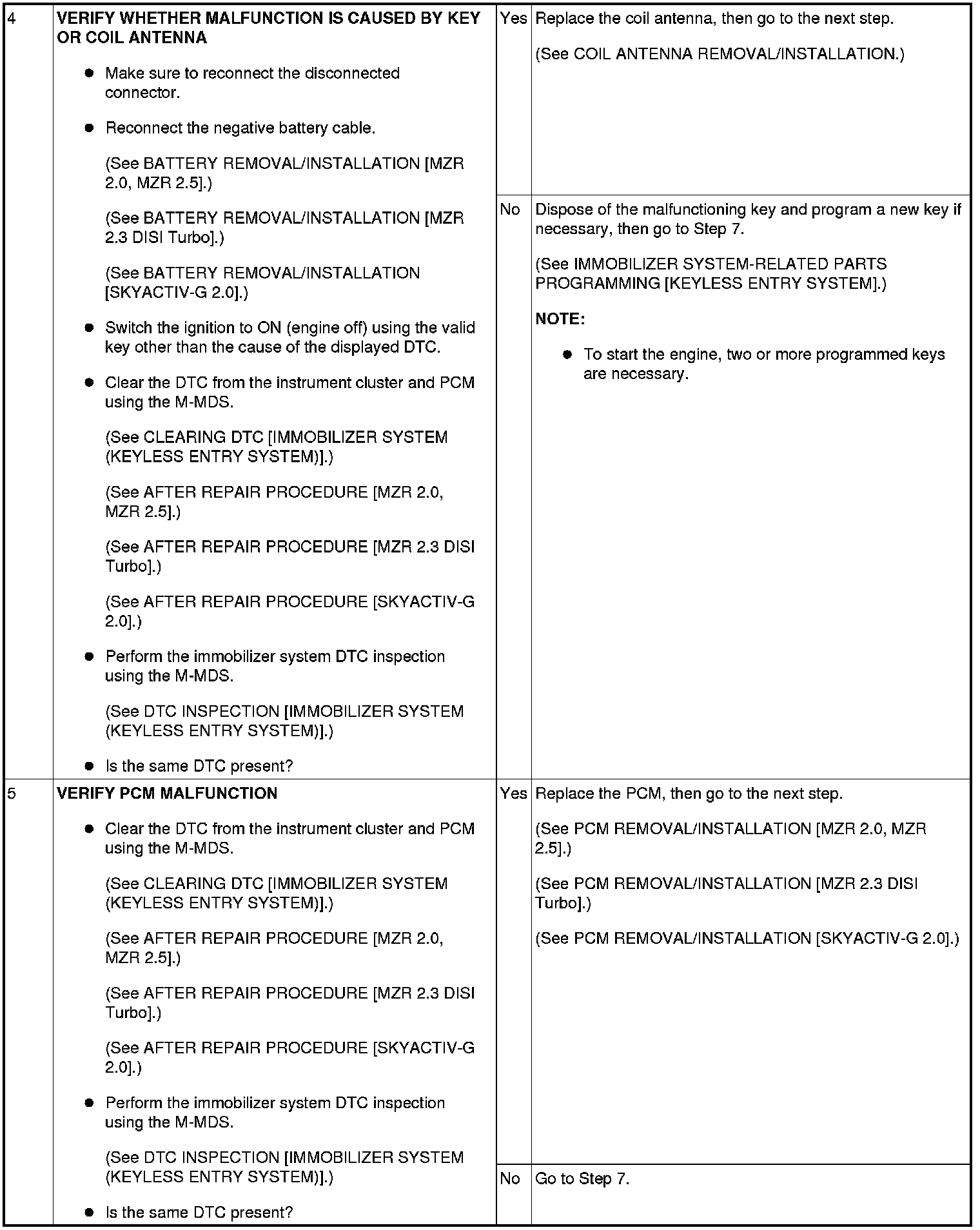

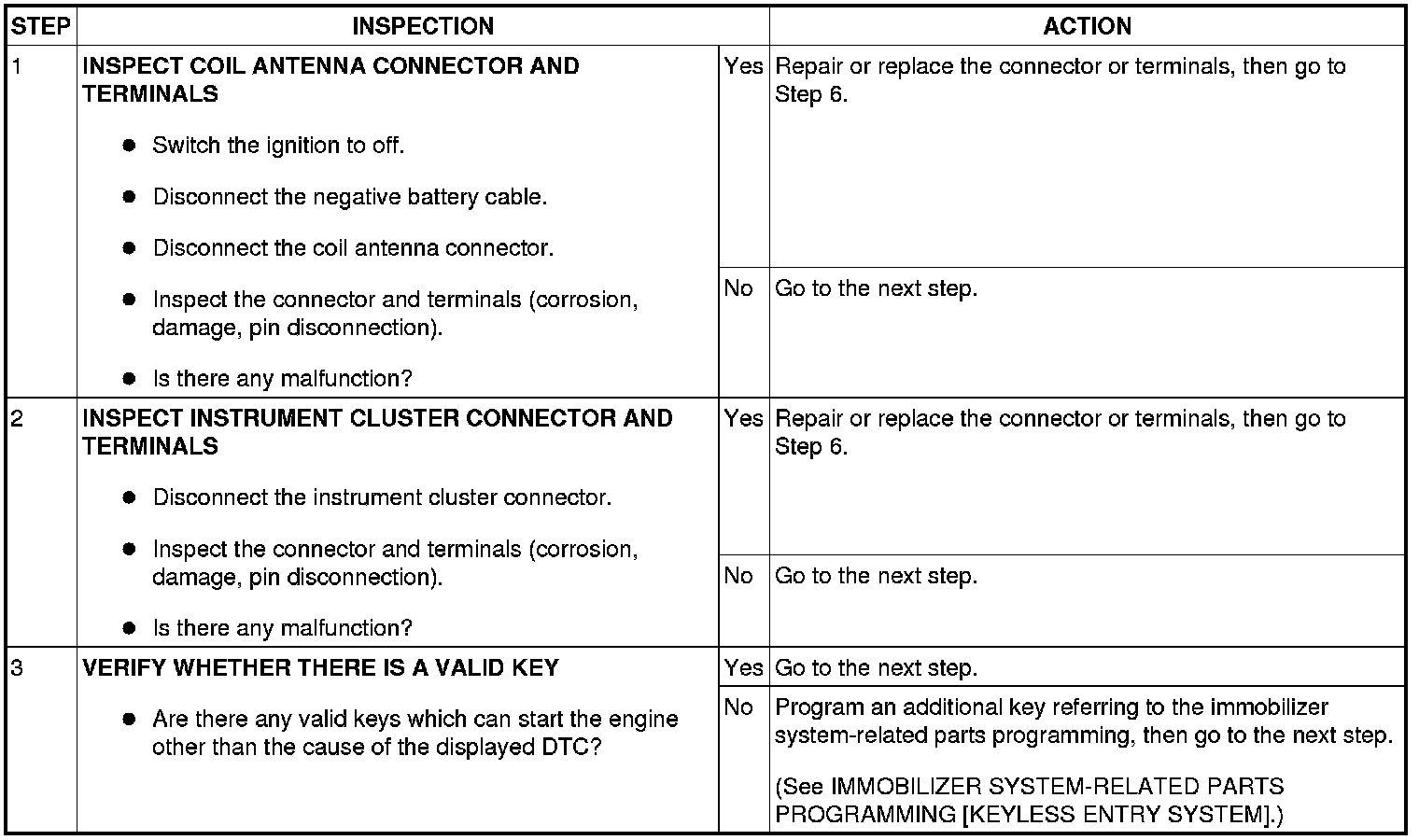

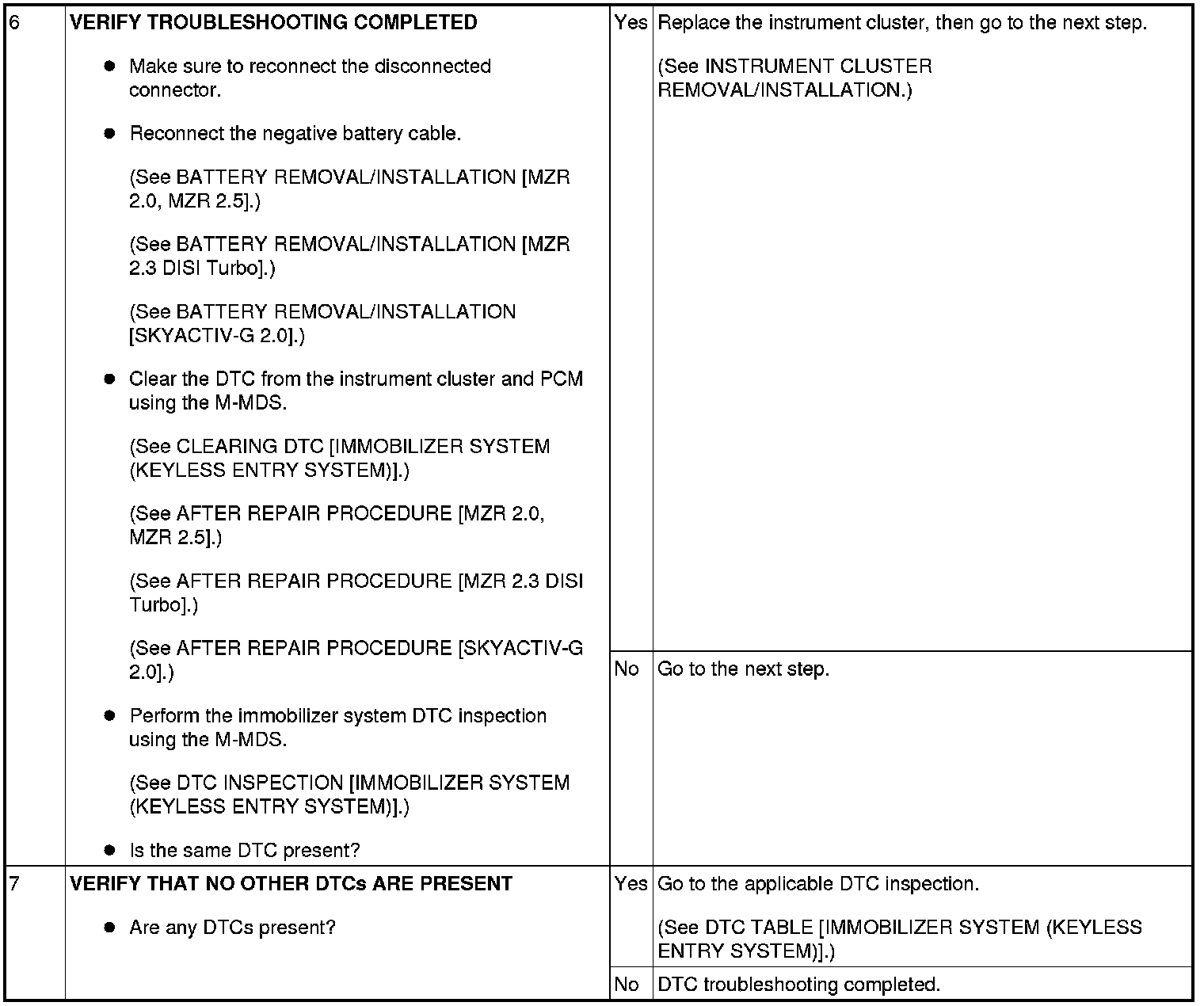

Diagnostic Procedure
