A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
10:Er10
10:Er10

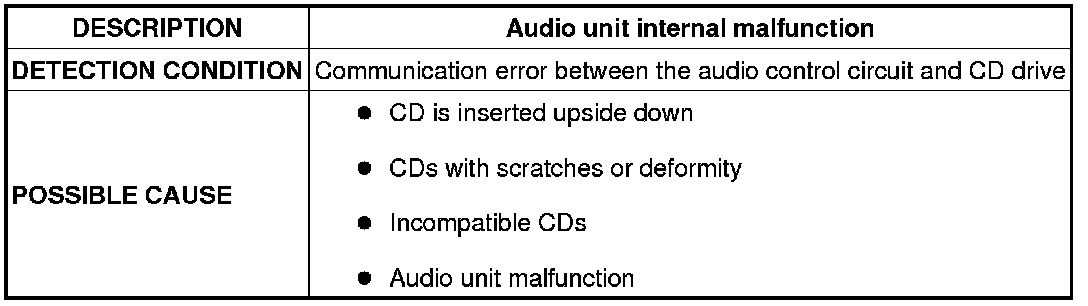

DTC: B1D19:96, 10:Er10 [AUDIO]

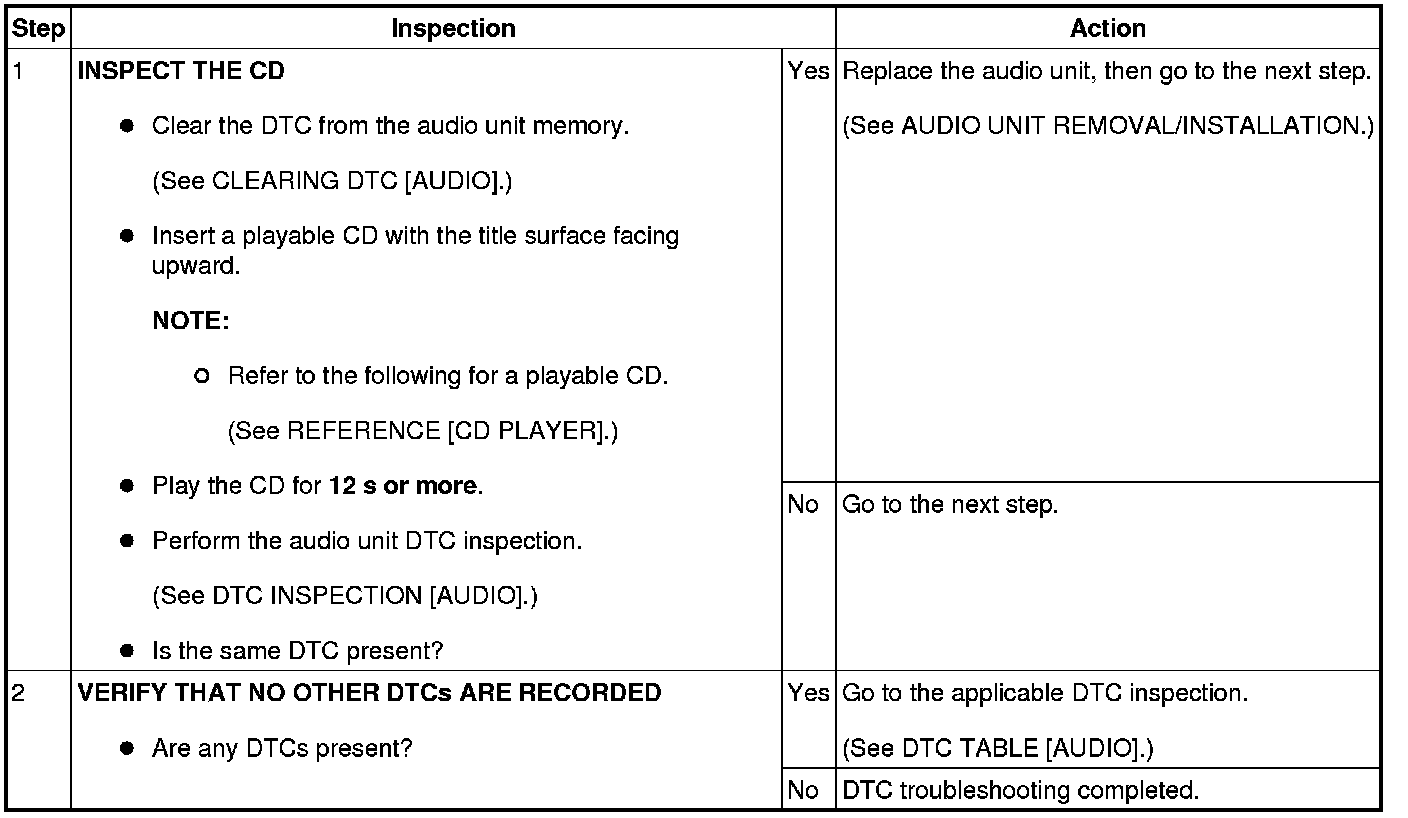

Diagnostic Procedure
