A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
10:Er01
10:Er01

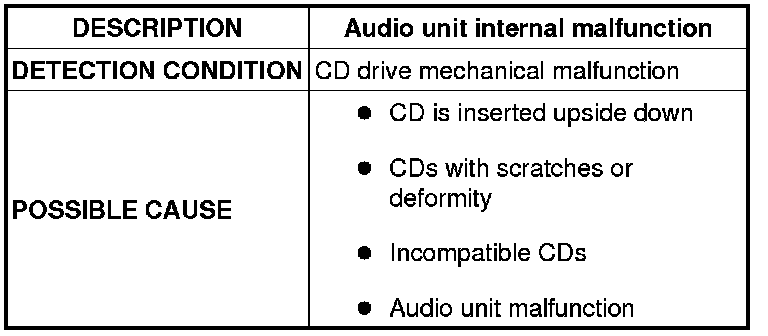

DTC: B1D19:79, 10:Er01 [AUDIO]

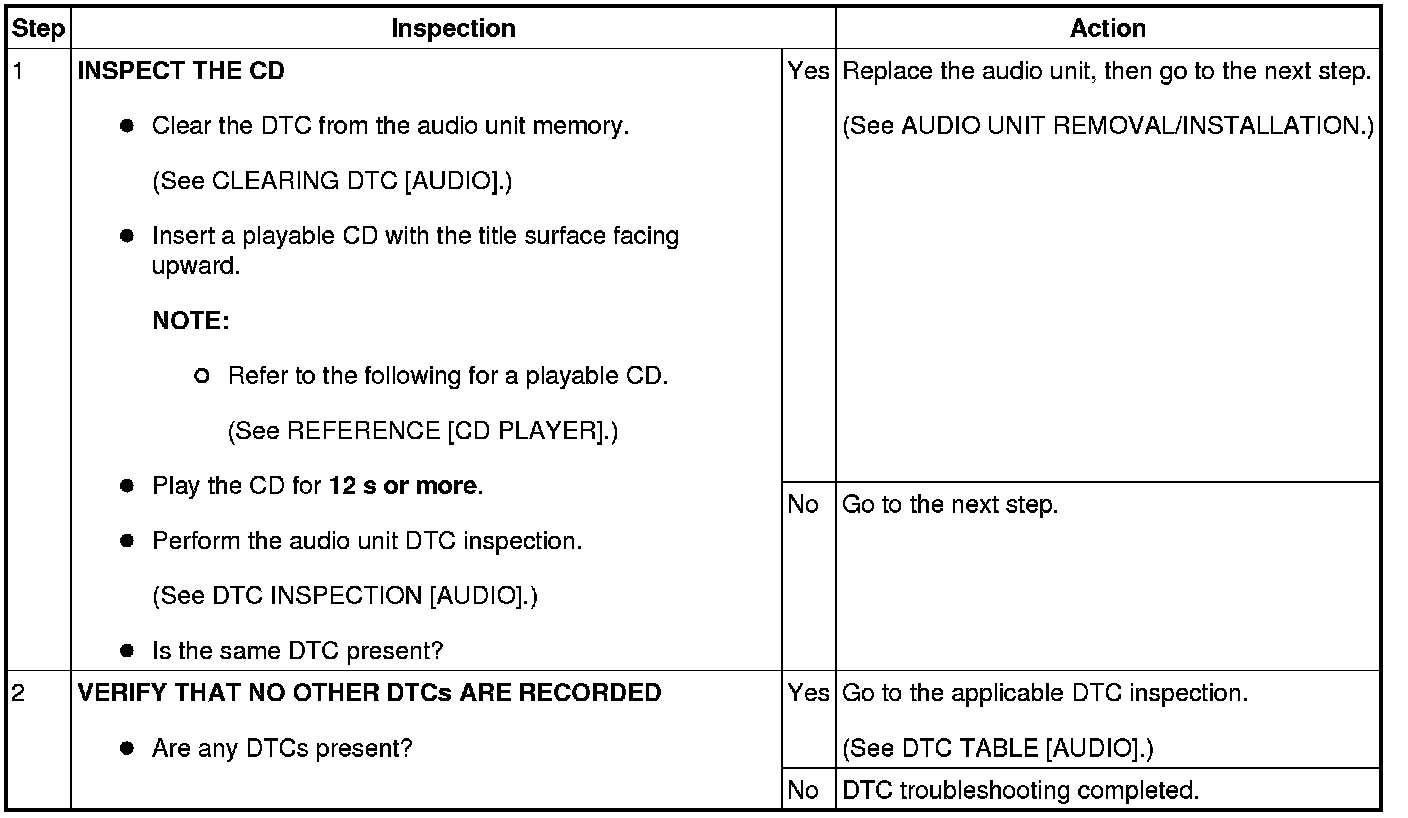

Diagnostic Procedure
