Multiplex Communication System - DTC Table

DTC TABLE [MULTIPLEX COMMUNICATION SYSTEM]

CAUTION:
- If there is any vehicle malfunction complaint lodged by a customer, refer to "FORWARD [MULTIPLEX COMMUNICATION SYSTEM]" and perform CAN malfunction diagnosis following the steps in the troubleshooting procedure. Initial Inspection and Diagnostic Overview

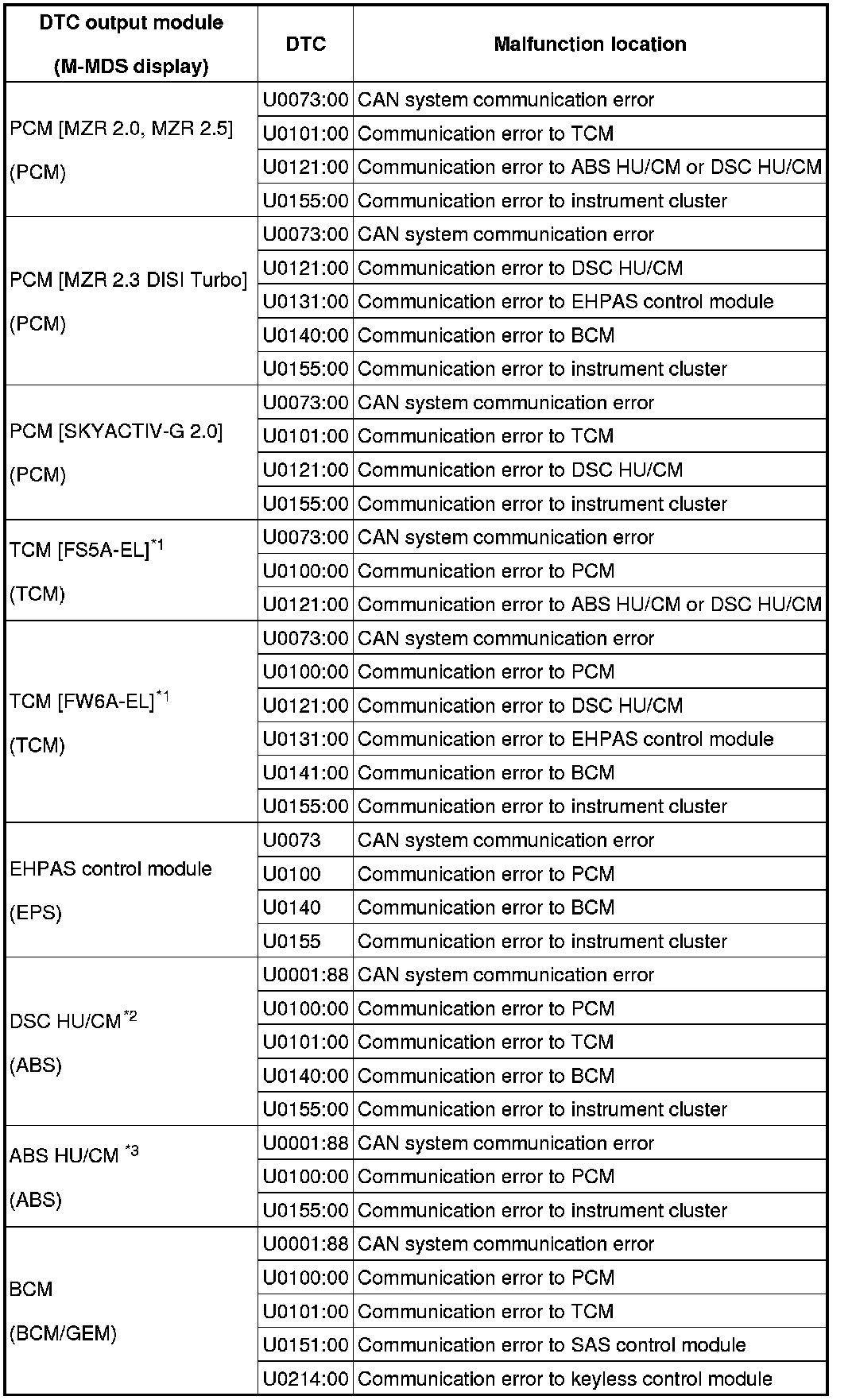

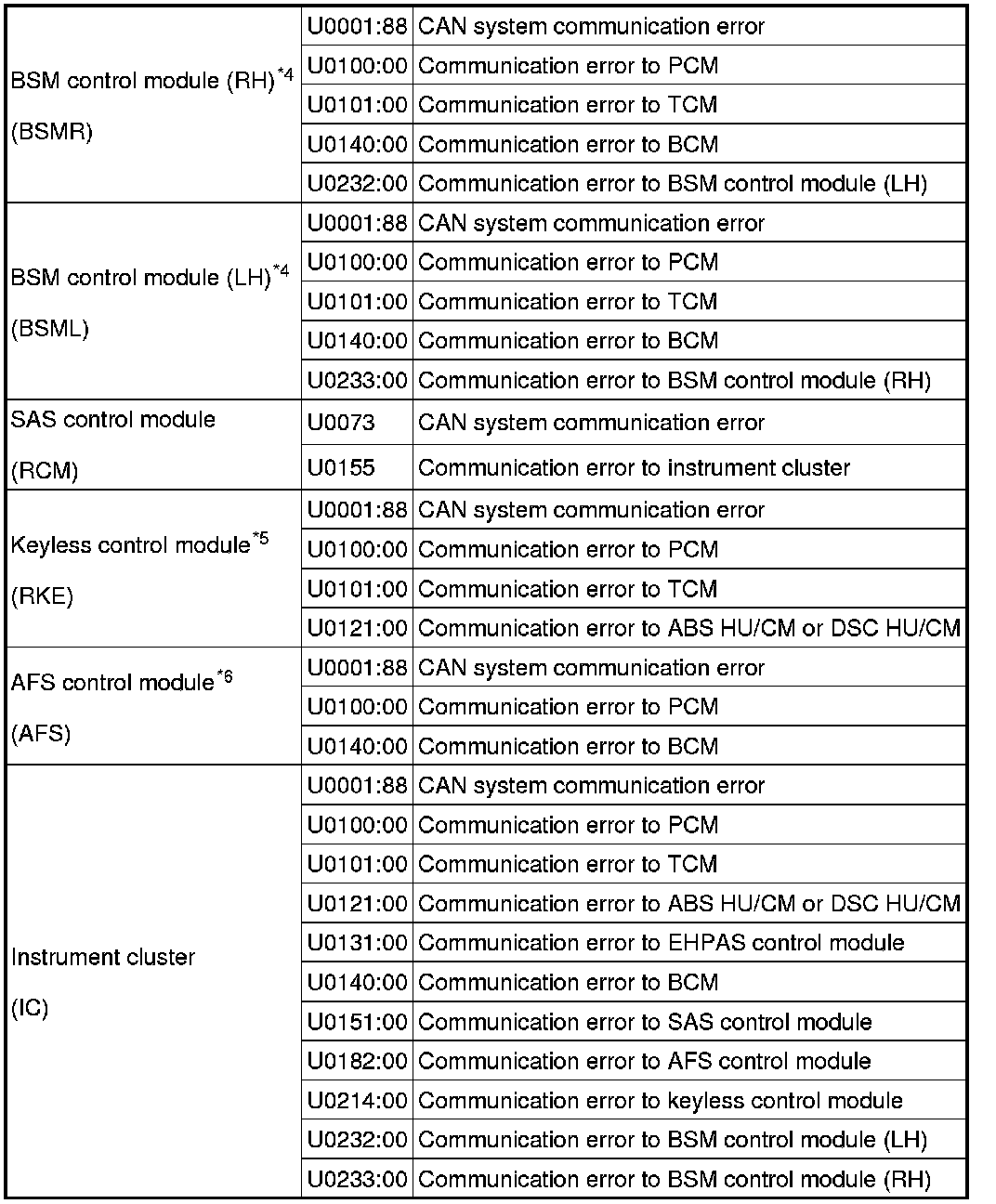

HS-CAN









*1
ATX
*2
With DSC
*3
With ABS
*4
With BSM system
*5
With advanced keyless entry and push button start system
*6
With AFS (adaptive front lighting system)

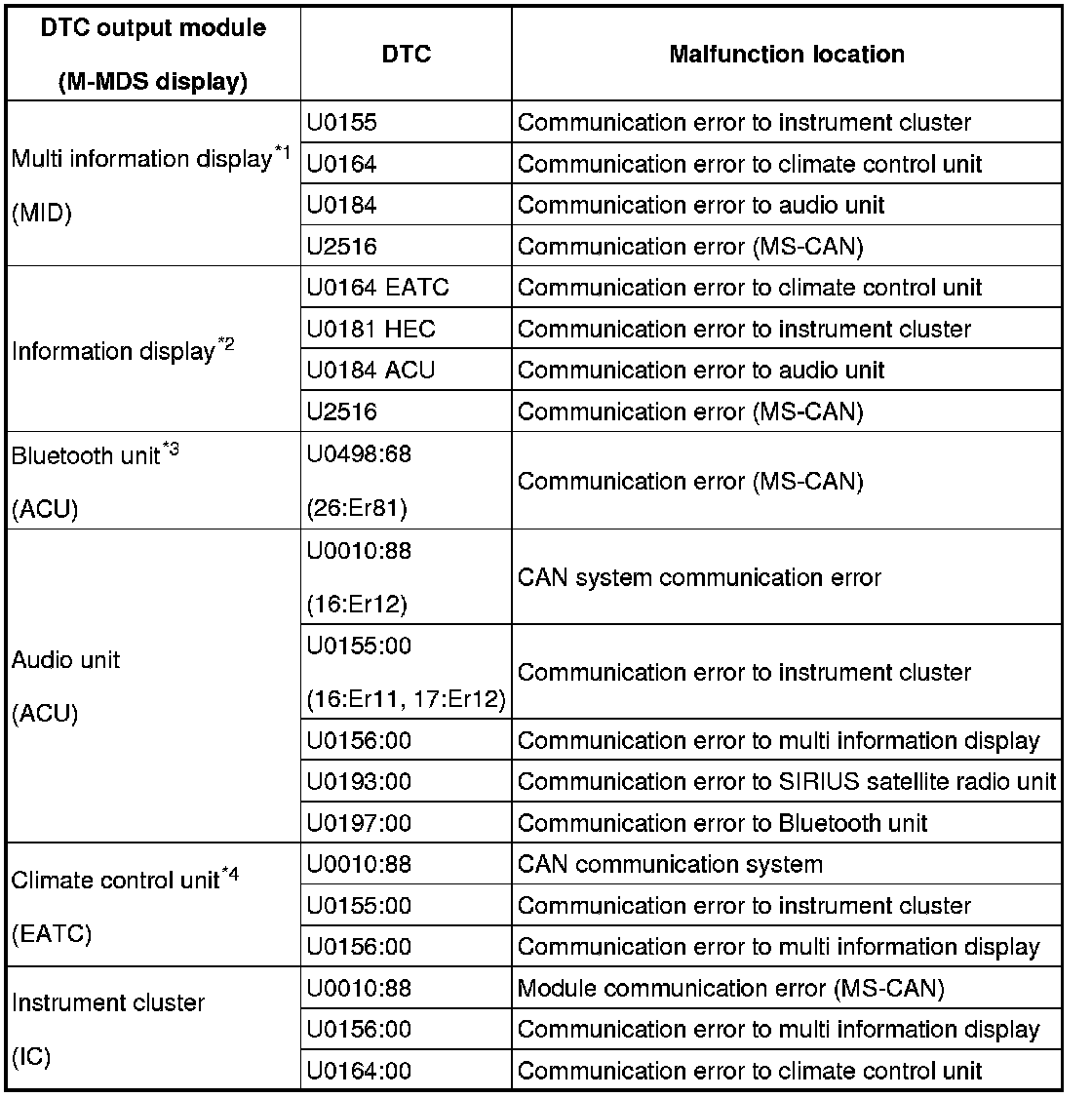

MS-CAN





*1
With multi information display
*2
Without multi information display
*3
With Bluetooth system (HF / TEL system)
*4
With full-auto air conditioner
