A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
HVAC - DTC Table
HVAC - DTC Table

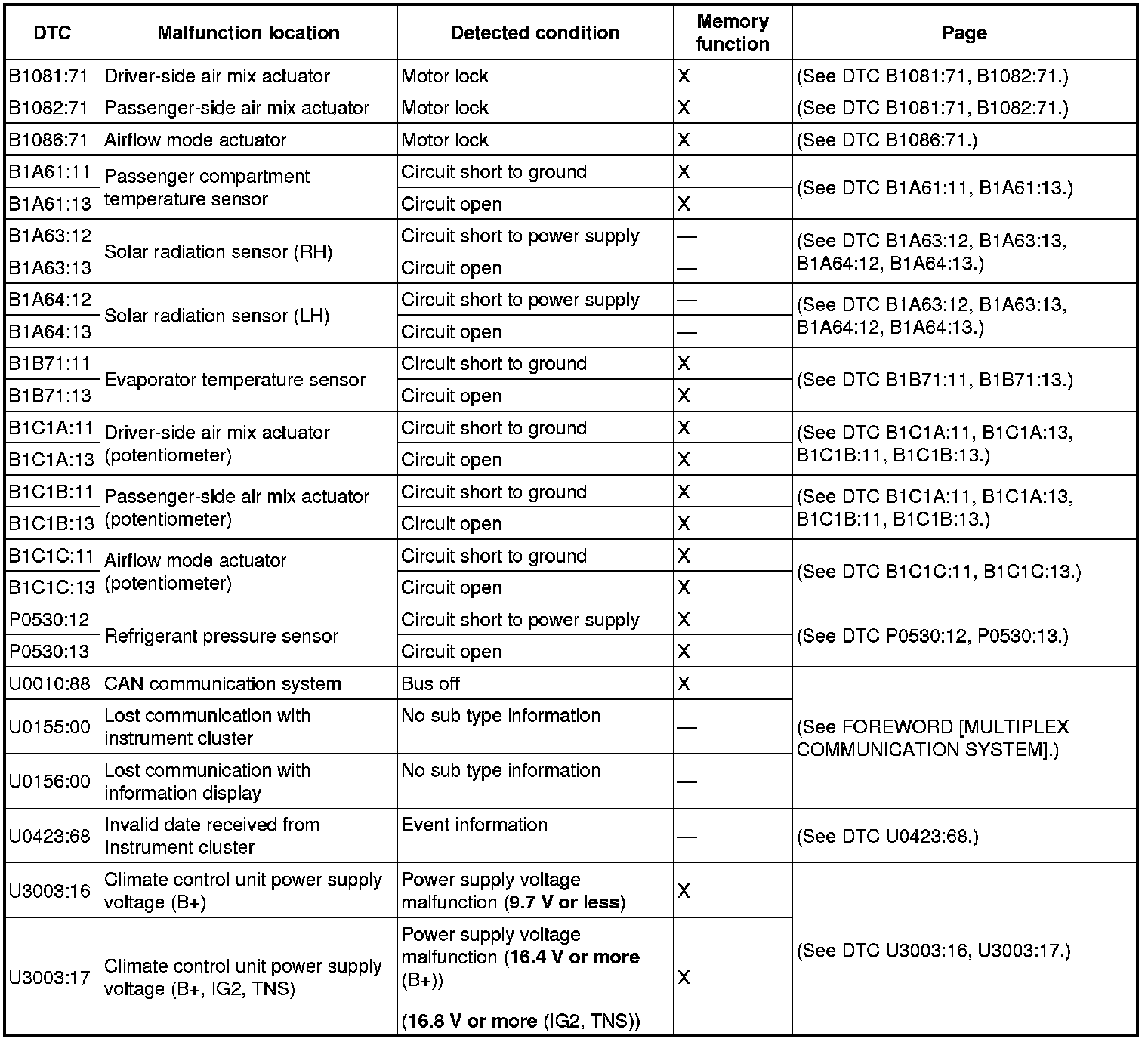

DTC TABLE
X: Applicable-: Not applicable
