A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Automatic Transmission/Transaxle - DTC Table FS5A-EL
Automatic Transmission/Transaxle - DTC Table FS5A-EL

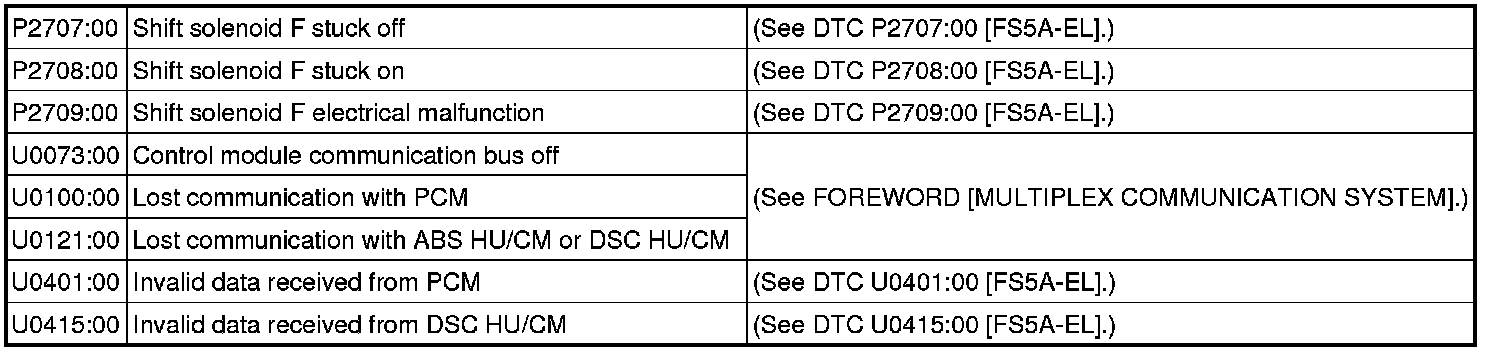

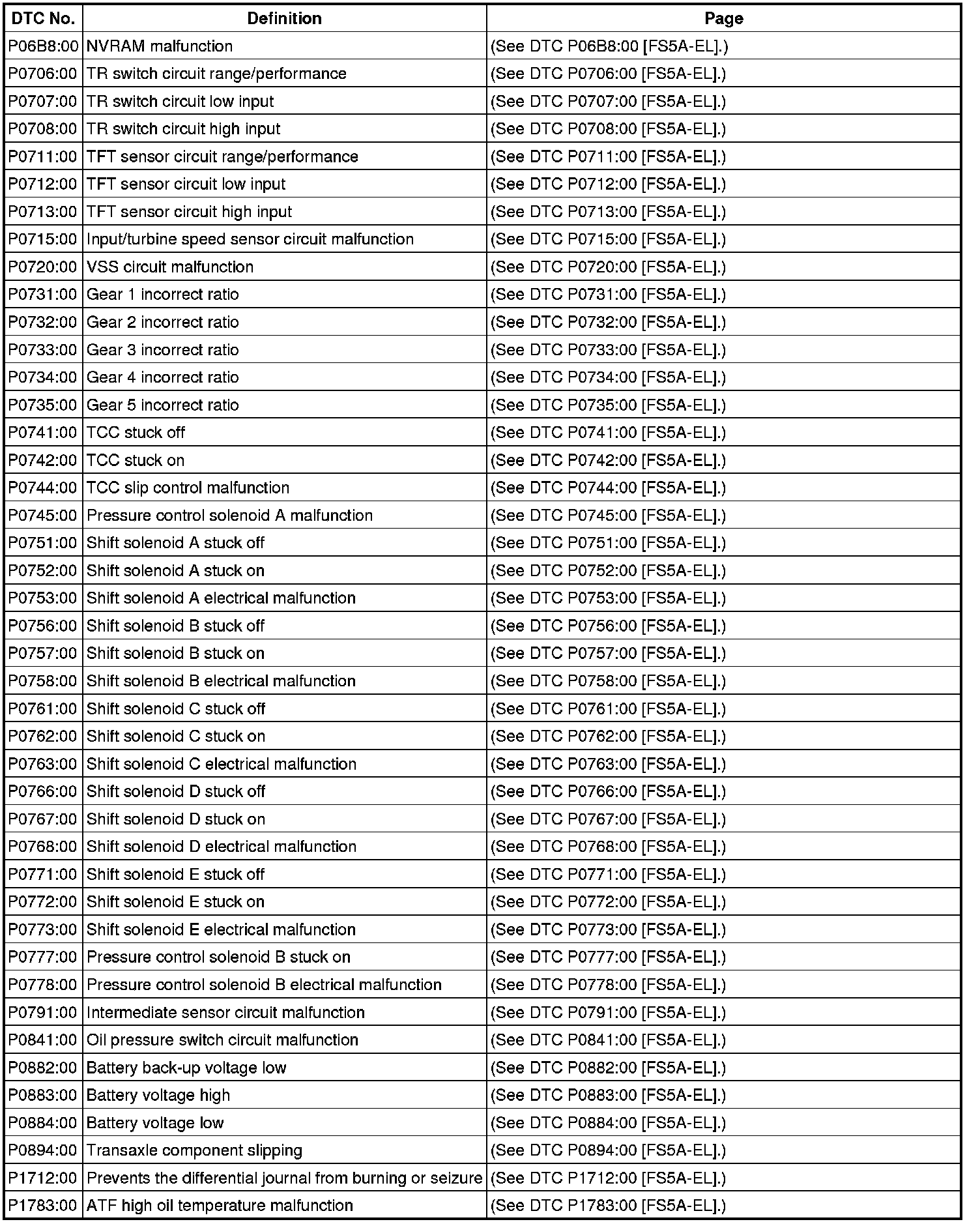

ON-BOARD DIAGNOSTIC SYSTEM DTC TABLE [FS5A-EL]
