A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Antilock Brake System (ABS) - DTC Table
Antilock Brake System (ABS) - DTC Table
ON-BOARD DIAGNOSIS [ABS]

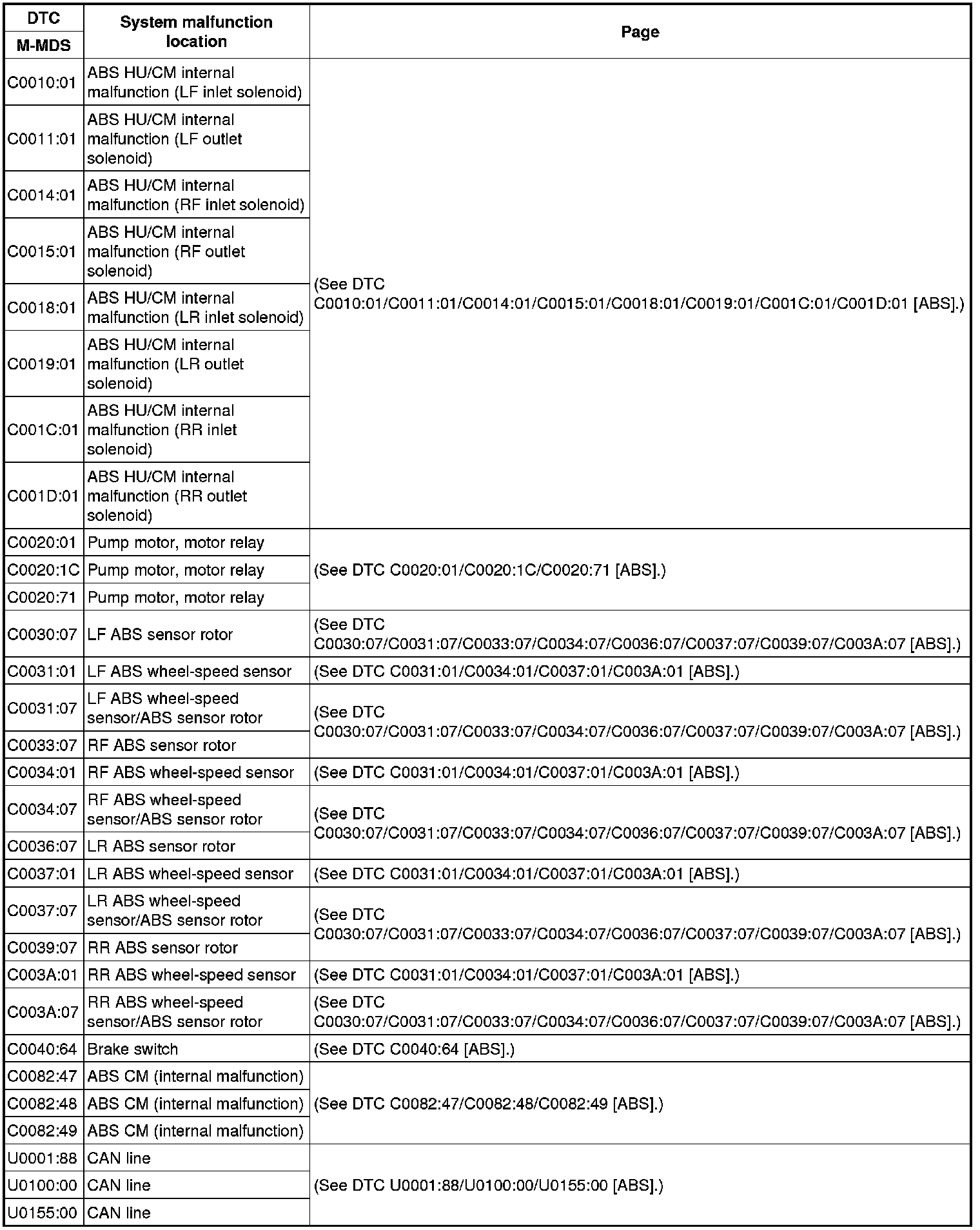

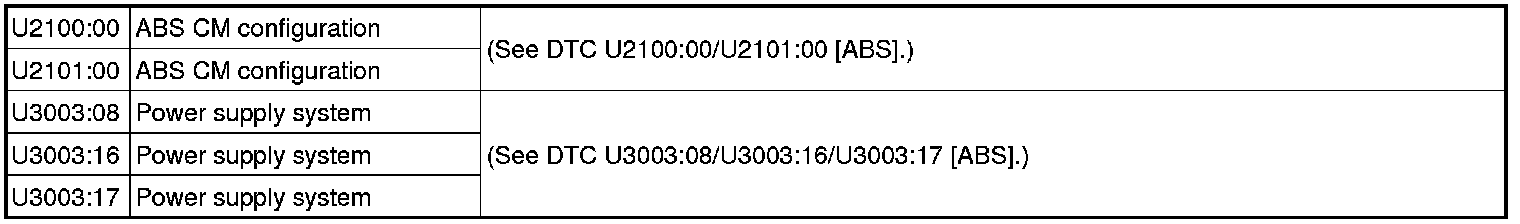

DTC Table
