AFS (Adaptive Front Lighting System) - DTC Table
AFS (Adaptive Front Lighting System) - DTC Table

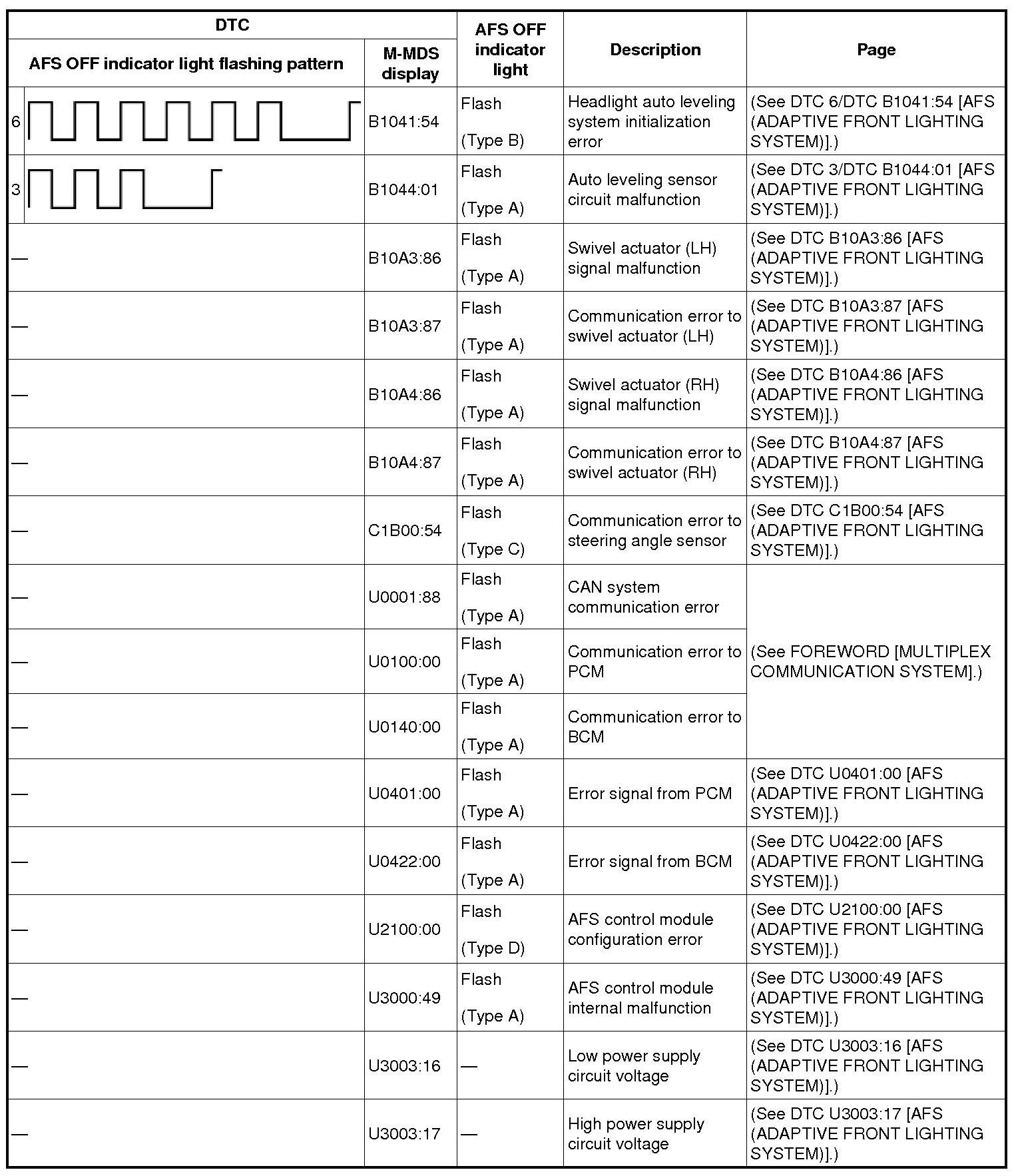

DTC TABLE [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]
NOTE:
-

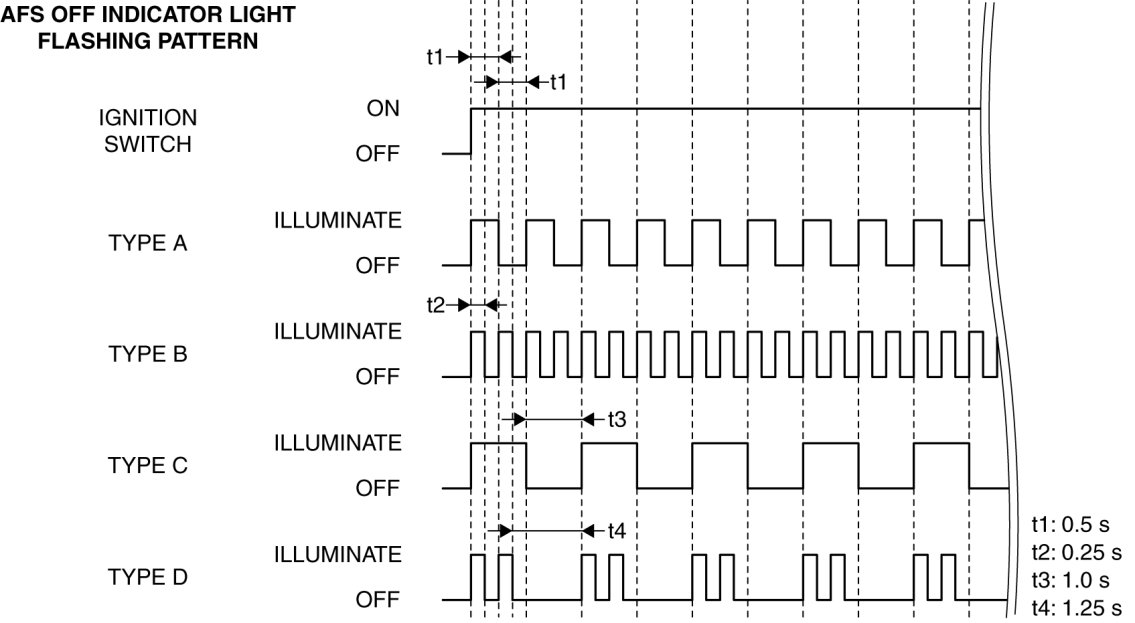

If there is a malfunction in the system, the AFS control module flashes the AFS OFF indicator light.
-: Not applicable
