C1137





DTC C1137:12 [BCM]

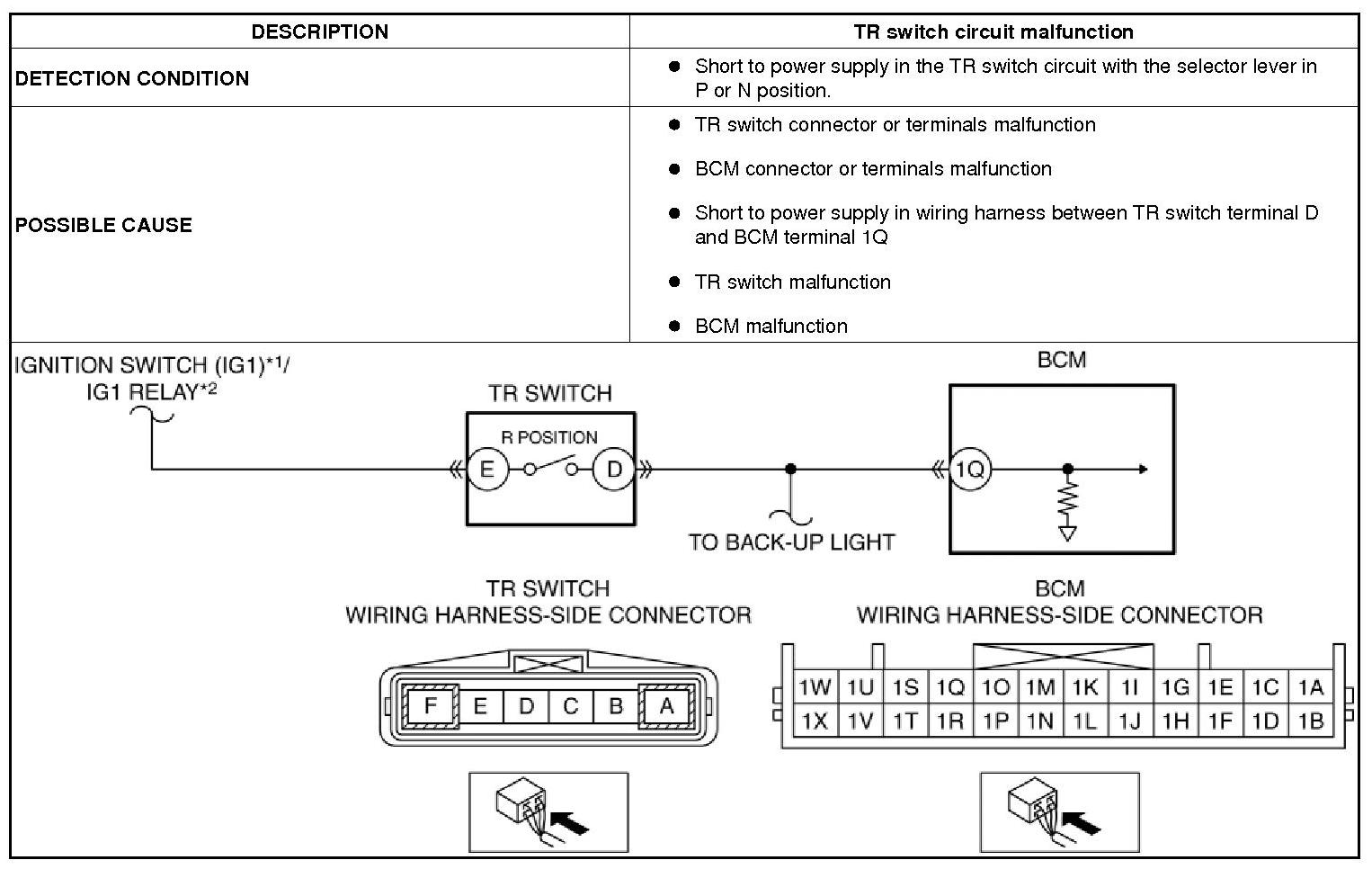

FS5A-EL





*1
Vehicles without advanced keyless entry and push button start system
*2
Vehicles with advanced keyless entry and push button start system

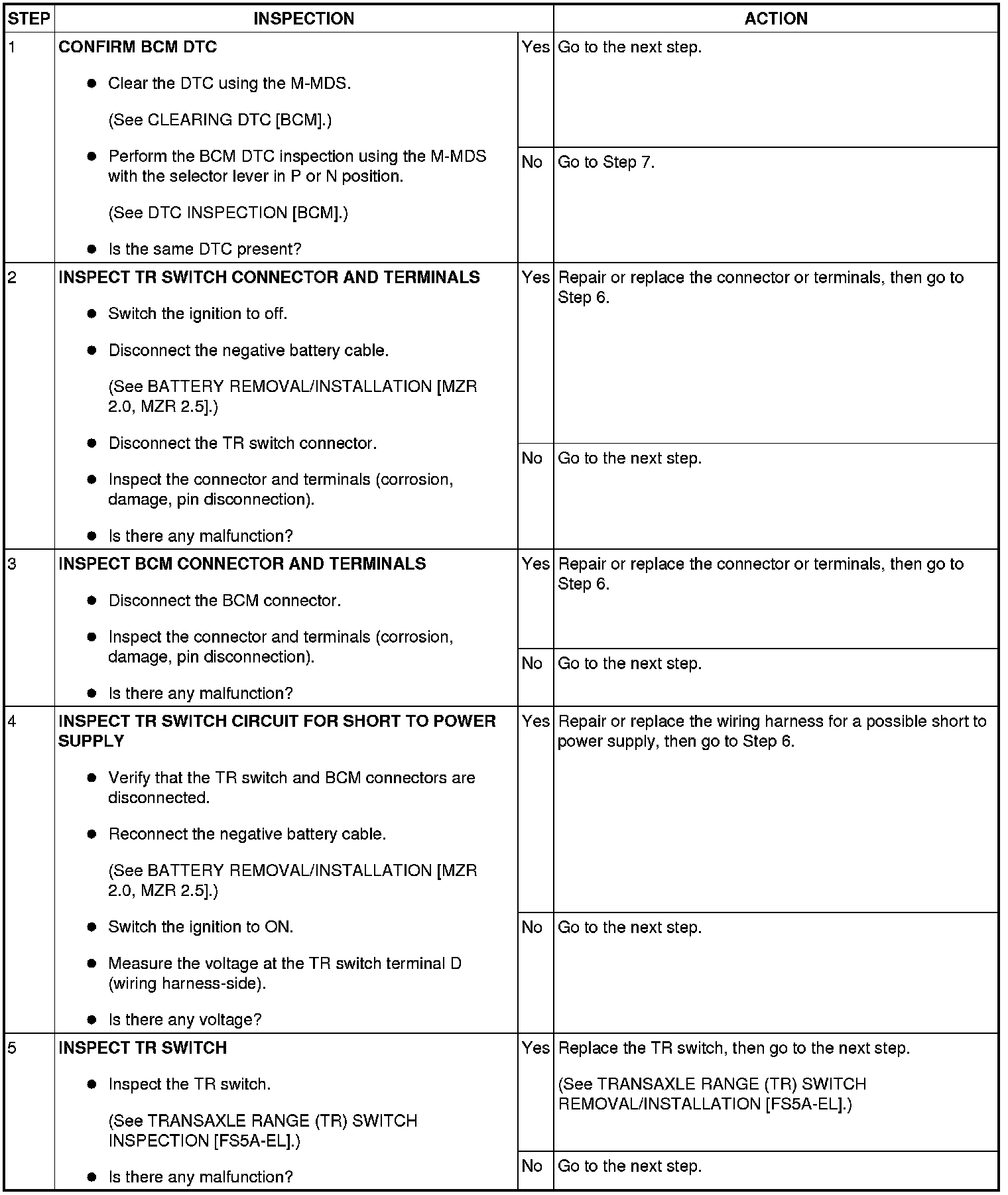

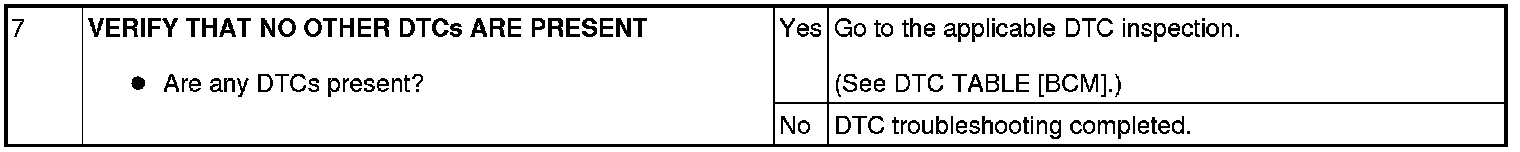

Diagnostic Procedure

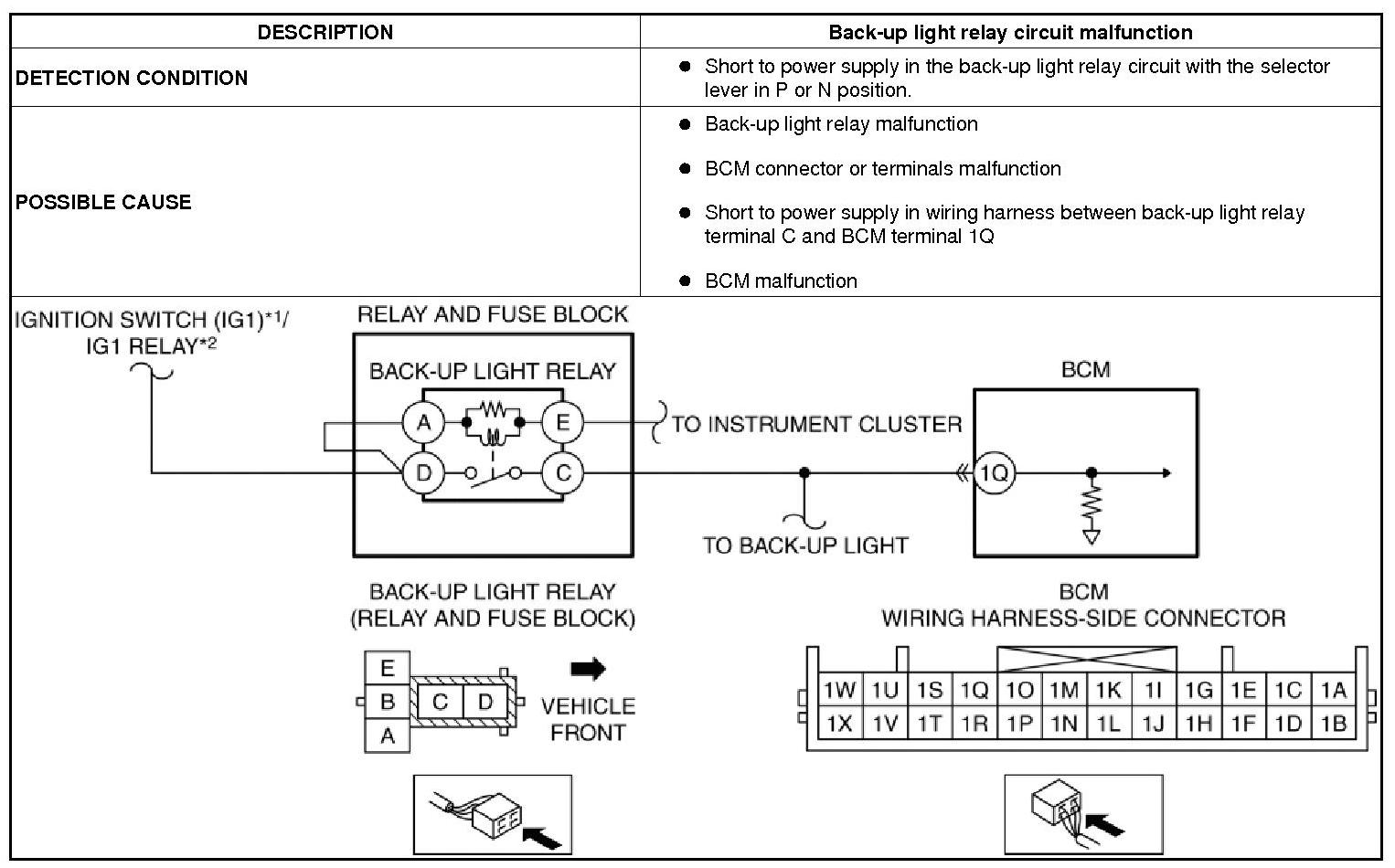

FW6A-EL





*1
Vehicles without advanced keyless entry and push button start system
*2
Vehicles with advanced keyless entry and push button start system

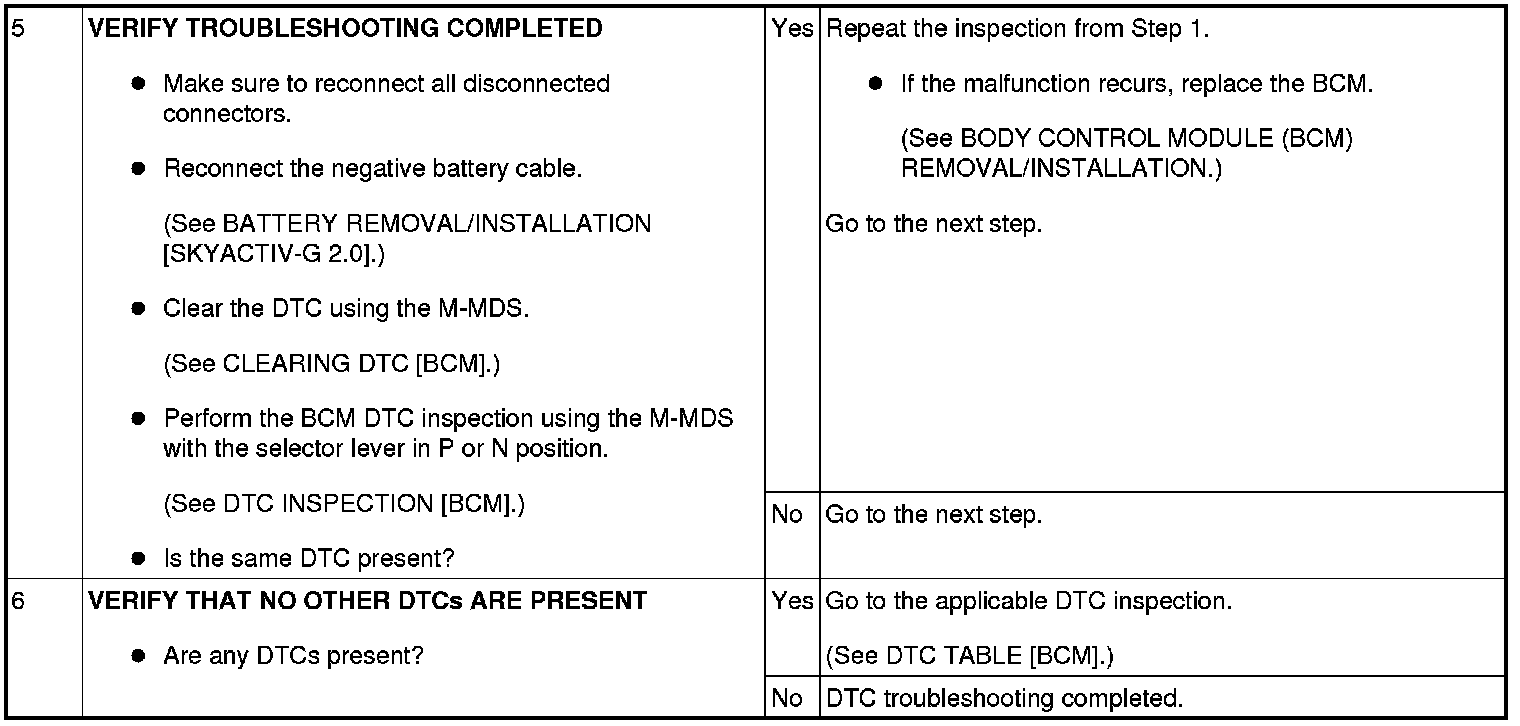

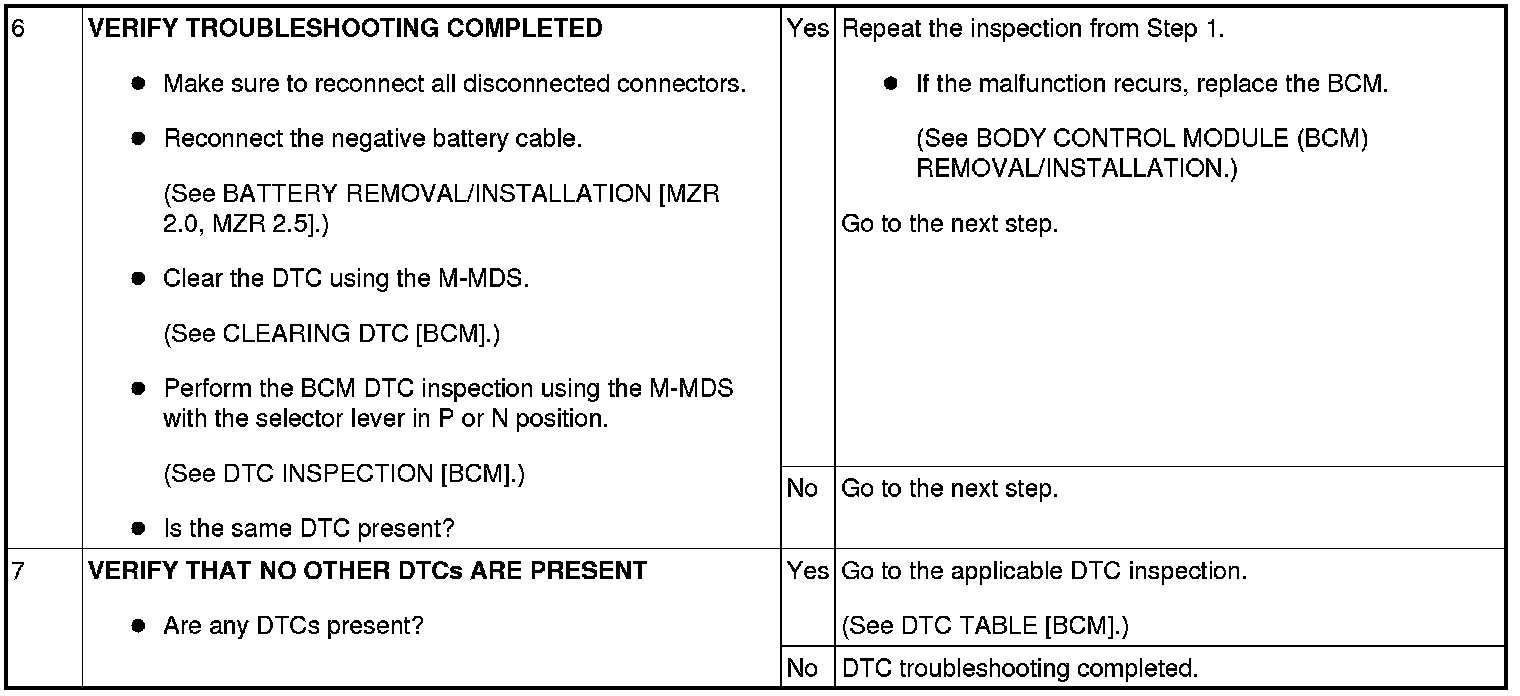

Diagnostic Procedure

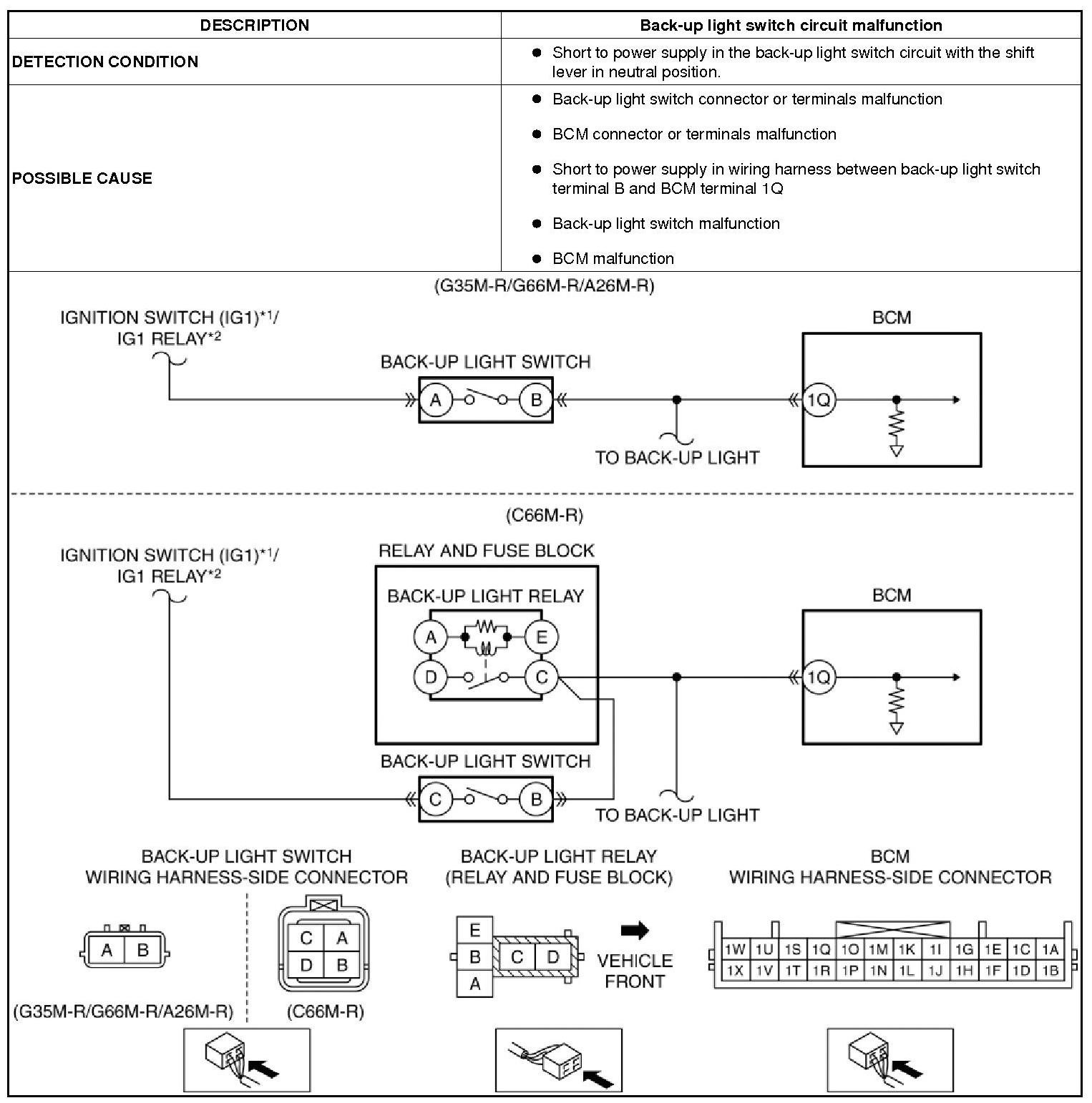

MTX





*1
Vehicles without advanced keyless entry and push button start system
*2
Vehicles with advanced keyless entry and push button start system

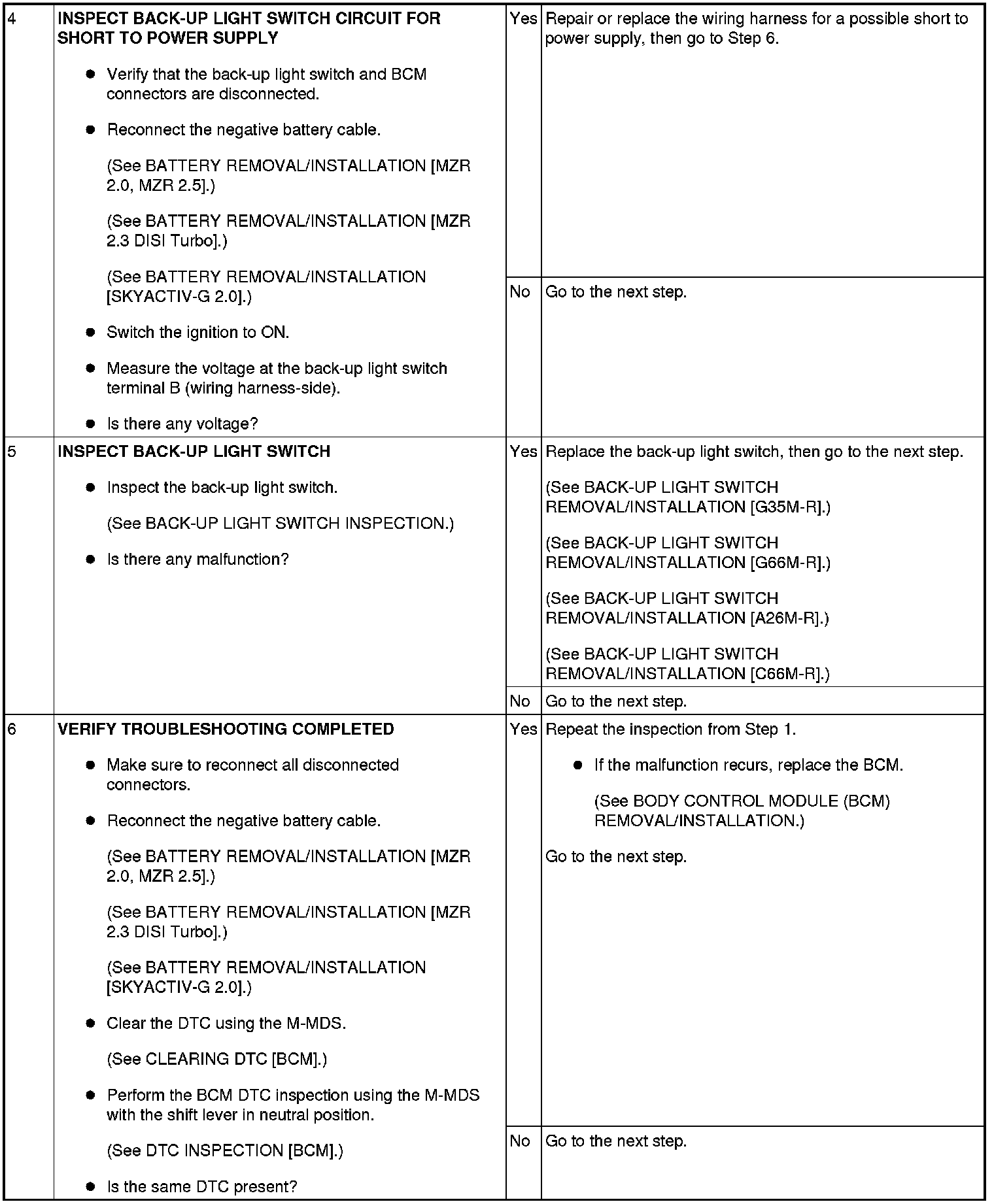

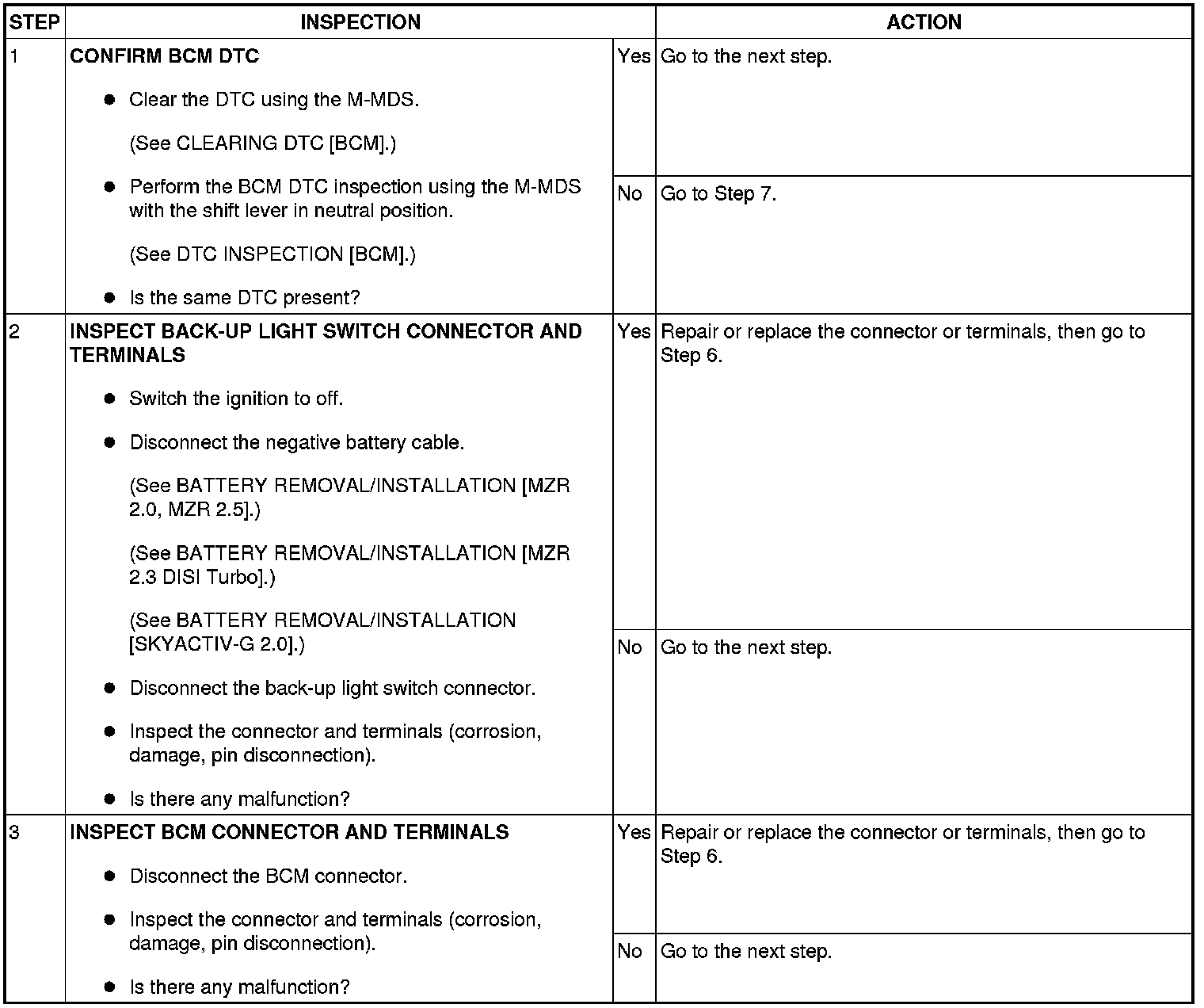

Diagnostic Procedure
