Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C0040 >> C0040:29

C0040:29

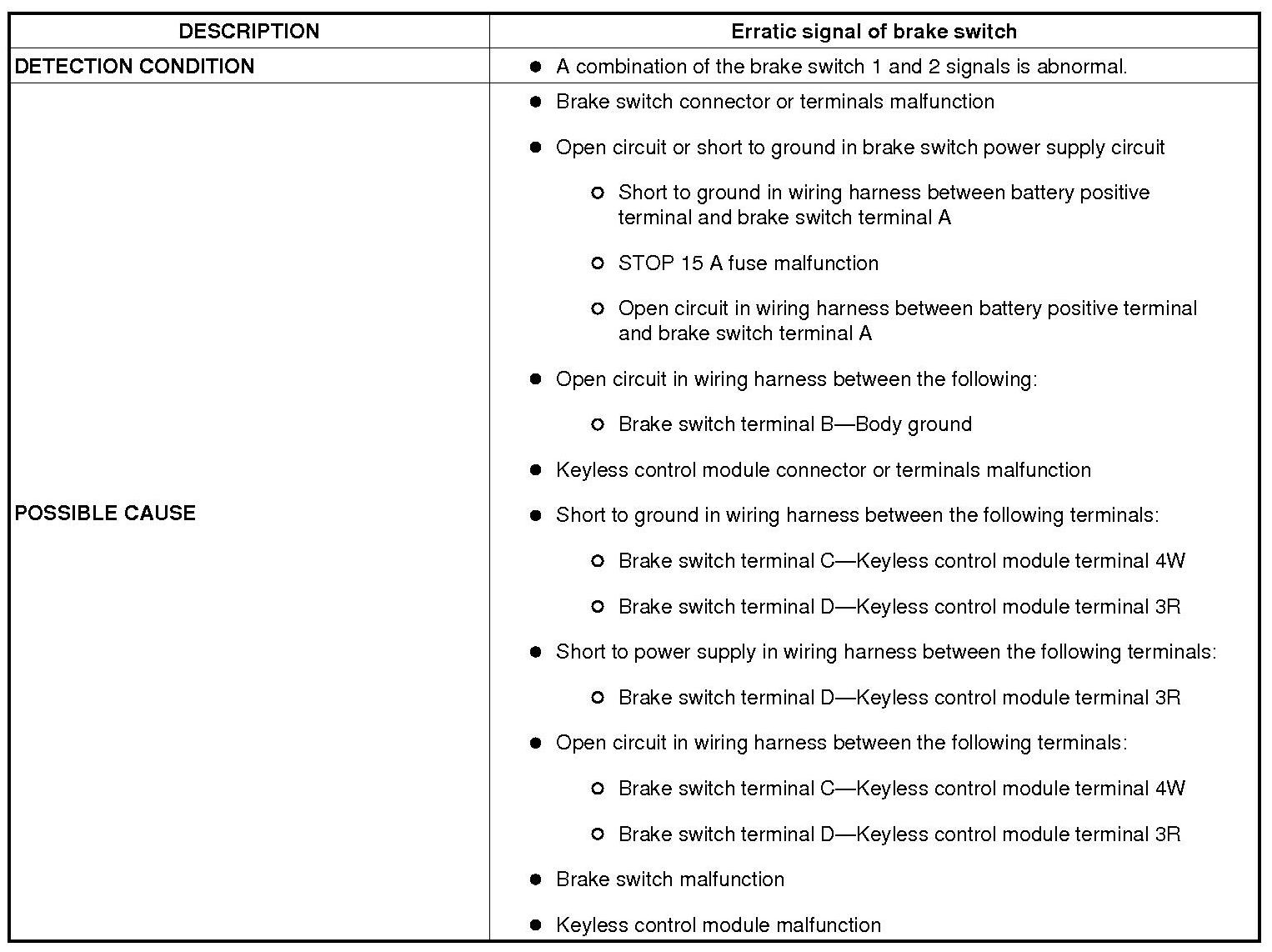

DTC C0040:29 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

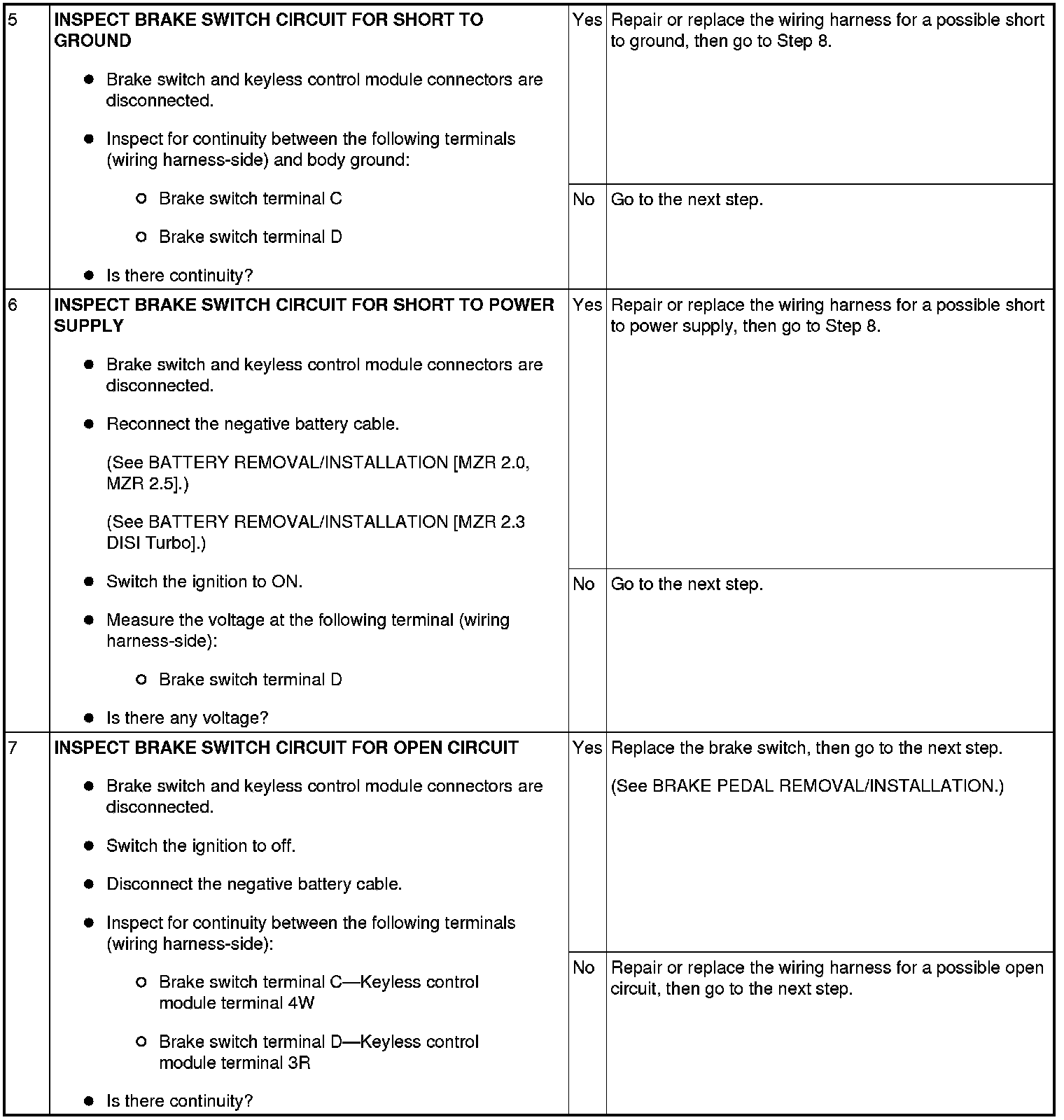

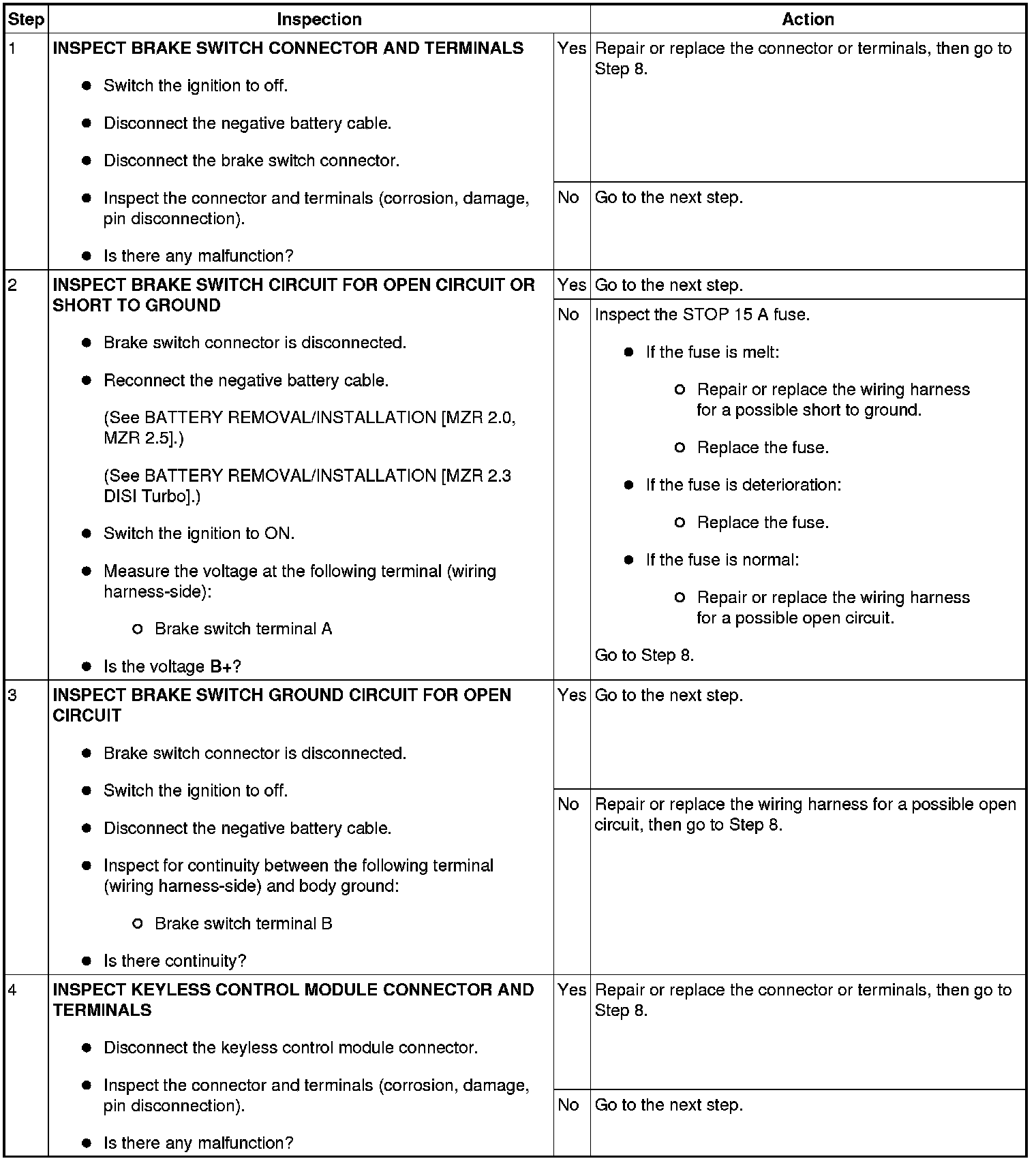

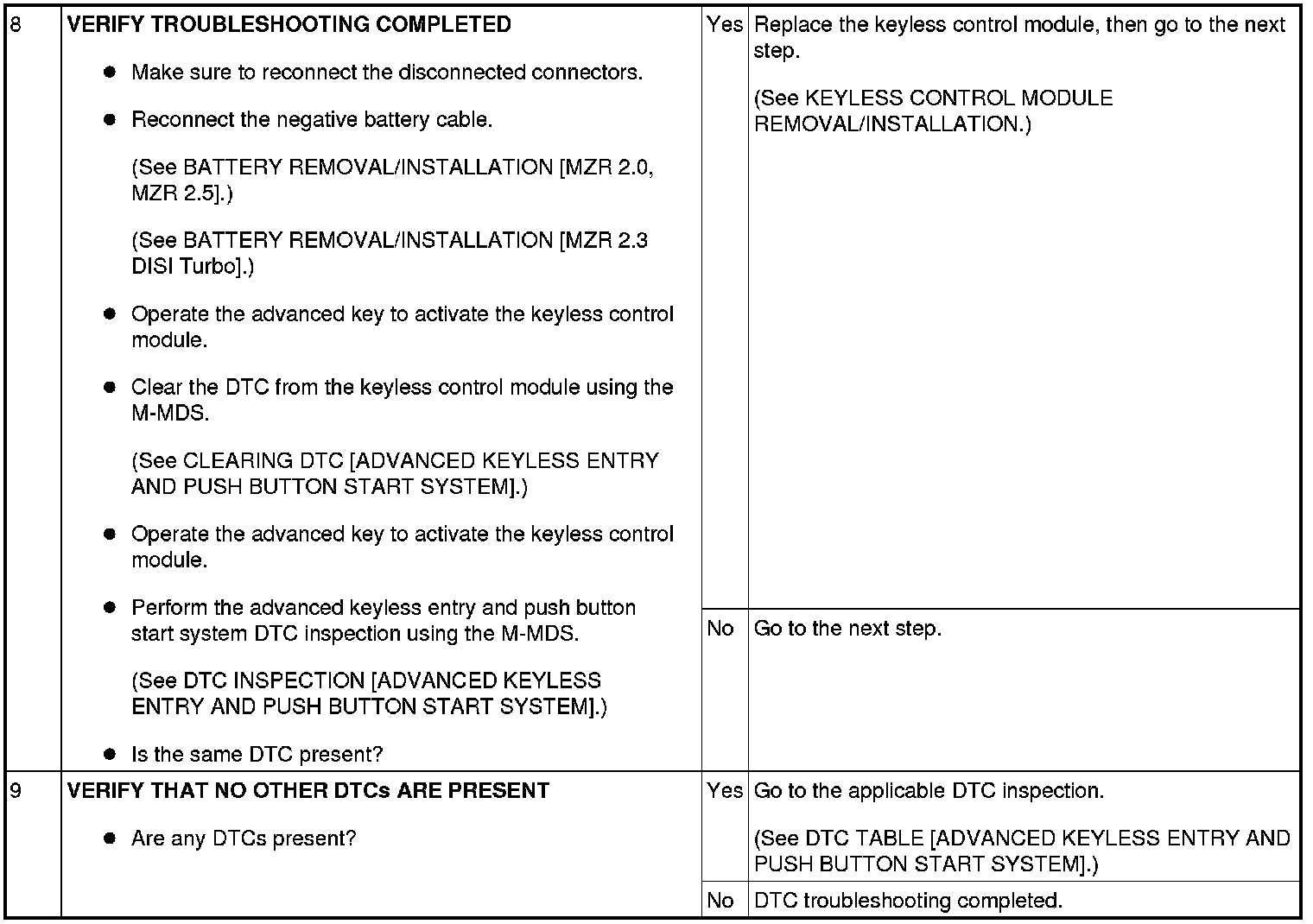

Diagnostic Procedure
