Two-Step Deployment Control System

DTC B2BCD [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

System Malfunction Location

- SAS control module connectors are poorly connected

Detection Condition

WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

- No continuity between poorly connected detector bar terminals of the SAS control module

Possible Causes

- SAS control module connectors are poorly connected
- SAS control module connector malfunction
- SAS control module malfunction

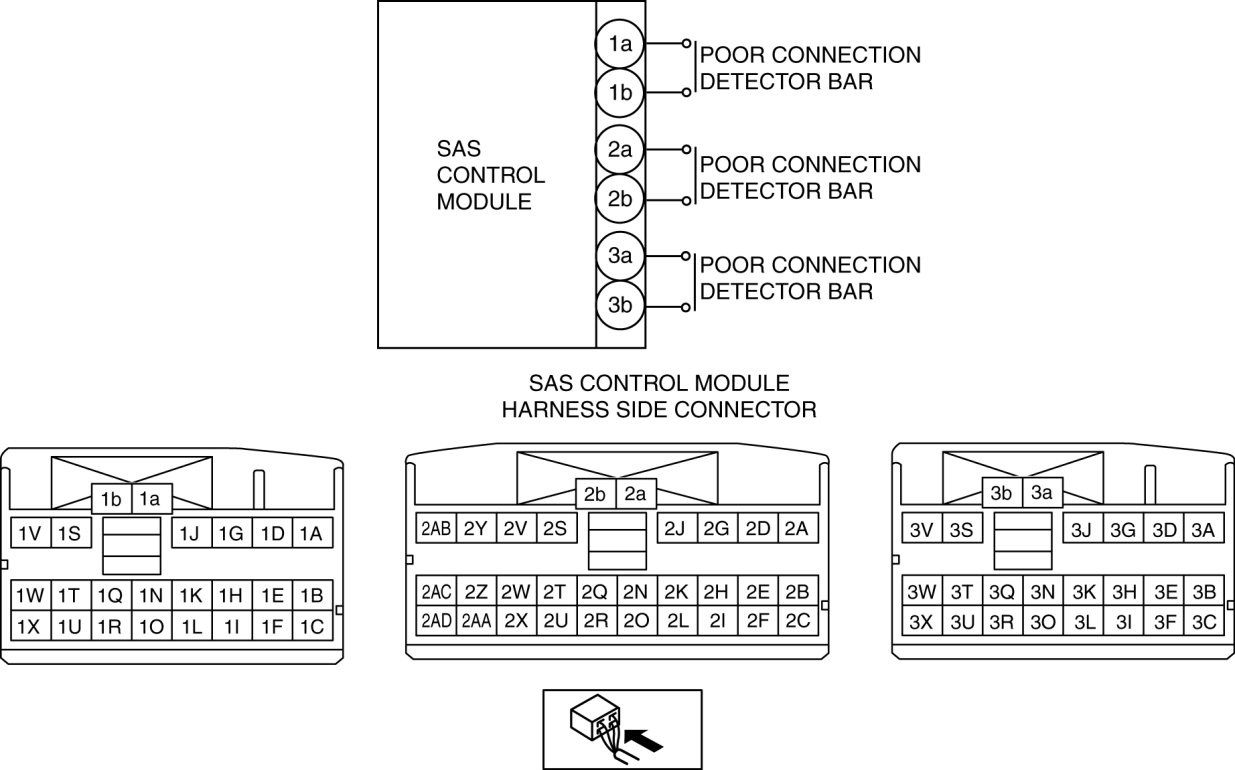

System Wiring Diagram

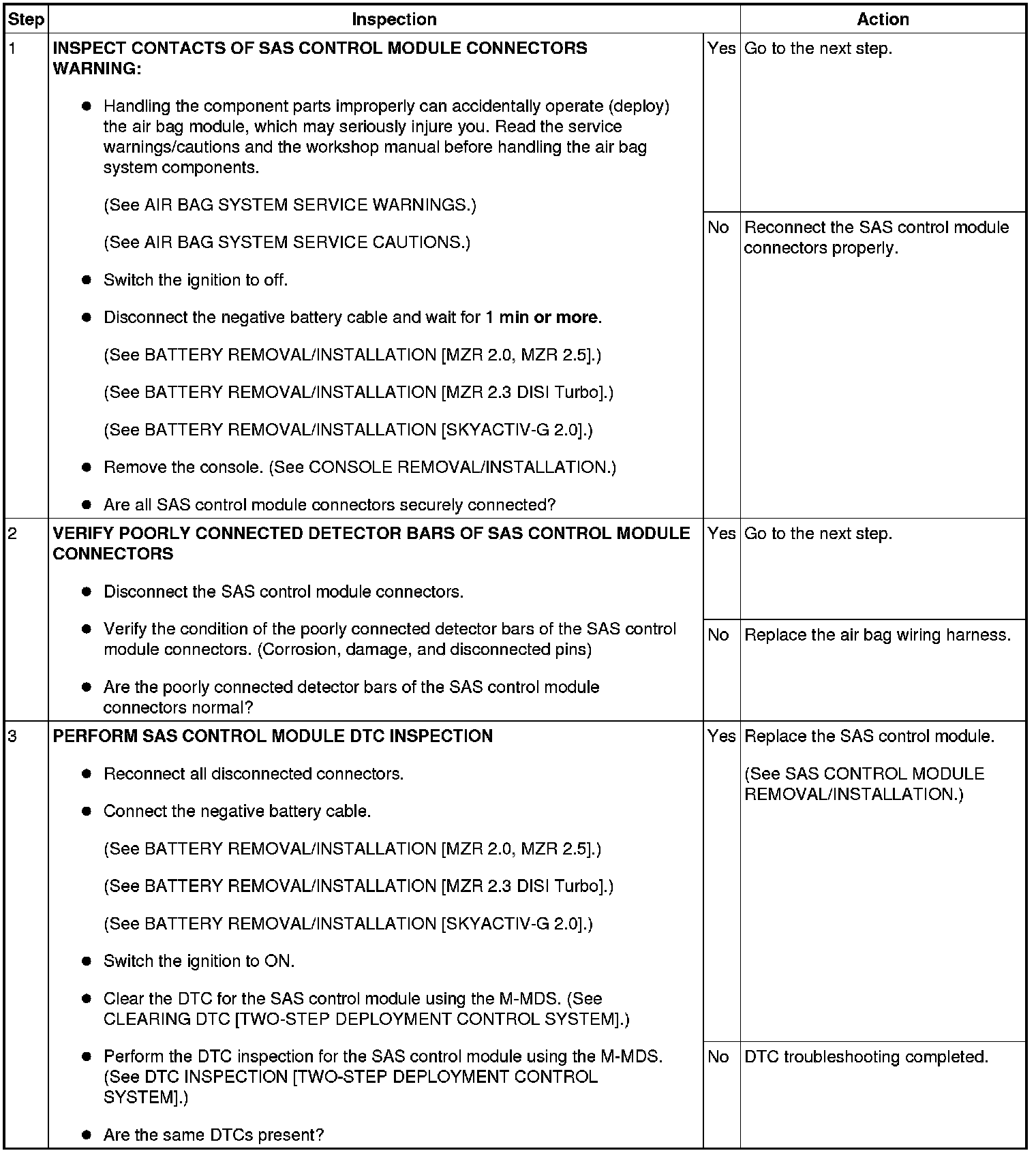

Diagnostic Procedure
