B232F

DTC B232F [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

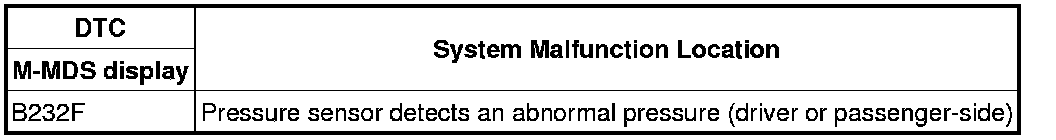

System Malfunction Location





Detection Condition

WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

- Pressure sensor has a malfunction (driver or passenger-side)
- Wiring harness between pressure sensor (driver or passenger-side) and SAS control module has a malfunction

Possible Causes

- Pressure sensor not installed correctly
- Pressure sensor connector malfunction
- Open or short circuit or short to ground or short to power supply in the wiring harness between the pressure sensor (driver or passenger-side) and SAS control module
- Pressure sensor malfunction
- SAS control module malfunction

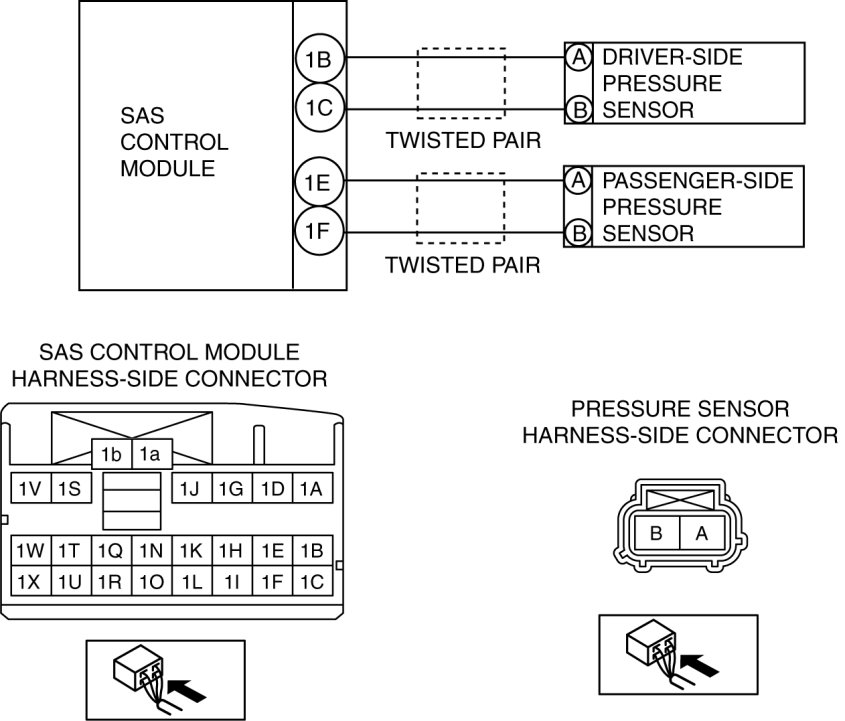

System Wiring Diagram

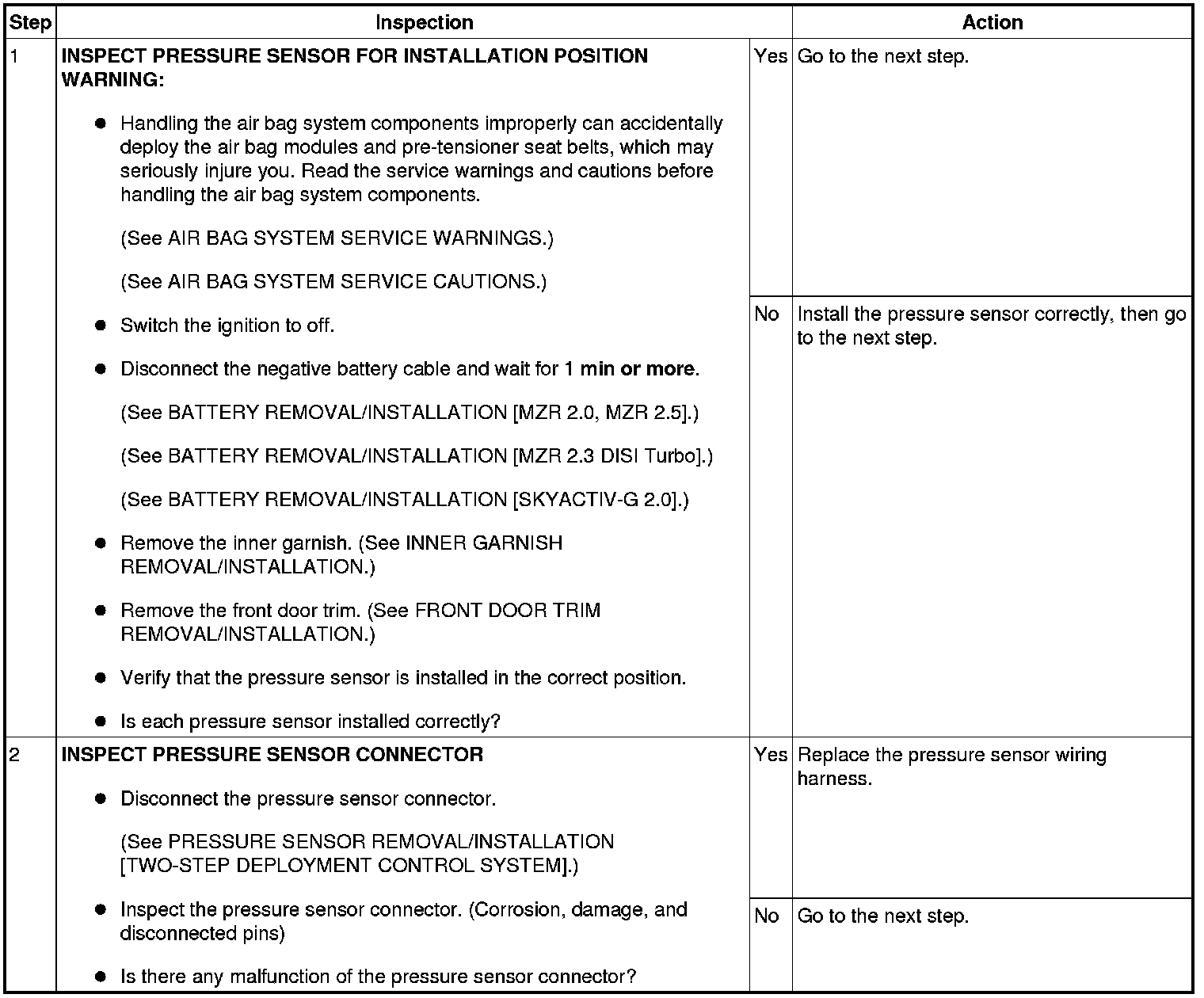

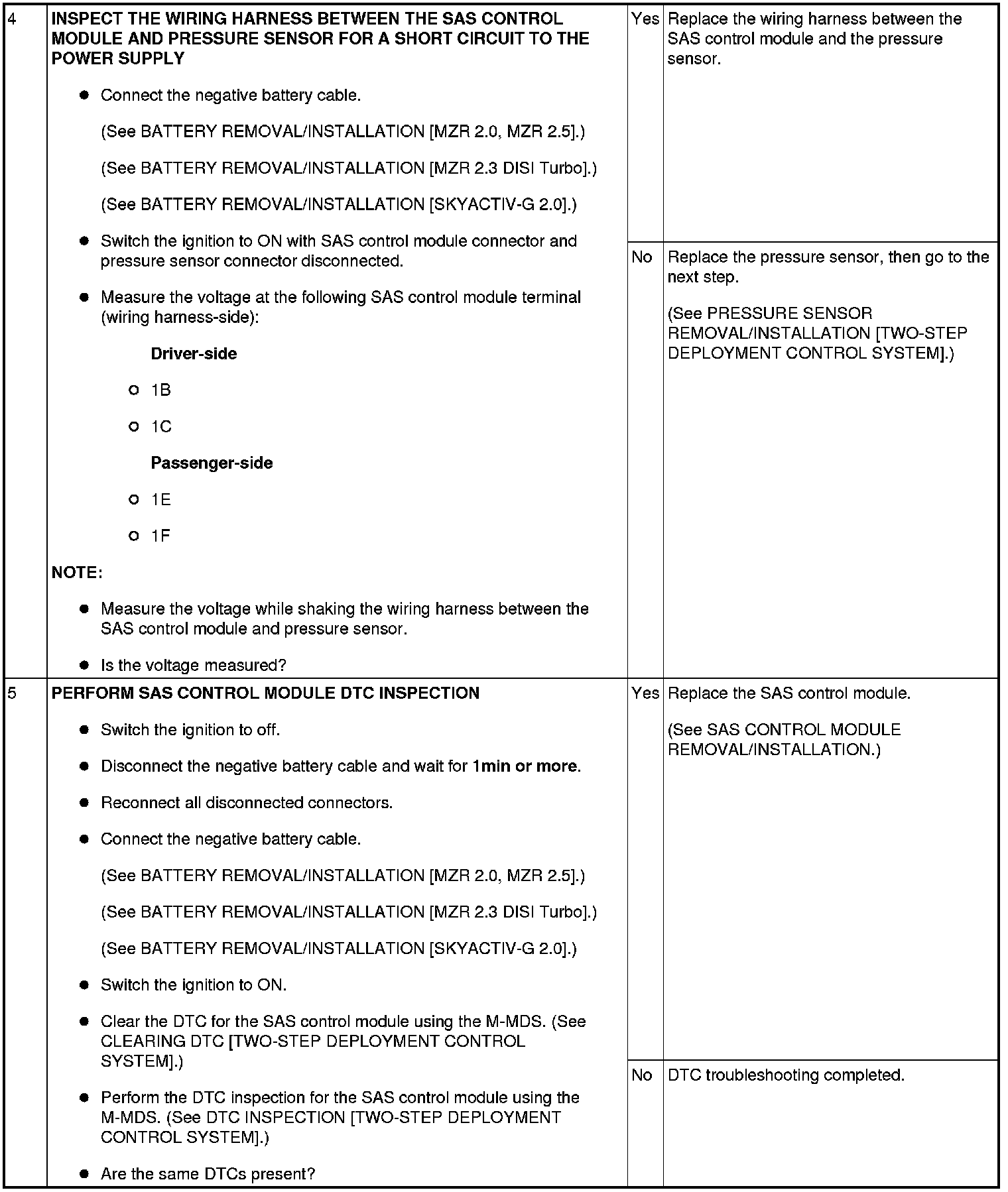

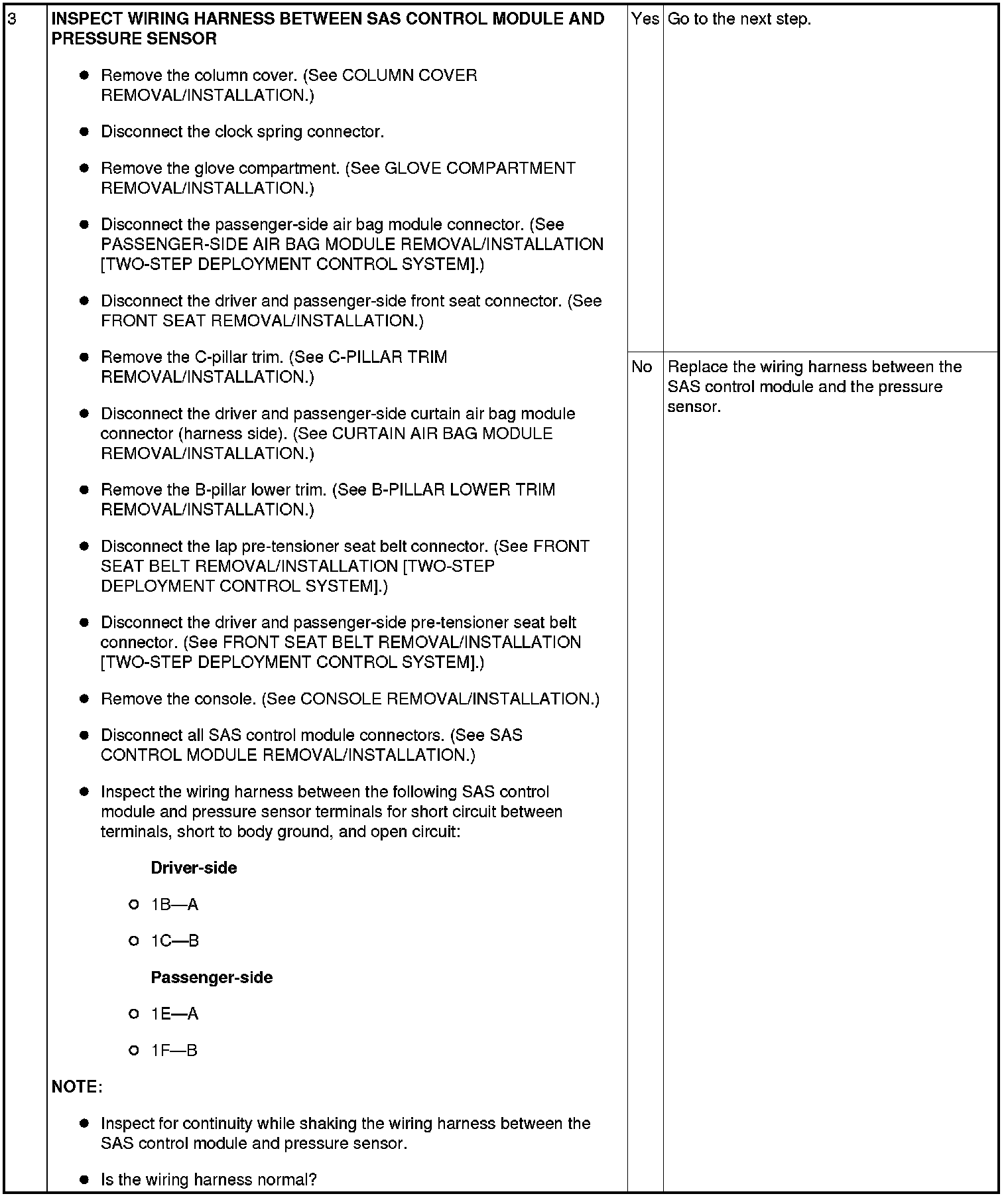

Diagnostic Procedure
