A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B1D36
B1D36

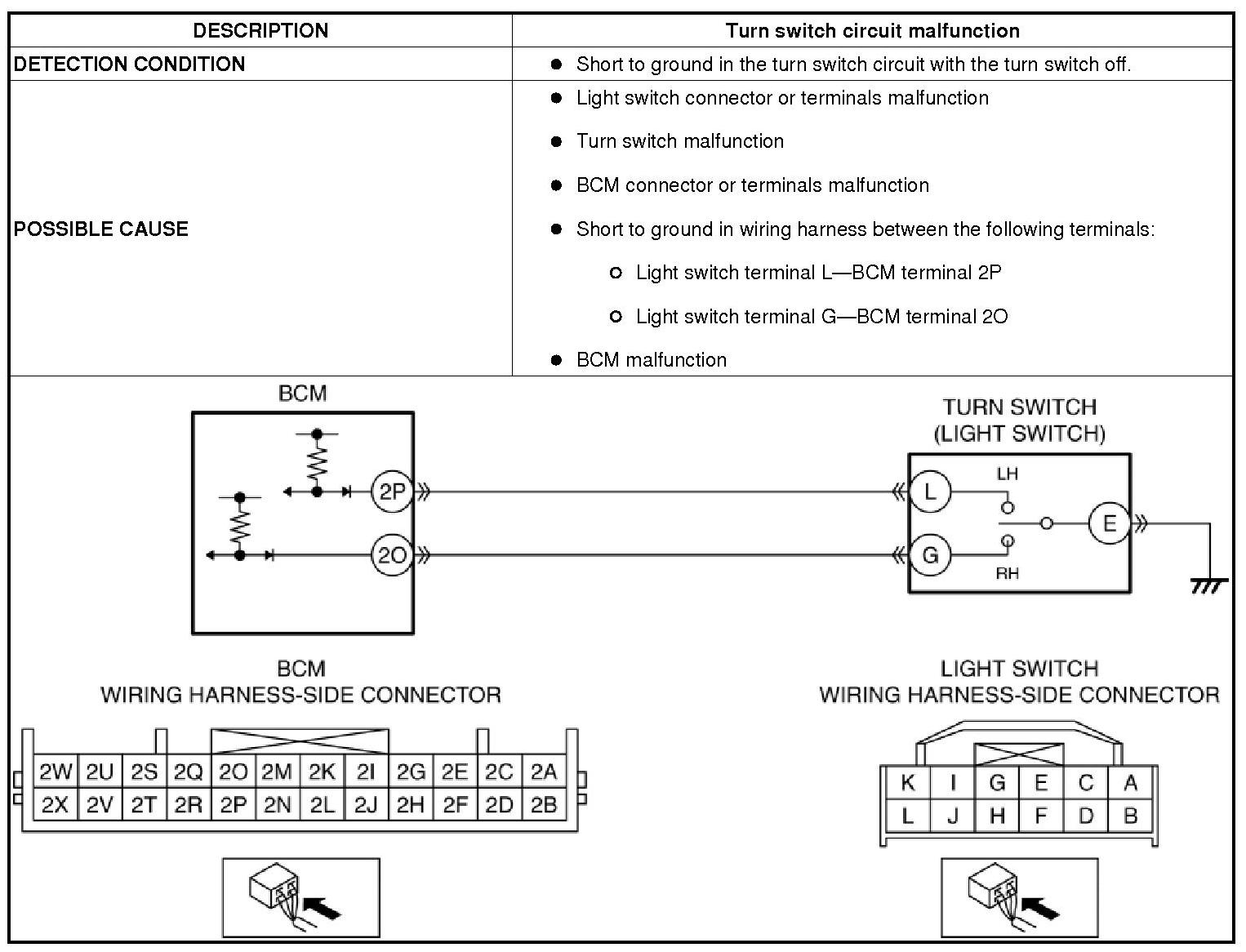

DTC B1D36:11 [BCM]

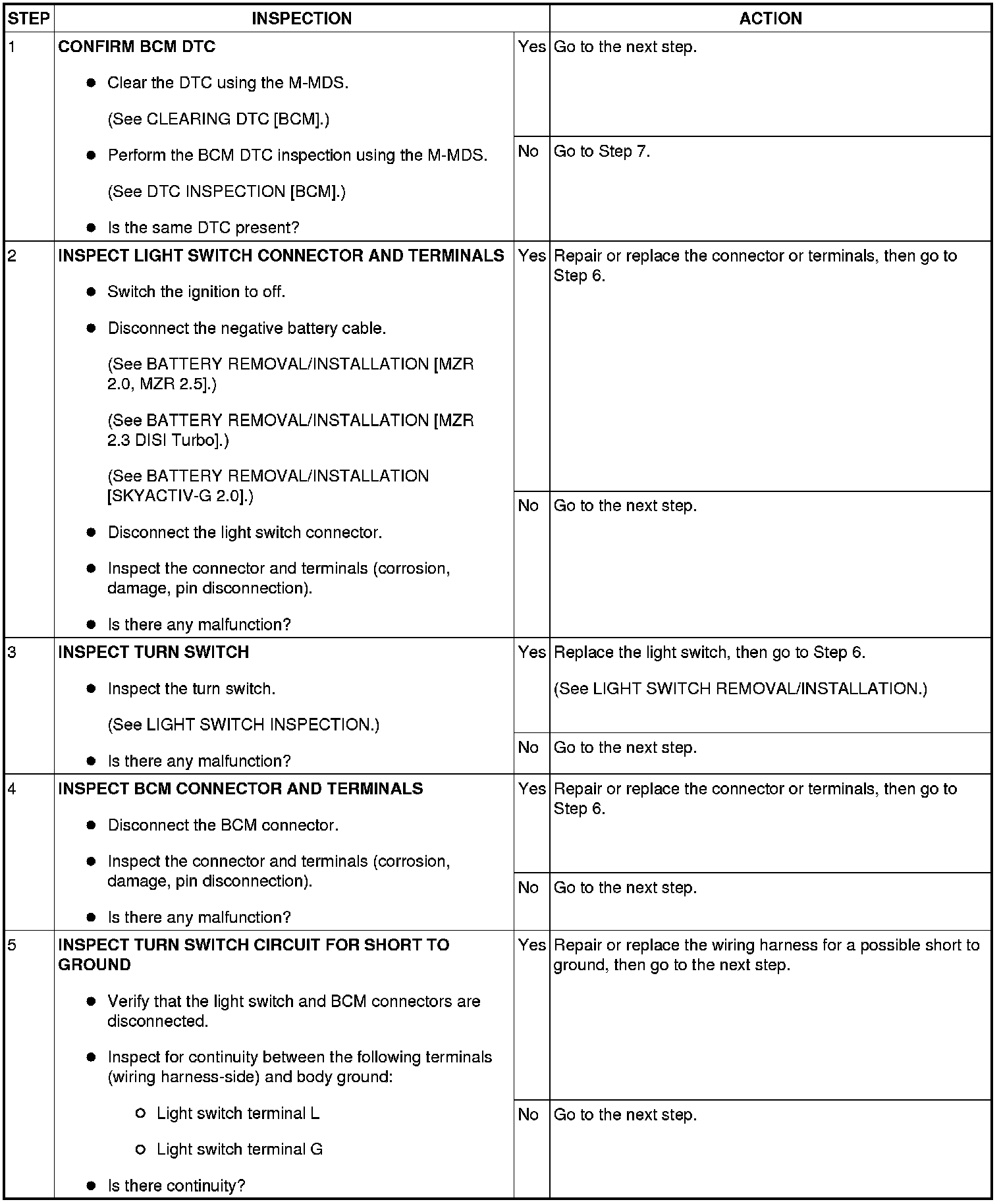

Diagnostic Procedure
