3 L4-2.0L (MZR)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B1A89
B1A89

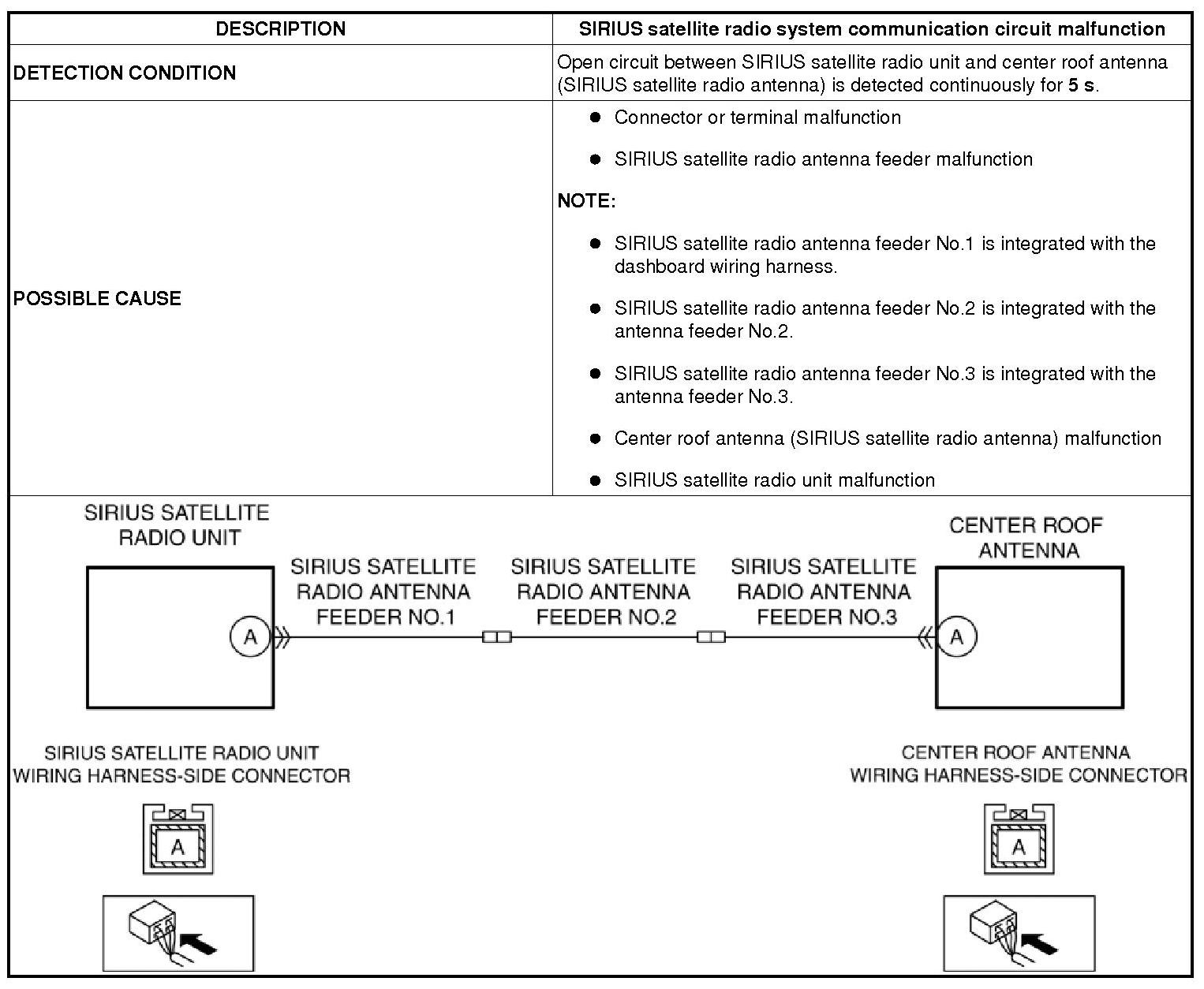

DTC: B1A89:13 [AUDIO]

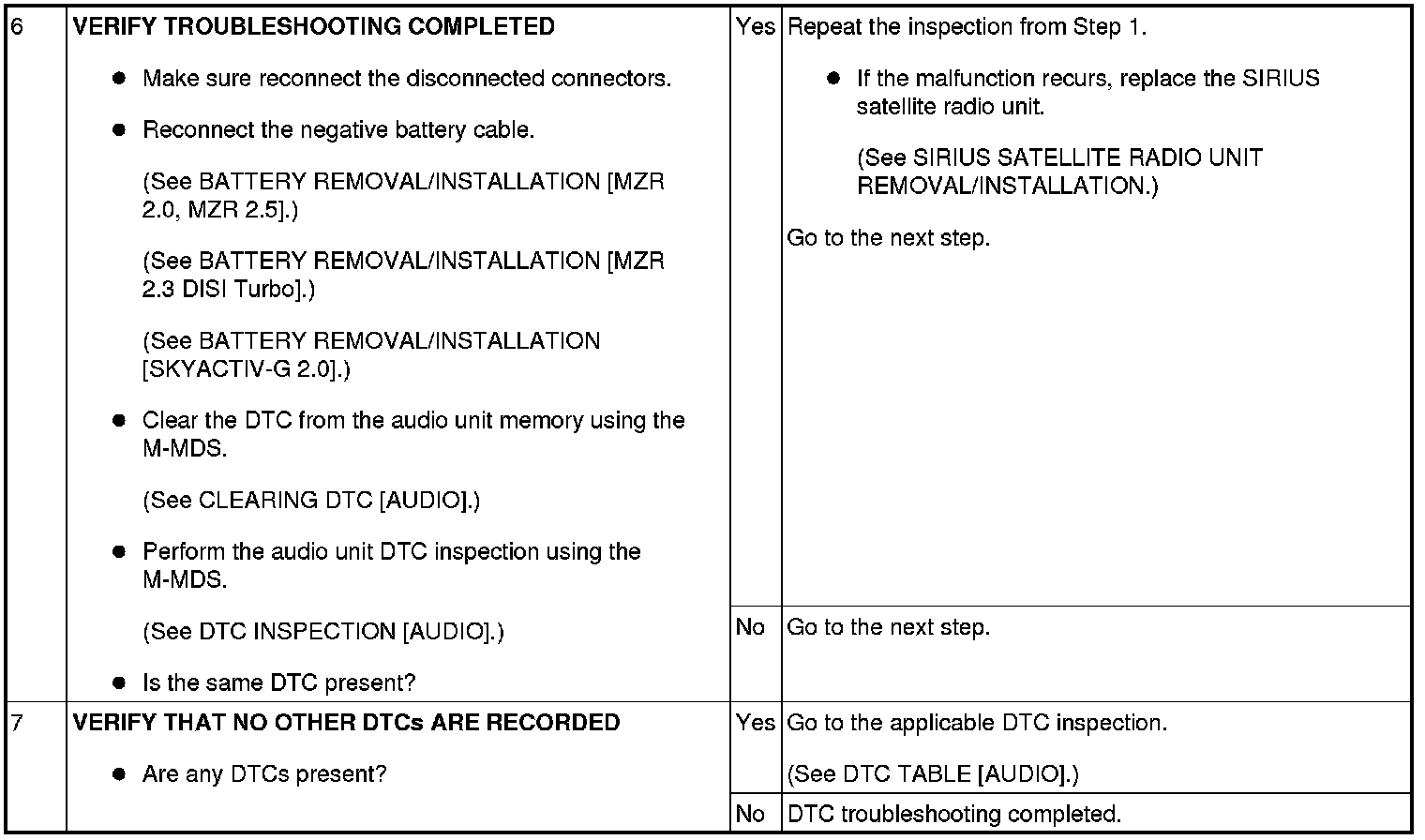

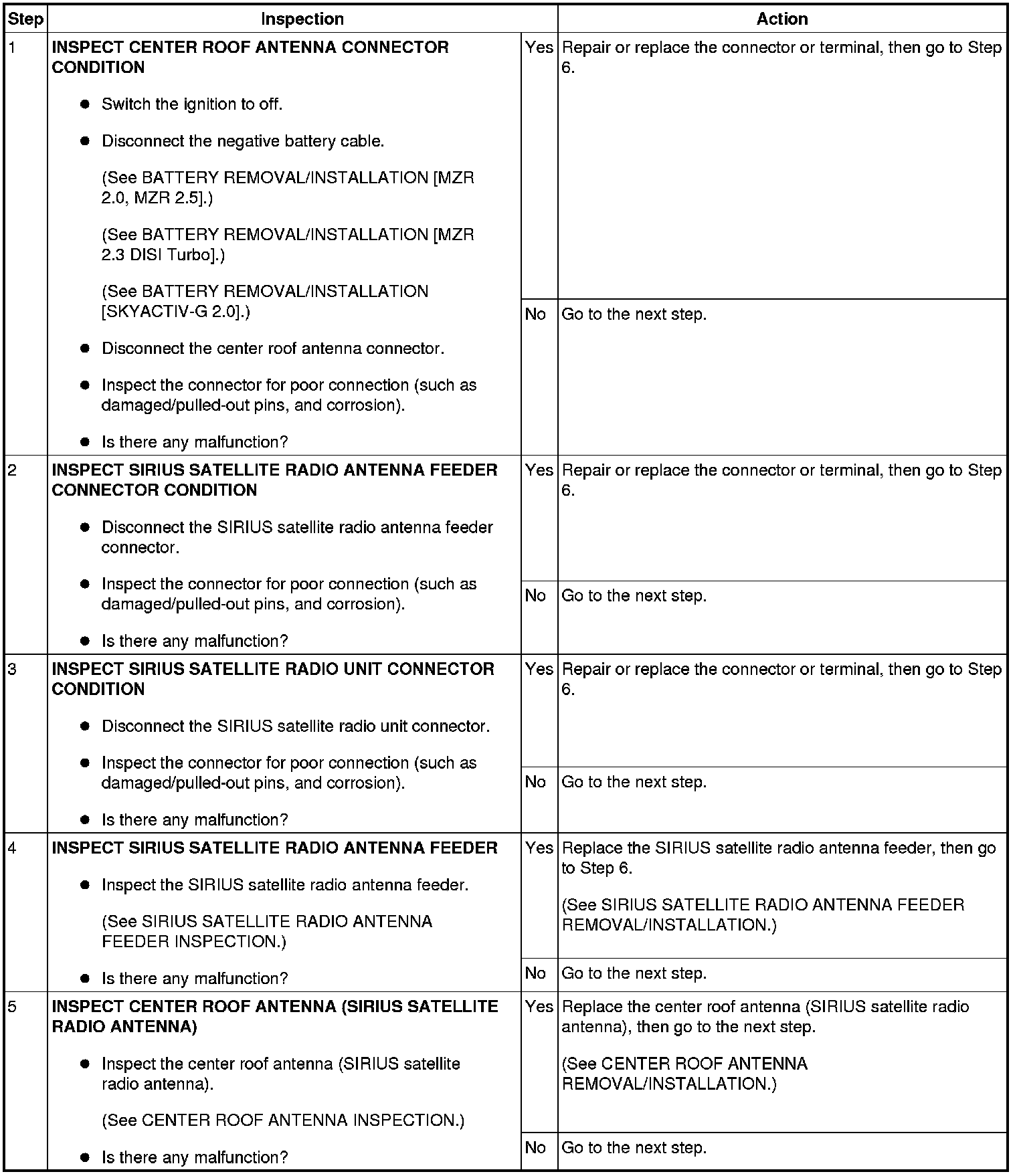

Diagnostic Procedure
