Two-Step Deployment Control System

DTC B1868 [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

System Malfunction Location

- Air bag system warning light malfunction

Detection Condition

WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

- Air bag system warning light malfunction detected

Possible Causes

- Instrument cluster assembly incorrect
- Instrument cluster malfunction
- SAS control module malfunction

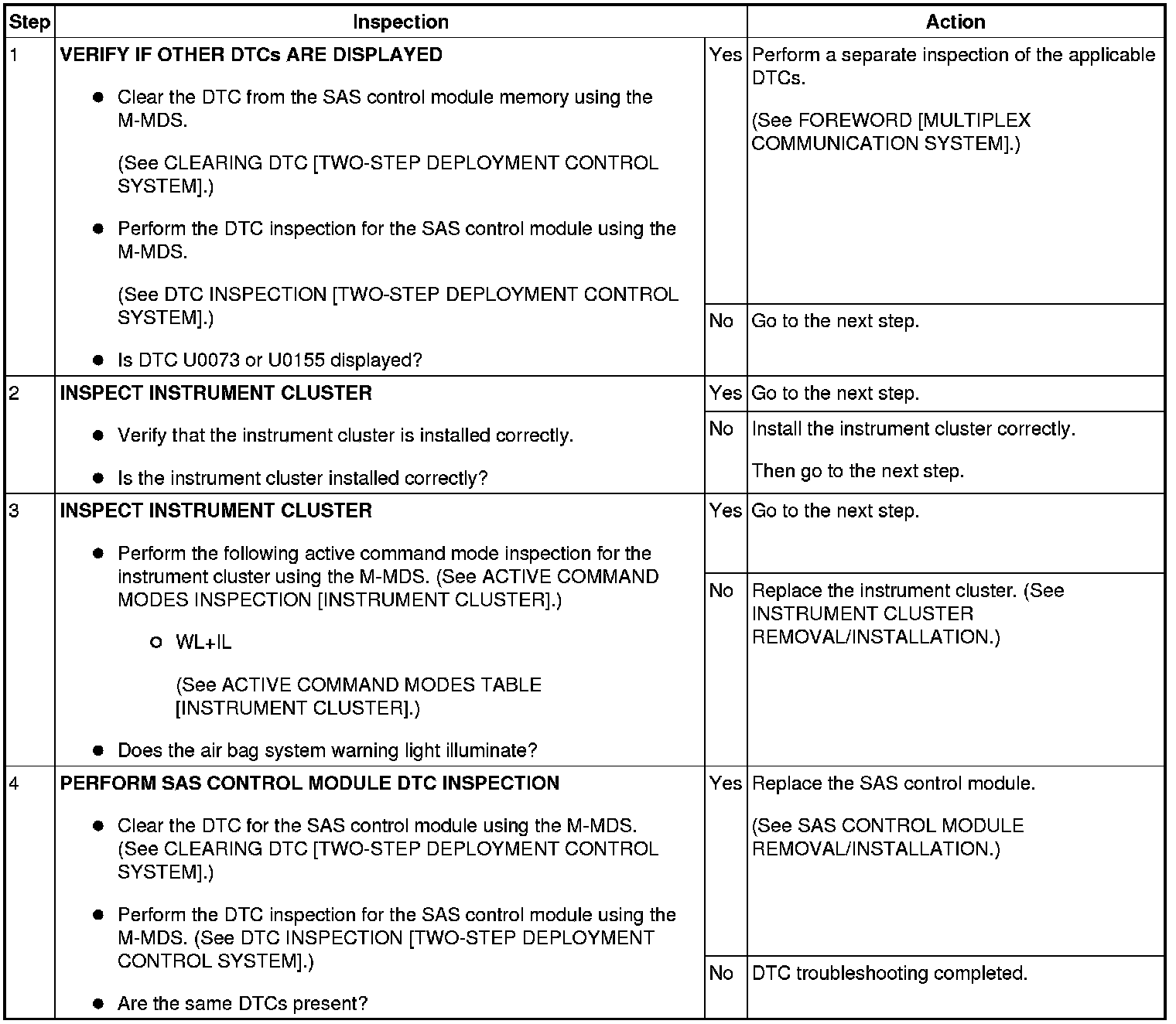

Diagnostic Procedure
