Standard Deployment Control System

DTC B1342 [STANDARD DEPLOYMENT CONTROL SYSTEM]

System Malfunction Location

- SAS control module internal malfunction

Detection Condition

WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

- Malfunction in the SAS control module internal circuit

Possible Causes

- SAS control module malfunction

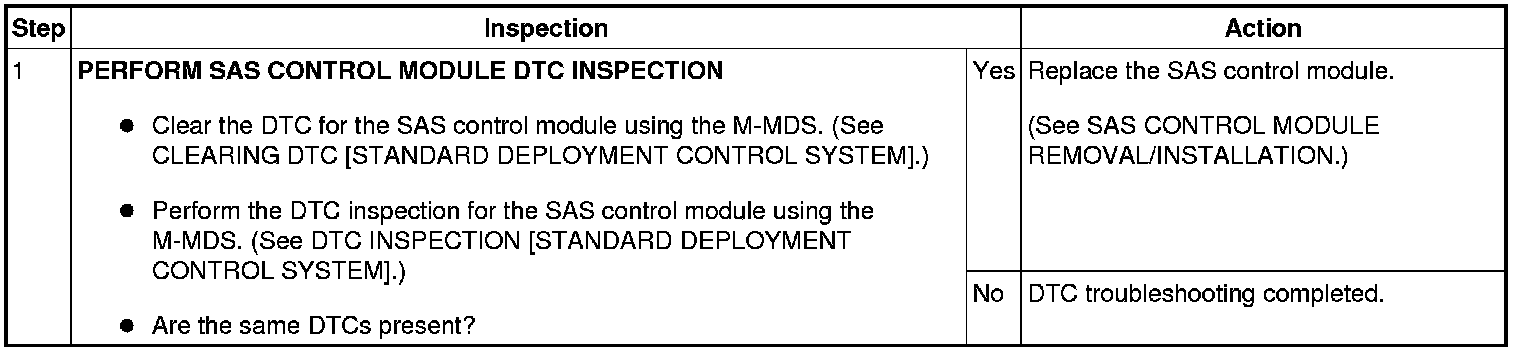

Diagnostic Procedure
