Information Display/Multi Information Display

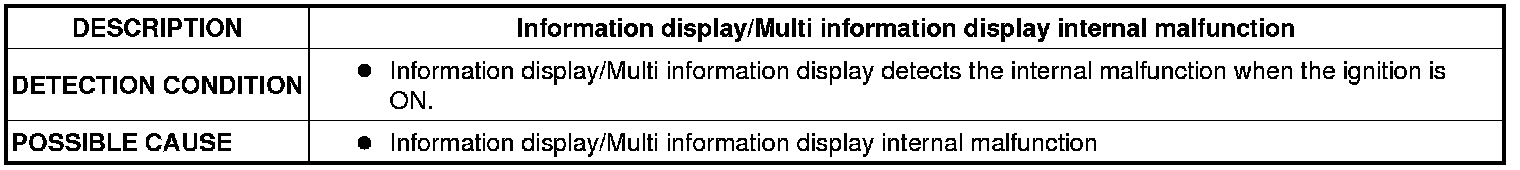

DTC B1342 [INFORMATION DISPLAY / MULTI INFORMATION DISPLAY]

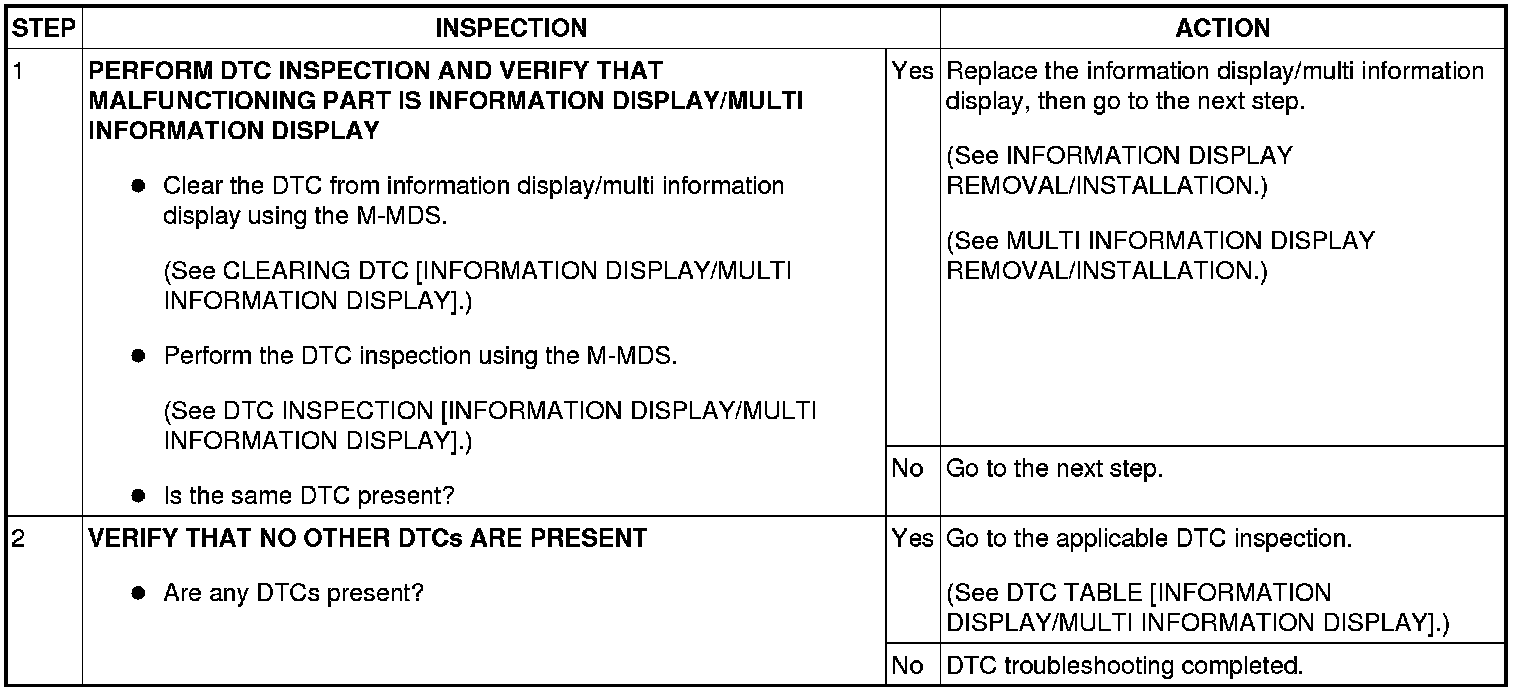

Diagnostic Procedure
