Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B1174 >> B1174:13

B1174:13

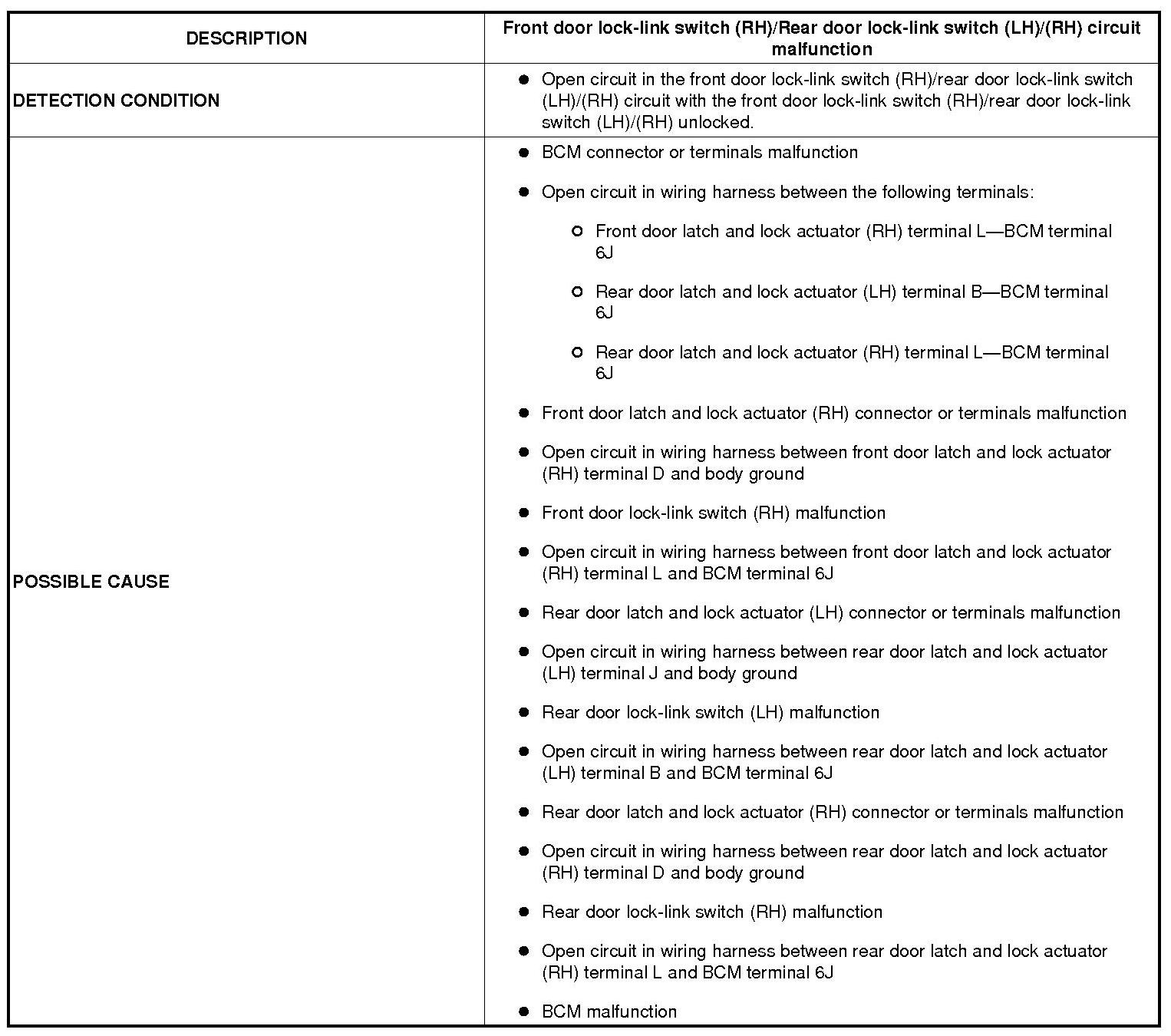

DTC B1174:13 [BCM]

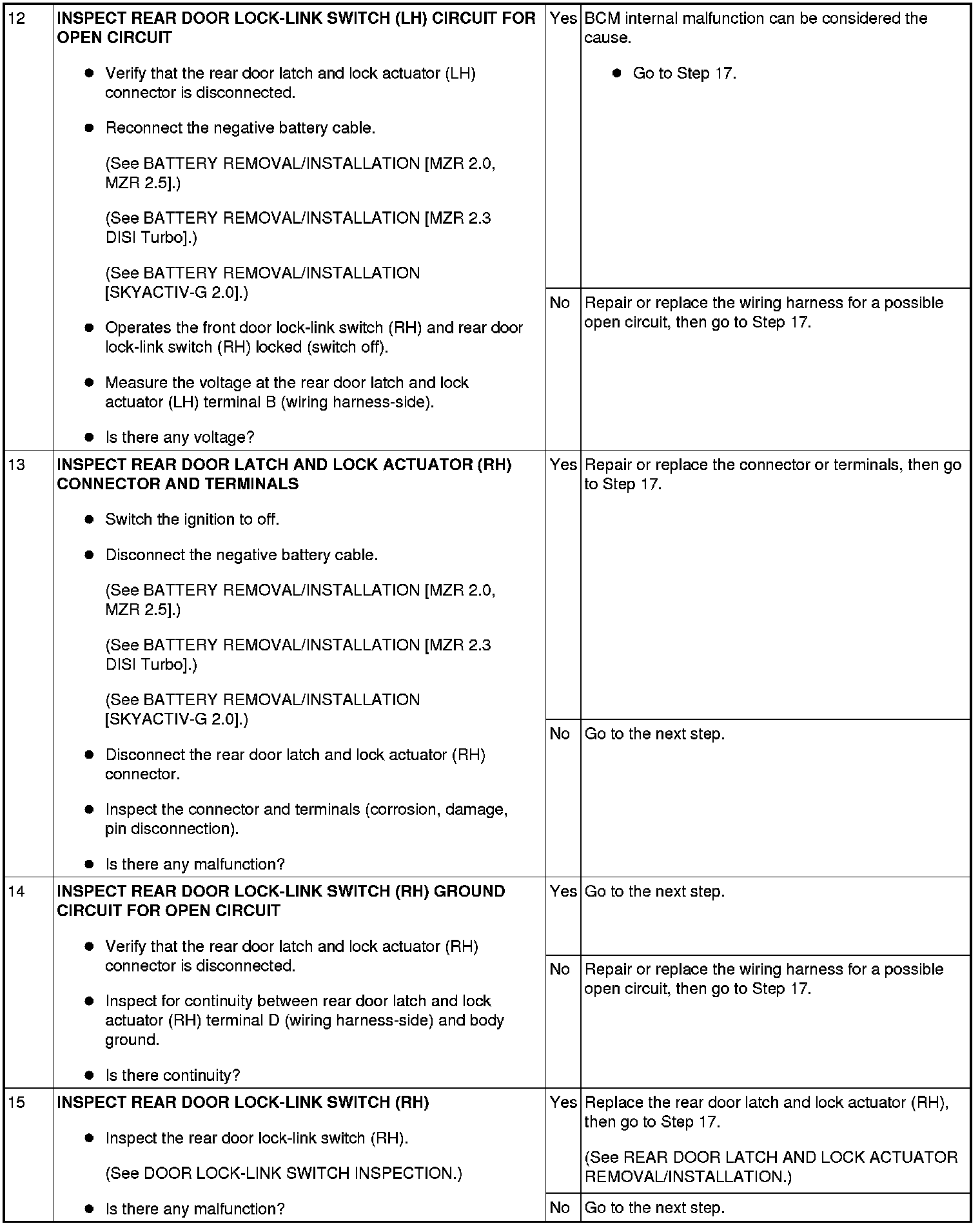

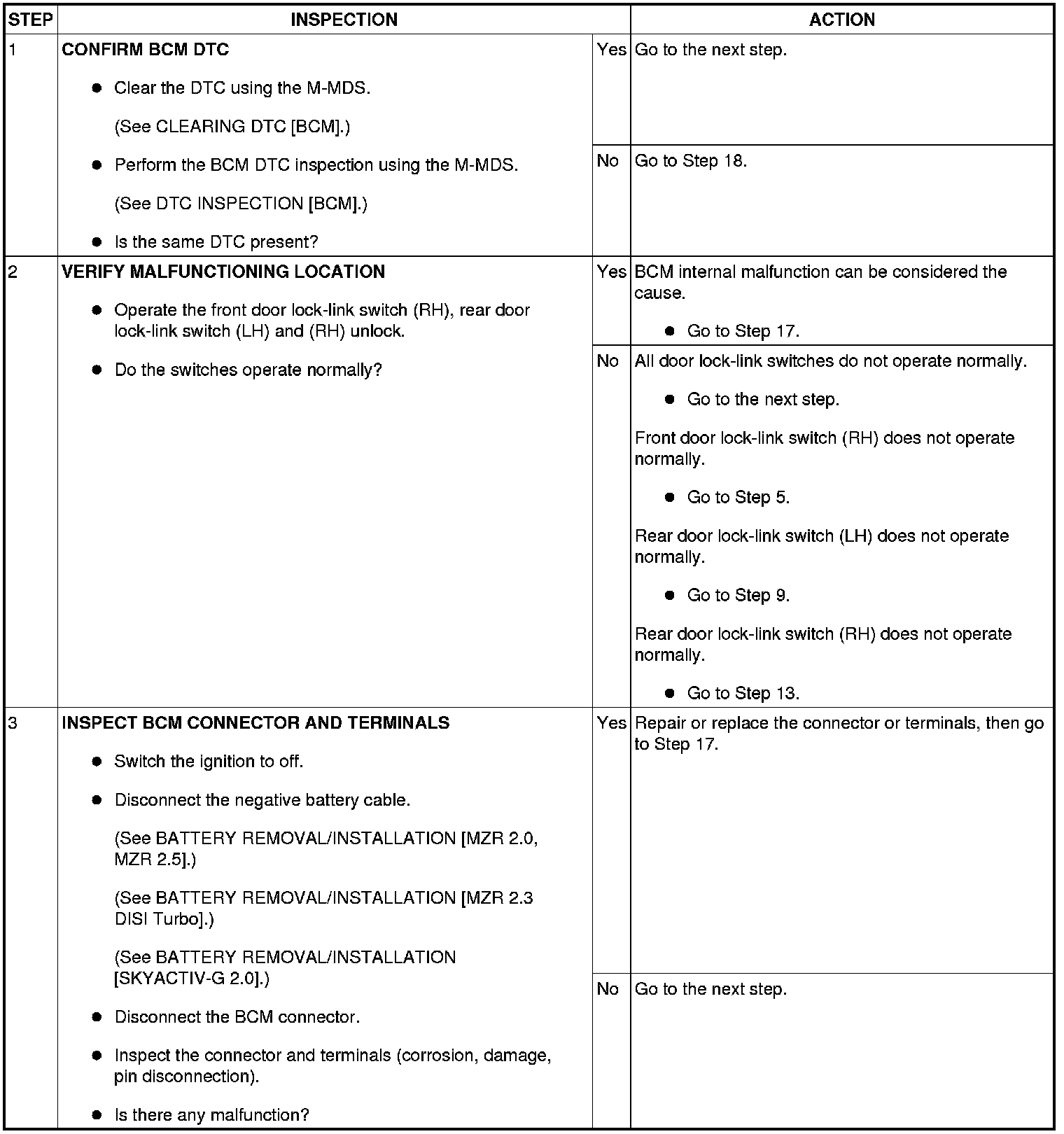

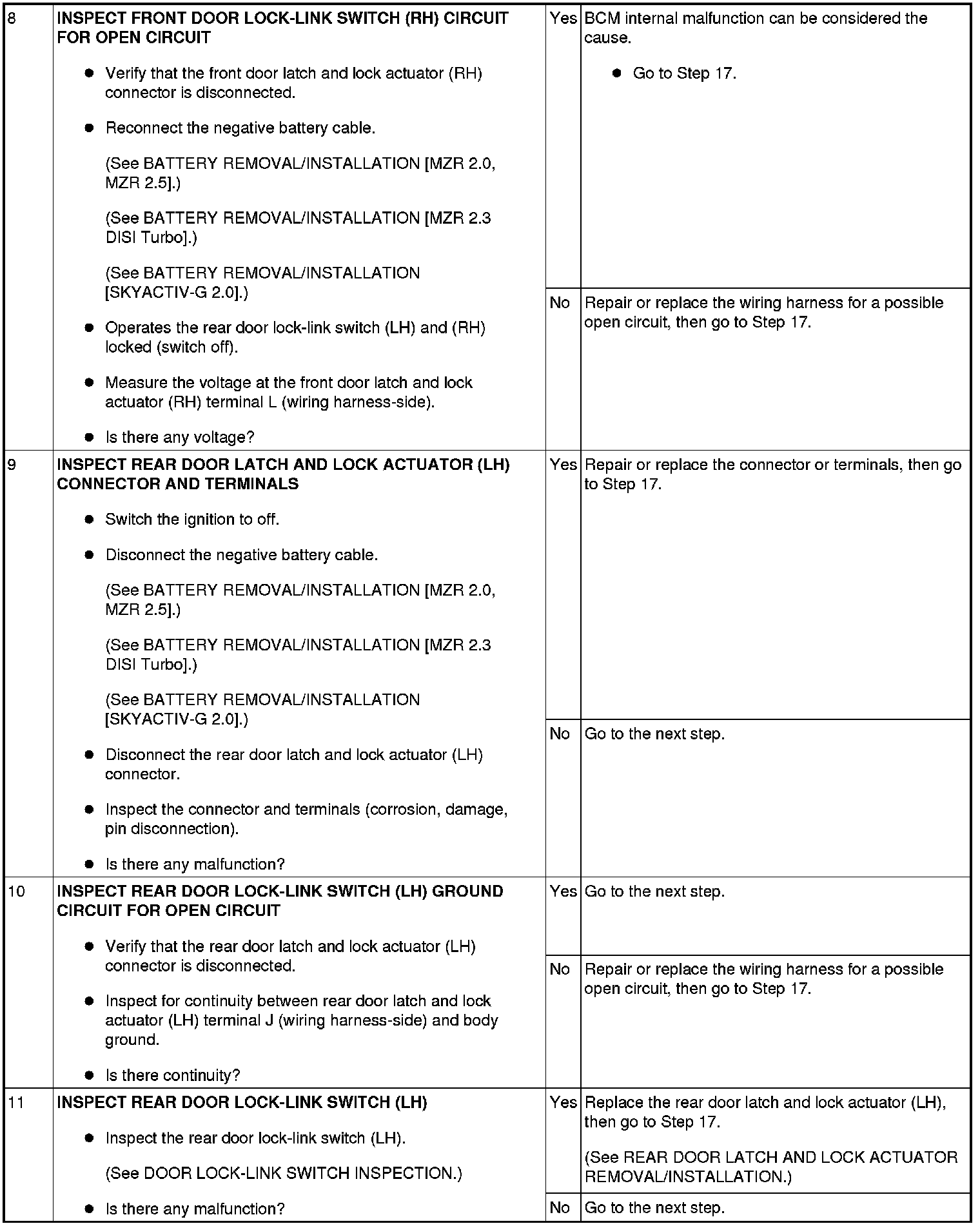

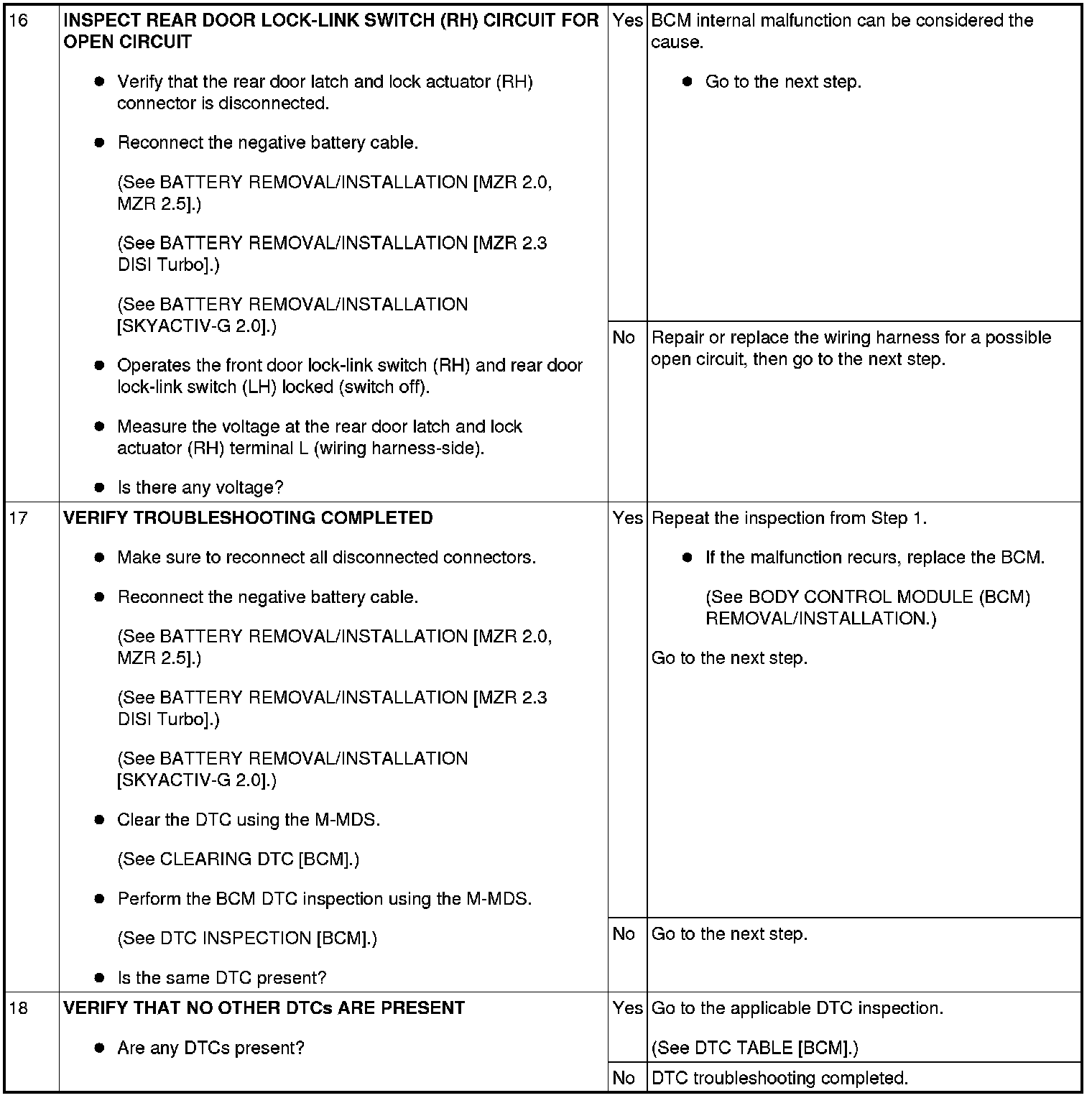

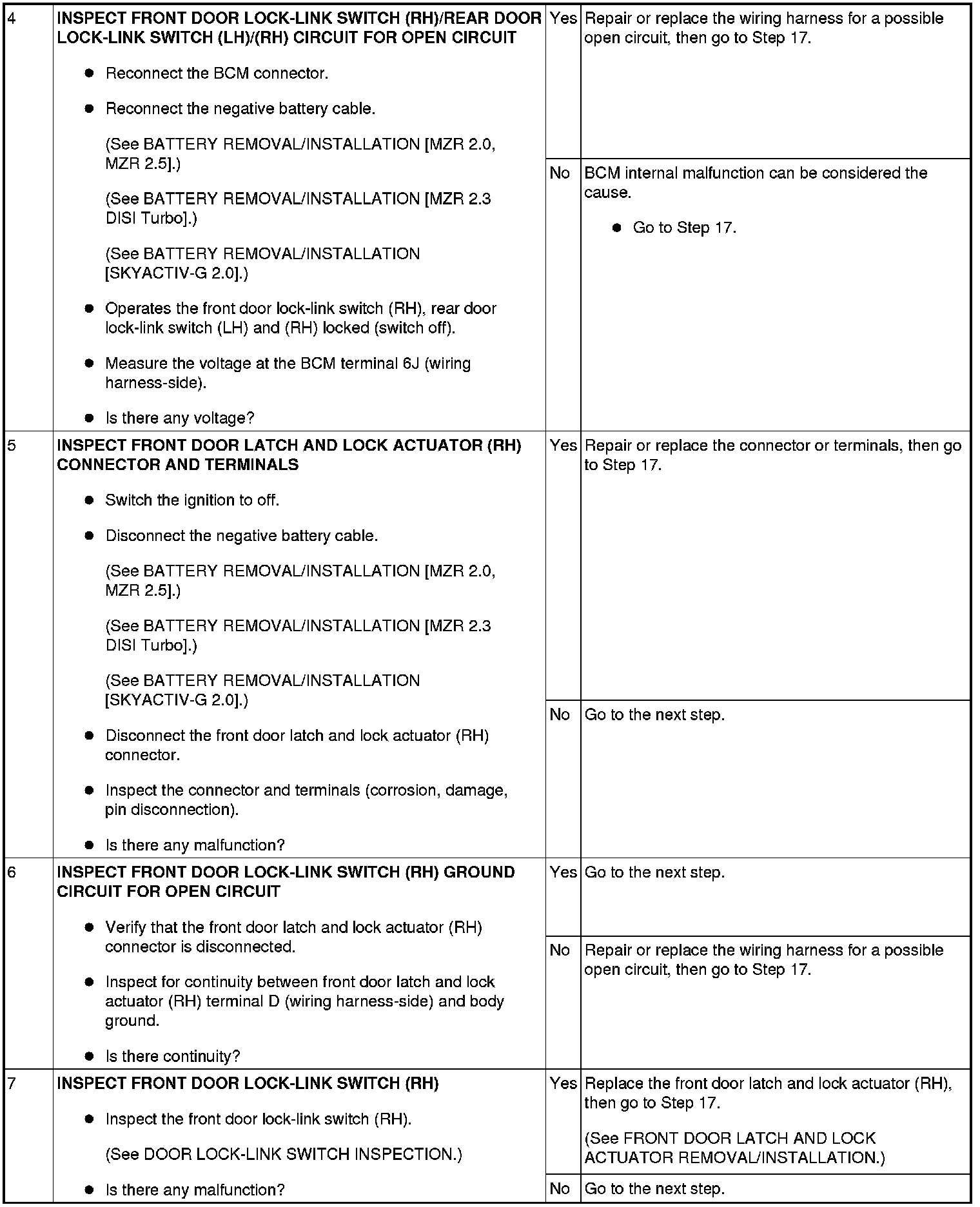

Diagnostic Procedure
