Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B116A >> B116A:13

B116A:13

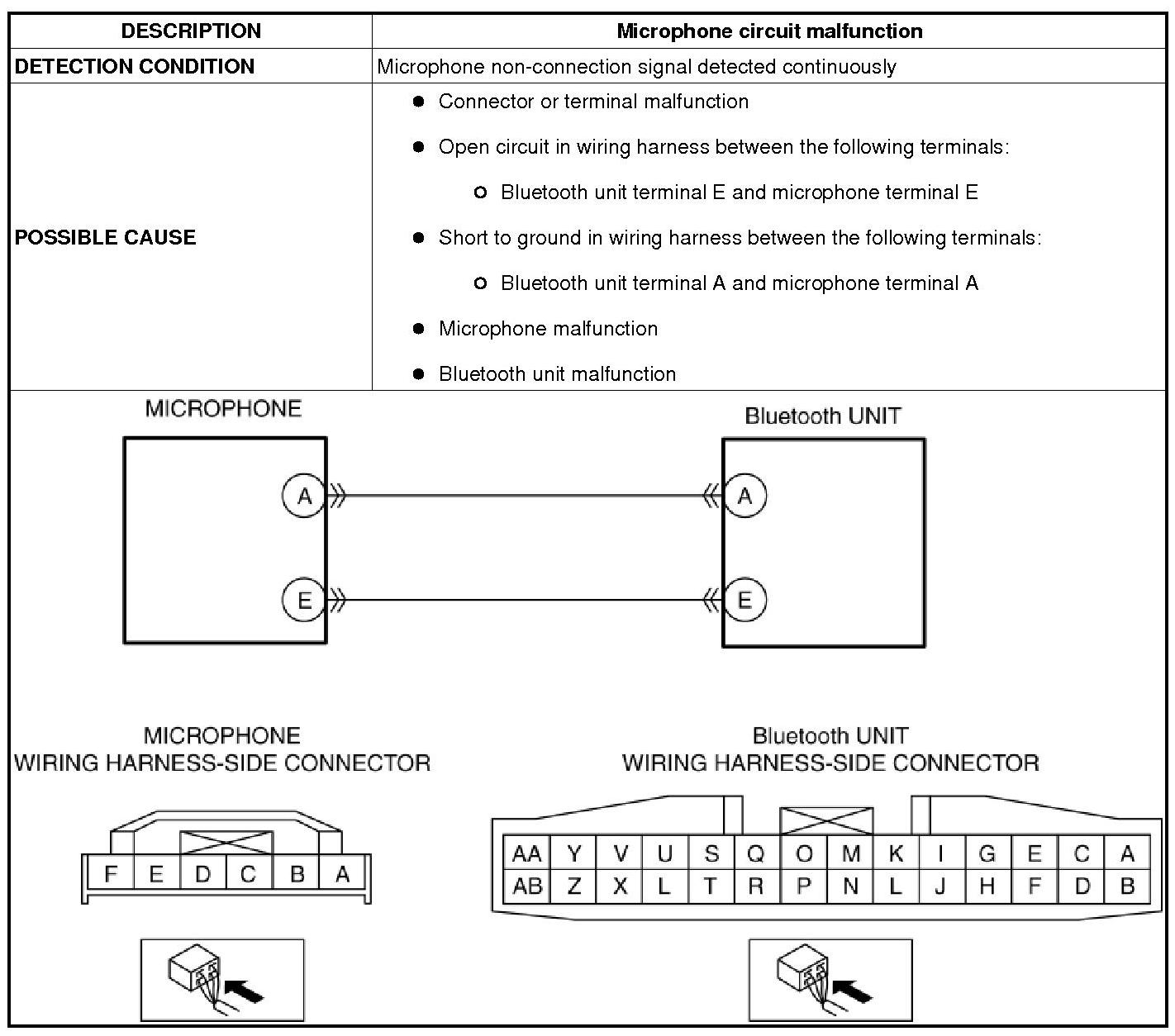

DTC: B116A:13, 26:Er84 [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF / TEL) SYSTEM)]

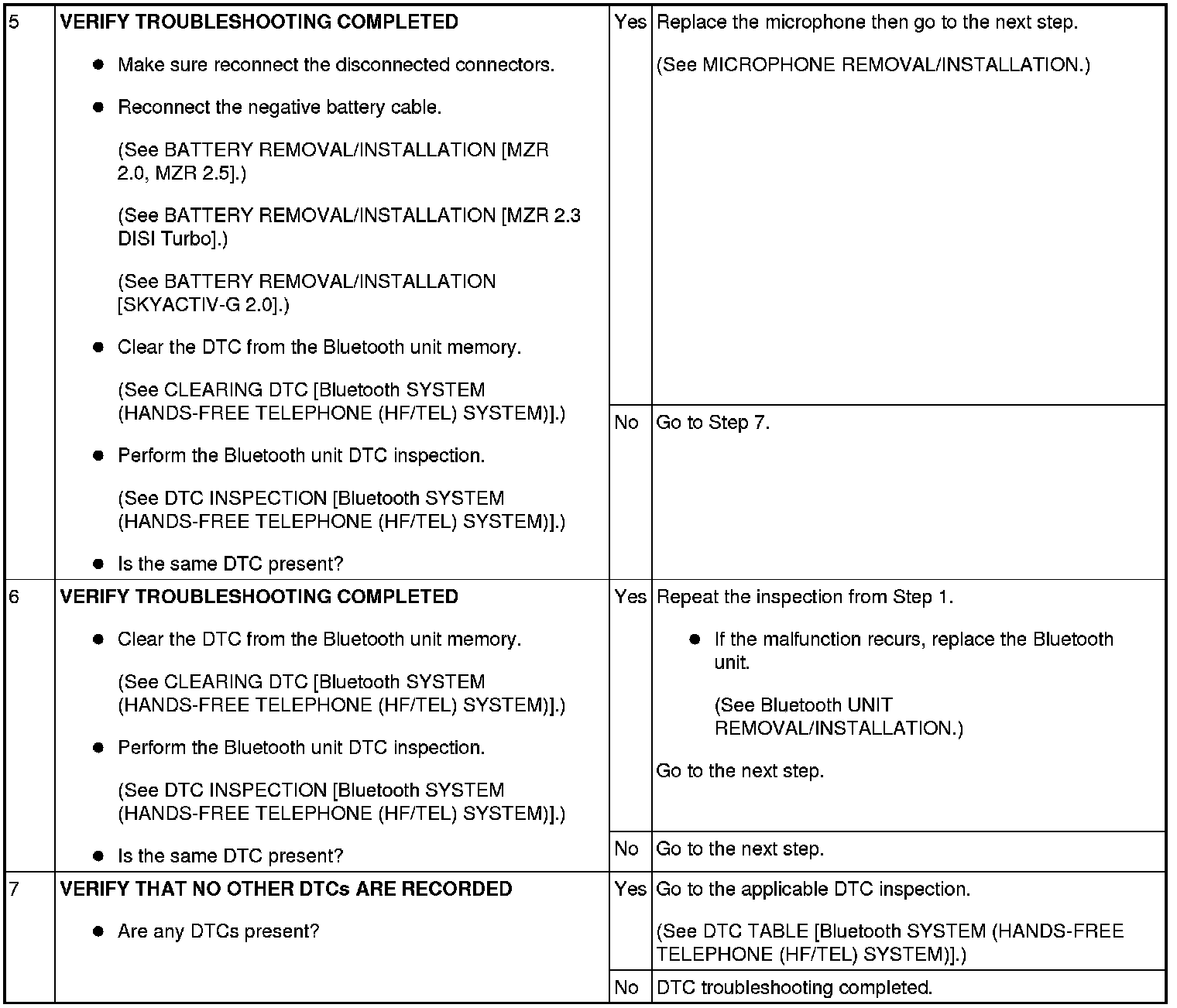

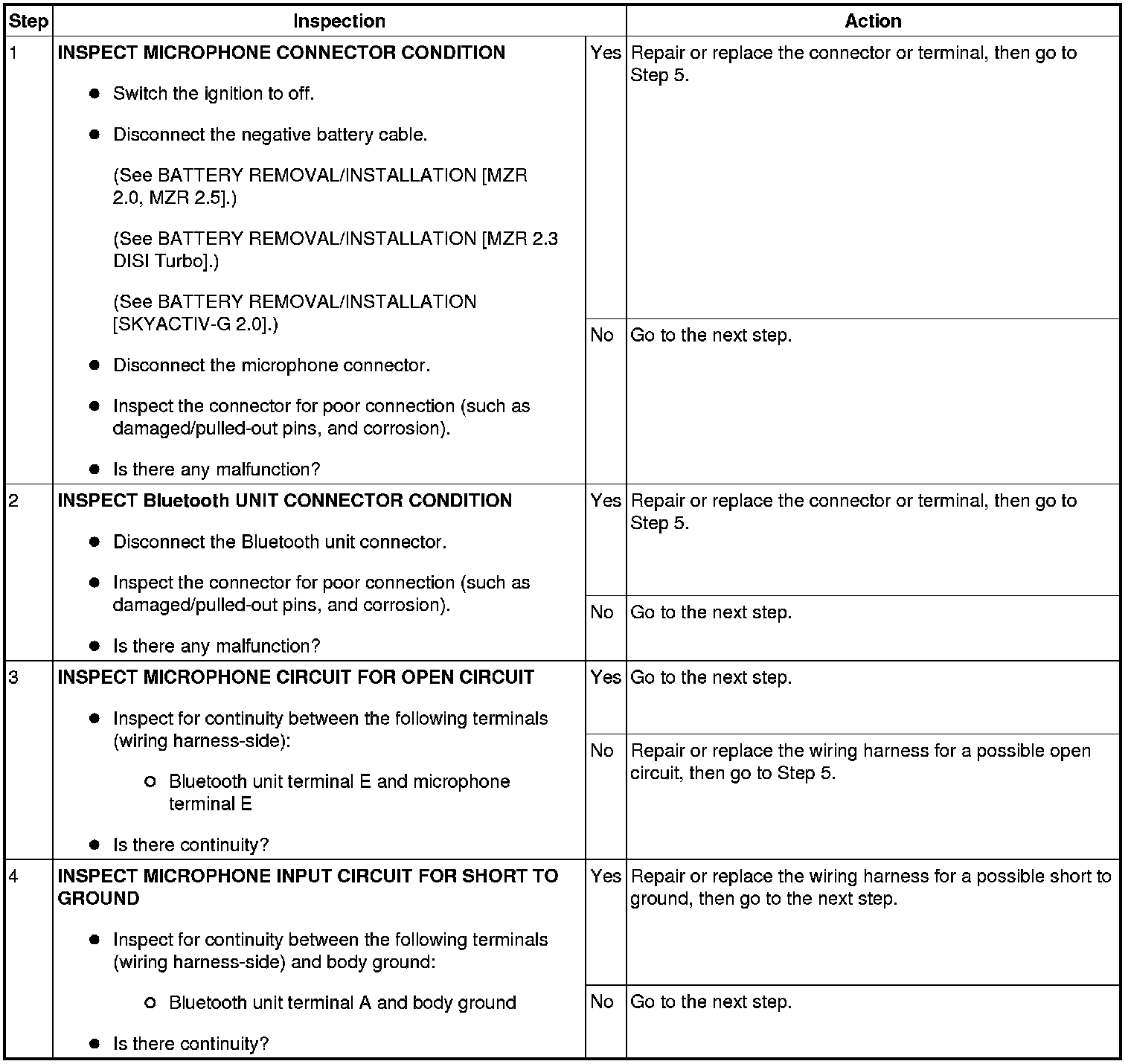

Diagnostic Procedure
