Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B10A4 >> B10A4:87

B10A4:87

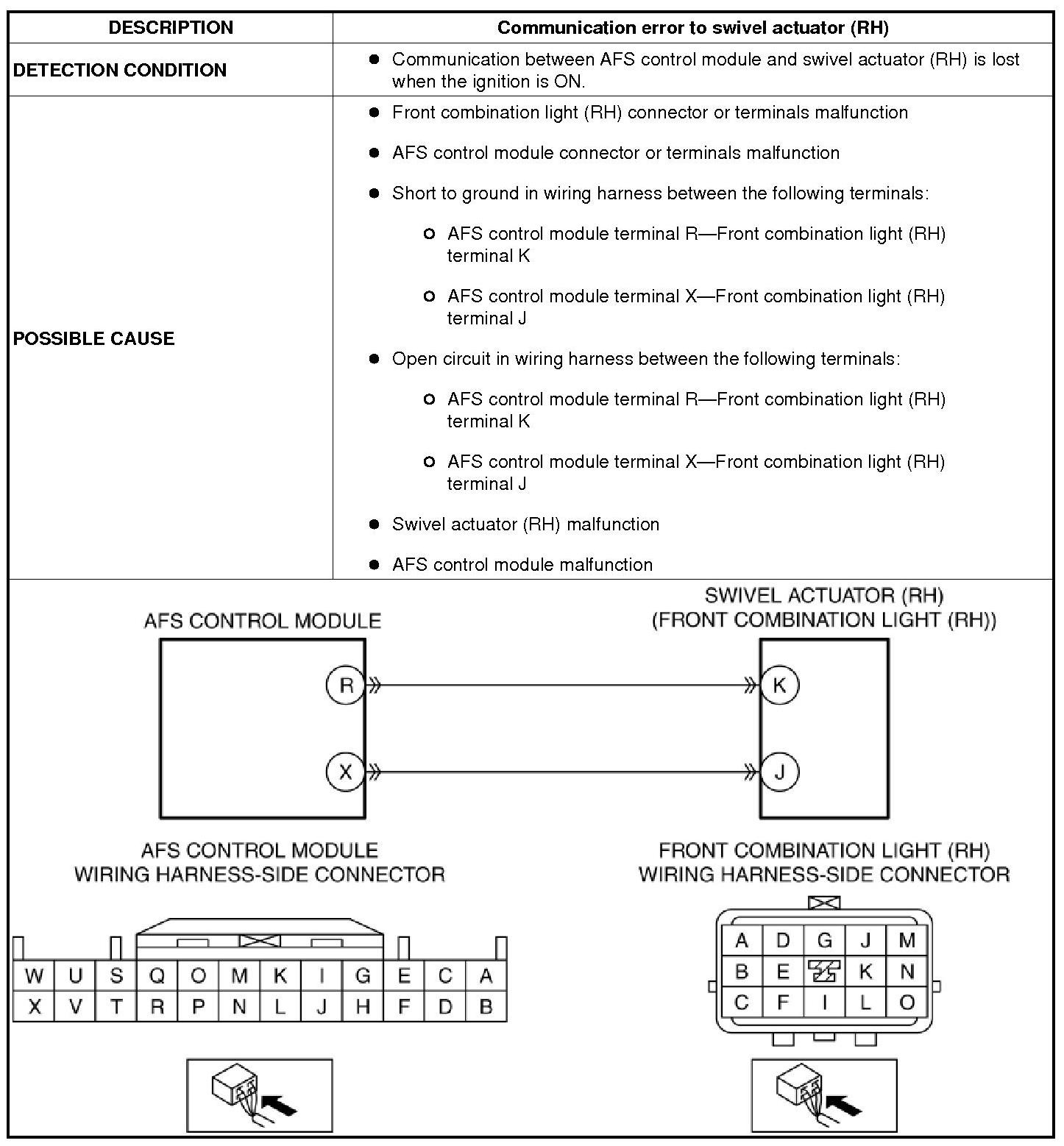

DTC B10A4:87 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]

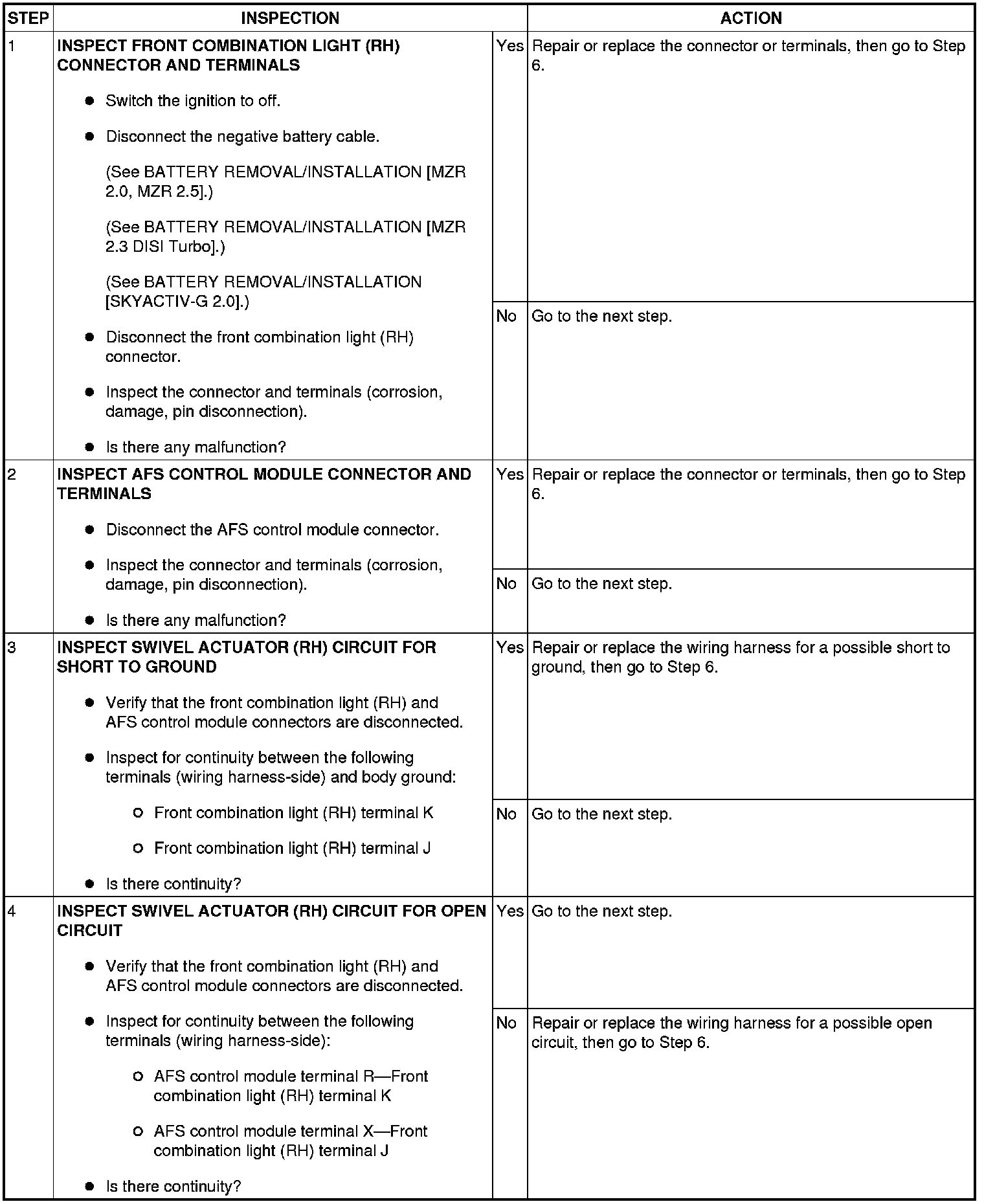

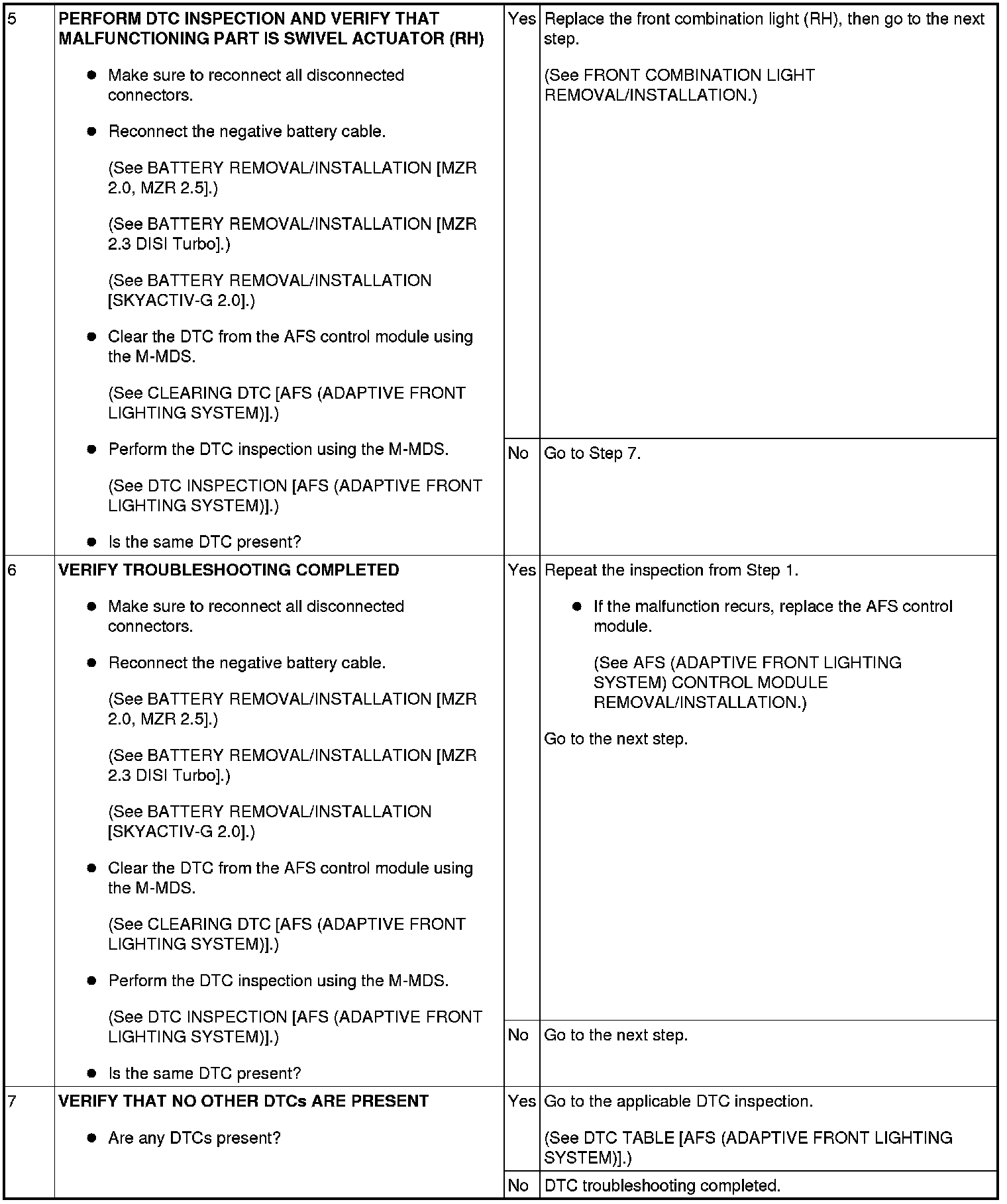

Diagnostic Procedure
