B109E:87





DTC B109E:87 [BCM]

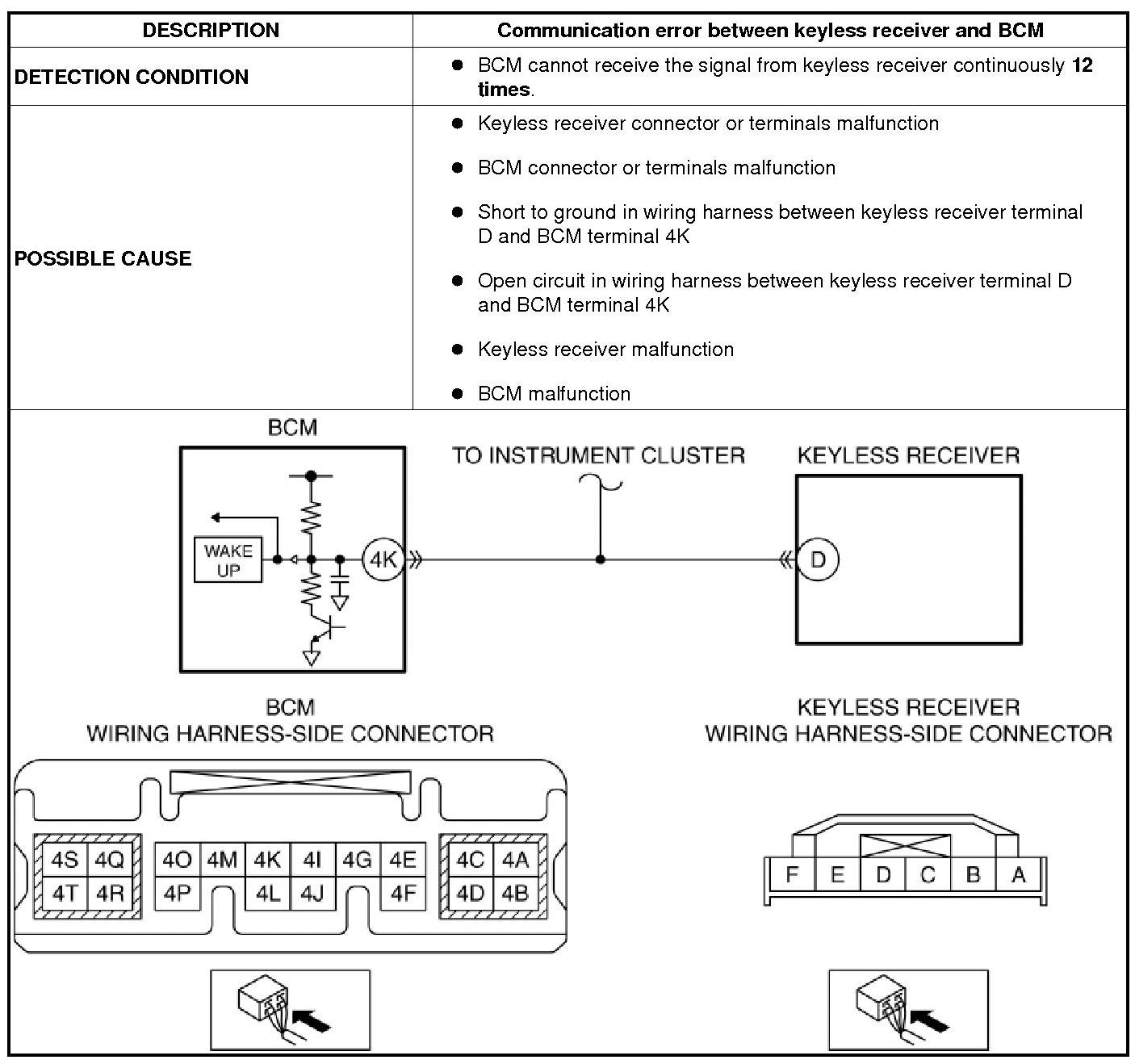

Vehicles Without Advanced Keyless Entry and Push Button Start System

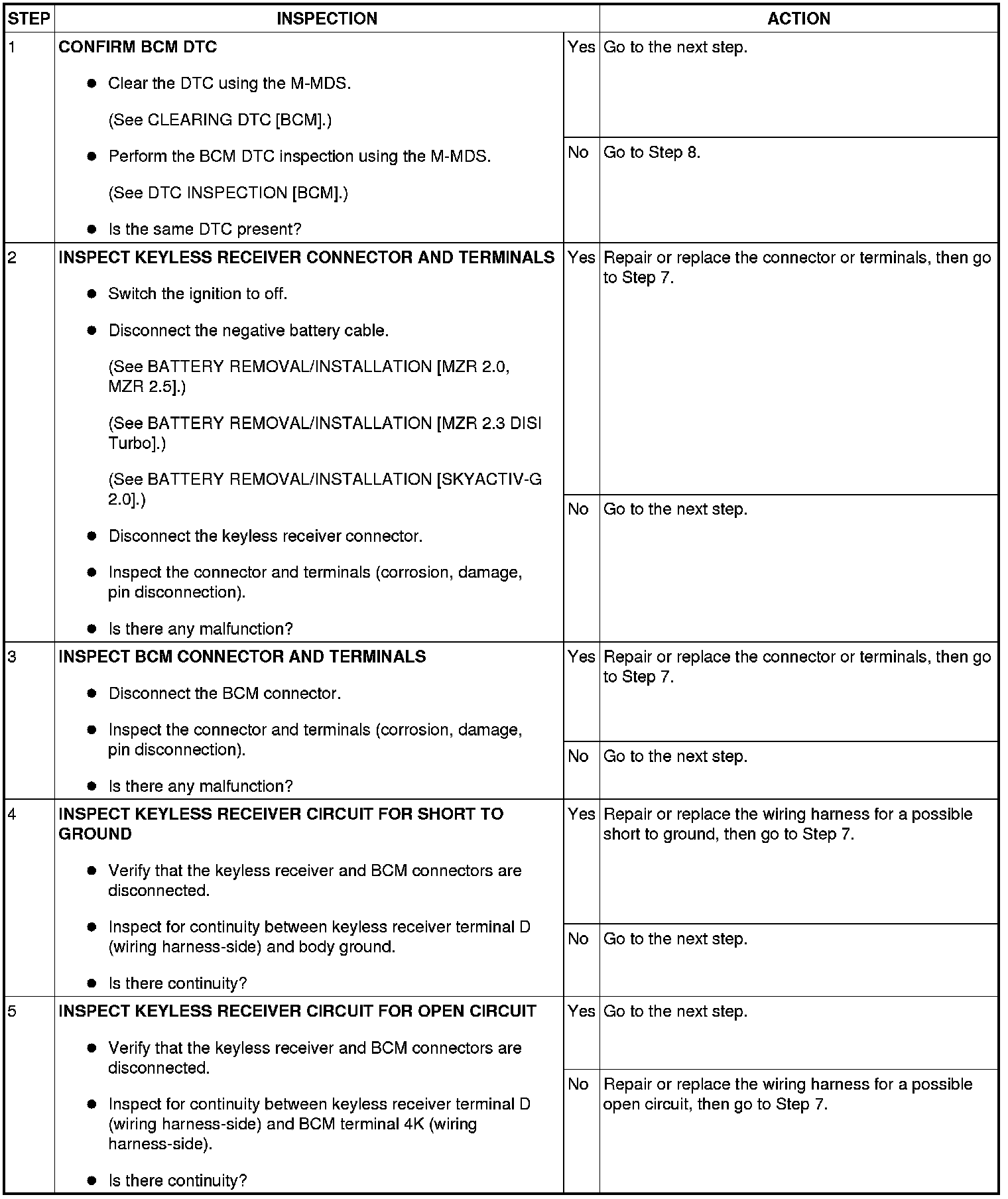

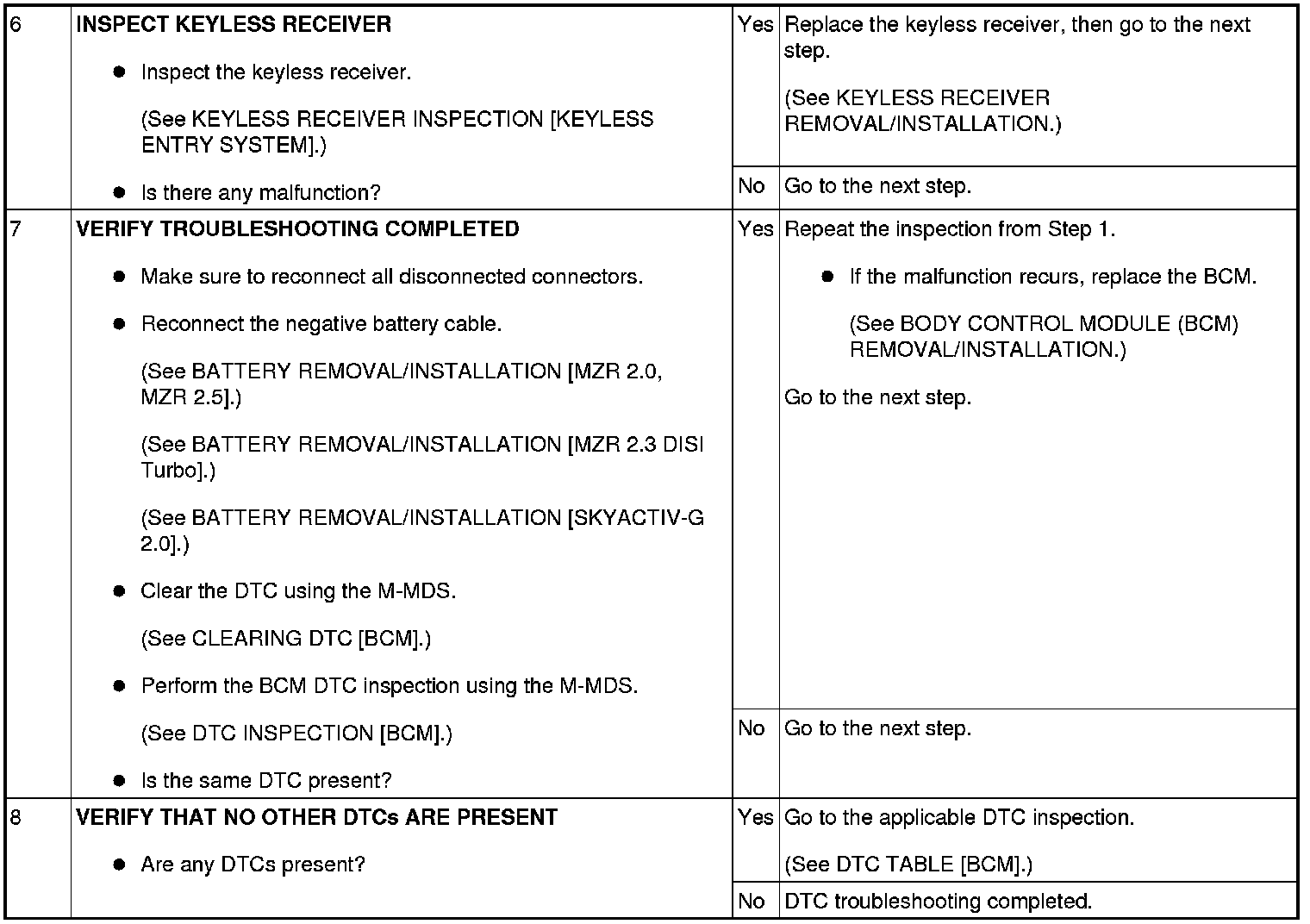

Diagnostic Procedure

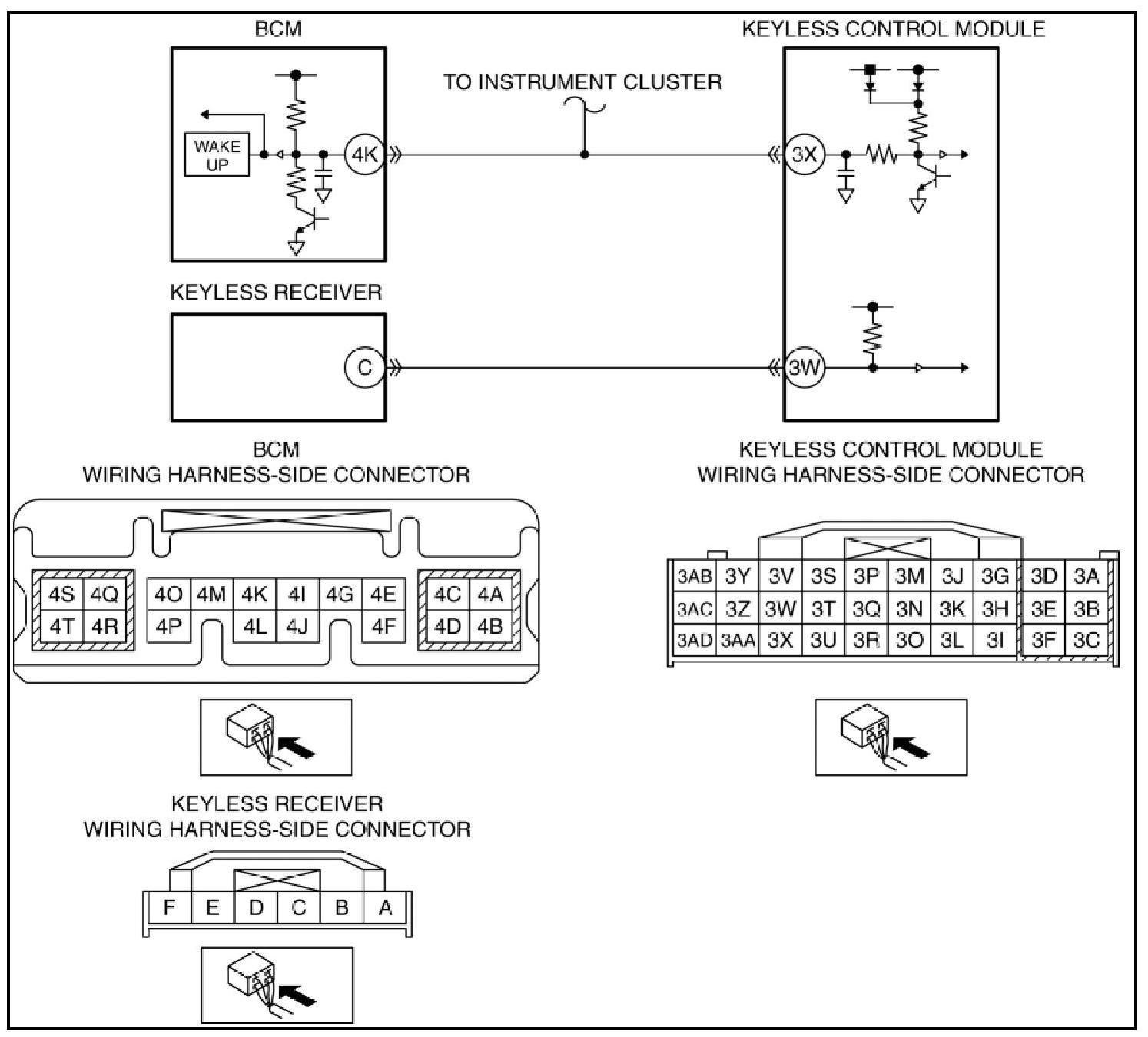

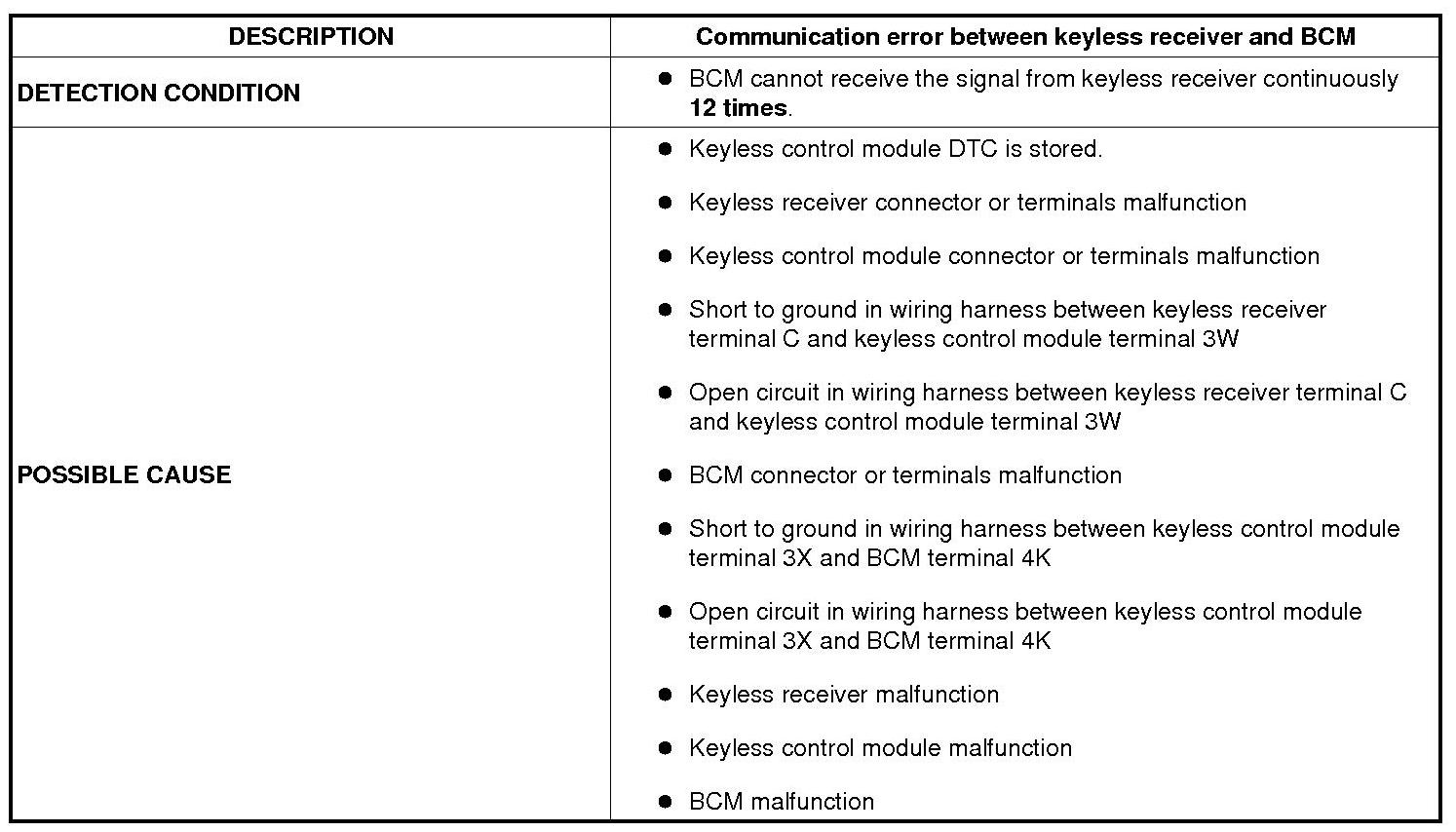

Vehicles With Advanced Keyless Entry and Push Button Start System

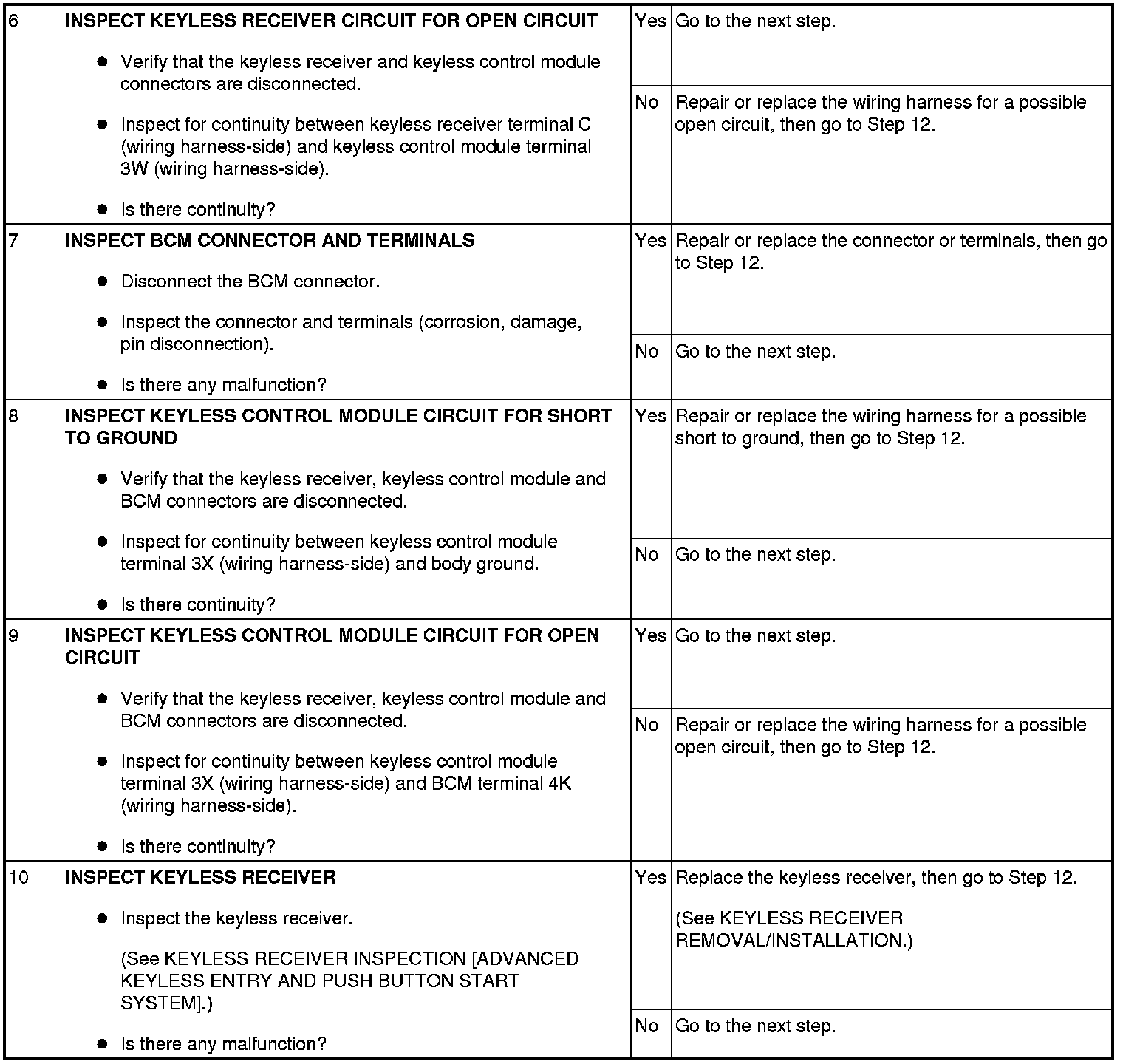

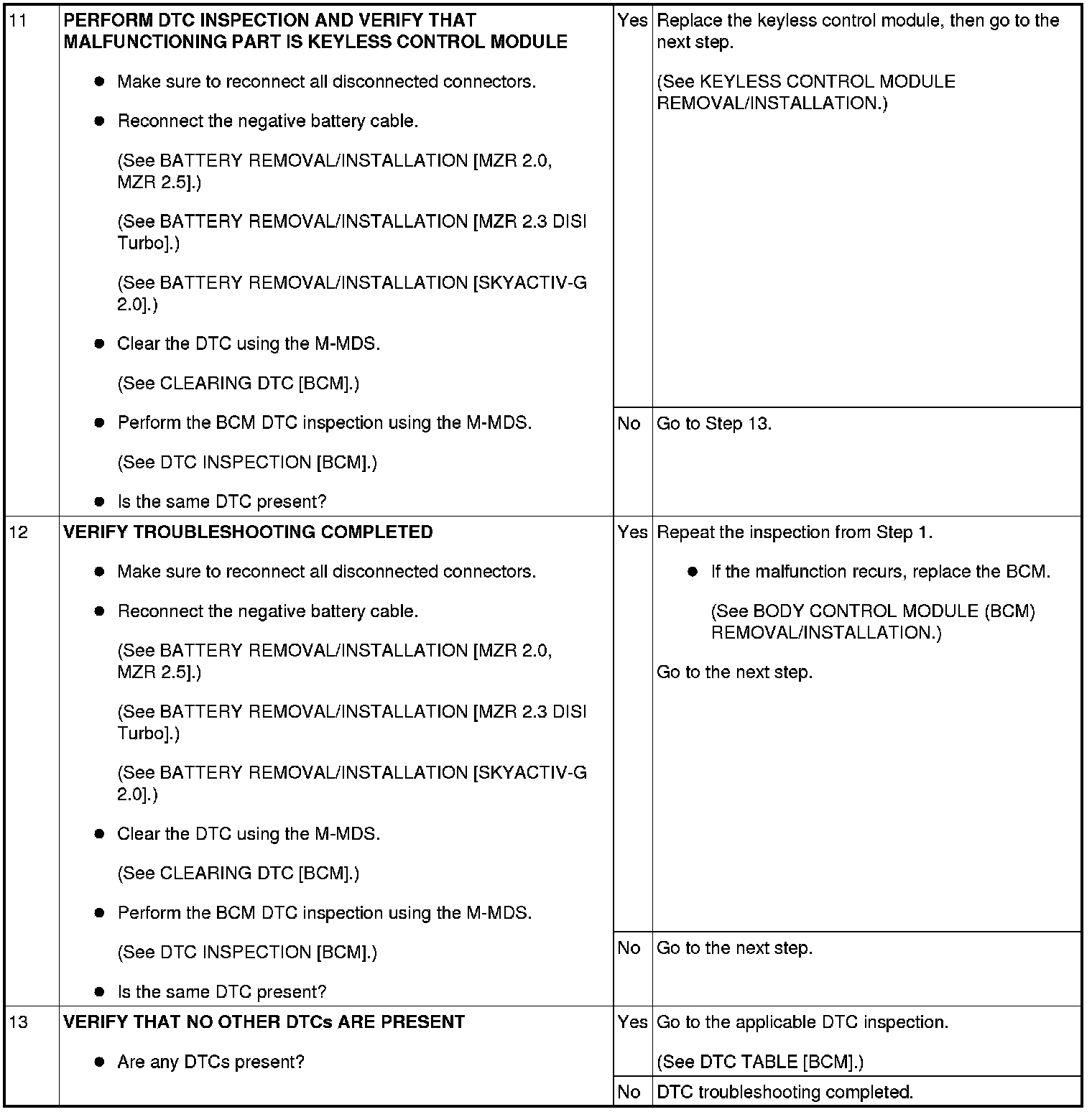

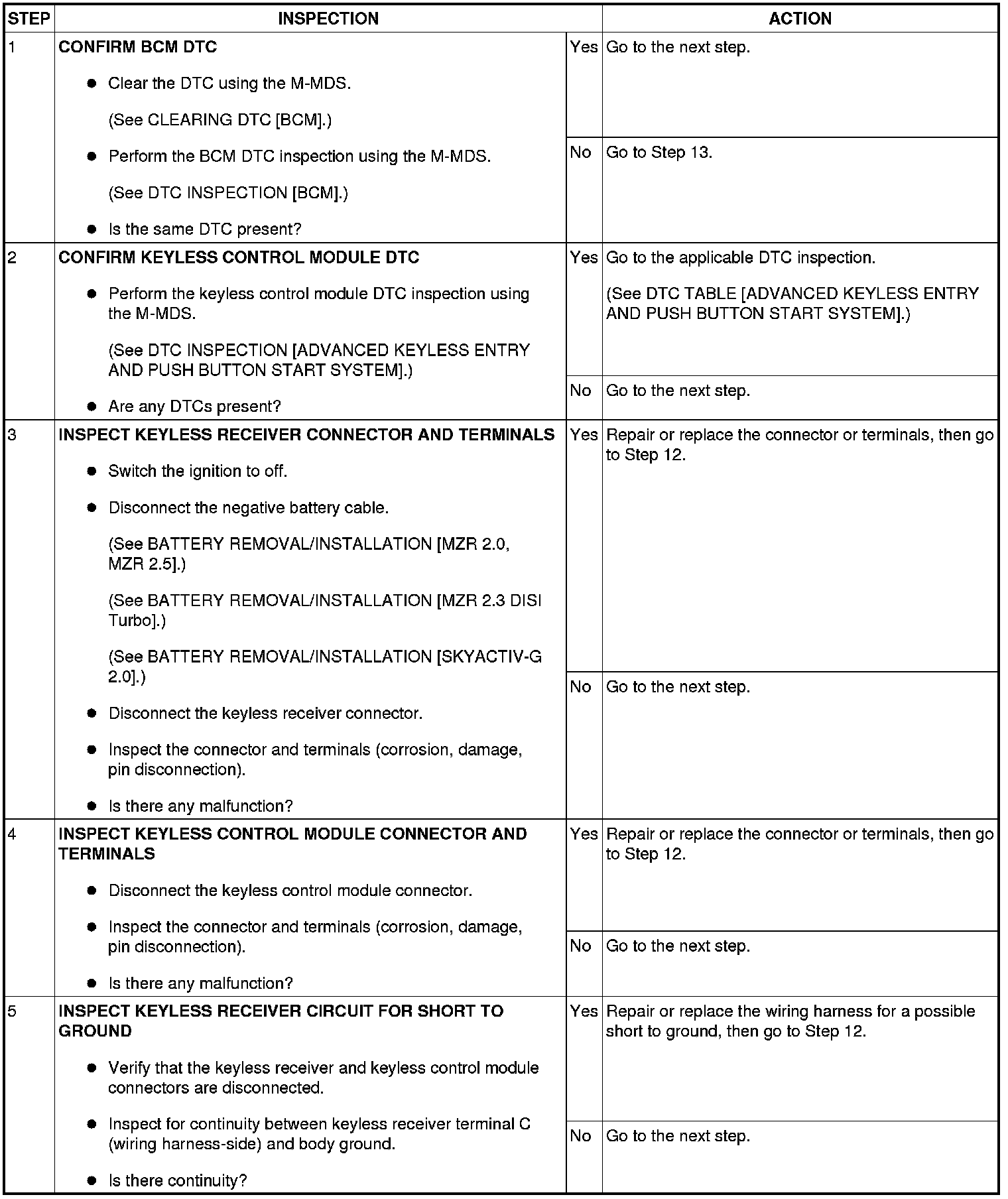

Diagnostic Procedure
