Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B109E >> B109E:83

B109E:83





DTC B109E:83 [BCM]

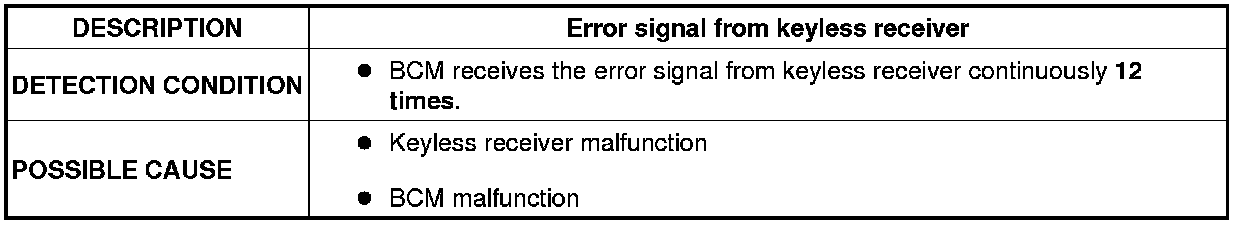

Vehicles Without Advanced Keyless Entry and Push Button Start System

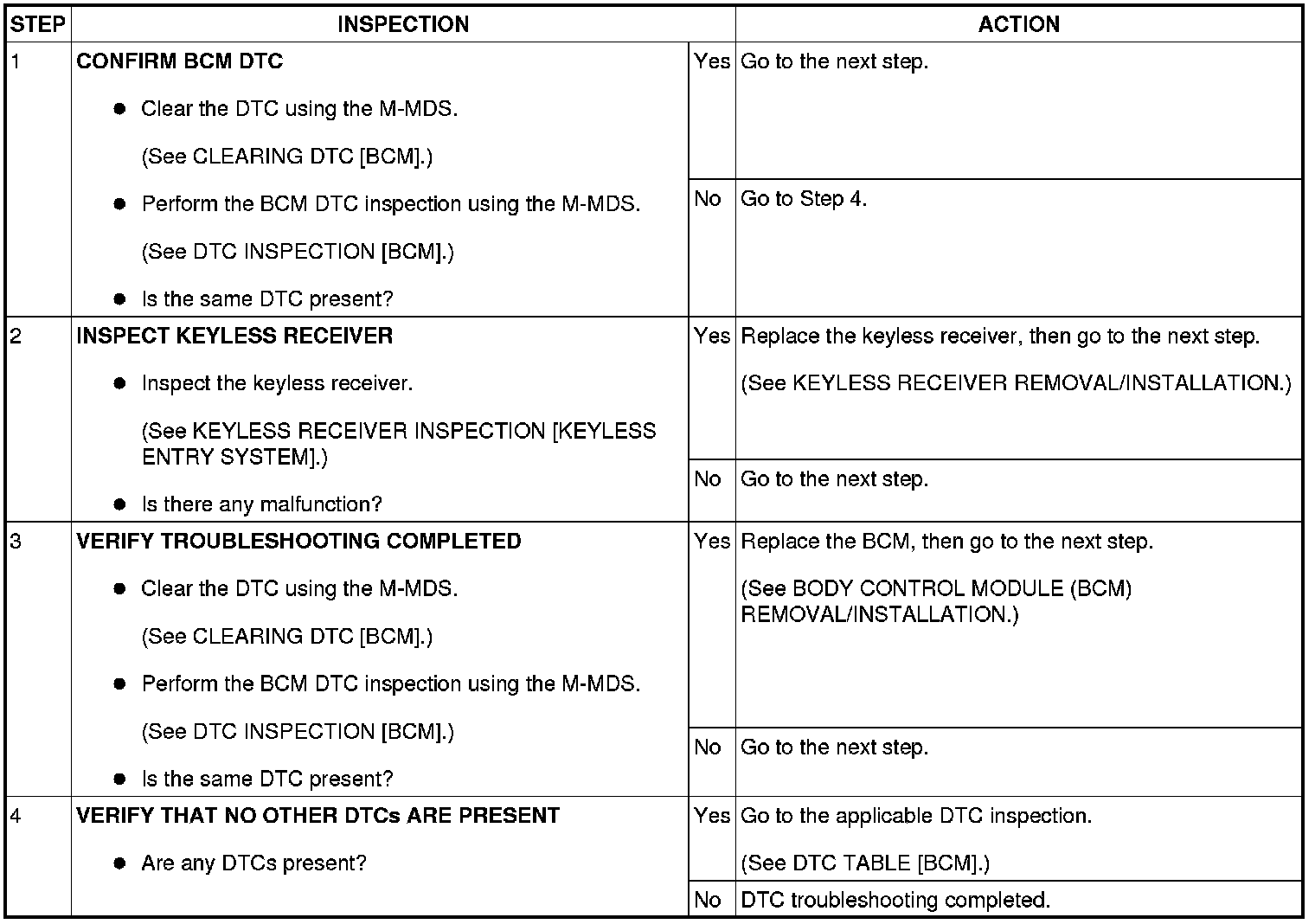

Diagnostic Procedure

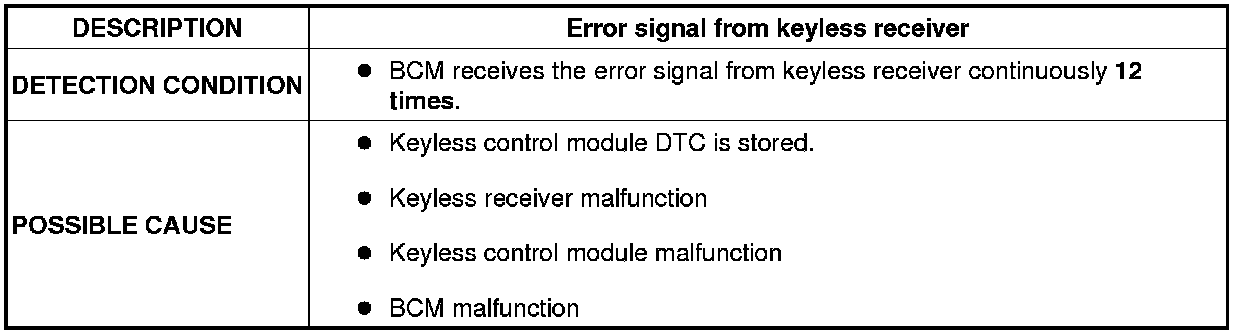

Vehicles With Advanced Keyless Entry and Push Button Start System

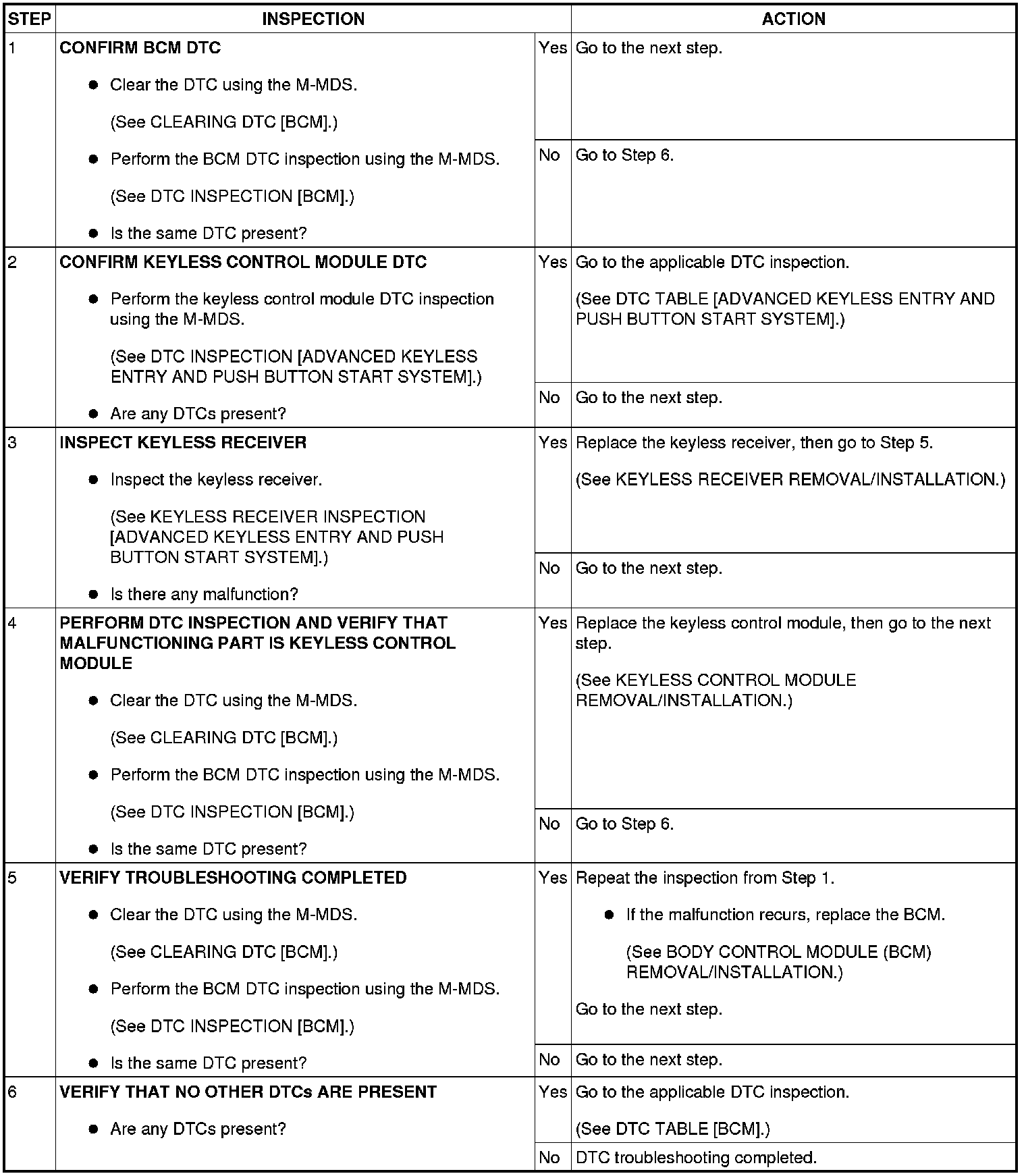

Diagnostic Procedure
