A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B108F
B108F

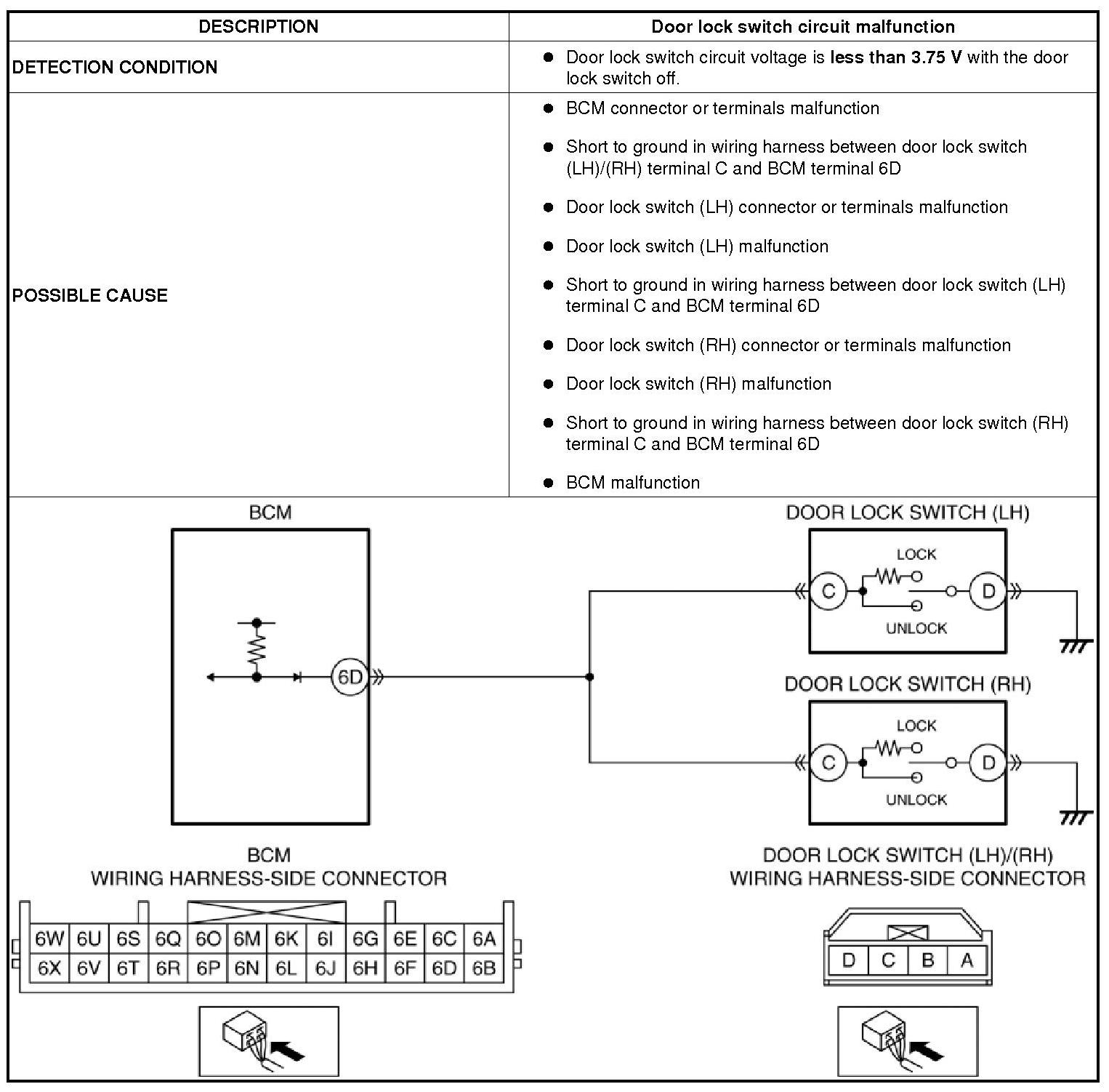

DTC B108F:16 [BCM]

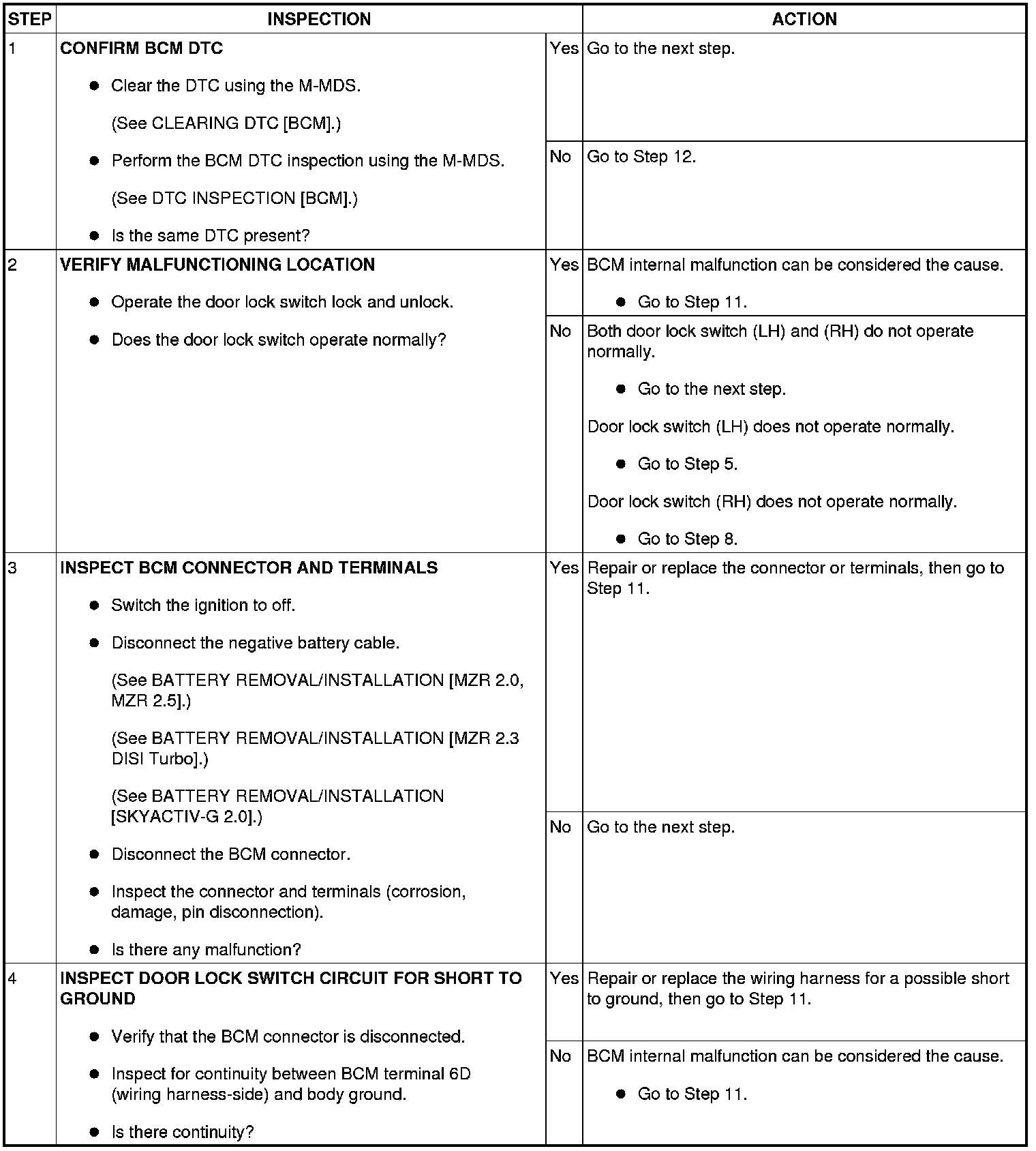

Diagnostic Procedure
