Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B108B >> B108B:29

B108B:29

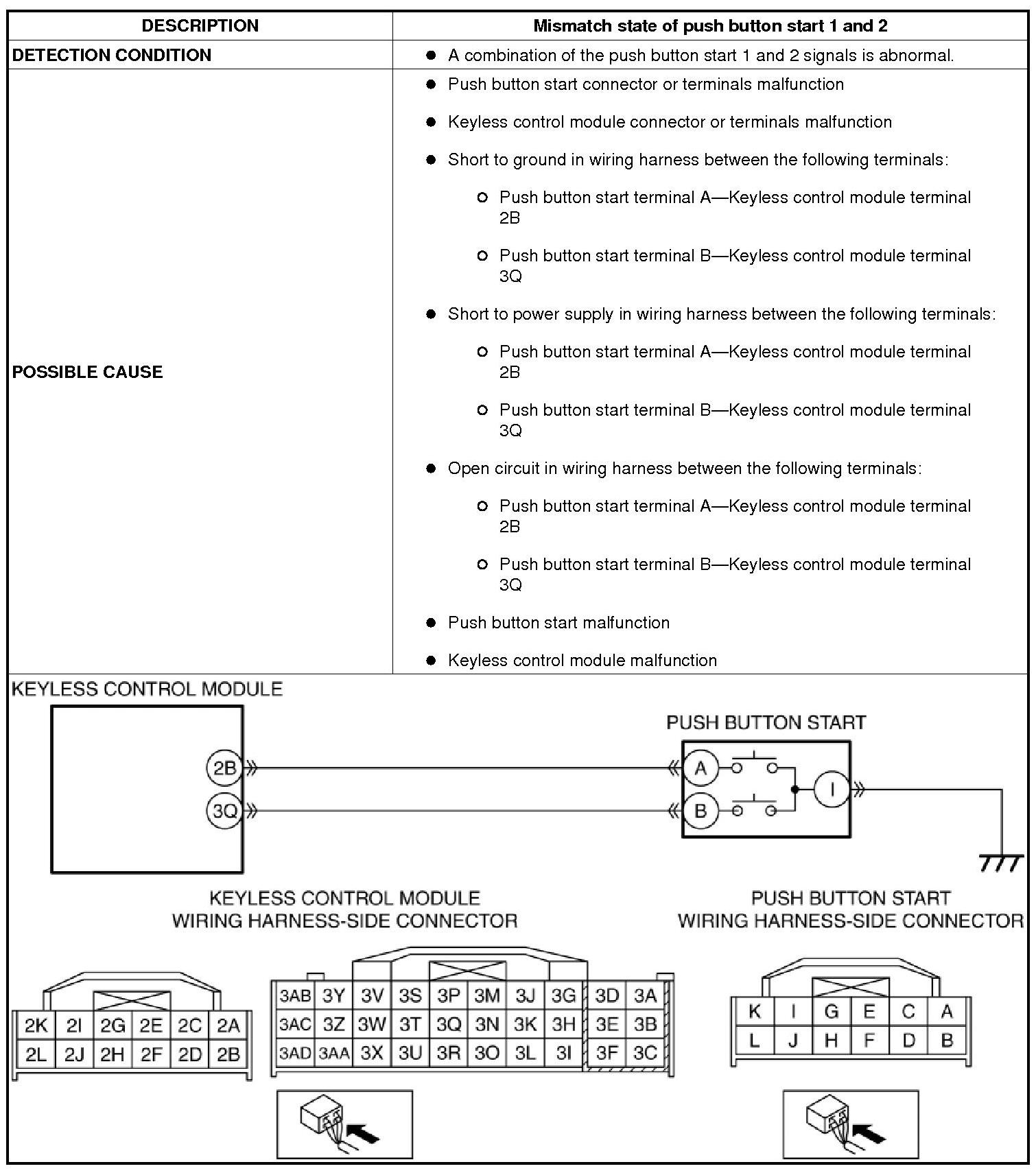

DTC B108B:29 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

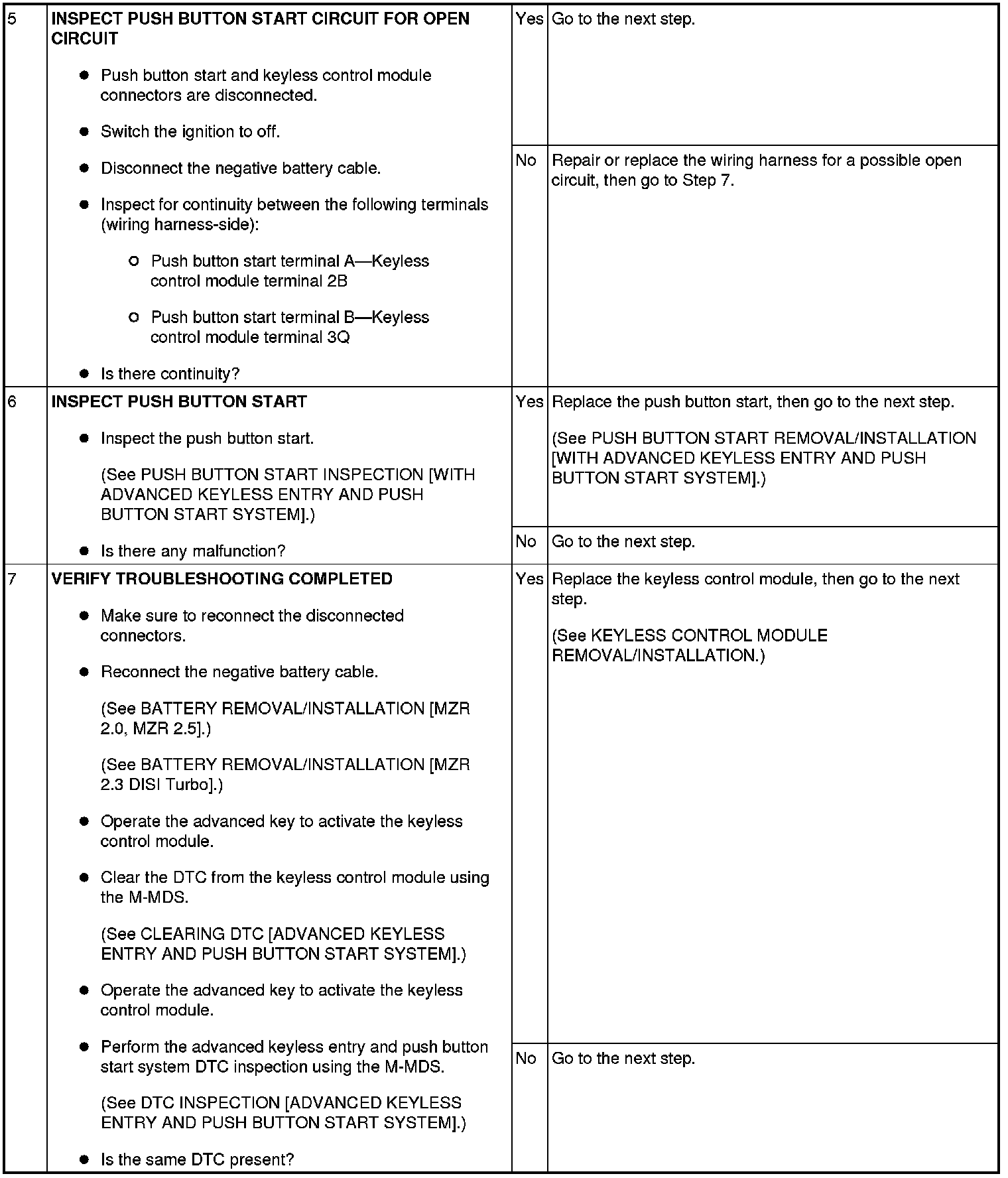

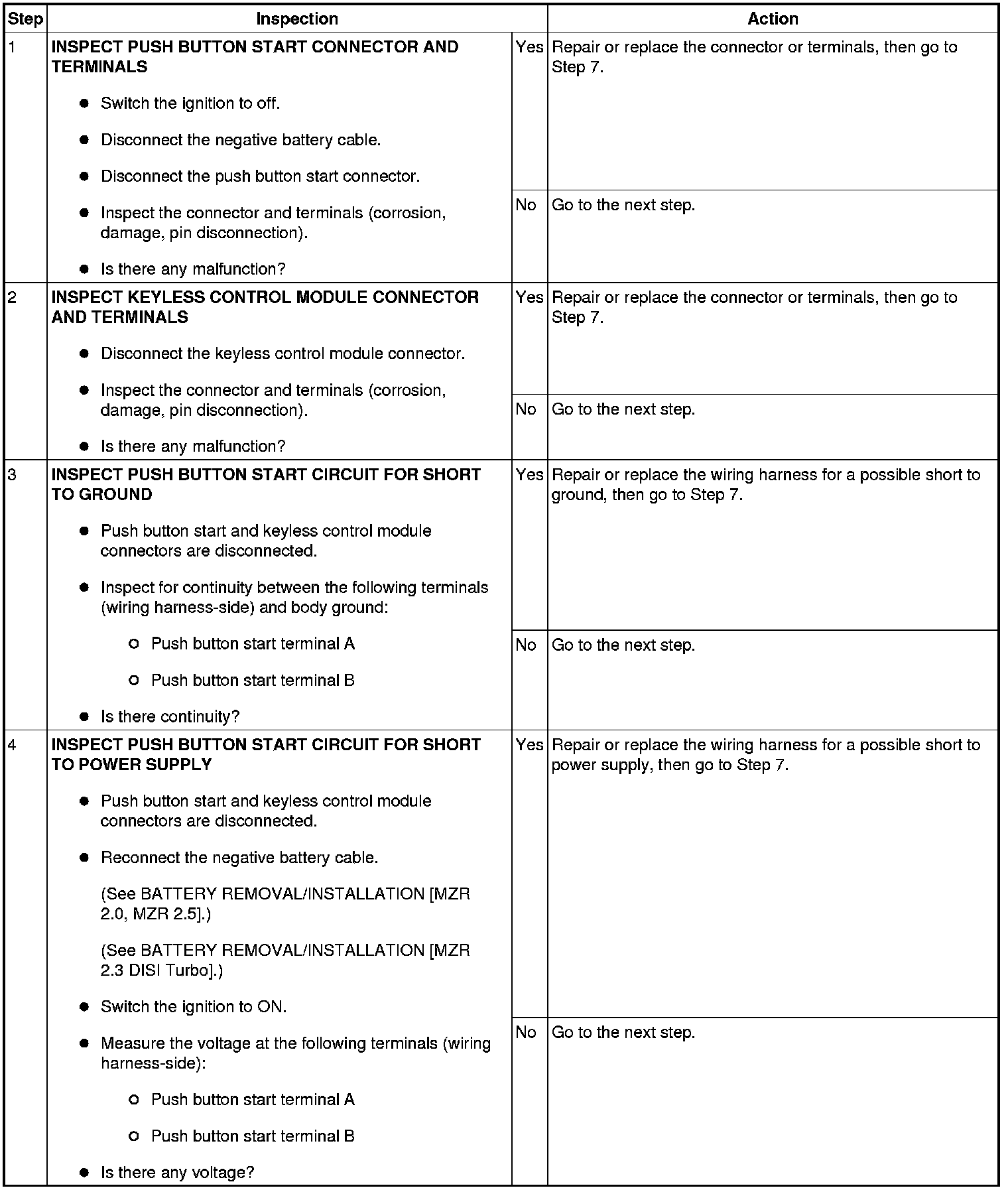

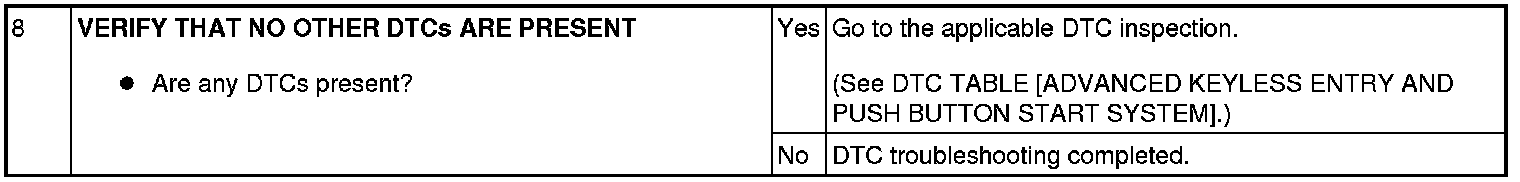

Diagnostic Procedure
