A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B1051
>>
B1051:11
B1051:11

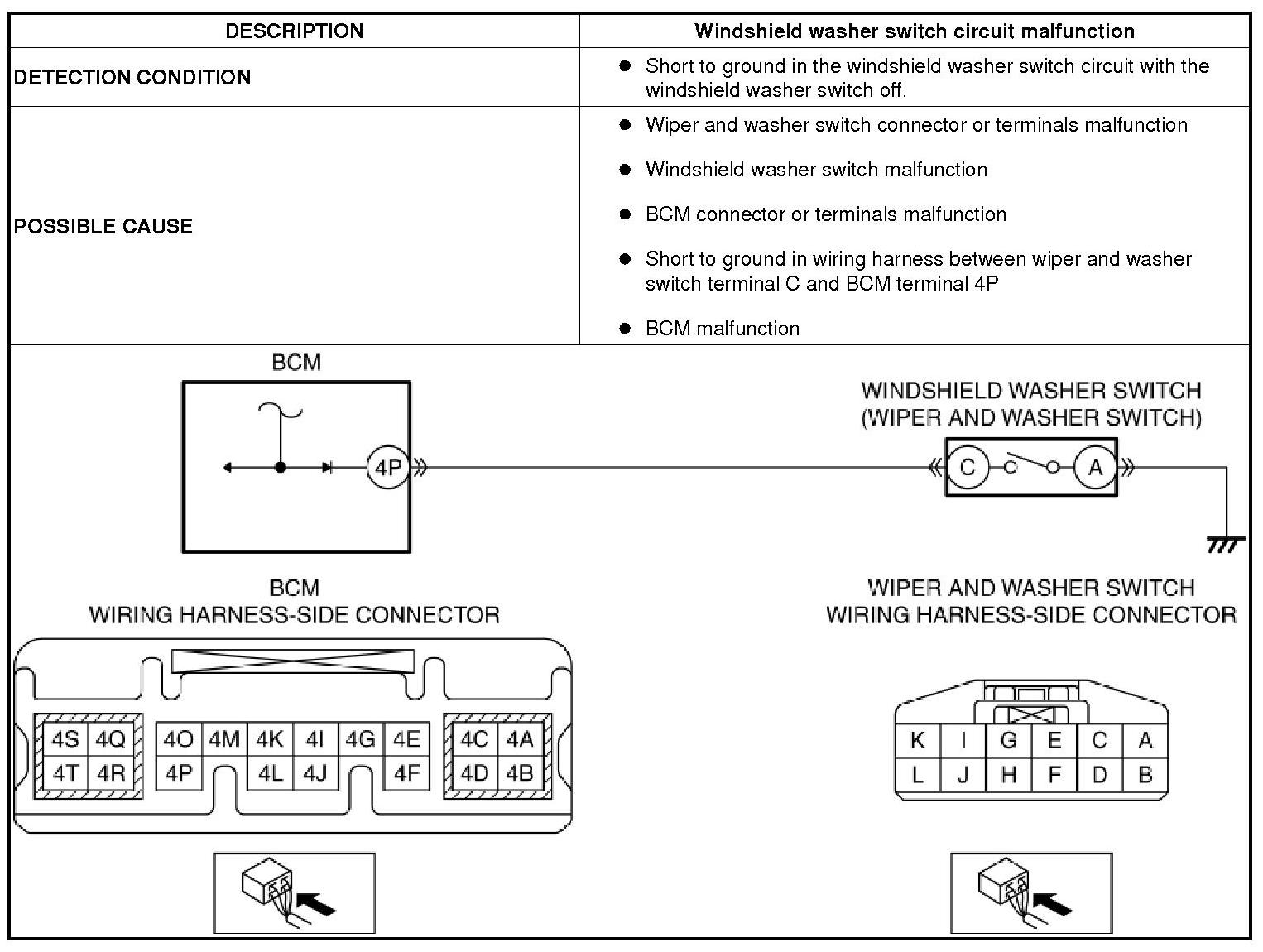

DTC B1051:11 [BCM]

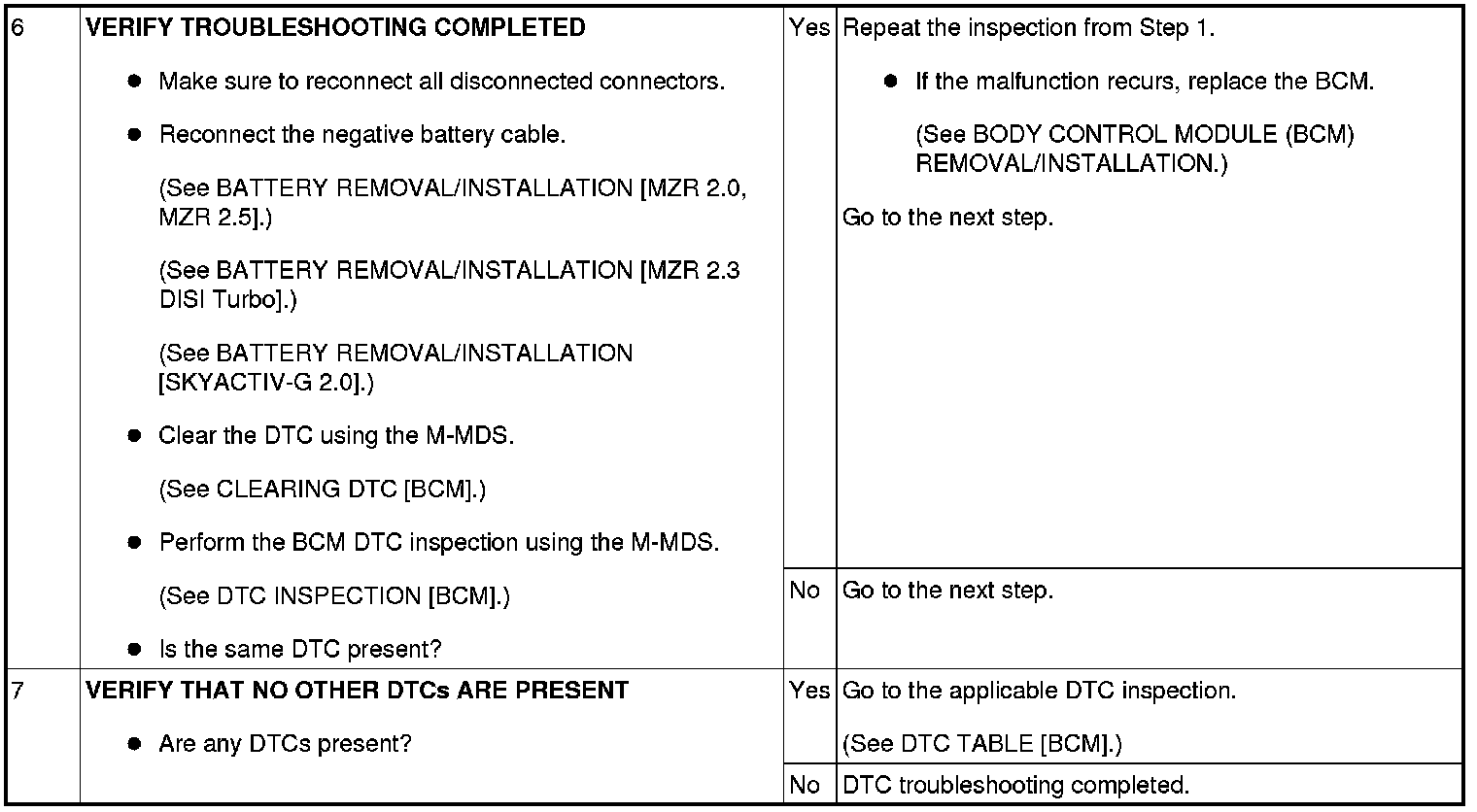

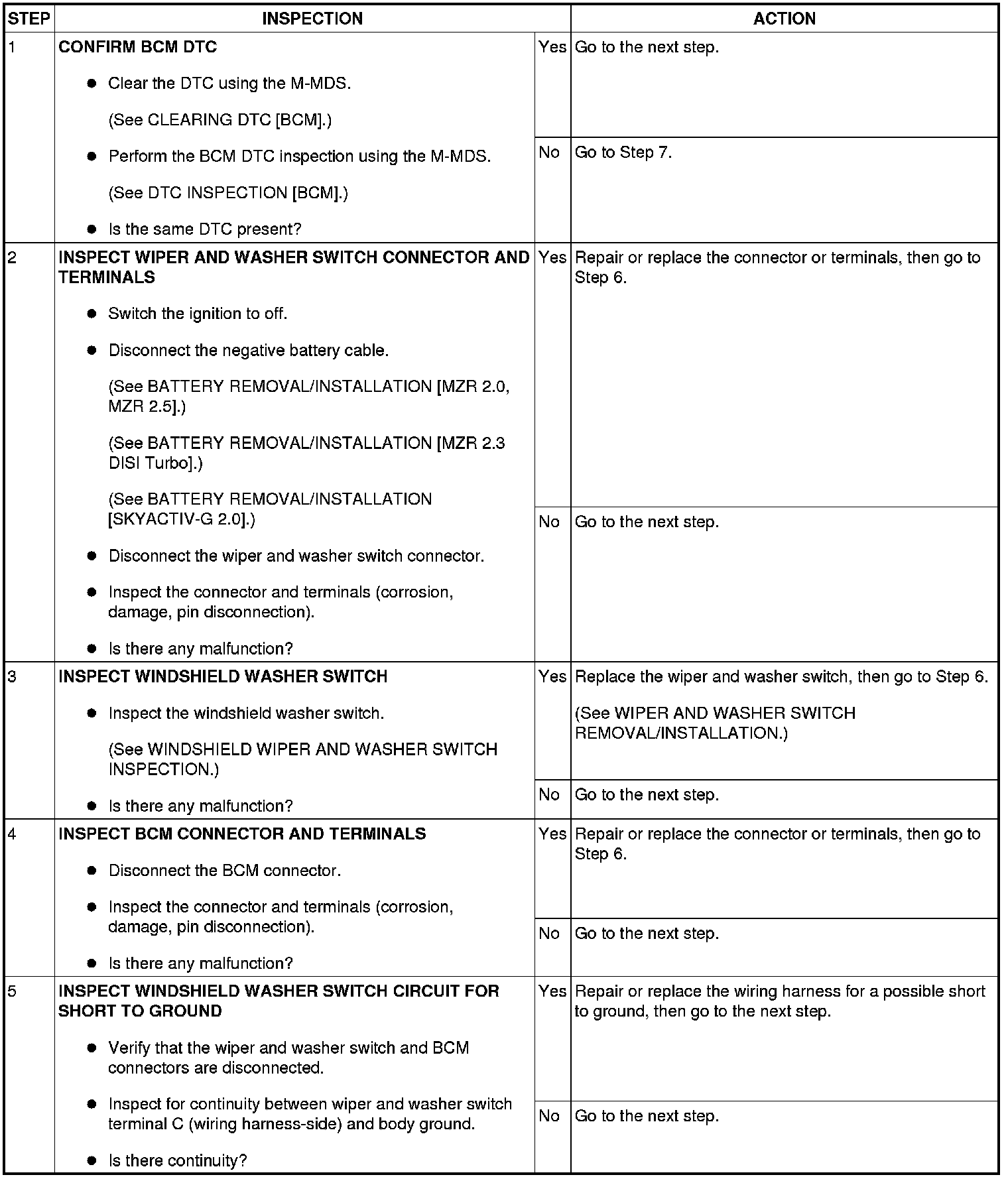

Diagnostic Procedure
