A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B1041
B1041

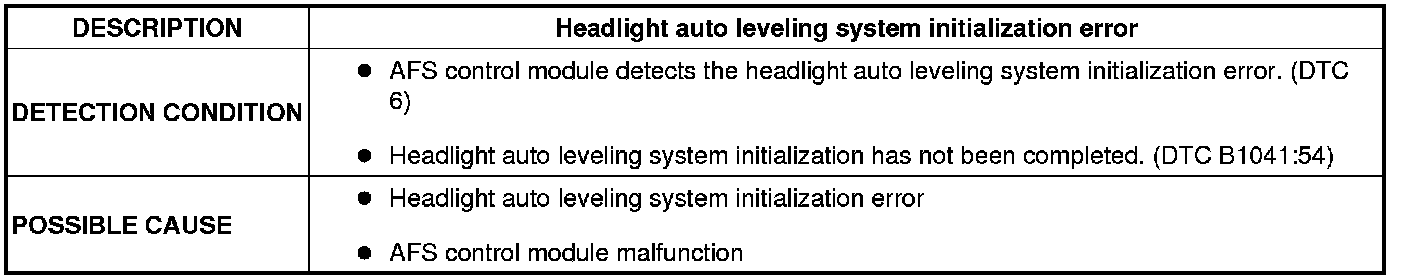

DTC 6 / DTC B1041:54 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]

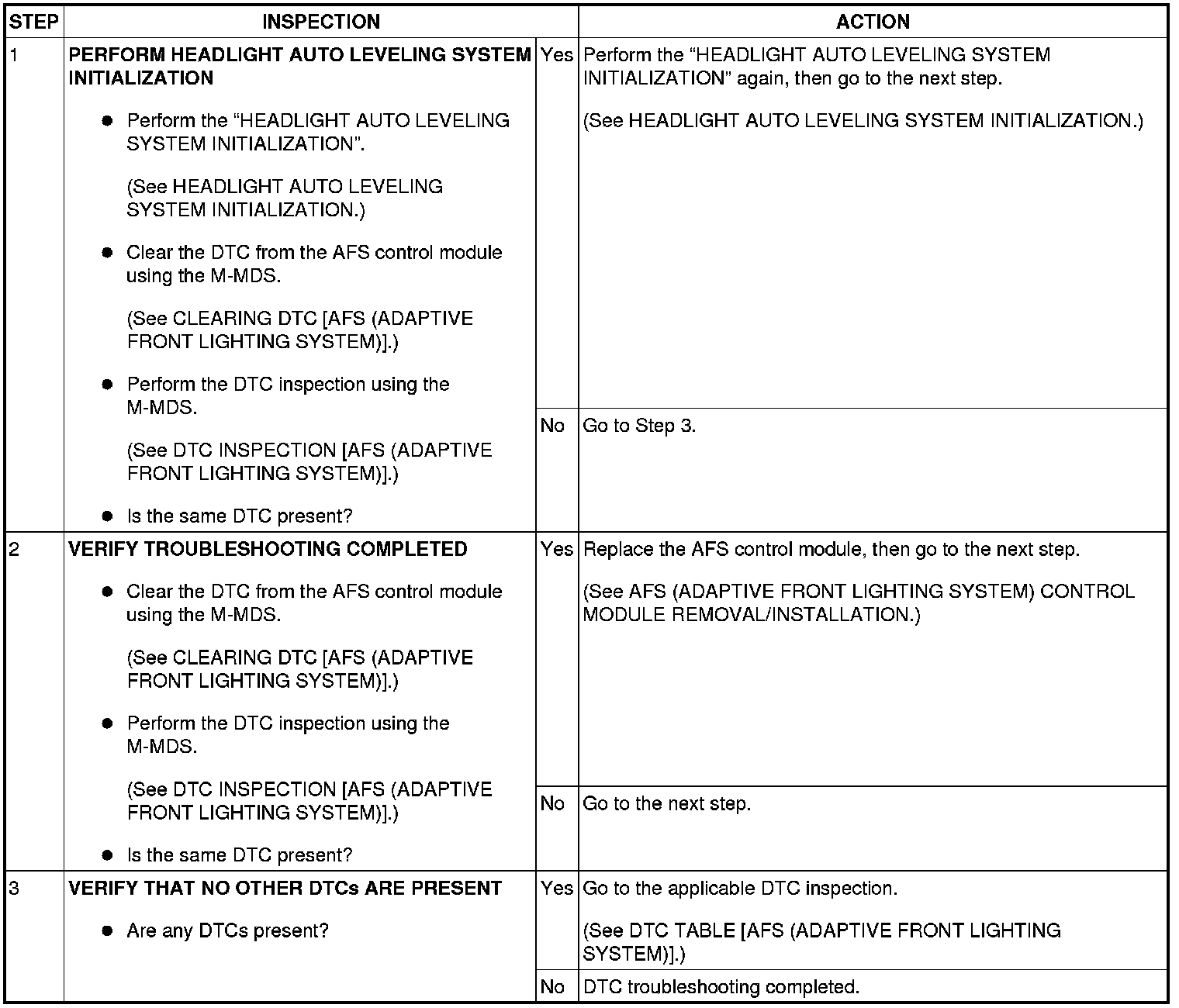

Diagnostic Procedure
