Home >> Mazda >> 2011 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Technical Data L3 with TC

Engine Technical Data L3 with TC

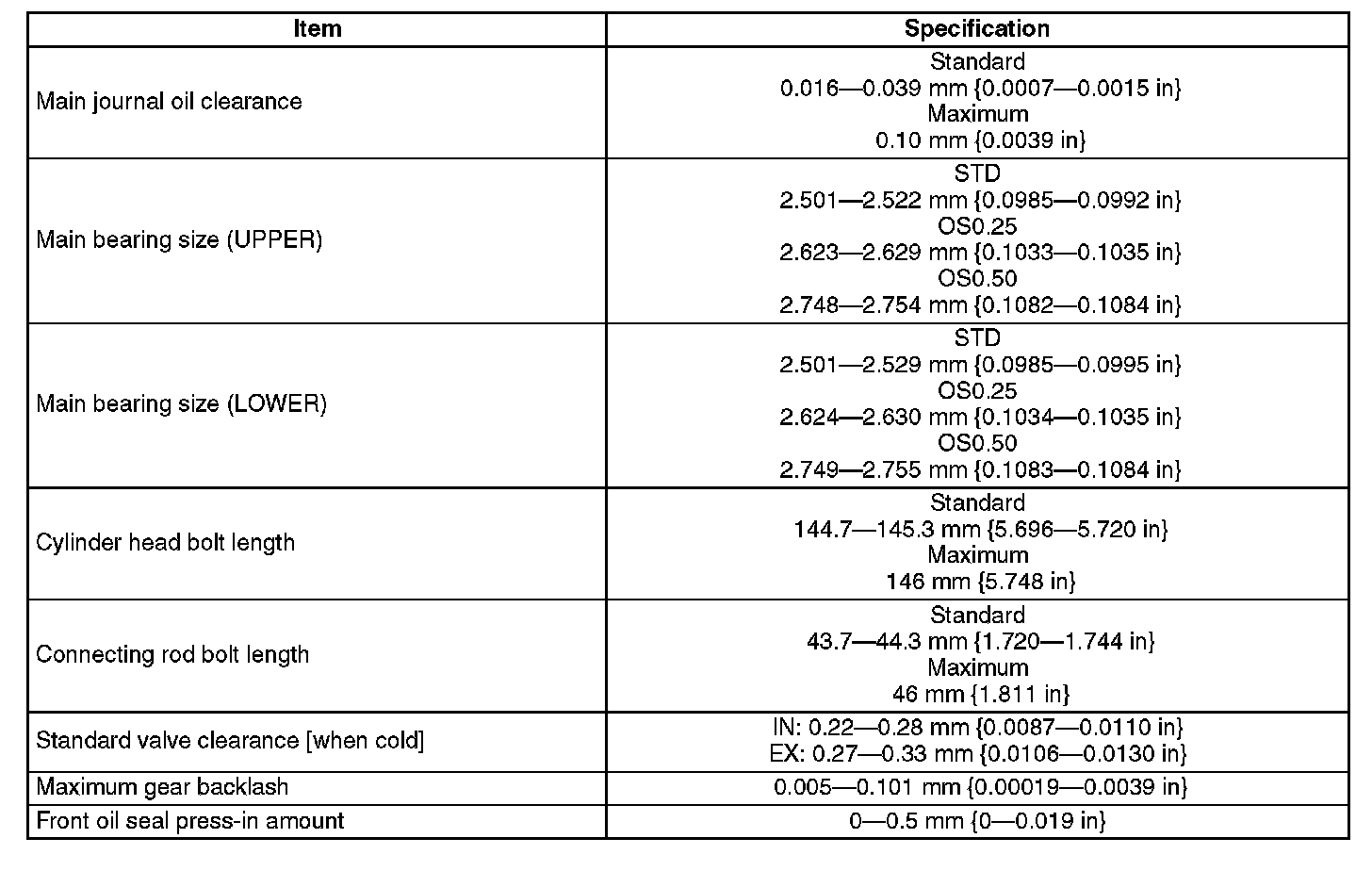

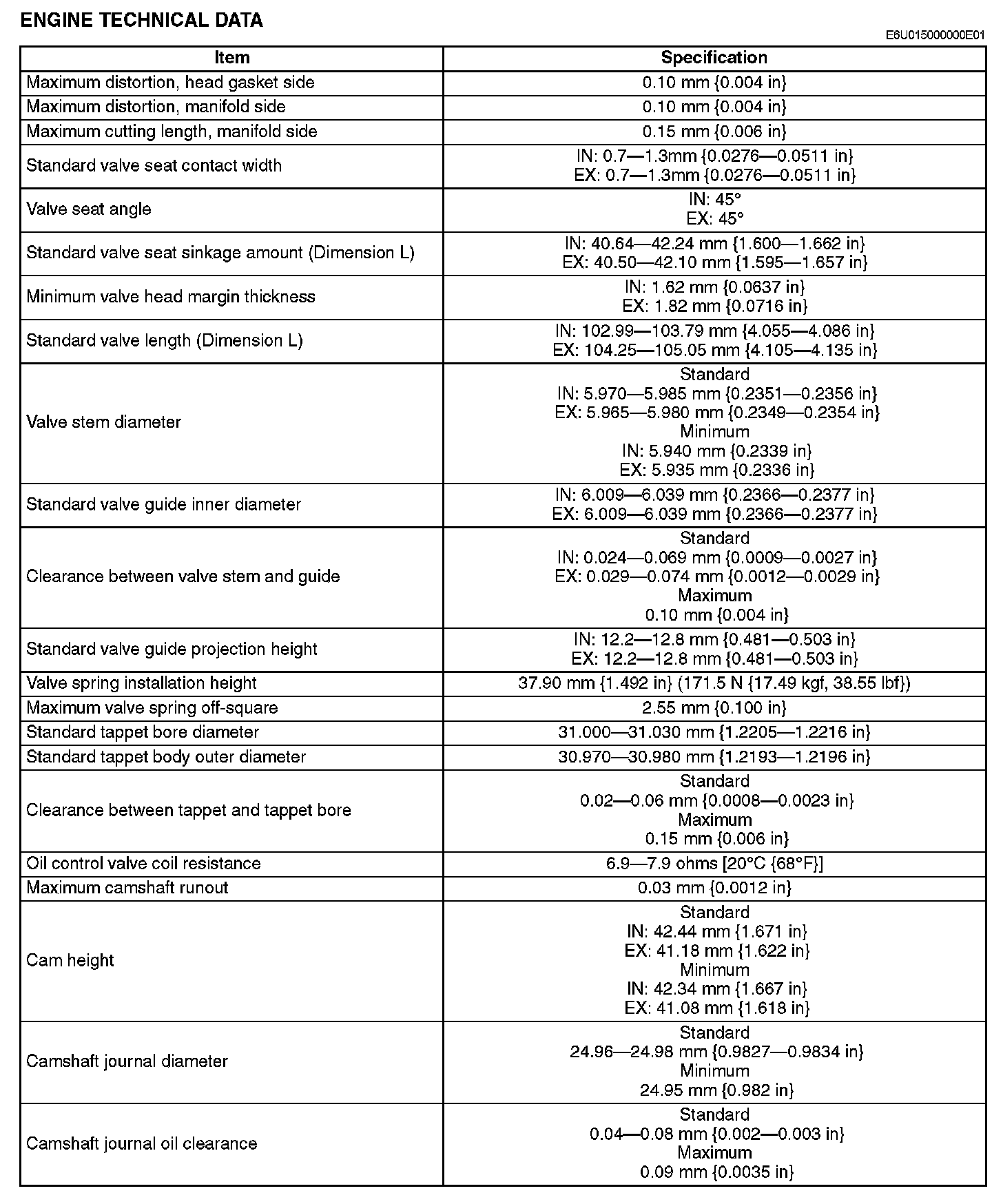

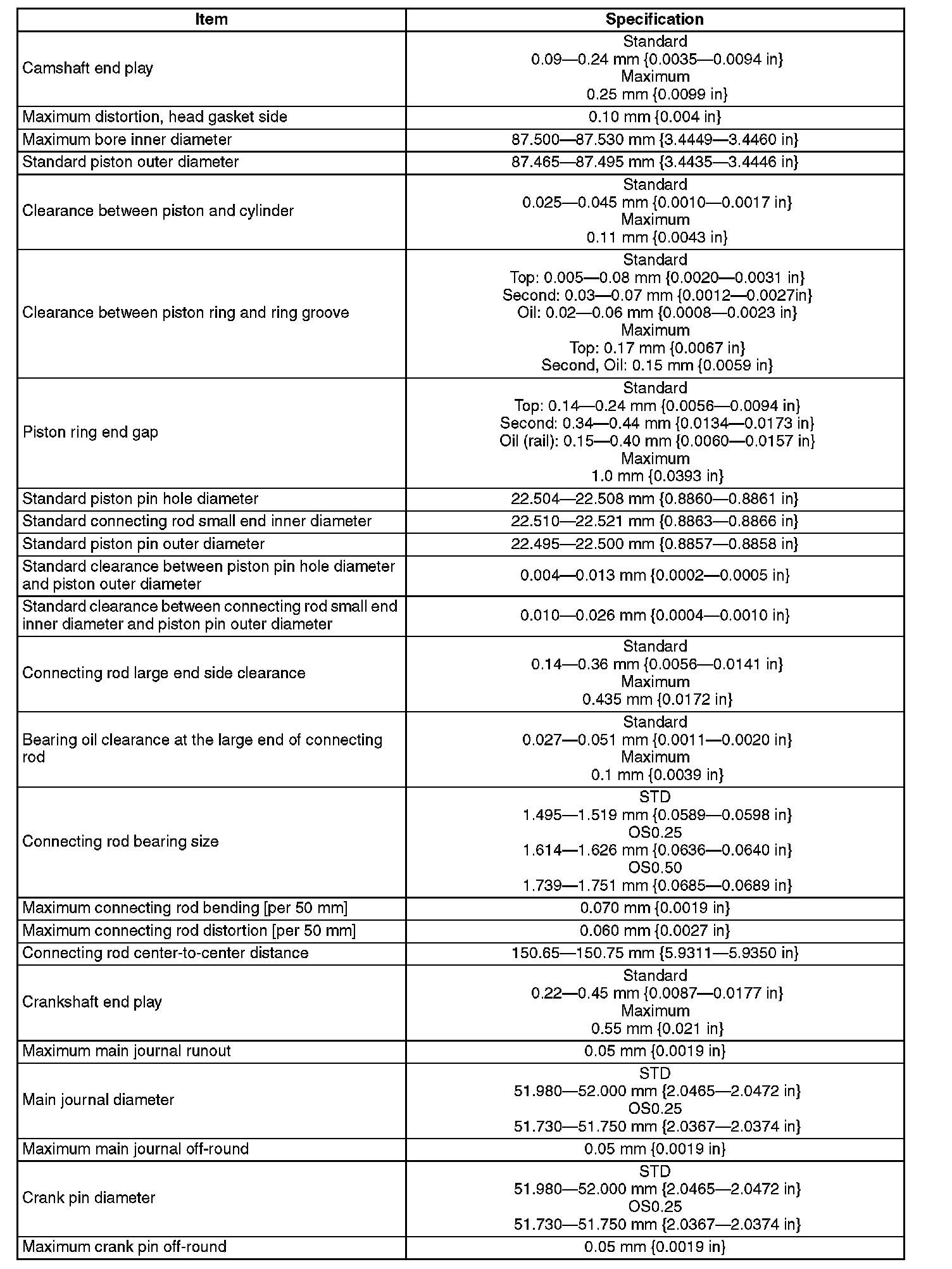

Engine Technical Data
