Steering Control Module: Testing and Inspection

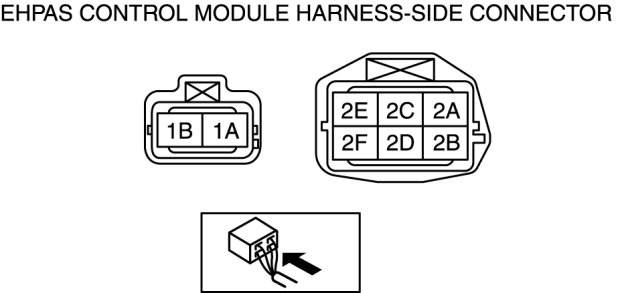

ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS) CONTROL MODULE INSPECTION

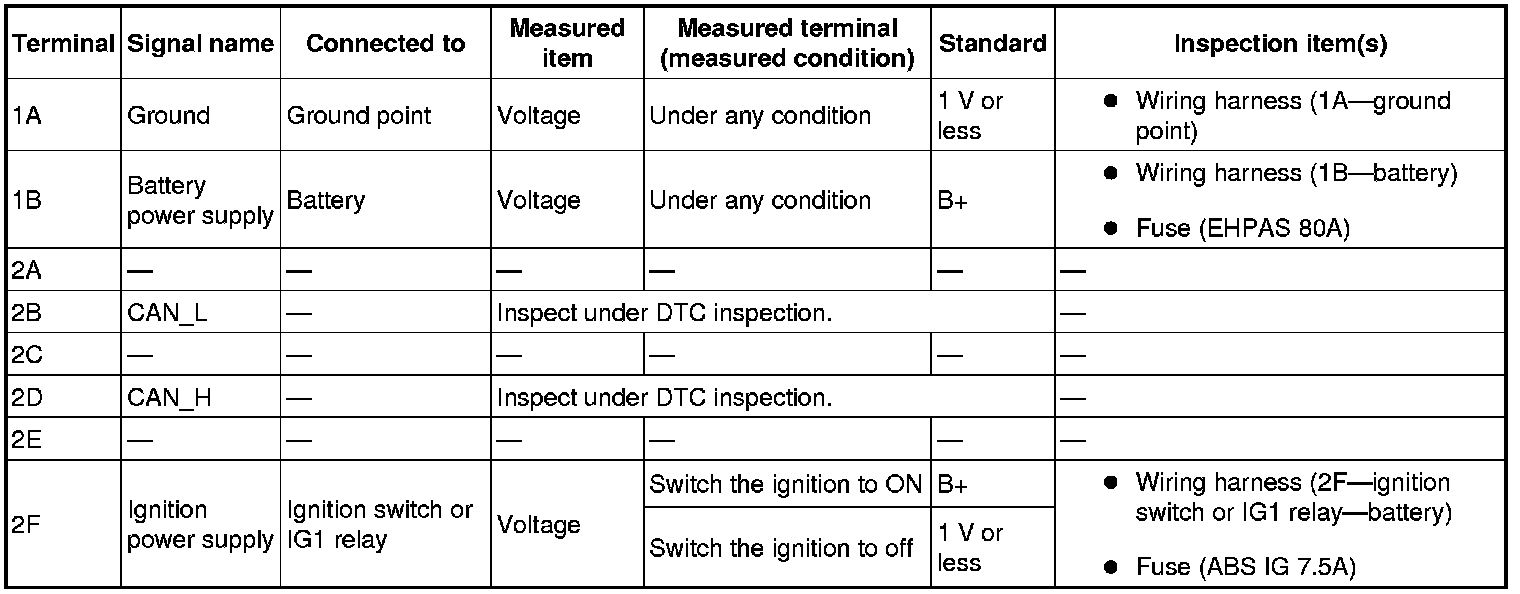

Terminal Voltage Table (Reference)
