Fuel Pump Unit Inspection

FUEL PUMP UNIT INSPECTION [L3 WITH TC]

Continuity Inspection

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement

3. Disconnect the fuel pump unit connector.

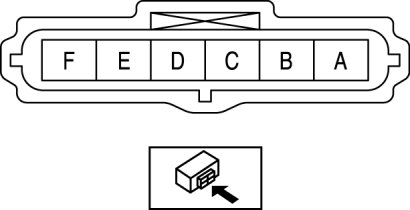

4. Inspect for continuity between fuel pump unit terminals A-E.






- If there is no continuity, replace the fuel pump. Fuel Pump Unit Removal/Installation
