Home >> Mazda >> 2011 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No. 1 AFS Off Light Illuminates Continuously - AFS (Adaptive Front Lighting System)

No. 1 AFS Off Light Illuminates Continuously - AFS (Adaptive Front Lighting System)

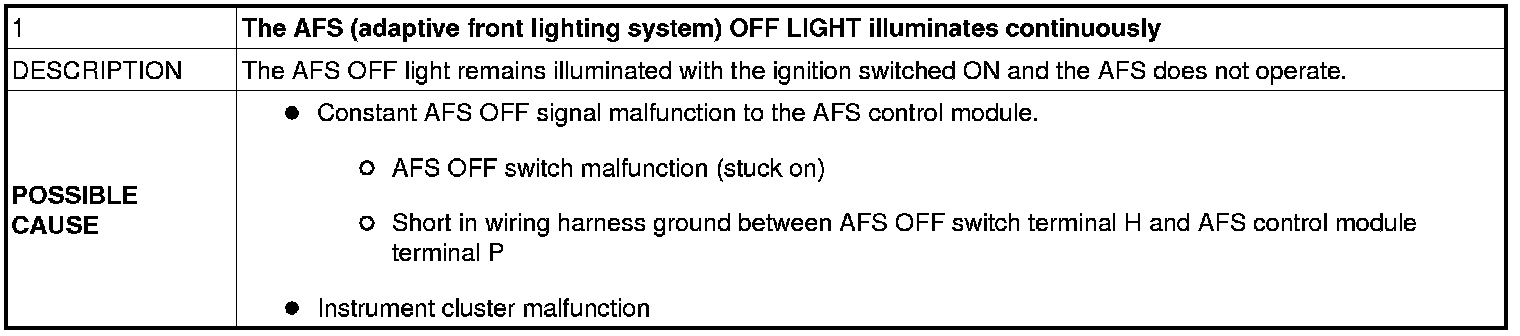

No.1 AFS OFF LIGHT ILLUMINATES CONTINUOUSLY [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]

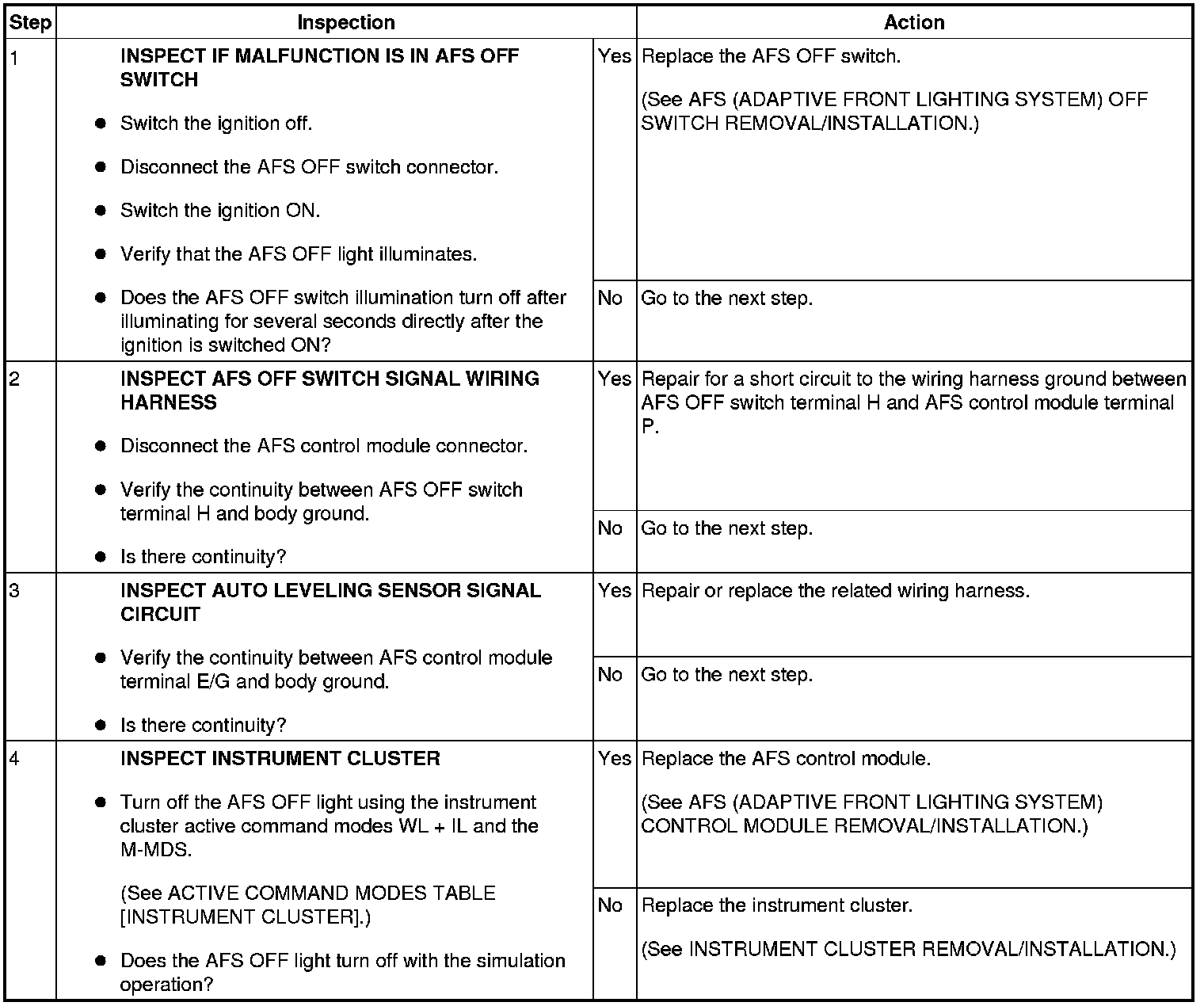

Diagnostic Procedure
