On-Board Diagnostic Wiring Diagram - AFS (Adaptive Front Lighting System)
On-Board Diagnostic Wiring Diagram - AFS (Adaptive Front Lighting System)

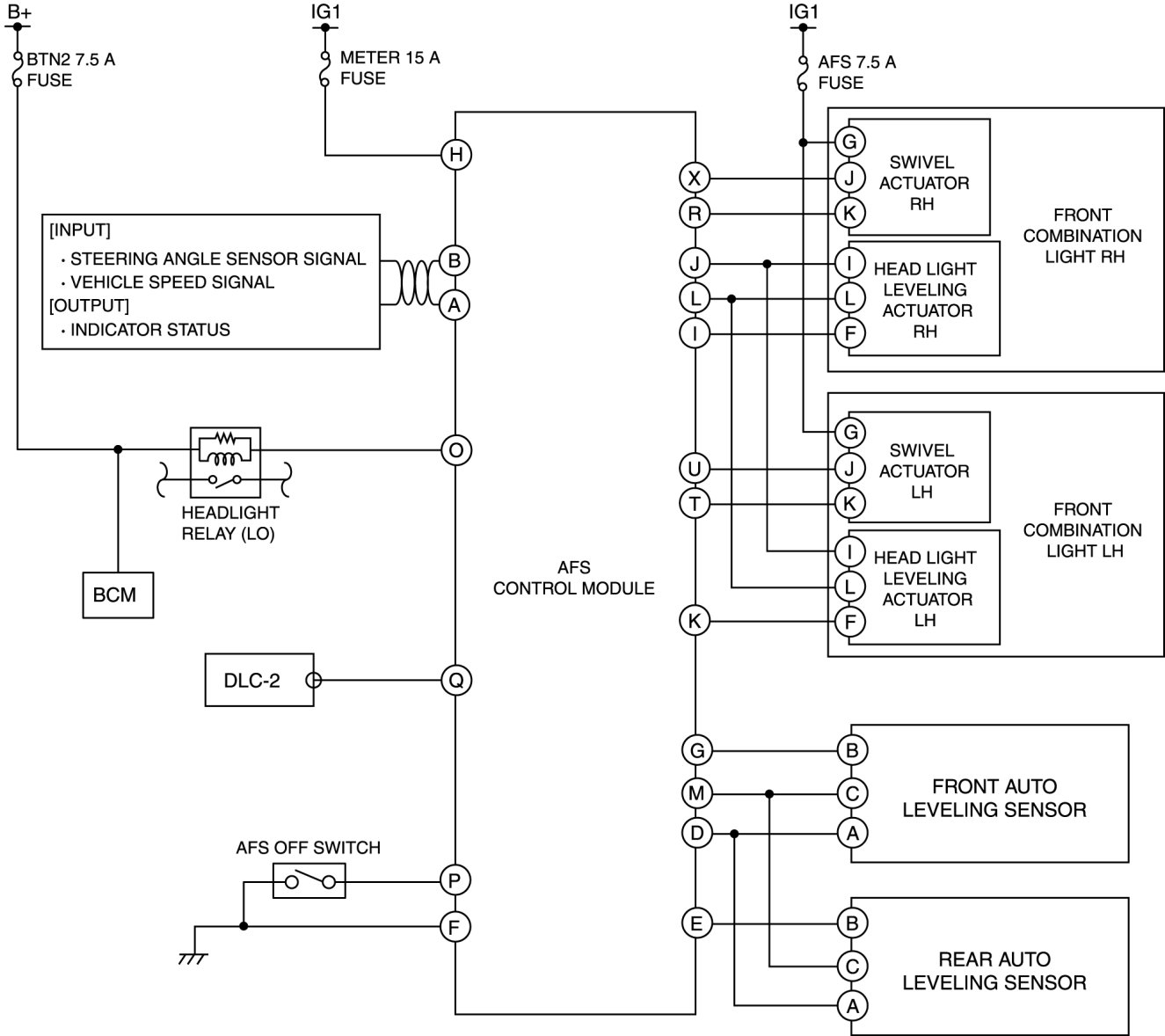

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]
