Backup Light Bulb: Service and Repair

BACK-UP LIGHT BULB REMOVAL/INSTALLATION

4SD

1. Disconnect the negative battery cable.

2. Remove the trunk rid trim.

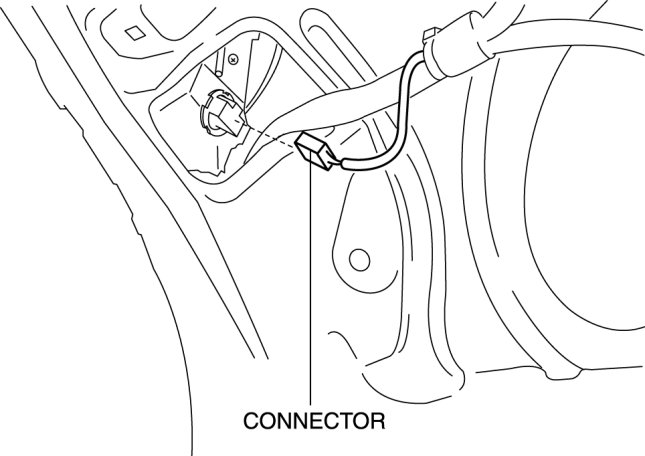

3. Disconnect the connector.

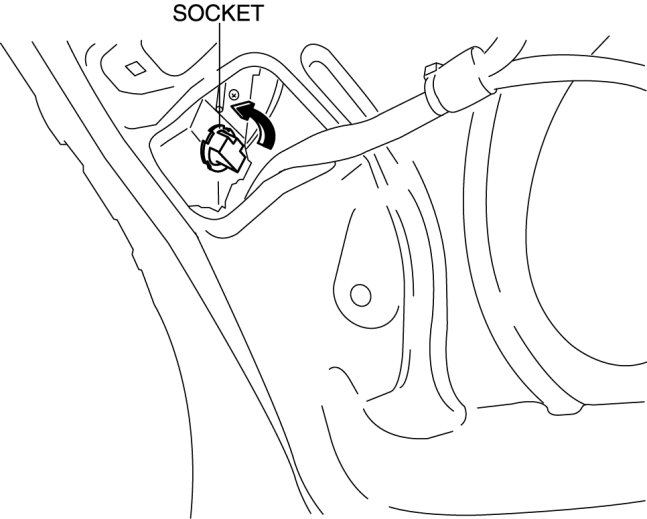

4. Rotate the socket in the direction of the arrow as shown in the figure to remove it.

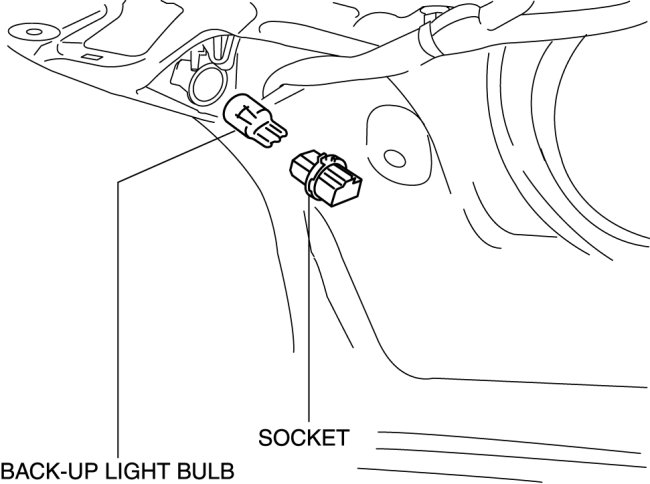

5. Remove the back-up light bulb.






6. Install in the reverse order of removal.

5HB

1. Disconnect the negative battery cable.

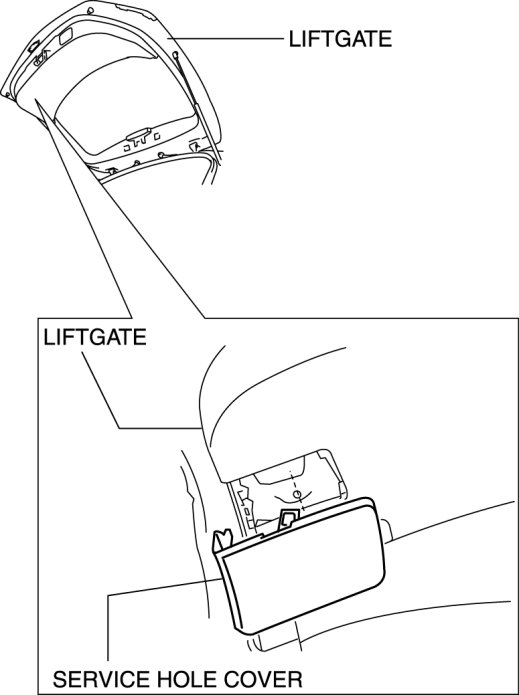

2. Remove the service hole cover.






3. Disconnect the connector.

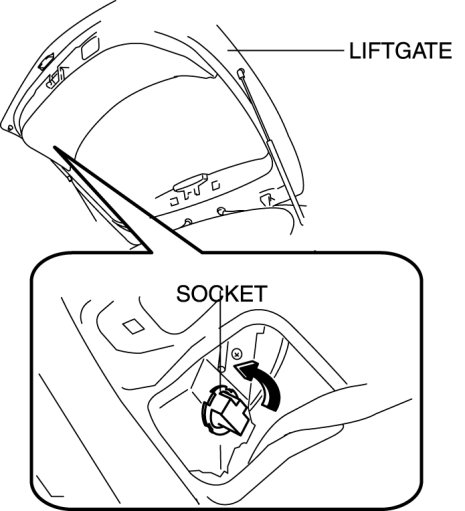

4. Rotate the socket in the direction of the arrow as shown in the figure to remove it.






5. Remove the back-up light bulb.






6. Install in the reverse order of removal.
