Pinout Values and Diagnostic Parameters

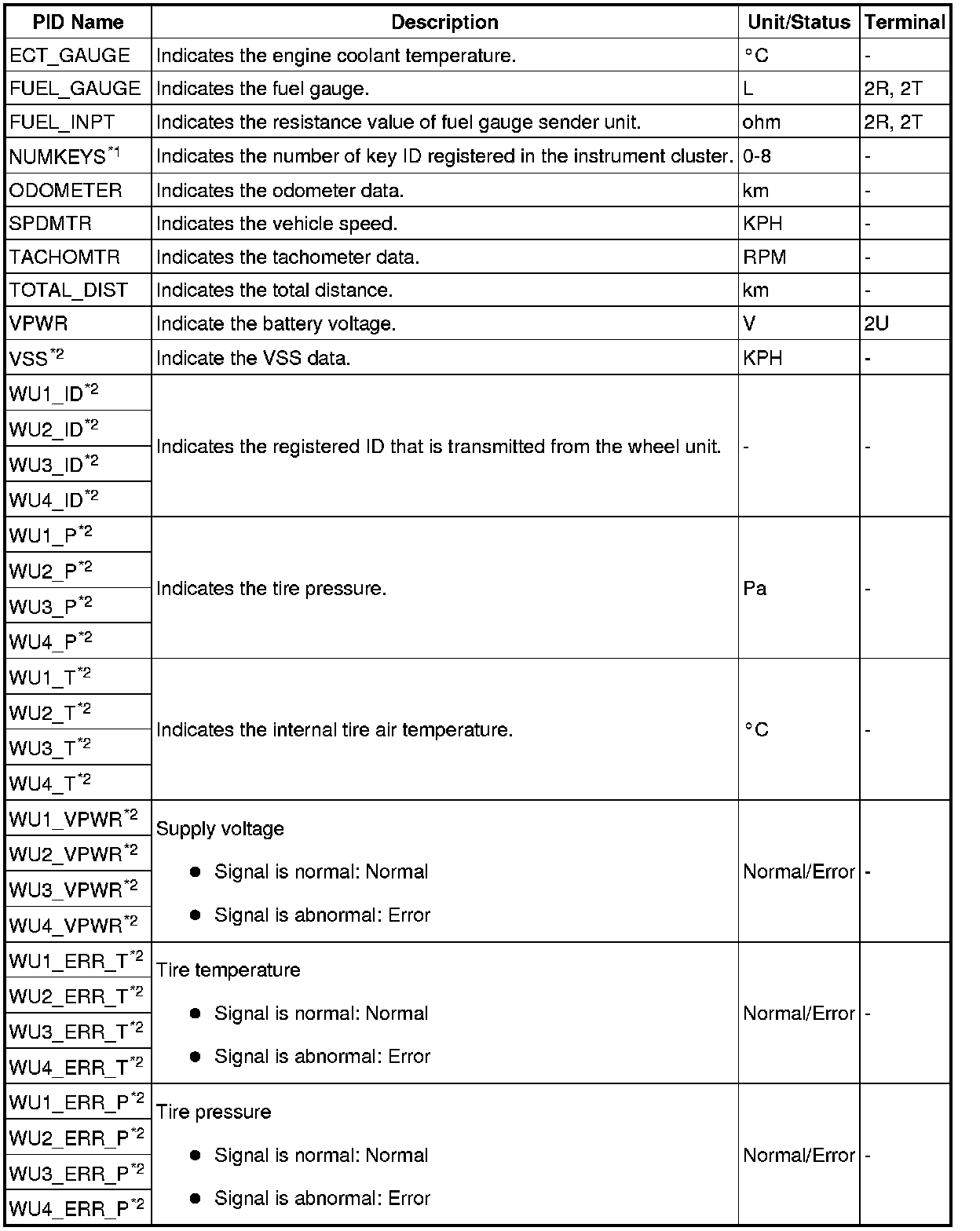

PID/DATA MONITOR TABLE [INSTRUMENT CLUSTER]
*1
Vehicles with keyless entry system
*2
Vehicles with tire pressure monitoring system
PID/DATA MONITOR TABLE [INSTRUMENT CLUSTER]
*1
Vehicles with keyless entry system
*2
Vehicles with tire pressure monitoring system
