No. 28 Fuel Filling Shut Off Concerns
No. 28 Fuel Filling Shut Off Concerns

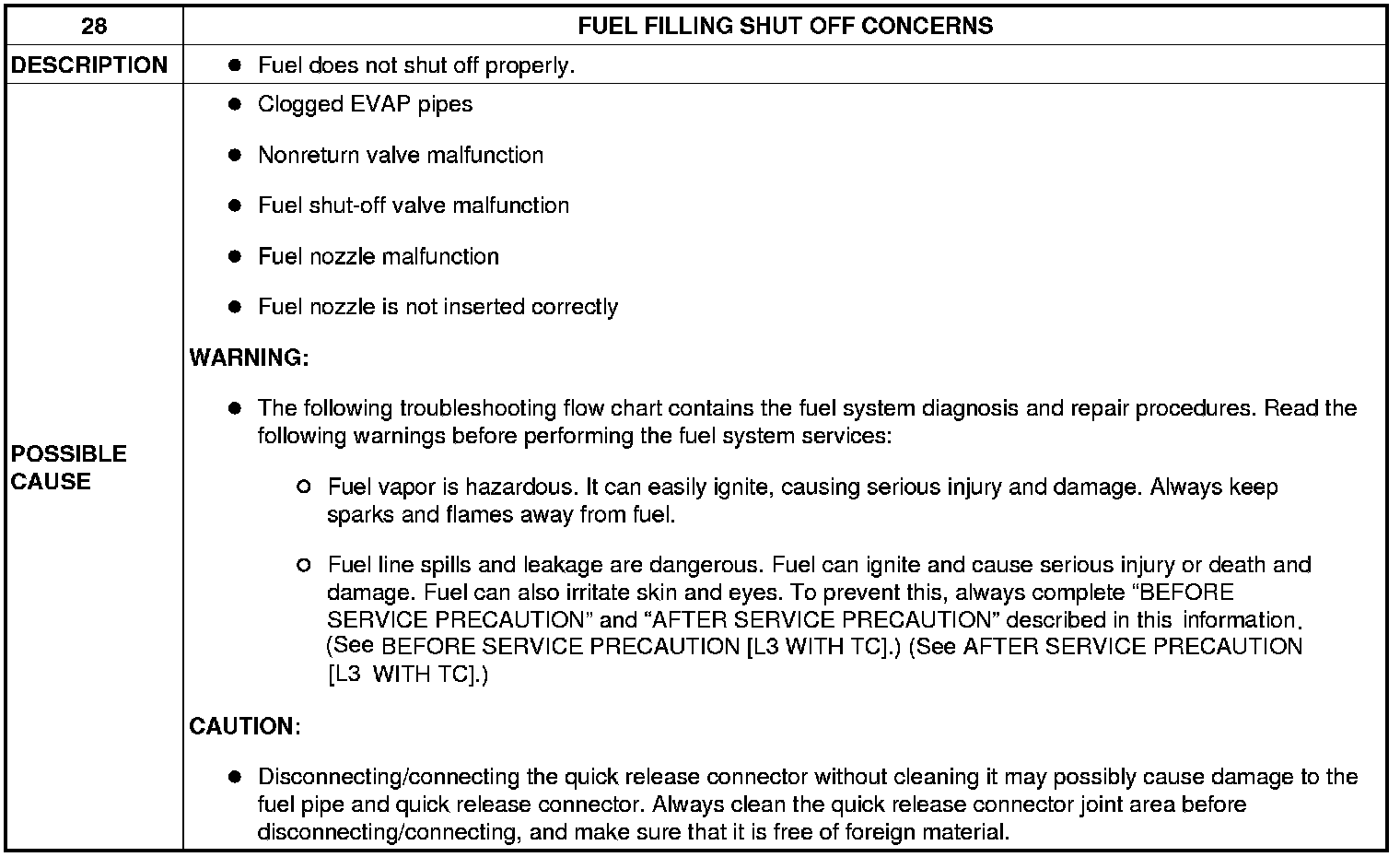

NO.28 FUEL FILLING SHUT OFF CONCERNS [L3 WITH TC]

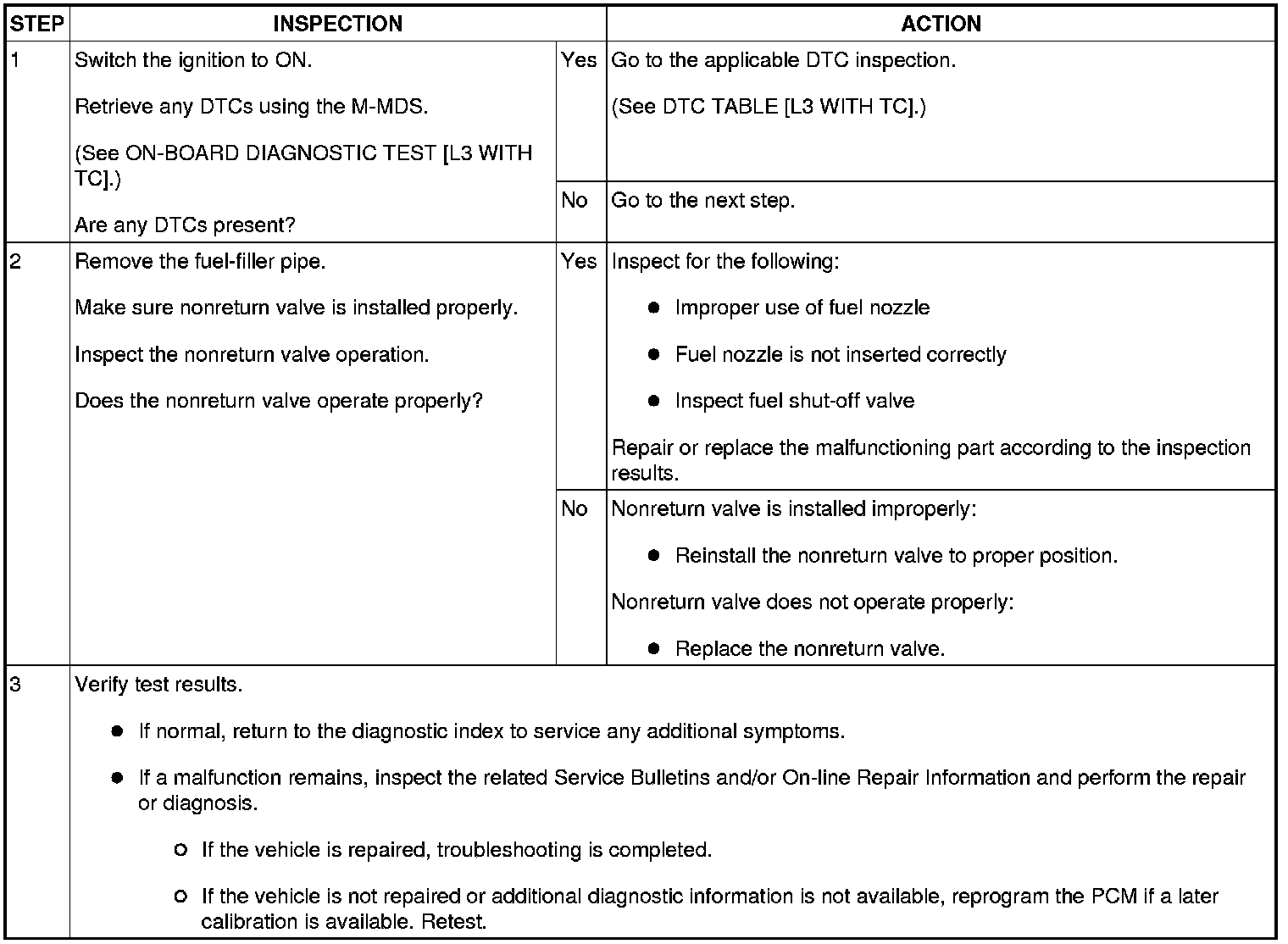

Diagnostic procedure
