No. 18 Cooling System Concerns-Runs Cold
No. 18 Cooling System Concerns-Runs Cold

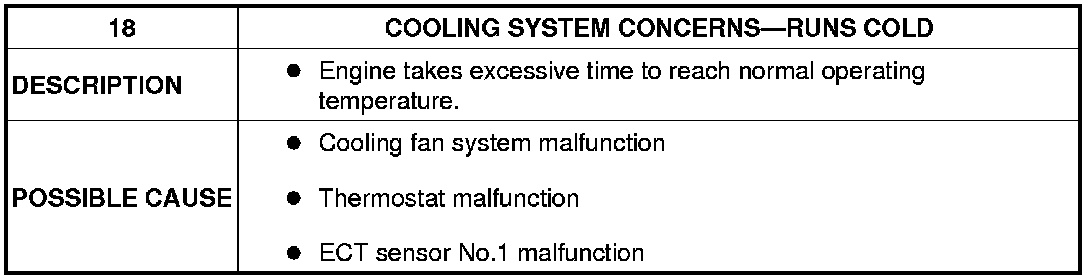

NO.18
COOLING SYSTEM
CONCERNS-RUNS COLD [L3 WITH TC]

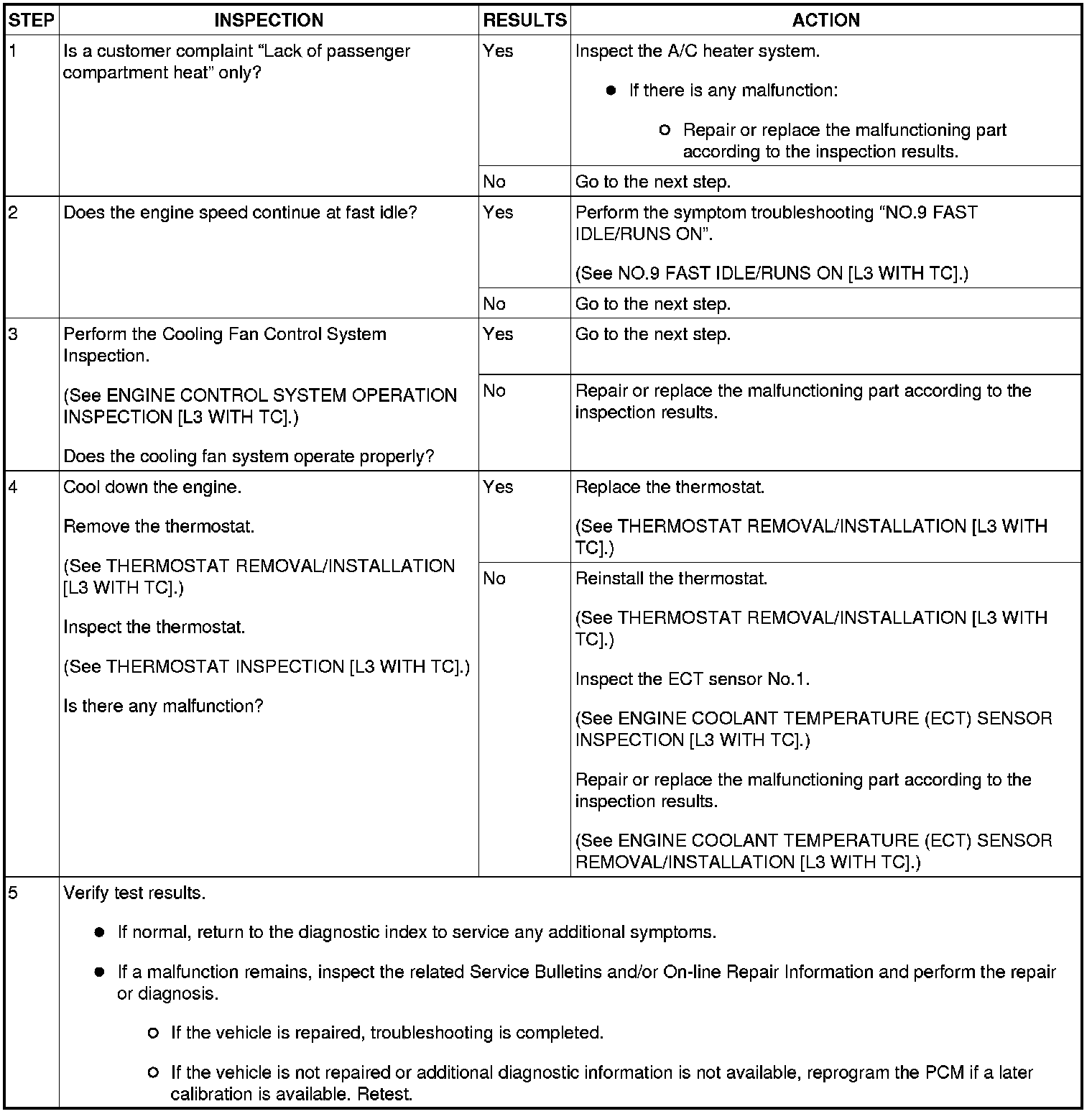

Diagnostic procedure
