No. 17 Cooling System Concerns-Overheating
No. 17 Cooling System Concerns-Overheating

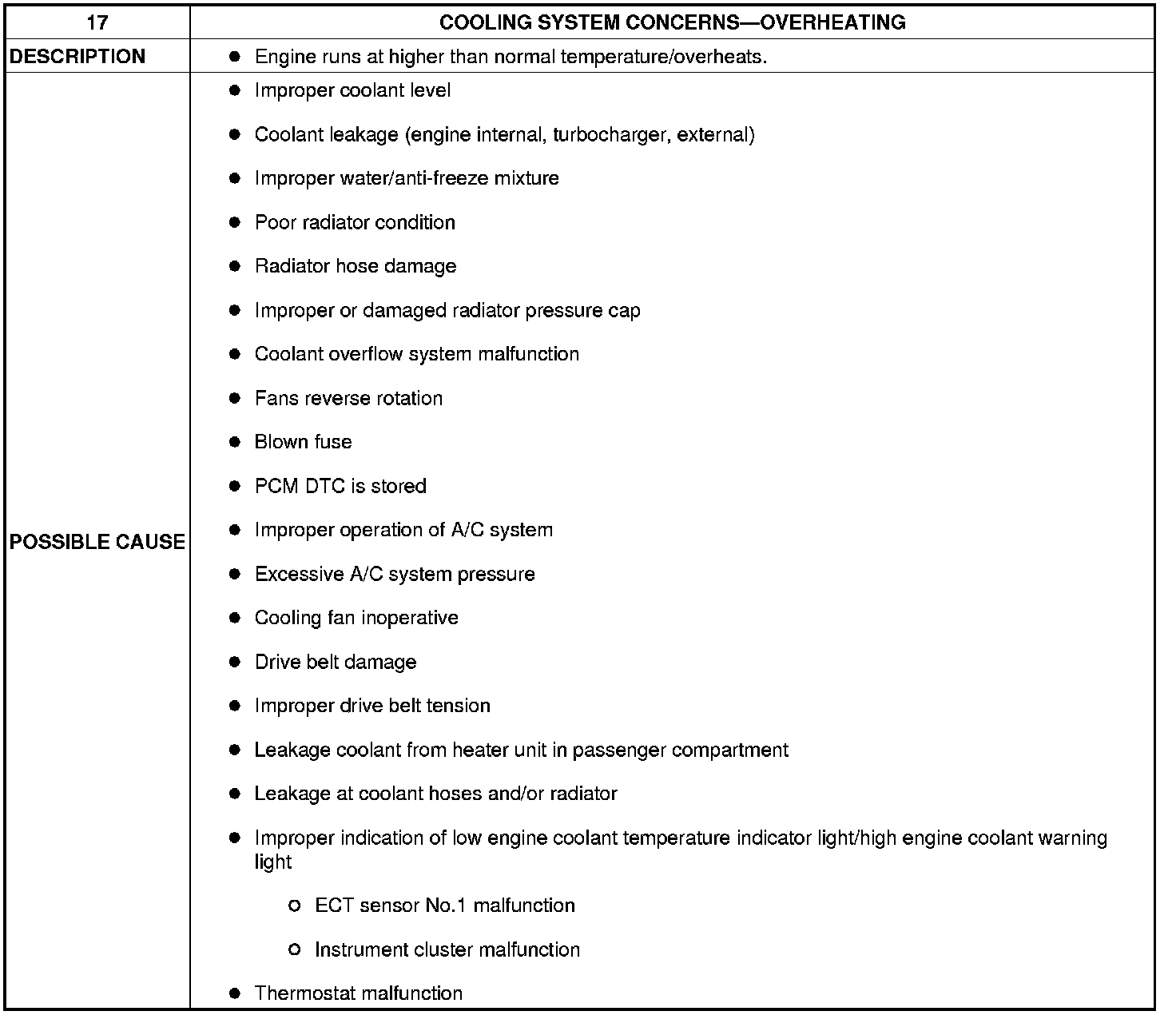

NO.17
COOLING SYSTEM
CONCERNS-OVERHEATING [L3 WITH TC]

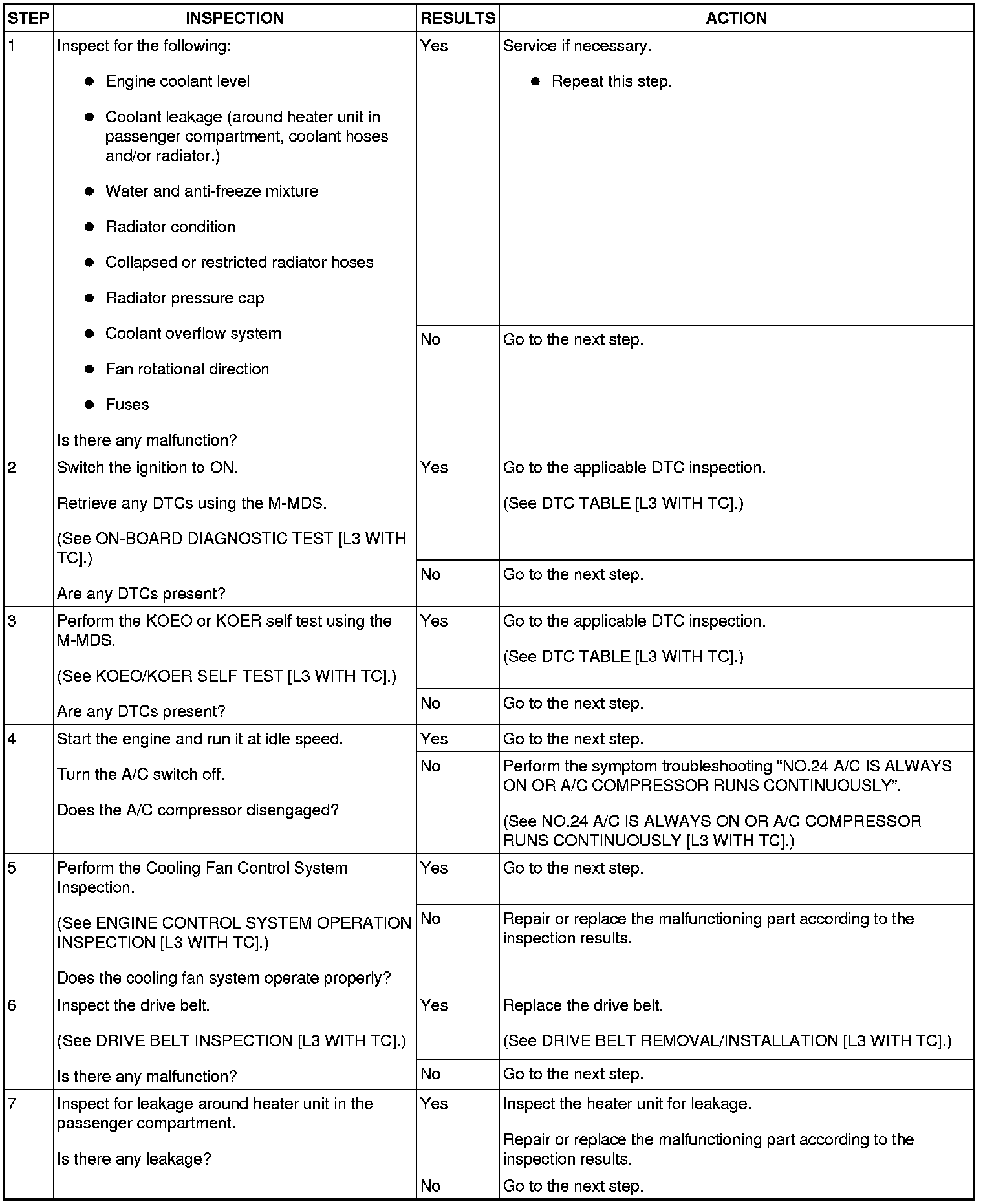

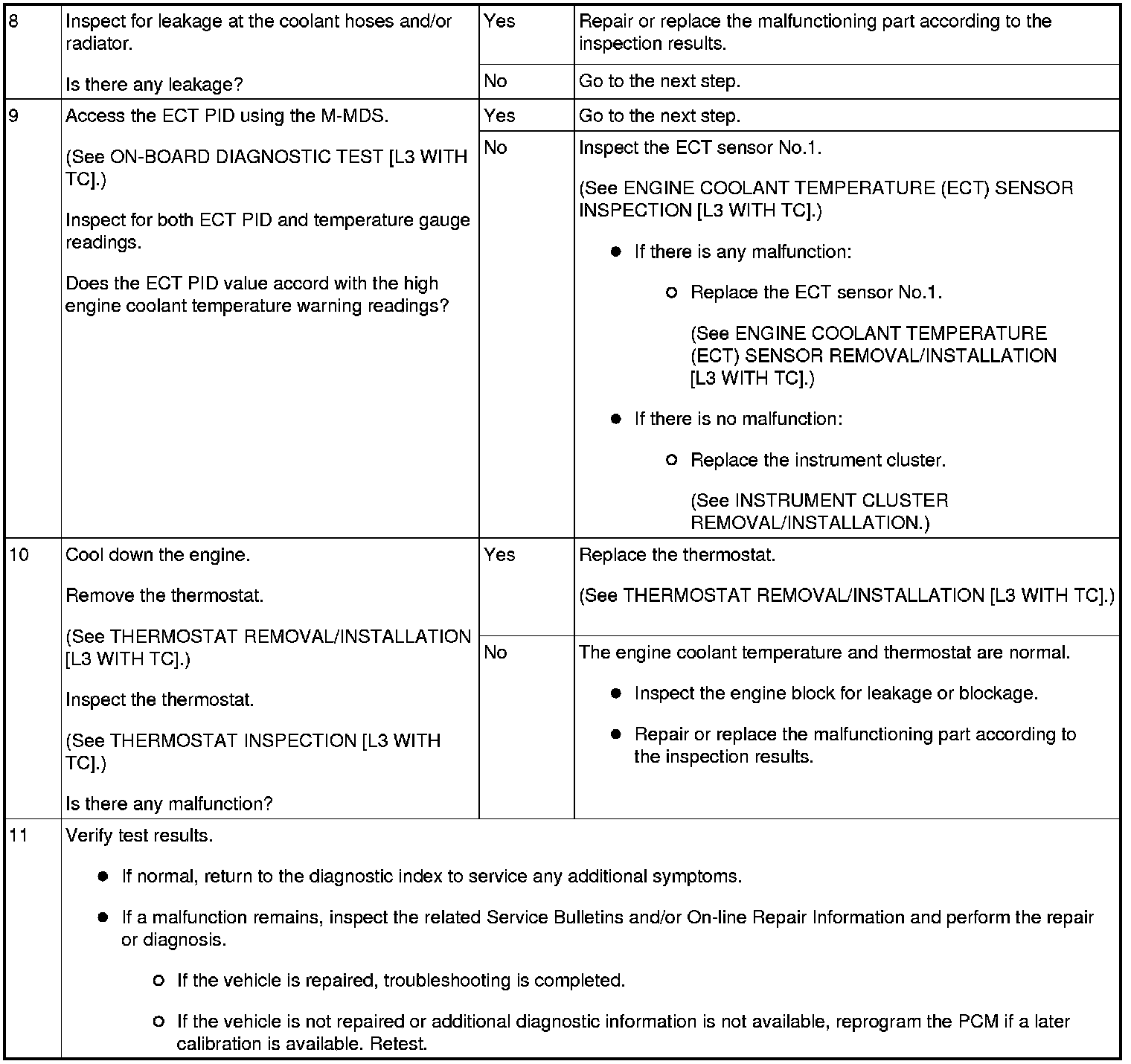

Diagnostic procedure
